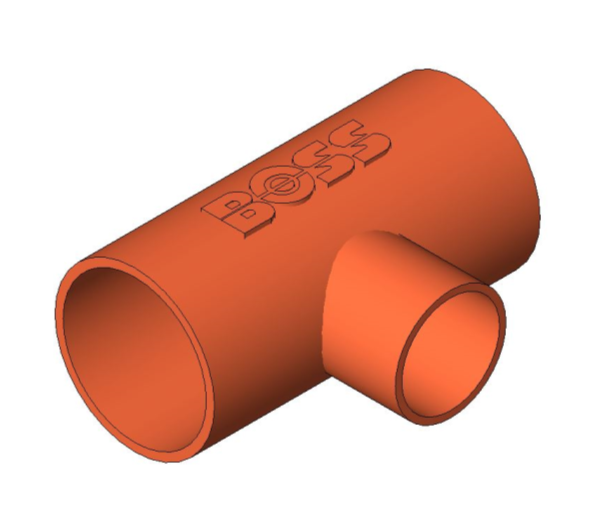

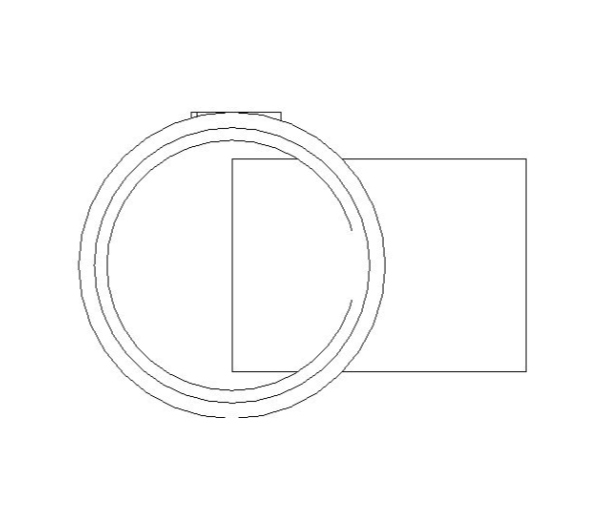

End Feed Fitting - Branch Reduced Tee

Object metadata

• _Authorwww.alusservices.co.uk
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.alusservices.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility PerformanceN/A
• AirYes
• ApplicationCopper Capillary Fittings
• ApprovalWRAS approved.
• Assembly CodeD2090800
• Asset TypeFixed
• BIM Object NameBOSS_PipeFittings_EndFeedFittings_BranchReducedTee
• BodyCopper
• Classification NameUniclass2015
• Classification ValuePr_65_52_63_18
• Code PerformanceN/A
• ColorCopper
• ConnectionCapillary
• ConstituentsN/A
• Created Byenquiries@bssgroup.com
• Created On2019-12-10 T09:00:00
• D128 mm
• D220 mm
• D317 mm
• D413 mm
• DescriptionBOSS Endfeed Branch Reduced Tee 22X15
• Documentation CertificatesN/A
• Documentation Installation GuideN/A
• Documentation LiteratureN/A
• Documentation MaintenanceN/A
• Documentation TechnicalN/A
• Duration Unityears
• EAN CodeN/A
• Expected Life0
• FeaturesFittings are manufactured to EN 1254. Available on sizes 6-54 mm. Quality assured in accordance with ISO9001:2008 from BSI. Copper fittings has been engineered for performance and backed by independent kitemark certification and WRAS approvals.
• FinishCopper
• Gas CombustibleYes
• Gas CorrosiveYes
• Gas InertNo
• Gas OxygenNo
• GPID CodeN/A
• GradeN/A
• Ifc Export AsIfcPipeFittingType.JUNCTION
• Ifc Export TypeIfcPipeFittingType
• K Coefficient0
• K Coefficient TableTee
• KeynoteS
• L125 mm
• L225 mm
• L324 mm
• Loss MethodNot Defined
• ManufacturerBSS BOSS Products
• Manufacturer NameBSS BOSS Products
• MaterialCopper
• Maximum Working Pressure25 Bar
• Maximum Working Temperature110°C
• ModelBOSS Endfeed Branch Reduced Tee 22X15
• Model Number62250598
• Model ReferenceBOSS Endfeed Branch Reduced Tee 22X15
• NBS DescriptionCopper pipeline fittings
• NBS Object NameBSS BOSS Products -Copper pipeline fittings
• NBS Office Master TagN/A
• NBS Reference90-10-65/315
• Nom Branch Dia15 mm
• Nominal Depth25 mm
• Nominal Dia22 mm
• Nominal Height36 mm
• Nominal Length50 mm
• Nominal Width50 mm
• OilYes
• Pressure DropN/A
• Production Year2019
• Referenced StandardEN1254-1
• Replacement CostN/A
• ShapeCylindrical
• Size22x15
• Spare PartsBOSS Technical Team Tel 0116 245 5940
• SteamYes
• Tubing OptionsN/A
• Type CommentsBOSS Endfeed Branch Reduced Tee
• Type NameBOSS Endfeed Branch Reduced Tee
• URLwww.bssindustrial.co.uk/products/boss
• Warranty DescriptionN/A
• Warranty Duration Labor0
• Warranty Duration Parts1
• Warranty Duration Unityears
• Warranty Guarantor Laborenquiries@bssgroup.com
• Warranty Guarantor Partsenquiries@bssgroup.com
• WaterYes
• WeightN/A
• Z18 mm
• Z28 mm
• Z312 mm
