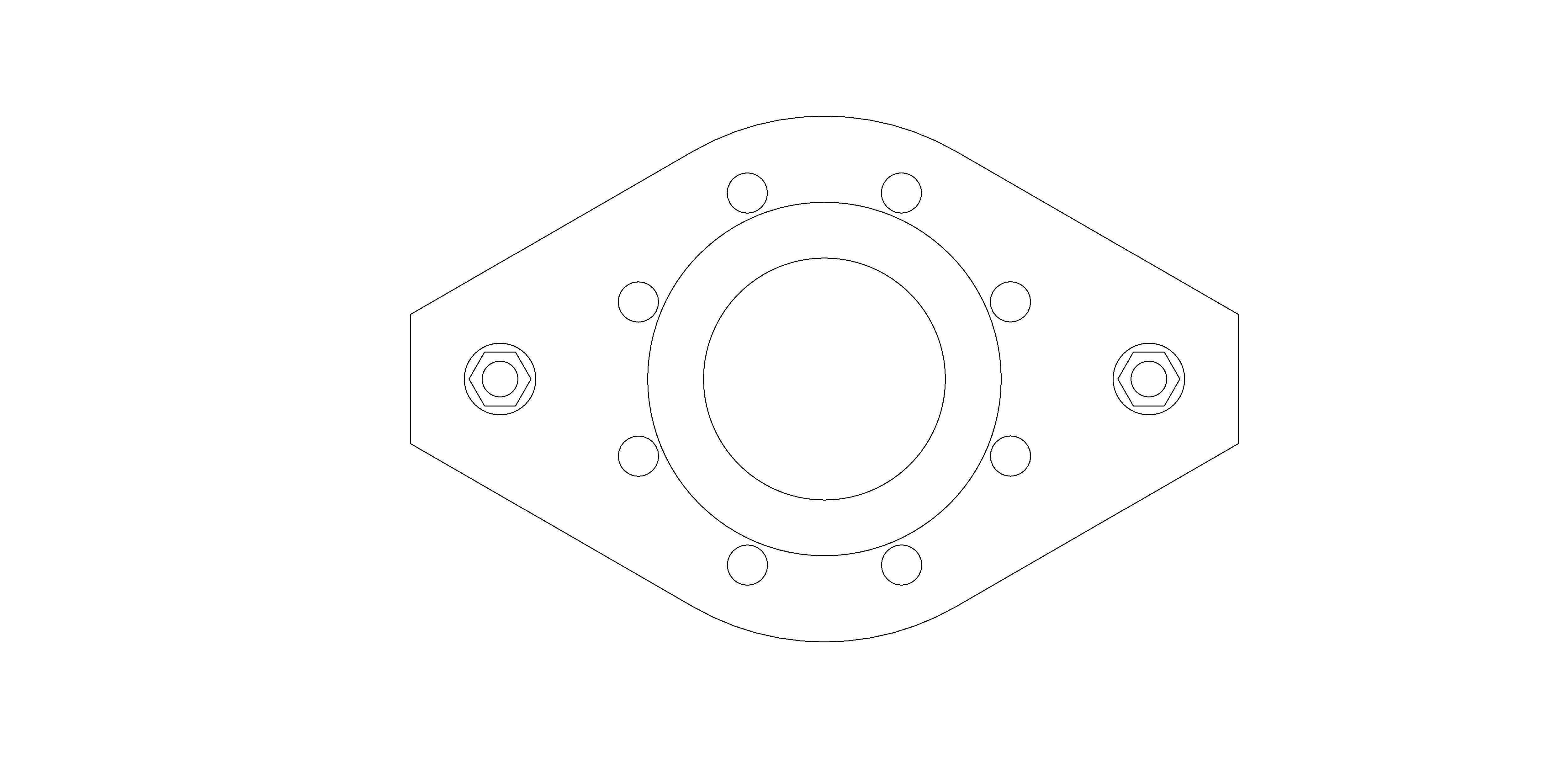

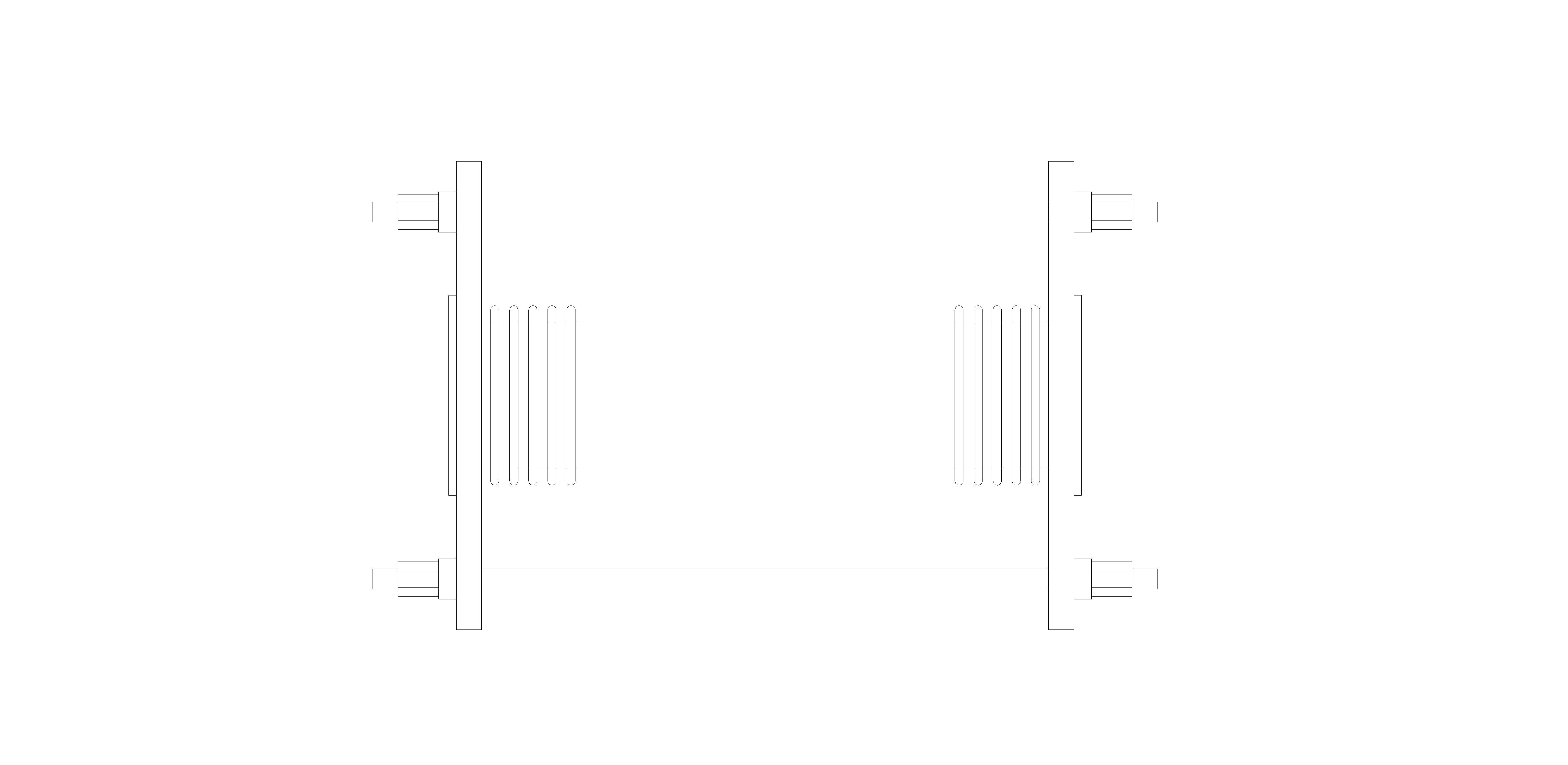

JP120 Lateral Expansion Joint Flanged

Now Available With Precision Fit Flexible Lagging Jackets To Suit JP120.

Specification

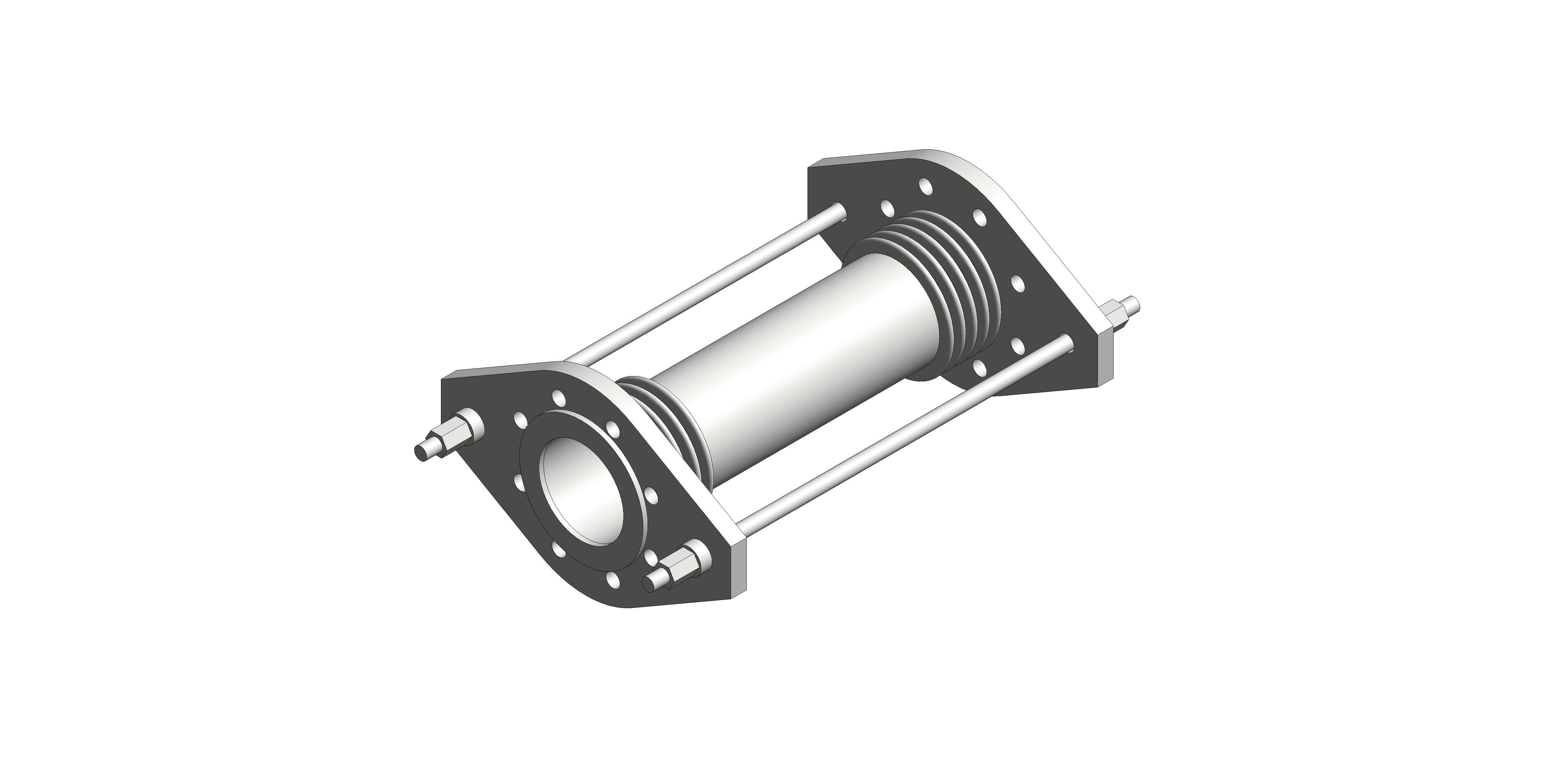

Double tied lateral expansion joint consisting of two stainless steel grade 321 bellows welded to carbon steel centre tube fitted with carbon steel oval flanges and tie bar assembly drilled to BS 4504 NP16.

Application

Stourflex double tied expansion joints are generally installed in changes in pipework direction and will accommodate lateral movement in one or two planes. This movement occurs due to thermal expansion or contraction or building settlement. They are suitable for use on L.T.H.W., M.T.H.W. , H.T.H.W., Steam and other hot liquids and gases.
Maximum working temperature 300ºC.
Maximum working Pressure 16 bar at 120ºC.
Stourflex lateral expansion joints should not be used at both their maximum working temperature and pressure respectively.
Maximum test pressure = 1.5 x working pressure or 1.5 x flange rating whichever the lower.

Lagging

Stourflex are now able to offer a tailor made flexible lagging jacket to help reduce heat losses on LTHW systems and heat gains & condensation on CHW systems

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/stourflex-jp120/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
Bellow Inside Diameter114 mm
Bellow L1300 mm
Bellow L267 mm
Bellow Outside Diameter142 mm
Bellow Width7 mm
BIM Object NameStourflex_LateralExpansionJoint_JP120
Classification NameUniclass 2015
Classification ValuePr_65_52_28_46
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byinfo@stourflex.co.uk
Created On2024-08-10T09:00:00
Default Elevation0 mm
DescriptionJP120 Lateral Expansion Joint Flanged
DN100 mm
Documentation Certificateswww.bimstore.co/products/stourflex-jp120/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/stourflex-jp120/document/installation-guide
Documentation Literaturewww.bimstore.co/products/stourflex-jp120/document/product-literature
Documentation Maintenancewww.bimstore.co/products/stourflex-jp120/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/stourflex-jp120/document/technical-data-sheet
Duration UnitYears
End Piece Offset54 mm
Expected Life0
Featuresn/a
Finishn/a
Flange End Diameter158 mm
Flange Length20 mm
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L16 mm
Length500 mm
ManufacturerStourflex
Manufacturer NameStourflex
Materialn/a
ModelJP120 Lateral Expansion Joint Flanged
Model NumberJP120
Model ReferenceExpansion Joints
NBS DescriptionLateral expansion compensators
NBS Noten/a
NBS Object NameStourflex - Lateral expansion compensators
NBS Office Master Tagn/a
NBS Reference90-10-60/330
No Bellow5
Nominal Depth370 mm
Nominal Height235 mm
Nominal Length620 mm
Outer Holes Centre Diameter290 mm
Pipe Inside Diameter108 mm
Pipe Inside Radius54 mm
Pipe Outside Diameter114 mm
Pipe Outside Radius57 mm
Primary MaterialStourflex - Stainless Steel Grade 321
Production Year2024
ReducedNo
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsinfo@stourflex.co.uk
StandardYes
Type CommentsJP120 Lateral Expansion Joint Flanged
Type NameJP120 Lateral Expansion Joint Flanged
URLstourflex.co.uk/products/jp120/
Wall Thickness3 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@stourflex.co.uk
Warranty Guarantor Partsinfo@stourflex.co.uk
Width370 mm
