Brecon CGL

by Cubicle Centre

Download Add to collection

Description

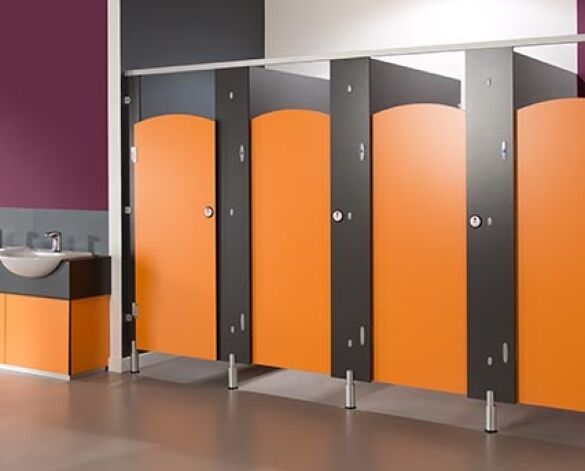

All the great features of the Brecon Junior school cubicles, but with some added brawn.

Compact Grade Laminate (CGL) panels teamed up with durable fittings mean your cubicles should never be out-of-order. Popular in schools washroom that feature shower areas or have a very high user volume.

Choose from square, arch, or reverse-curve door profiles, and from a range of vibrant colours.

http://www.washroomcubicles.co.uk/brecon-cgl-childrens-cubicles

Version 11 – Updates are base around our periodic maintenance schedule and feedback from our users.

Object Data

11 Revision

Last Updated

04/10/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

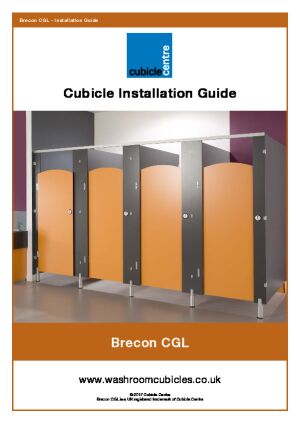

Installation Guide

Product Literature

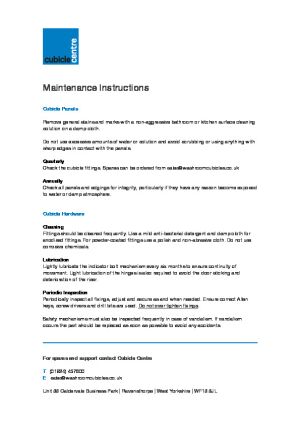

Maintenance Information

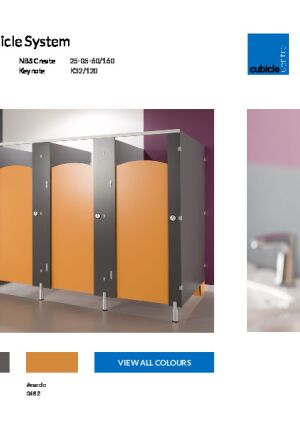

Technical Data Sheet

Product Data Sheet

Object metadata

_authorCubicle Centre
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.washroomcubicles.co.uk/
_Current Revision11
_Distributed Bywww.bimstore.co.uk/
Accessibility PerformanceMade to specification
Assembly CodeC1010500
Asset TypeFixed
AuthorCubicle Centre

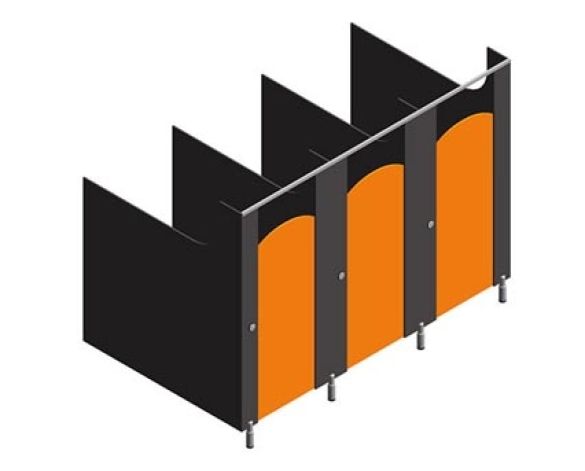

BIM Object NameCubicleCentre_PanelCubicleSystem_Brecon CGL
CategoryL2226 : Non-structural cubicles
Classification NameUniclass2015
Classification ValueSs_25_12_60_60
Code Performancen/a
Colorn/a
ConstituentsPanels, head rail, brackets, floor supports, hinges and latches
Created Bysales@washroomcubicles.co.uk
Created On1900-12-31T23:59:59
DescriptionA real tough cookie suited for children’s washrooms requiring a little extra muscle
Documentation Certificatesn/a
Documentation Installation Guidewww.washroomcubicles.co.uk/downloads/Installation_Guide-BreconCGL.pdf
Documentation Literaturewww.washroomcubicles.co.uk/downloads/Cubicle_Spec-BreconCGL.pdf
Documentation Maintenancewww.washroomcubicles.co.uk/downloads/Maintenance_Cubicles.pdf
Documentation Technicalwww.washroomcubicles.co.uk/brecon-cgl-childrens-cubicles/
Door offset25 mm
Duration Unityear
Expected Life20
FeaturesWater resistant compact grade laminate panels with anti-vandal fittings
Finishn/a
Floor Clearance155 mm
Graden/a
Ifc ProductIfcBuildingElementProxy
Ifc Type ProductIfcBuildingElementProxyType
KeynoteK32/120
Latch Height978 mm
LHS Corner PilasterYes
LHS End PilasterNo
LHS End Pilaster LegYes
LHS Floor to Ceiling PostNo
LHS Head Rail Extension0 mm
LHS Middle PilasterNo
LHS Middle Pilaster LegNo
Manufacturersales@washroomcubicles.co.uk
Manufacturer URLwww.washroomcubicles.co.uk/
MaterialCompact Grade Laminate
ModelBrecon CGL Cubicle System
Model NumberBrecon CGL
Model ReferenceBrecon CGL Cubicle System
NamePanel Cubicle System - Brecon CGL
NBS Description Panel Cubicle System
NBS Reference25-05-60/160
Nominal Height1955 mm
Nominal Length1500 mm
Nominal Width850 mm
Panel Thickness13 mm
Partition Panel Height1800 mm
Product Informationwww.washroomcubicles.co.uk/brecon-cgl-childrens-cubicles/
Production Yearn/a
Referenced Standardsn/a
Replacement Cost0
Revisionn/a
RHS Corner PilasterYes
RHS End PilasterNo
RHS End Pilaster LegYes
RHS Floor to Ceiling PostNo
RHS Head Rail Extension0 mm
RHS Middle PilasterNo
RHS Middle Pilaster LegNo
ShapeCuboid
Sizen/a
Spare Partsn/a
Sustainability Performancen/a
Top Cover Strip Length2109 mm
Type CommentsInline Cubile
Uniclass 2015 CodeSs_25_12_60_60
Uniclass 2015 TitlePanel Cubicle System
Uniclass 2015 VersionSystems v1.5
URLwww.washroomcubicles.co.uk/brecon-cgl-childrens-cubicles/
Version11
Warranty Description2 year warranty on parts
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@washroomcubicles.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
