The HIU is a complete package comprising of all components mounted on a frame, factory assembled and tested.

All Herz HIUs incorporate a first Fix rail with isolation ball valves to allow shell and core pipework to be completed without the HIU being fitted, this also aids maintenance once the unit is installed. First fix rail ball valves are fitted with drain valves to facilitate draining with integral test points fitted on the primary and secondary heating circuits on most units.

_Authorbimstore
_Authorized ByJY
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/caledonia-heat-interface-unit-hiu/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
Ball Valve Connections22mm compression (15mm adapter available)
Base Offset0 mm
BIM Object NameHerz_MechanicalEquiptment_HIU_Caledonia
Classification NameUniclass 2015
Classification ValuePr_60_60_38_36
Code Performancen/a
ColorWhite
Connection Size15 mm
Constituentsn/a
Created Bysales@herzvalves.com
Created On2020-12-02T:09:00:00
DescriptionThe Herz Caledonia Heat Interface Unit (HIU) provides domestic hot water and space heating to properties that are serviced from district heating or central boiler plants. The HIU comprises of one heat exchanger for the DHW providing instant hot water at a safe regulated temperature. The HIU is direct so the property space heating is supplied directly from the primary heating circuit via the HIU.
Documentation Certificateswww.bimstore.co/products/caledonia-heat-interface-unit-hiu/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/caledonia-heat-interface-unit-hiu/document/installation-guide

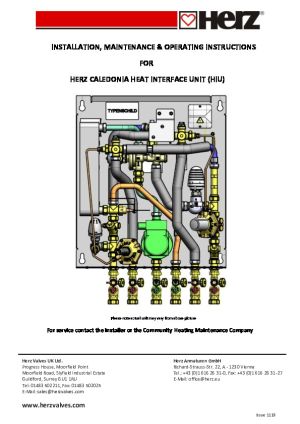

Documentation Literaturewww.bimstore.co/products/caledonia-heat-interface-unit-hiu/document/product-literature
Documentation Maintenancewww.bimstore.co/products/caledonia-heat-interface-unit-hiu/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/caledonia-heat-interface-unit-hiu/document/technical-data-sheet
Door Height150 mm
Door Offset89 mm
Door Width300 mm
Duration UnitYears
Expected Life10
FeaturesProvides domestic hot water and space heating to properties. Hydraulic separation for the DHW only with a single heat exchanger. Continuous primary heating flow enables an unlimited supply of domestic hot water when required Differential Pressure control valve fitted over the primary flow and return within the unit to protect the HIU from high system pressure and to regulate flowrate. Differential Pressure control/zone valve fitted over the secondary flow and return within the unit to protect the space heating circuit from high system pressure. Thermostatic temperature control regulates the hot water temperature. Pressure Temperature Control Valve allows the DHW heat exchanger to operate on demand only. Hot water priority valve maximises the temperature at the DHW heat exchanger “Summer Bypass” to maintain a minimum primary supply temperature when the space heating is not in use. Minimised risk of lime scale formation and legionella bacteria. Low return temperature in the primary maximises efficiency in the system. Optional heat meter with pulse output, wireless operation or M Bus output. Optional MCW booster pump. Easy to install with minimal installation space required Option available for top entry. Drain valves fitted to ball valves to facilitate easy draining for maintenance. All water services to the apartment can be isolated at one point within the HIU
FinishWhite
Graden/a
Height780 mm
Ifc Export AsIfcHeatExchangerType
Ifc Export TypePLATE
K Coefficient0
KeynoteS51
ManufacturerHerz Valves UK Ltd
MaterialSteel
Maximum DHW Output63kW
Maximum DHW Temperature55°C
Maximum Primary Supply Temperature90°C
Maximum Working Pressure DHW Side10 bar
Maximum Working Pressure Primary Side10 bar
Minimum DP50kPa
Minimum Dynamic Cold Water Pressure0.5 bar
ModelHerz - Caledonia Heat Interface Unit
Model Numbern/a
NBS DescriptionHeat interface units
NBS Noten/a
NBS Object NameHerz - Heat interface units
NBS Office Master Tagn/a
NBS Reference90-40-45/370
Nominal Height780 mm
Nominal Length535 mm
Offset74 mm
Opening Depth200 mm
Opening Width500 mm
Production Year2020
Referenced Standardn/a
Replacement Cost0
ShapeRectangle
Size535mm(W)x220mm(D)x780mm(H)
Spare Partsn/a
Total Unit Weight35kg
Type CommentsHeat Interface Unit
Type NameHeat Interface Unit
URLwww.herzvalves.com
Warranty Description5 Years
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborsales@herzvalves.com
Warranty Guarantor Partssales@herzvalves.com
Width535 mm
