Cistern Box Kit

42.8k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

12 Revision

Last Updated

04/10/2018

Download BIM

Add to collection

Available for:

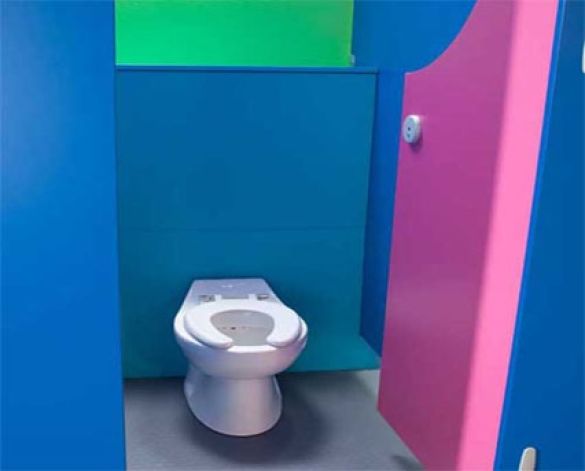

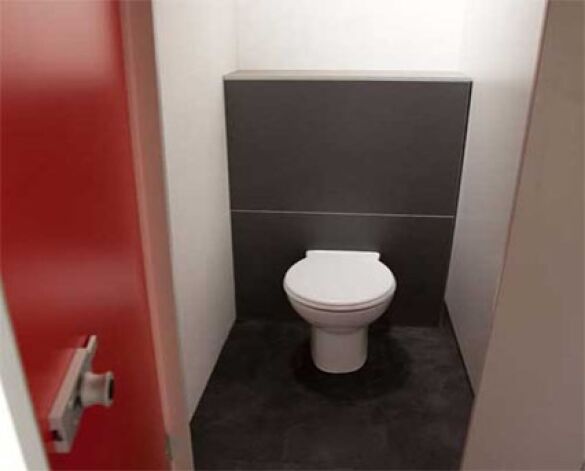

Available in Melamine Faced Chipboard (MFC), High Pressure Laminate (HPL) or Compact Grade Laminate (CGL), cistern-box kits measure 1200mm (high) X 300mm (deep) as standard and fit your internal cubicle width(s).

This product can also be manufactured to suit your individual site requirements, simply provide us with your measurements. (Timber frame supplied by other).

All colour options from the Cubicle Centre range included.

http://www.washroomcubicles.co.uk/toilet-cistern-boxing/

Version 12 – Updates are base around our periodic maintenance schedule and feedback from our users.

_authorCubicle Centre
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.washroomcubicles.co.uk/
_Current Revision12
_Distributed Bywww.bimstore.co.uk/
Accessibility PerformanceMade to specification
Assembly CodeC3010140
Asset TypeFixed
AuthorCubicle Centre

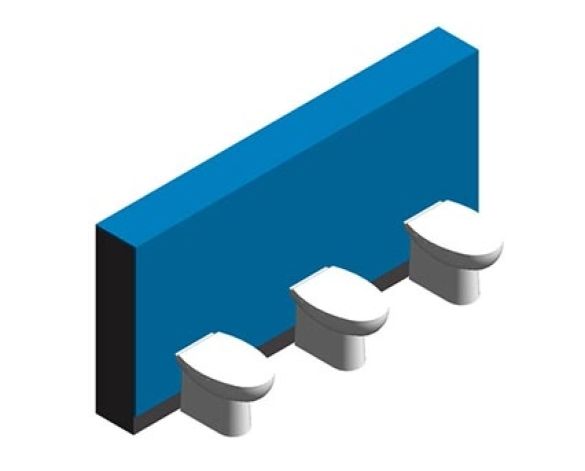

BIM Object NameCubicleCentre_CisternBoxingMFC
Bottom PanelYes
CategoryL516 : Wall linings
Cistern TopYes
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
Colorn/a
ConstituentsFront panels, Plinth, Lid and clips
Created Bysales@washroomcubicles.co.uk
Created On1900-12-31T23:59:59
Depth50 mm
DescriptionCistern Boxing panel kits are available as an alternative to the full height option
Documentation Certificateswww.washroomcubicles.co.uk/downloads/Cubicle-Centre-FSC.pdf

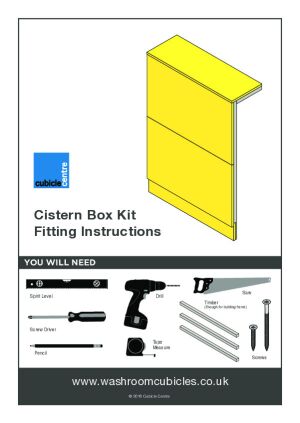

Documentation Installation Guidewww.washroomcubicles.co.uk/downloads/Installation_Guide-CisternBoxing.pdf
Documentation Literaturewww.washroomcubicles.co.uk/downloads/WallPanel_Spec-Cubicle_Centre.pdf
Documentation Maintenancewww.washroomcubicles.co.uk/downloads/Maintenance_Cubicles.pdf

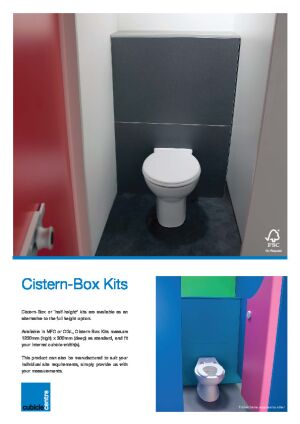

Documentation Technicalwww.washroomcubicles.co.uk/toilet-cistern-boxing/
Duration Unityear
Expected Life10
FeaturesManufactured to suit your individual site requirements
Finishn/a
Graden/a
Height1200 mm
Ifc ProductIfcBuildingElementProxy
Ifc Type ProductIfcBuildingElementProxyType
KeynoteK32/140
Manufacturersales@washroomcubicles.co.uk
Manufacturer URLwww.washroomcubicles.co.uk/
MaterialMelamine Faced Chipboard
ModelToilet Cistern Boxing
Model NumberToilet Cistern Boxing
Model ReferenceCistern Boxing
NameCistern Boxing
NBS DescriptionCistern Boxing
NBS Reference25-85-45/120
Nominal Height1200 mm
Nominal Length850 mm
Nominal Width300 mm
Panel Height1075 mm
Panel Overlap25 mm
Panel Thickness18 mm
PlinthYes
Product Informationwww.washroomcubicles.co.uk/toilet-cistern-boxing/
Production Yearn/a
Referenced Standardsn/a
Replacement Cost0
Revisionn/a
ShapeCuboid
Sizen/a
Spare Partsn/a
Sustainability PerformanceFSC certified on request
Top PanelYes
Type CommentsToilet Cistern Boxing
Uniclass 2015 CodeSs_25_25_45_25
Uniclass 2015 TitleDuct and wall panel lining systems
Uniclass 2015 VersionSystems v1.5
URLwww.washroomcubicles.co.uk/toilet-cistern-boxing/
Version12
Warranty Description2 year warranty on parts
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@washroomcubicles.co.uk
