Cubio Bench OH Kit 15-01

by Bott Ltd

Download Add to collection

Description

Overhead rear frame kit for cubio framework benches. Attached to the rear of the bench framework, these kits provide rear ergonomic storage solutions with a variety of options including shelves, power, light and rear storage panels.

Application: Workshop, garage, factory

Key Features:

10 year warranty

Object Data

1 Revision

Last Updated

06/04/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

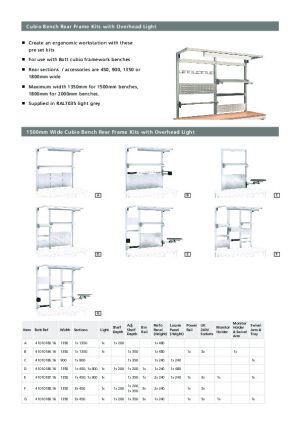

Technical Data Sheet

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cubio-bench-oh-kit-15-01/document/object-user-guide
Accessibility Performancen/a
Assembly CodeE2020
Asset TypeMovable
BIM Object Namebott_Casework_CubioBenchOhKit_41010185
Classification NameUniclass2015
Classification ValuePr_40_30_78_27
Code Performancen/a
ColorLight Grey
Constituentsn/a
Created Byinfo@bottltd.co.uk
Created On2021-03-17T09:00:00
Depth350 mm
Description900mm wide rear frame. Complete with 350mm deep adjustable angle shelf, half height perfo panel and half height louvre panel. Kit also includes a swivel arm & tray.
Documentation Certificateswww.bimstore.co/products/cubio-bench-oh-kit-15-01/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/cubio-bench-oh-kit-15-01/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cubio-bench-oh-kit-15-01/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cubio-bench-oh-kit-15-01/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cubio-bench-oh-kit-15-01/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishPowder Coated
Graden/a
Height1720 mm
Ifc Export AsIfcFurniture
Ifc Export TypeIfcFurnitureTypeEnum.SHELF
ManufacturerBott Ltd
Manufacturer NameBott Ltd
MaterialSteel
ModelCubio Bench OH Kit
Model Number41010185
Model ReferenceCubio Bench OH Kit
NBS DescriptionEquipment storage racks
NBS Object Namebott - Equipment storage racks
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth350 mm
Nominal Height1720 mm
Nominal Length1466 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size1500(W)mm x 350(D)mm x 1720(H)mm
Spare Partsn/a
Type Comments41010185
Type Name1500(W)mm x 350(D)mm x 1720(H)mm - 41010185
Unit Depth350 mm
Unit Height1720 mm
Unit Materialbott, Metal, Powder Coated, RAL7035, Light Grey
Unit Width1466 mm
URLwww.bottltd.co.uk/workplace-storage/product-catalogue/41010185-16-1-5m-cubio-bench-oh-kit-15-03.html
Warranty DescriptionAll Bott manufactured workplace storage products benefit from a 10 year guarantee.
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@bottltd.co.uk
Width1466 mm
