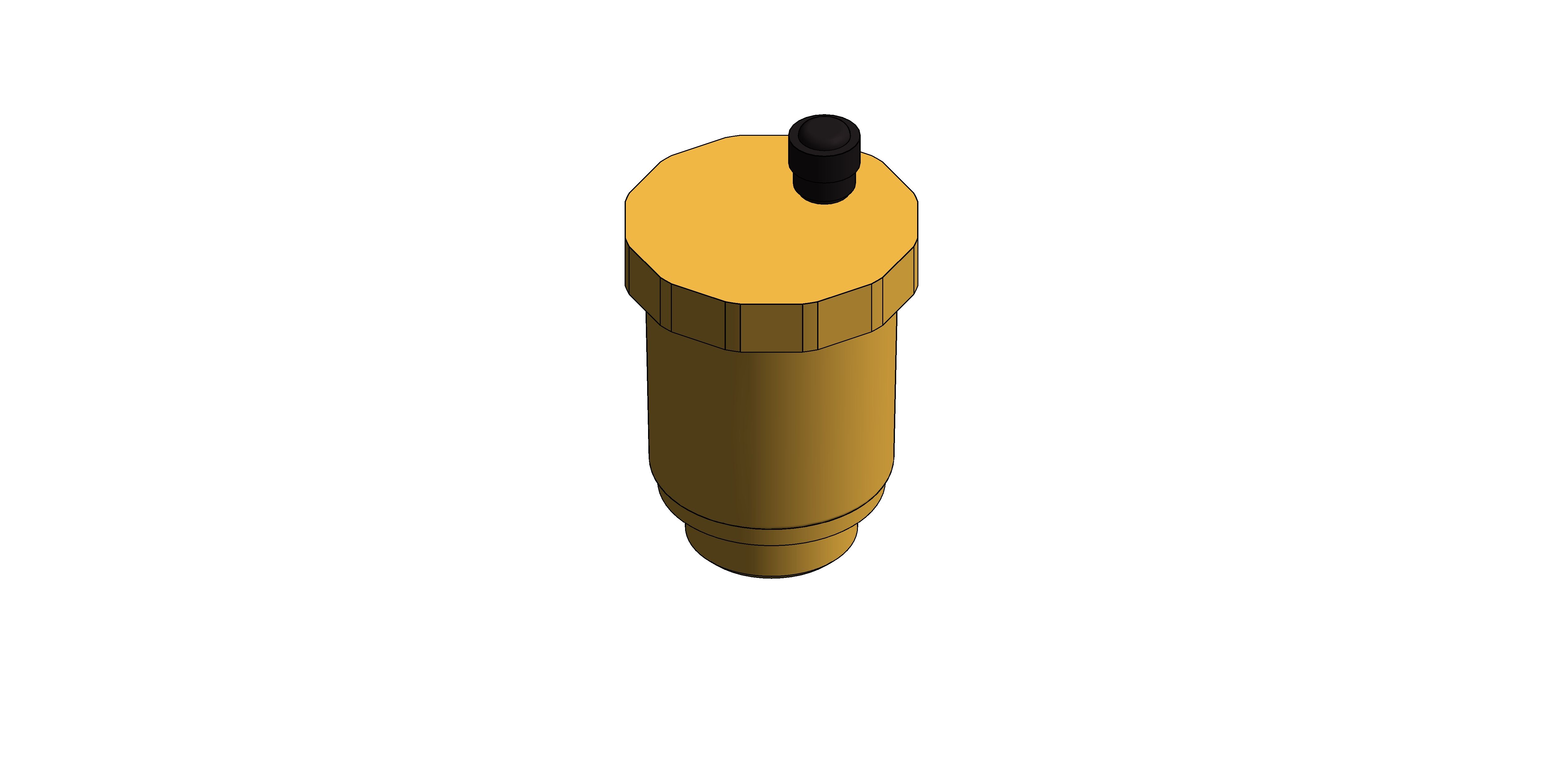

D2003 / D2004 - Automatic Air Vent - Brass

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/d2003-d2004-automatic-air-vent-brass/document/object-user-guide
• 1"Yes
• 1/2"No
• 3/4"No
• 3/8"No
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• BIM Object NameCraneFS_AutomaticAirVent_D2003/D2004
• BodyBrass EN12165 - CW617N
• Body Isolation ValveBrass EN 12164 - CW614N
• Classification NameUniclass 2015
• Classification ValuePr_65_54_24_02
• Code Performancen/a
• Colorn/a
• Connection Size25.00 mm
• Connection Size Radius12.50 mm
• Constituentsn/a
• CoverBrass EN12165 - CW617N
• Created Byenquiries@cranefs.com
• Created On2022-03-01 T:09:00:00
• D2004No
• DescriptionRemoves inevitable potentially dangerous air trapped in system. Simplifies the venting process. Saves time and costs. WRAS approved for closed circuit use only. A shut-off valve option is available in size 1/2 inch. Please specify when ordering D2004. Conforms to design standard BS EN 1074-4.
• Documentation Certificateswww.bimstore.co/products/d2003-d2004-automatic-air-vent-brass/document/product-certificates

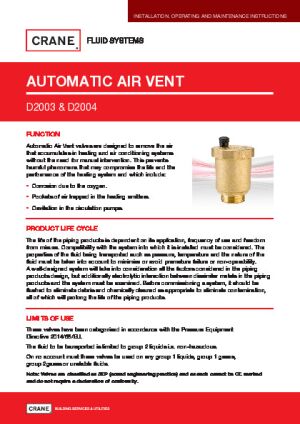

• Documentation Installation Guidewww.bimstore.co/products/d2003-d2004-automatic-air-vent-brass/document/installation-guide

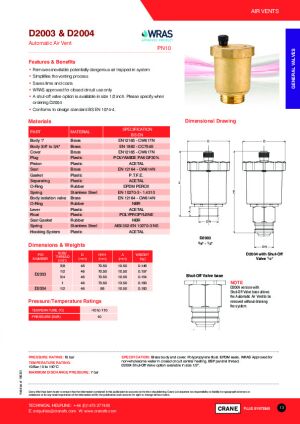

• Documentation Literaturewww.bimstore.co/products/d2003-d2004-automatic-air-vent-brass/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/d2003-d2004-automatic-air-vent-brass/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/d2003-d2004-automatic-air-vent-brass/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• FeaturesD2004 version with Shut-Off Valve base allows the Automatic Air Vent to be removed without draining the system.
• Finishn/a
• FloatPlastic Polypropelene
• GasketPlastic PTFE
• Graden/a
• Hooking SystemPlastic Acetal
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• K Coefficient0
• KeynoteS
• LeverPlastic Acetal
• Loss MethodK Coefficient
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• Maximum Discharge Pressure7 bar
• ModelD2003
• Model NumberD2003
• Model ReferenceD2003 Automatic Air Vent - Brass
• NBS DescriptionAir admittance valves
• NBS Noten/a
• NBS Object NameCrane FS - Air admittance valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/400
• Nominal Depth46.00 mm
• Nominal Height71.00 mm
• Nominal Length46.00 mm
• O-RingRubber EPDM Perox
• Offset3.50 mm
• PistonPlastic Acetal
• PlugPlastic Polyamide PA6 GF30%
• Pressure Rating10 bar
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• SeatBrass EN 12164 - CW614N
• Seat GasketRubber NBR
• SeparatingPlastic Acetal
• Shapen/a
• Size1"
• Spare Partsn/a
• Specification NotesBrass body and cover. Polypropylene float. EPDM seals. WRAS Approved for non-wholesome water in closed circuit central heating. BSP parallel thread. D2004 Shut-Off Valve option available in size 1/2”.
• SpringStainless Steel EN 10270-3 - 1.4310
• Temperature Rating10 Bar / 0 to 110°C
• Type CommentsD2003 Automatic Air Vent - Brass
• Type NameD2003 Automatic Air Vent - Brass
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
