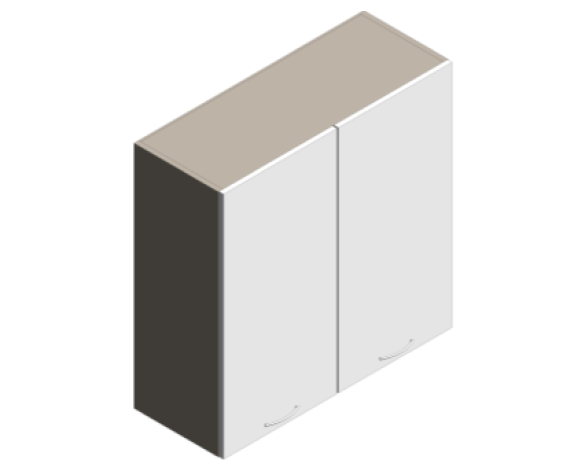

Definitive - Double Wall Units

by Moores

Download Add to collection

Description

Moores’ Definitive range guarantees you kitchens without compromise, either in quality or functionality. With the very latest colours and designs, the Definitive range is bound to become your first choice… and the last word in quality kitchens.

A brilliantly constructed kitchen cabinet, the M3 comes in five stunning colour finishes that make it easy to create the perfect look. It also includes colour-coordinated internals and concealed clip on hinges to ensure every cabinet is on the cutting edge of fashion.

Key Features

Pre assembled glue and dowel construction
ABS edging
Concealed clip-on hinges are fitted to all kitchens with a variety of options available
Door fronts can easily be detached
Hanging brackets are an optional feature on wall units.
Stapled HDF back

Products: 683 2 / 693 2 / 6103 2 / 6123 2 / 783 2 / 793 2 / 7103 2 / 7123 2 / 983 2 / 993 2 / 9103 2 / 9123 2

Object Data

1 Revision

Last Updated

14/05/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorIan Holmes
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
1 Shelf Offset300 mm
Accessibility Performancen/a
Assembly CodeC1030410
Asset TypeFixed
Back Board Thickness8 mm
BIM Object NameMoores_Casework_Definitive_SingleWallUnits
Classification NameUniclass2015
Classification ValuePr_40_30_78_45
Code Performancen/a
ColorVariable
Constituentsn/a
Construction Typen/a
Created Bydirect@moores.co.uk
Created On2017-09-29T00:00:00
Default Elevation0 mm
Depth330 mm
DescriptionDoors on wall units can be hinged left or right - please specify when ordering. Use the suffix RHH for Right Hand Hinged and LHH for Left Hand Hinged. All wall units are 330mm deep (nominal). 600mm and 740mm high units have one shelf, 900mm high units have two shelves as standard. Please note the style of glazed frontage is range specific, as shown on page 13, for illustration purposes modern glass frontages have been used.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2317
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2318
Door MaterialMoores_Modern_Maida_GlossWhite
Duration UnitYears
Expected Life0
Featuresn/a
FinishGlossy
Frame Thickness18 mm
Graden/a
Handle FinishSteel, Chrome Plated
Height600 mm
Ifc Export AsIfcFurnitureTypeEnum.SHELF
Ifc Export TypeIfcFurniture
KeynoteN10/135
ManufacturerMoores Furniture Group Ltd
Manufacturer NameMoores Furniture Group Ltd
Materialn/a
ModelDefinitive - Wall Units
Model Number61032
Model ReferenceDefinitive - Wall Units
NBS DescriptionKitchen storage units
NBS Object NameMoores Furniture Group Ltd - Kitchen storage units
NBS Office Master Tagn/a
NBS Reference45-35-80/340
Nominal Depth330 mm
Nominal Height600 mm
Nominal Length1000 mm
Production Year2017
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Size1000mm(w) x 600mm(h) x 330mm(d)
Spare Partsn/a
Swing Zone Radius495 mm
Type CommentsDouble Wall Units
Type NameDouble Wall Units
Unit MaterialMoores_Modern_Elba_WarmGrey
URLwww.moores.co.uk/definitive/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsdirect@moores.co.uk
Width1000 mm
