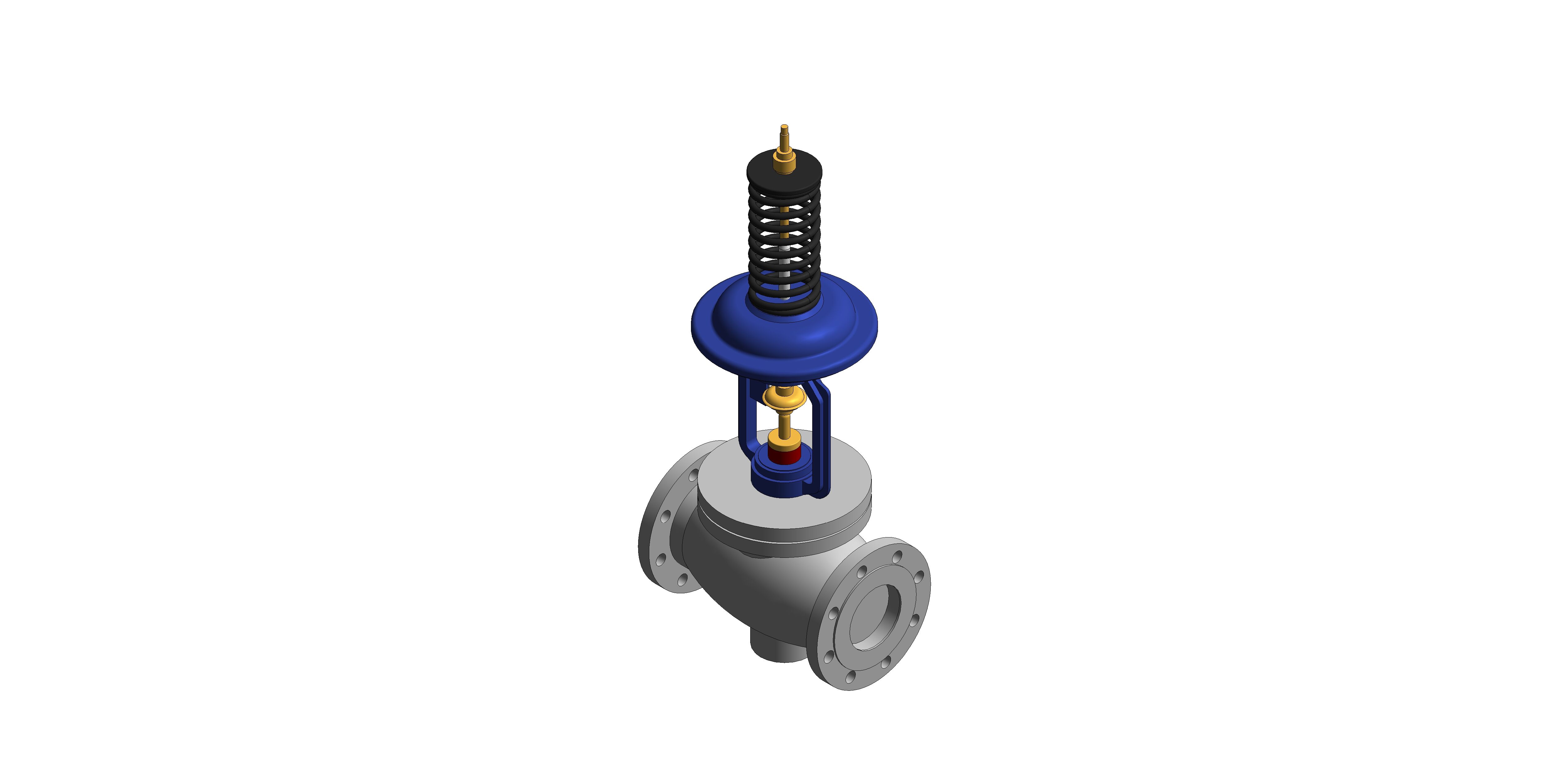

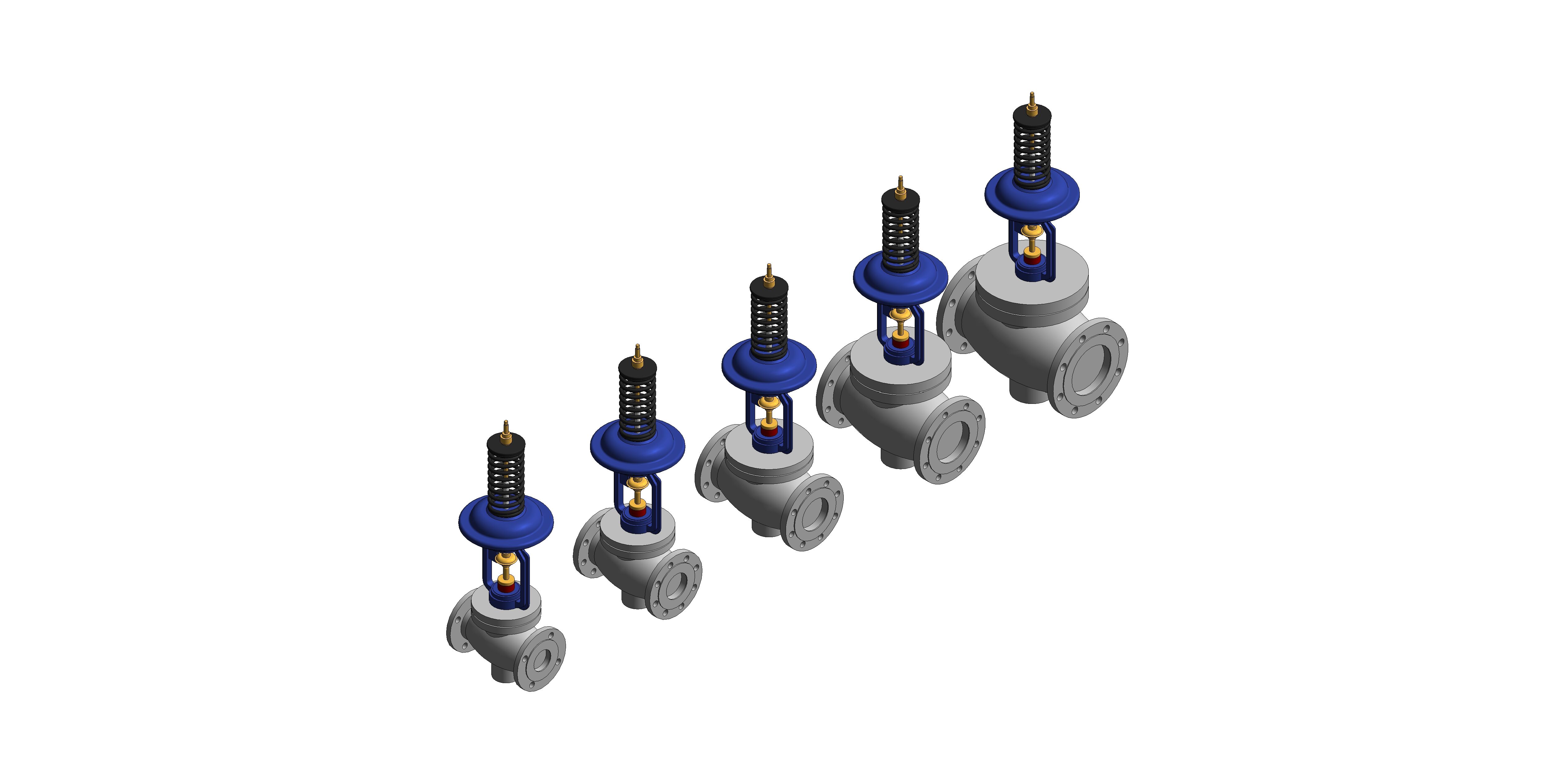

DP971F - Differential Pressure Control Valve - Cast Iron

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• a93.00 mm
• Accessibility Performancen/a
• Actuator SpindleStainless Steel 316
• Adjust ScrewB16 C36000 (Brass)
• a Rad78.00 mm
• Assembly CodeD20
• Asset TypeFixed
• b97.00 mm
• BIM Object NameCraneFS_DifferentialPressureControlValve_DP971F
• BodyCast Iron ASTM A48-CL30
• c48.00 mm
• Classification NameUniclass 2015
• Classification ValuePr_65_54_95_25
• Code Performancen/a
• Colorn/a
• ConeCast Bronze ASTM B584-C836
• Cone StemStainless Steel 316
• Connection Size100.00 mm
• Connection Size Radius50.00 mm
• Constituentsn/a
• Cover BoltSteel to JIS 3101
• c Rad119.00 mm
• Created Byenquiries@cranefs.com
• Created On2022-03-01 T:09:00:00
• d19.00 mm
• D1220.00 mm
• D2100.00 mm
• DescriptionTo meet the growing use of variable speed pumps for HVAC applications, Crane Fluid Systems has launched a range of Differential Pressure Control Valves (DPCV) specifically aimed at optimising system performance. Extremely efficient, the DPCV is set to a maximum differential pressure which ensures flow cannot exceed a desired rate. It therefore helps reduce energy consumption, the risk of noise and simplifies the commissioning process. Features and benefits: - A high performing differential pressure control valve that can be fitted in the supply or return pipework, regulating both differential pressure and flow rate. - Differential pressure activation range (DP Range) from 15 to 150 kPa - Integrated valve position indicator for visual inspection - Tested in accordance with the BSRIA guidance standard
• DiaphragmEPDM
• Diaphragm CaseDI (A536-65-45-12
• Diaphragm Case NutSAE4140 / A322-4140
• Diaphragm PlateASTM A240-304
• Documentation Certificateswww.bimstore.co/products/dp971f-differential-pressure-control-valve-dpcv-cast-iron/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/dp971f-differential-pressure-control-valve-dpcv-cast-iron/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/dp971f-differential-pressure-control-valve-dpcv-cast-iron/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/dp971f-differential-pressure-control-valve-dpcv-cast-iron/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/dp971f-differential-pressure-control-valve-dpcv-cast-iron/document/technical-data-sheet
• Duration UnitYear
• e32.00 mm
• End ConnectionBS EN1092-2 PN16
• Expected Life0
• Features- A high performing differential pressure control valve that can be fitted in the supply or return pipework, regulating both differential pressure and flow rate. - Differential pressure activation range (DP Range) from 15 to 150 kPa - Integrated valve position indicator for visual inspection - Tested in accordance with the BSRIA guidance standard
• Finishn/a
• GasketNon Asbestos
• Graden/a
• GuideCast Bronze ASTM B584-C836
• H1130.00 mm
• H2735.00 mm
• Hand PinStainless Steel 304
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• Included With Valve1 x Impulse tube kit (which contains two sets of; Copper tube, ball valve, tee piece, flare nut, flare nipple, nipple, long nipple and pressure gauge).
• IndicatorA276-303
• K Coefficient0
• KeynoteS
• L1352.00 mm
• L224.00 mm
• Lift PlateAluminium
• Loss MethodK Coefficient
• ManufacturerCrane FS
• Manufacturer NameCrane FS
• Materialn/a
• ModelDP971F
• Model NumberDP971F
• Model ReferenceDP971F - Differential Pressure Control Valve (DPCV) - Cast Iron
• NBS DescriptionDifferential pressure control valves
• NBS Noten/a
• NBS Object NameCrane FS - Differential pressure control valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/425
• Nominal Depth220.00 mm
• Nominal Height865.00 mm
• Nominal Length352.00 mm
• Number Of Bolts8
• OperatorActuator
• OtherValve comes factory set at 70 kPa
• P180.00 mm
• P290.00 mm
• PackingEPDM
• Pressure RatingPN16
• Production Year2022
• Rad 1320.00 mm
• Raised Face Diameter158.00 mm
• Referenced Standardn/a
• Replacement Costn/a
• SeatCast Bronze ASTM B584-C836
• Shapen/a
• SizeDN100
• SizingPlease contact our technical support helpline for guidance
• Spare PartsImpulse tube kit (Part No. 0JG91983D)
• SparesImpulse tube kit (Part No. 0JG91983D)
• Specification Notes- Valve shell tested and inspected in accordance with BS EN 12266-1 - Face-to-face in accordance with EN 58 Series 1 or 37
• SpringSpring Steel
• Temperature Rating-10 to 120°C
• Top FlangeCast Iron ASTM A48-CL30
• Top Spring SeatSteel to JIS 3101
• Type CommentsDP971F - Differential Pressure Control Valve (DPCV) - Cast Iron
• Type NameDP971F - Differential Pressure Control Valve (DPCV) - Cast Iron
• URLwww.cranefs.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborenquiries@cranefs.com
• Warranty Guarantor Partsenquiries@cranefs.com
• Weight72.00 kg
• YokeDI ASTM A536-65-45-12
