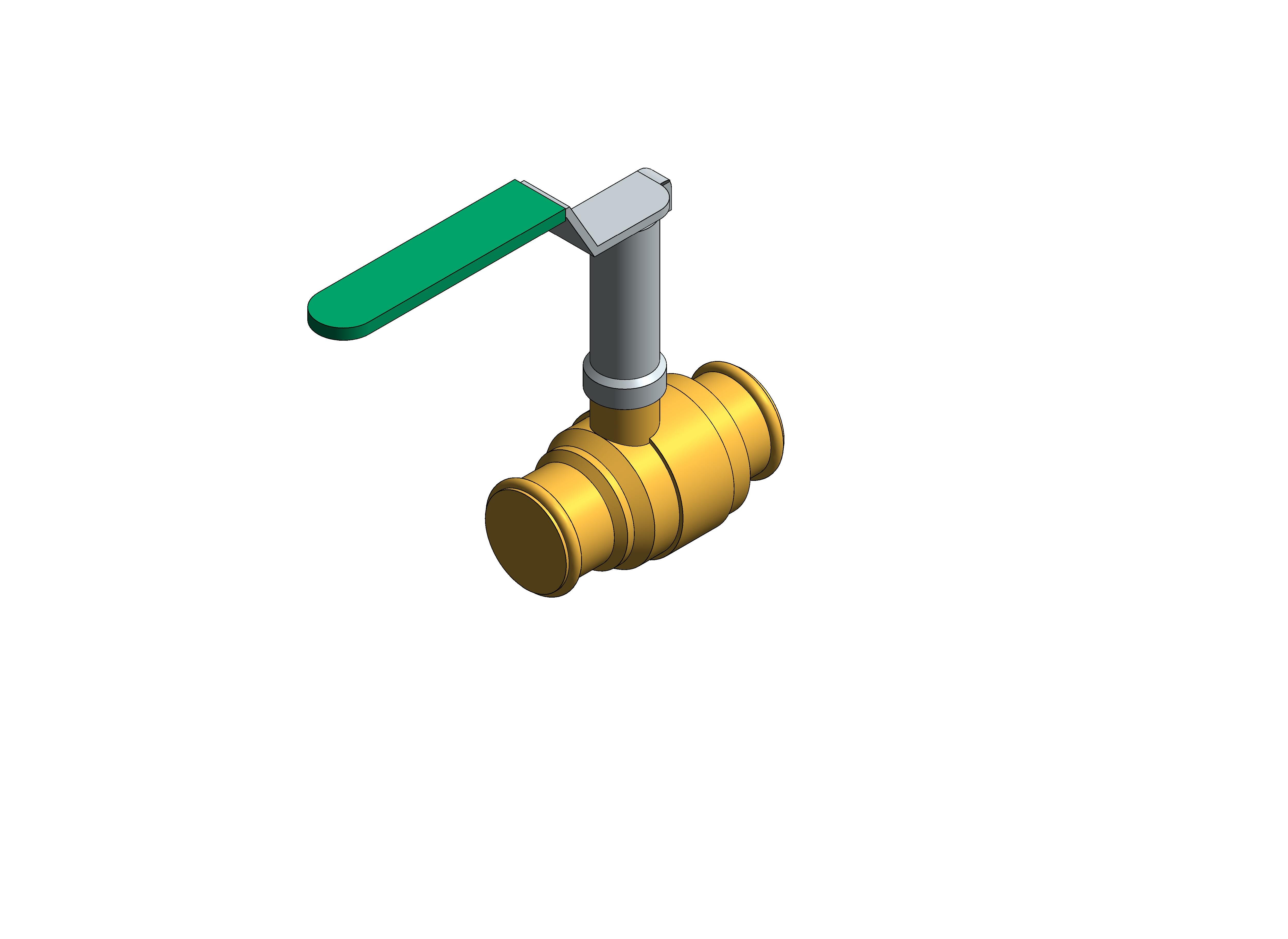

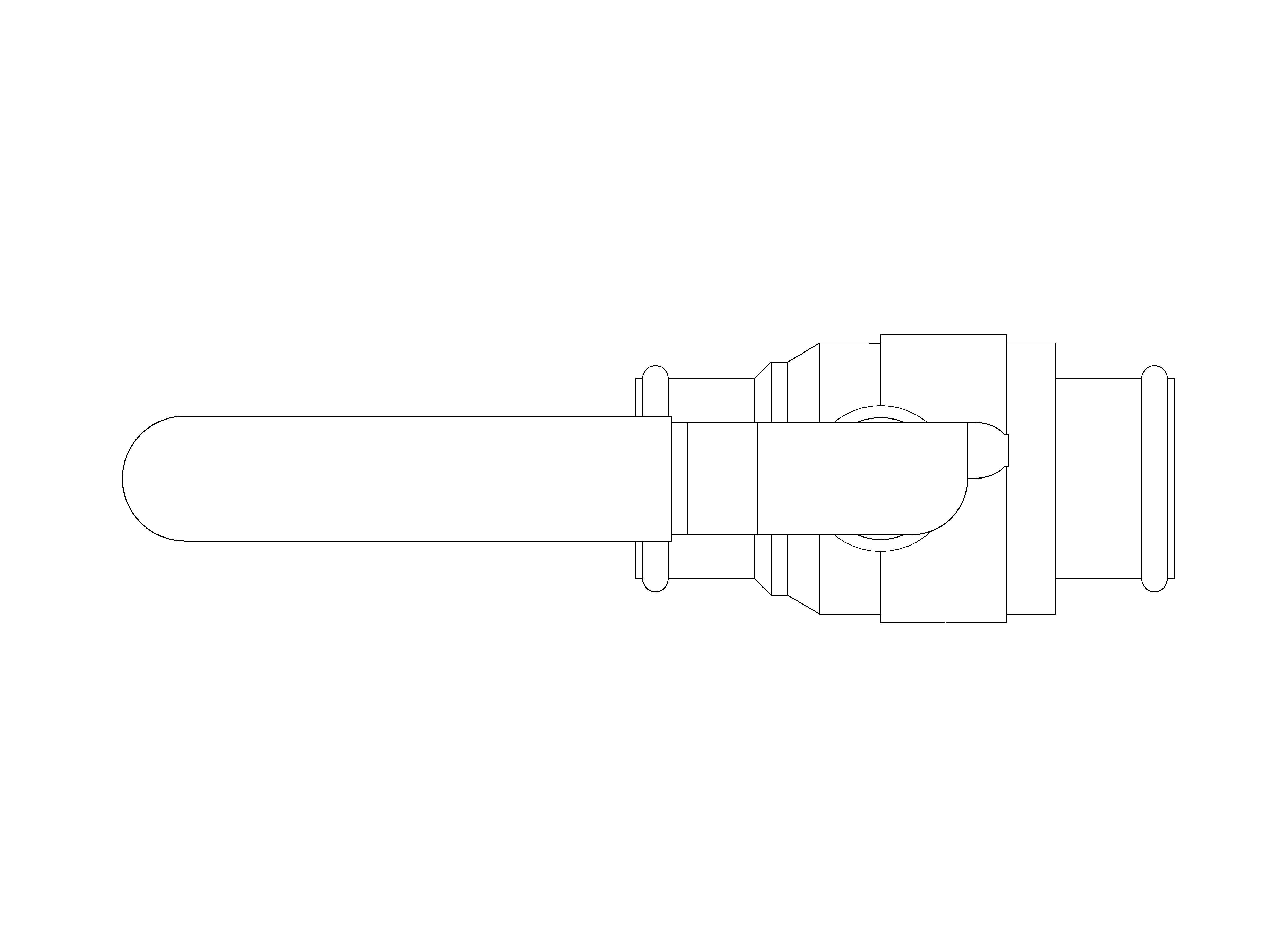

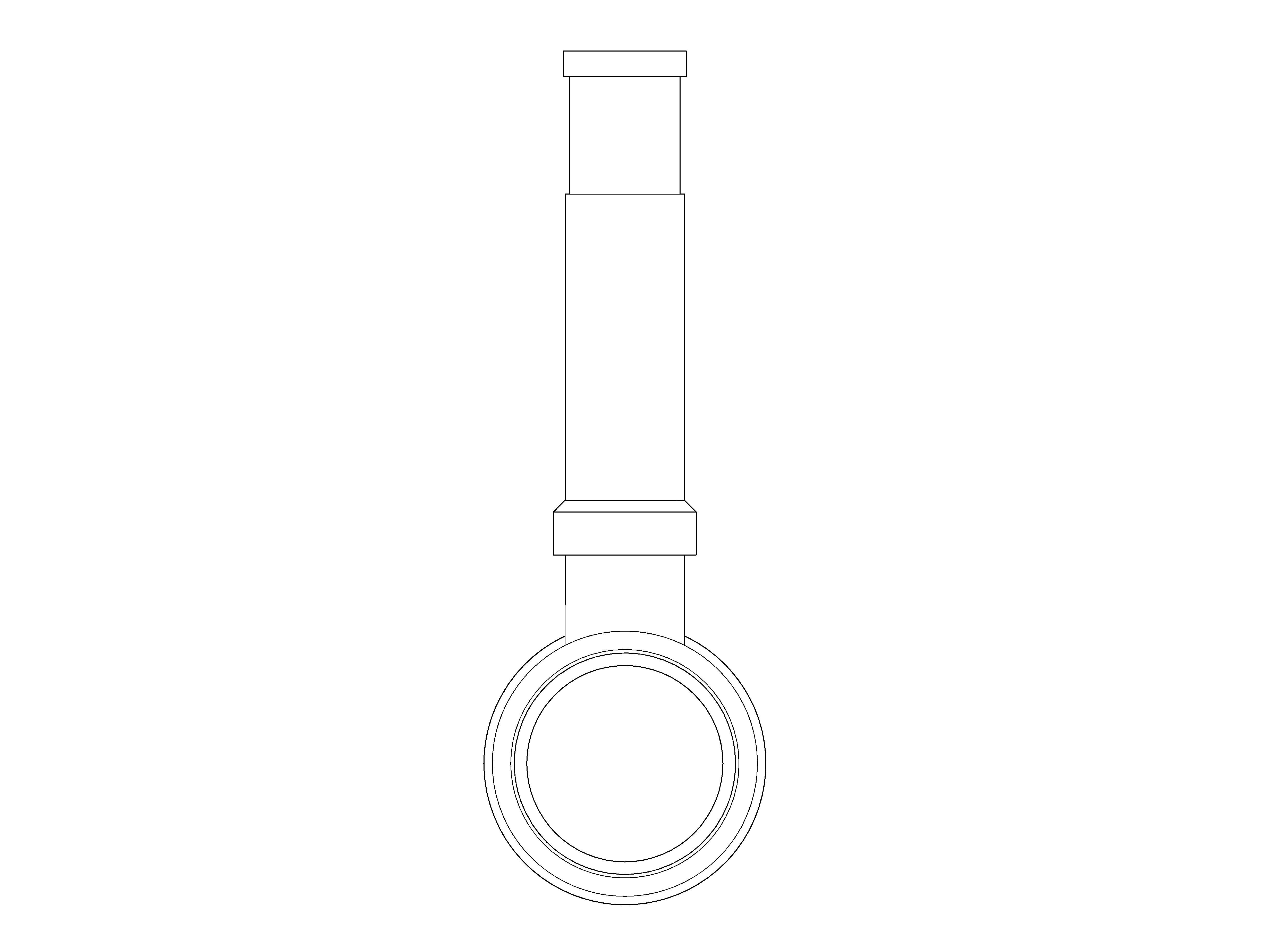

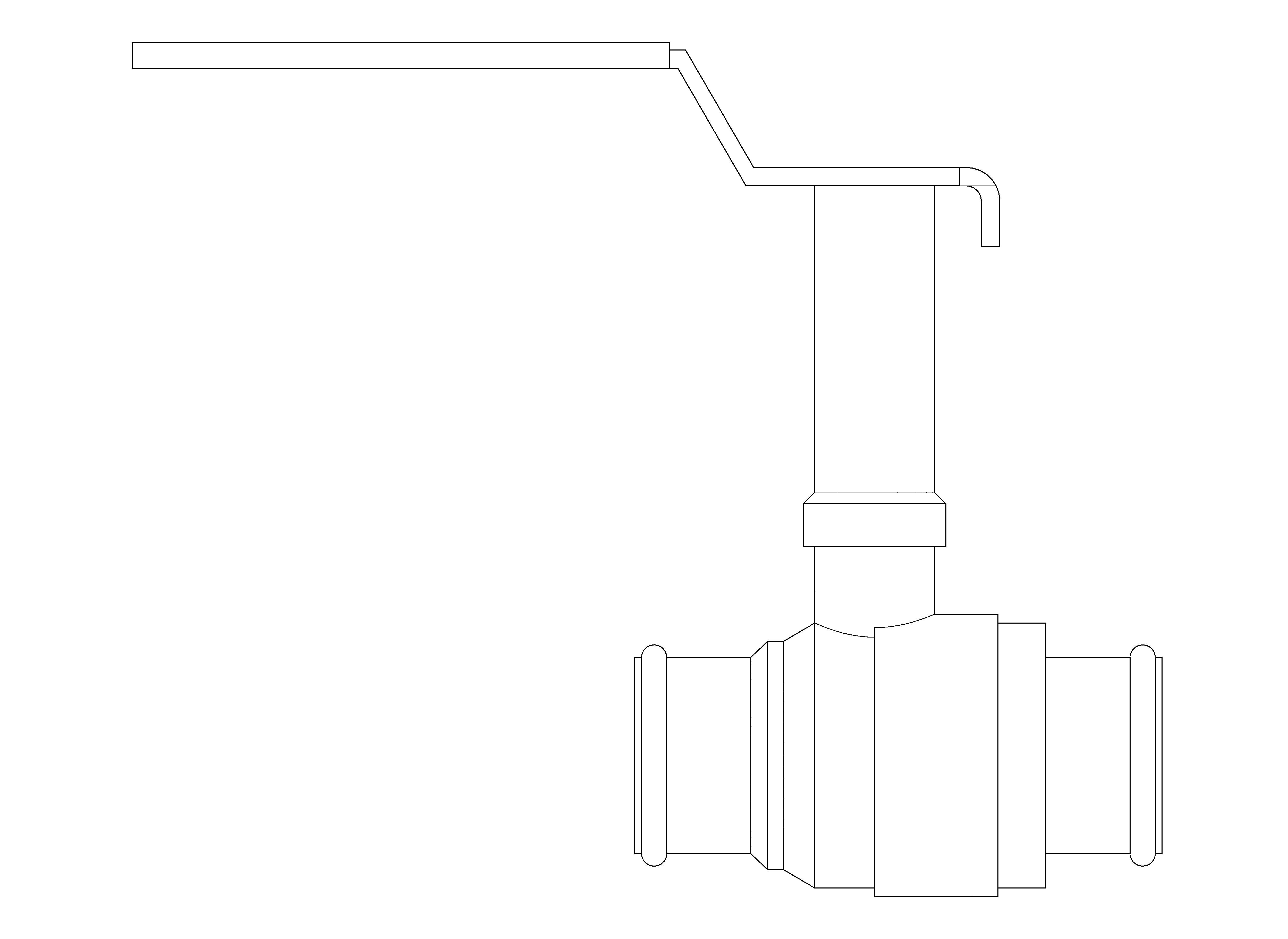

bimstore - Hattersley - DZR Press Fit Ball Valve - Extension Stem

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/dzr-press-fit-ball-valve-extension-stem-fig-114ext-pf/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_PipeAccessories_DZRPressFitBallValve_ExtensionStem_Fig.114EXT.PF
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorYellow and Green
Constituentsn/a
Created Byuksales@hattersley.com
Created On2020-09-04T09:00:00
D115.20 mm
D228.50 mm
DescriptionDZR Ball Valves are light, compact units which are easy to install and operate, giving low flow resistance and 100% bubble tight shut off. The Bi Directional Quarter turn type valve is limited to use for open and closed operation only. WRAS Approved Press-Fit integral ended Ball Valves are designed for both new-build and refurbishment projects, and can be installed on a variety of pipe materials.
Dim 19.91 mm
Dim 211.52 mm
Dim 313.38 mm
Dim 417.29 mm
Dim 521.07 mm
Dim 625.40 mm
Dim A0.82 mm
Dim B3.89 mm
Dim C9.20 mm
Dim D2.02 mm
Dim E1.94 mm
Dim F2.39 mm
Dim G1.42 mm
Dim H5.61 mm
Dim I3.36 mm
Dim J5.61 mm
Dim K4.04 mm
Dim L3.74 mm
Dim M5.83 mm
Documentation Certificateswww.bimstore.co/products/dzr-press-fit-ball-valve-extension-stem-fig-114ext-pf/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/dzr-press-fit-ball-valve-extension-stem-fig-114ext-pf/document/installation-guide
Documentation Literaturewww.bimstore.co/products/dzr-press-fit-ball-valve-extension-stem-fig-114ext-pf/document/product-literature
Documentation Maintenancewww.bimstore.co/products/dzr-press-fit-ball-valve-extension-stem-fig-114ext-pf/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/dzr-press-fit-ball-valve-extension-stem-fig-114ext-pf/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesQuarter-turn full-bore isolation valve complete with integral M-Profile connectors, for reliable sealing and leak reduction on pipework. Supplied as one integral unit means less joints to make on-site, with site labour time reduced by 20% -25%. O-Ring features defined leak paths, a ‘fail safe’ against unpressed joints. Green indicators which surround the pressing contours provide a visual indicator of a pressed joint. Suitable for hard, half hard, and soft copper tubes to EN 1057, precision steel tubes to EN 10305-3, and precision steel tubes EN 10312. Quickly and easily installed using a Press-Fit tool, reducing labour costs. Available in a variety of operators, to meet application requirements. WRAS Approved to 85°C for use on wholesome (potable) water applications. Crane FS warrant the system connection on the D172A Press-Fit Ball Valves, for use on an extensive selection of pipe systems, for Contractor flexibility.
FinishBrass
Graden/a
H103.60 mm
Horizontal Calc0.75 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
KeynoteS
L64.30 mm
L298.50 mm
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBrass
ModelDZR Press Fit Ball Valve - Extension Stem
Model NumberFig. 114EXT.PF
Model ReferenceDZR Press Fit Ball Valve - Extension Stem
NBS DescriptionBall valves
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth28.50 mm
Nominal Height117.85 mm
Nominal Length130.65 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size28.5mm (D) x 117.85mm (H) x 50.15mm (L)
Size Mm15.00 mm
Spare Partsn/a
Type CommentsFig. 114EXT.PF
Type NameDZR Press Fit Ball Valve - Extension Stem
URLwww.hattersley.com/
Vertical Calc0.62 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboruksales@hattersley.com
Warranty Guarantor Partsuksales@hattersley.com
