Fig. 116 & Fig. 116EXT - Ball Valve - Bronze

Download Add to collection

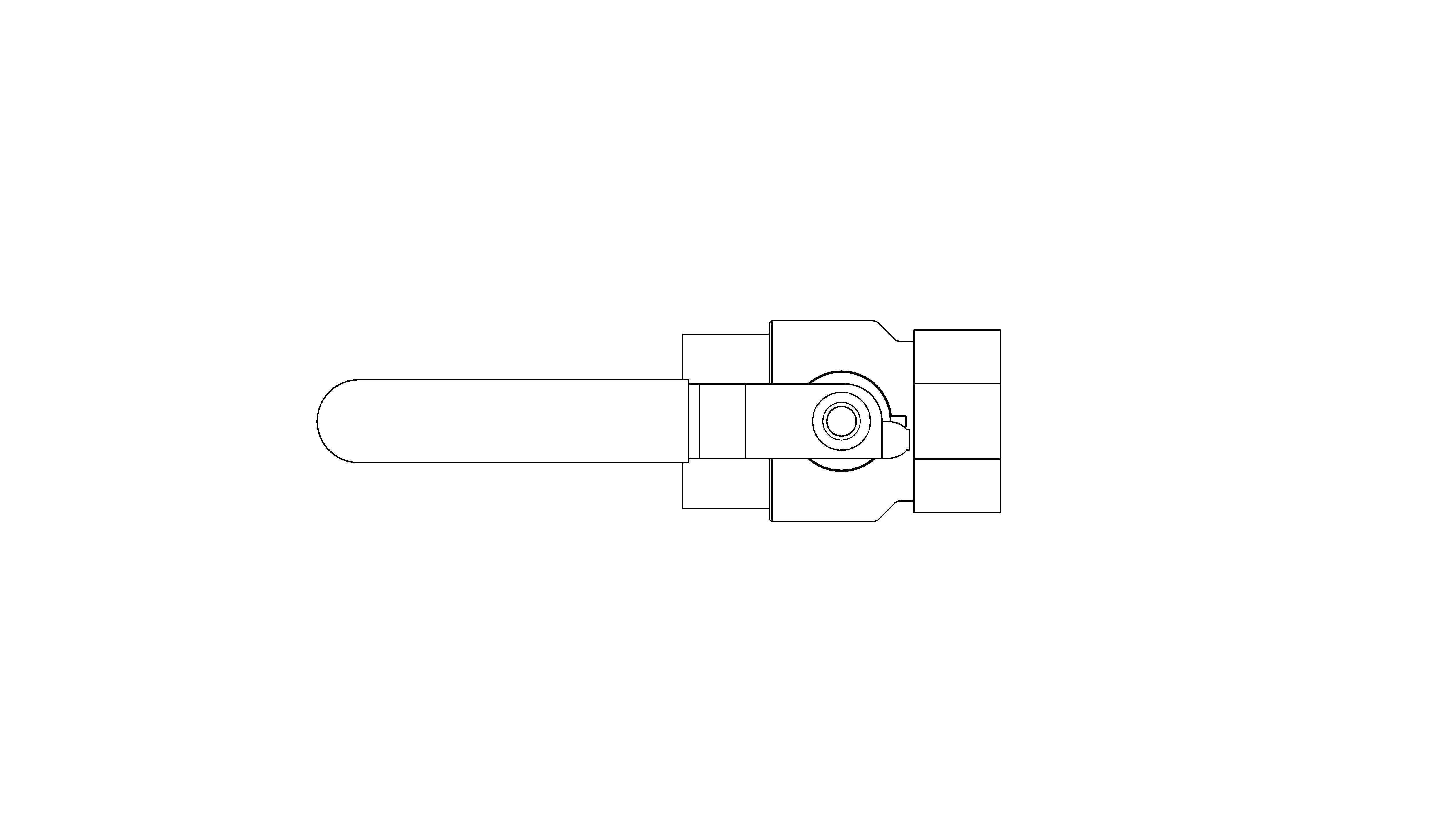

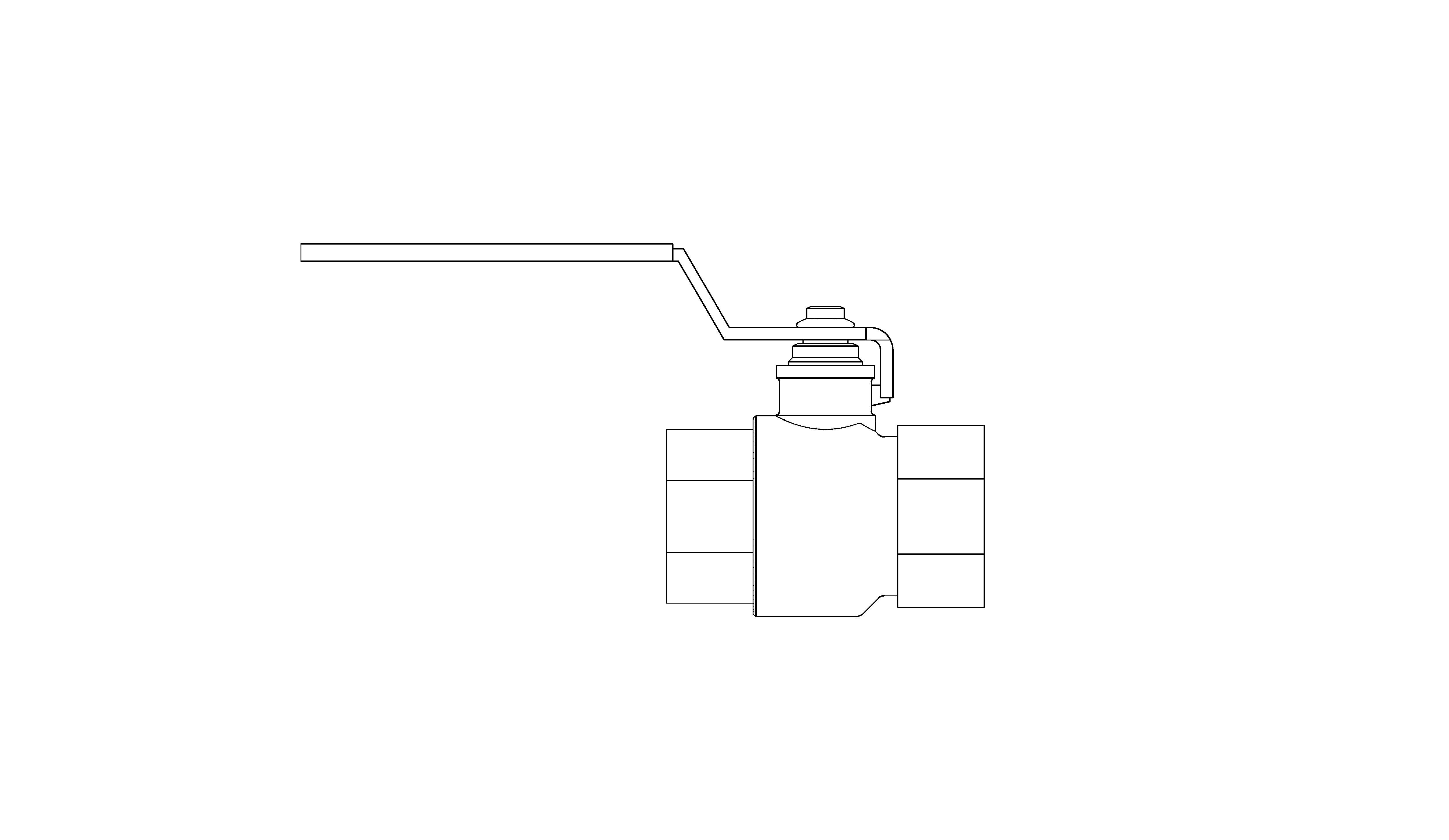

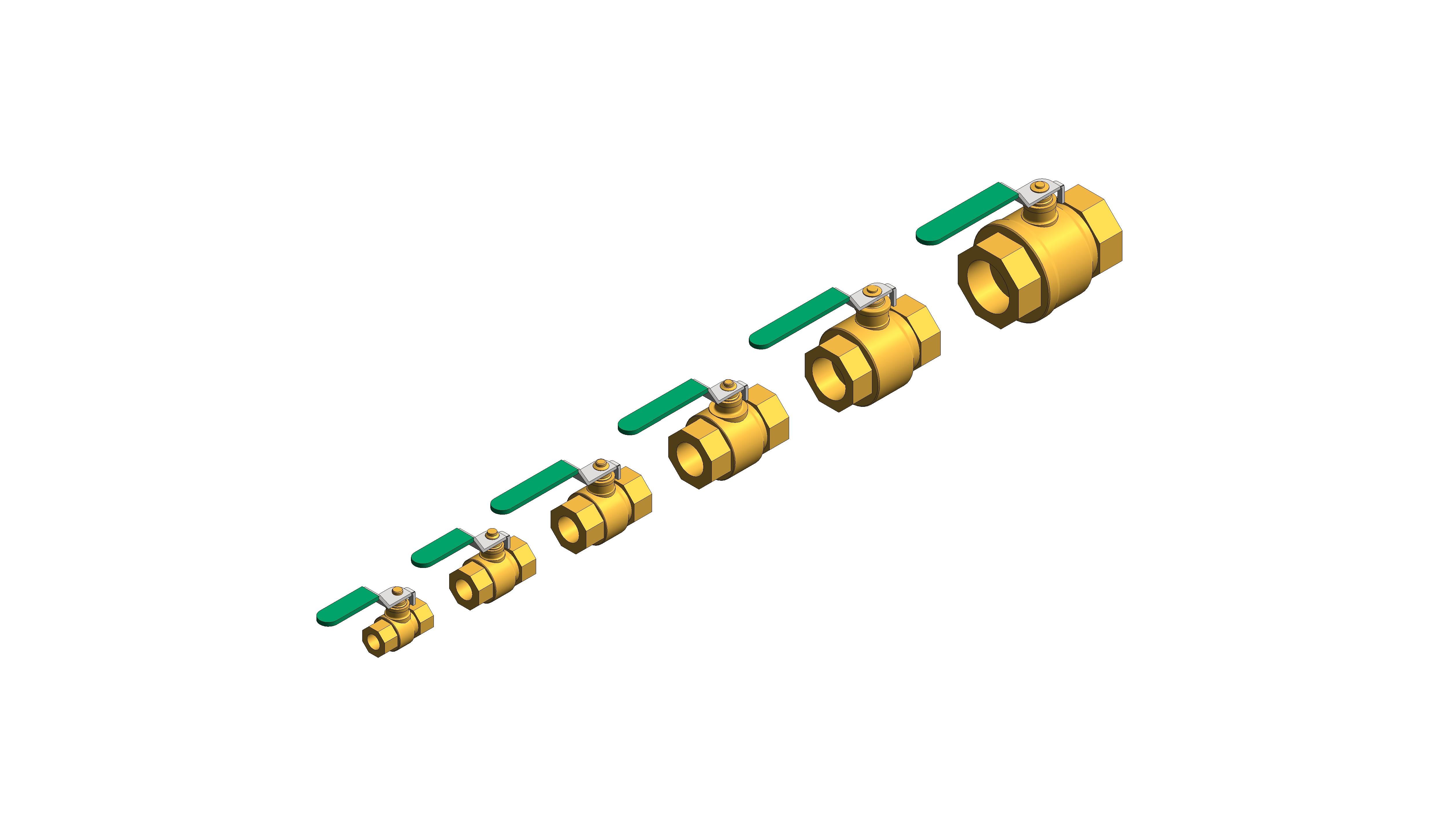

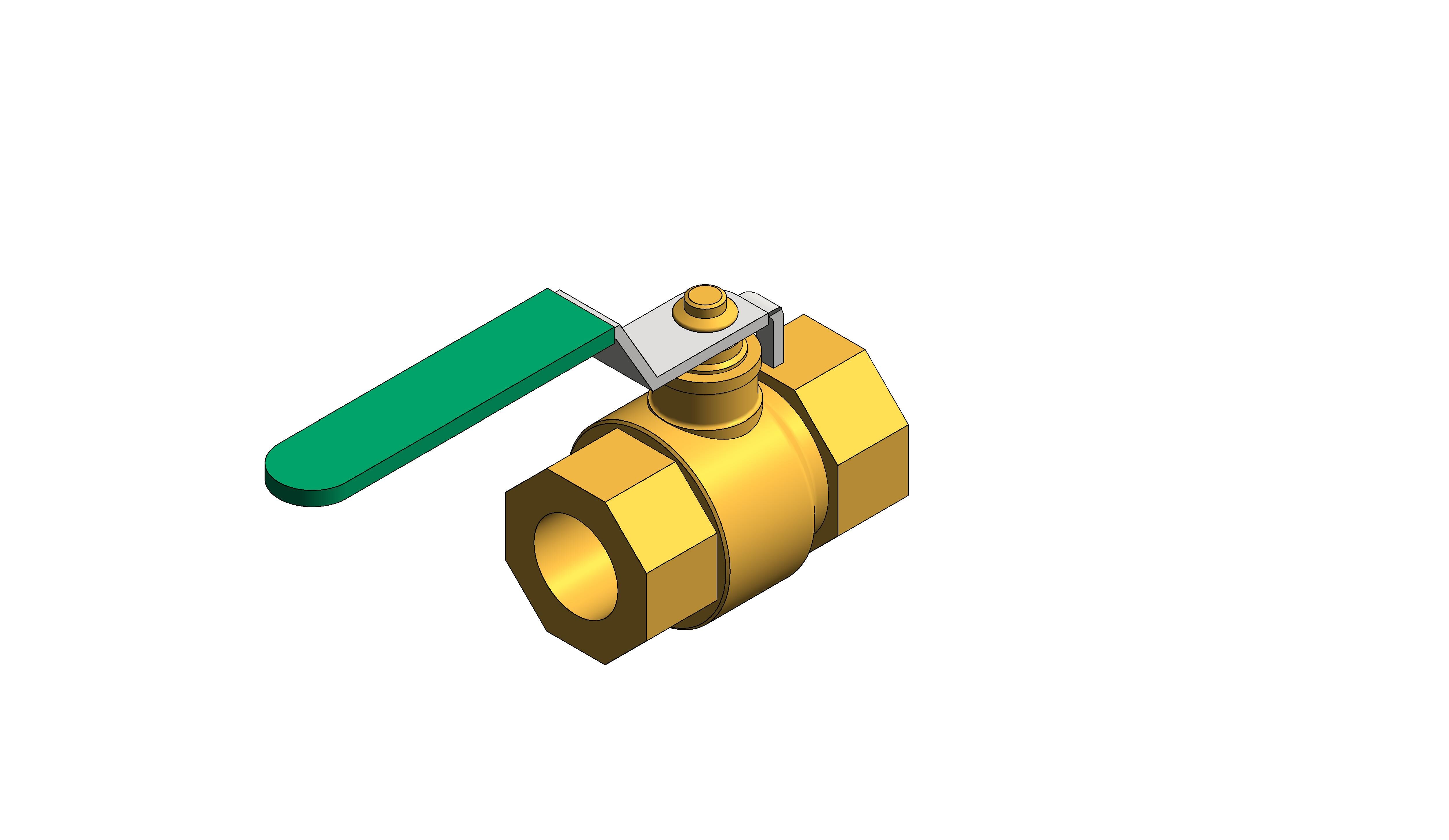

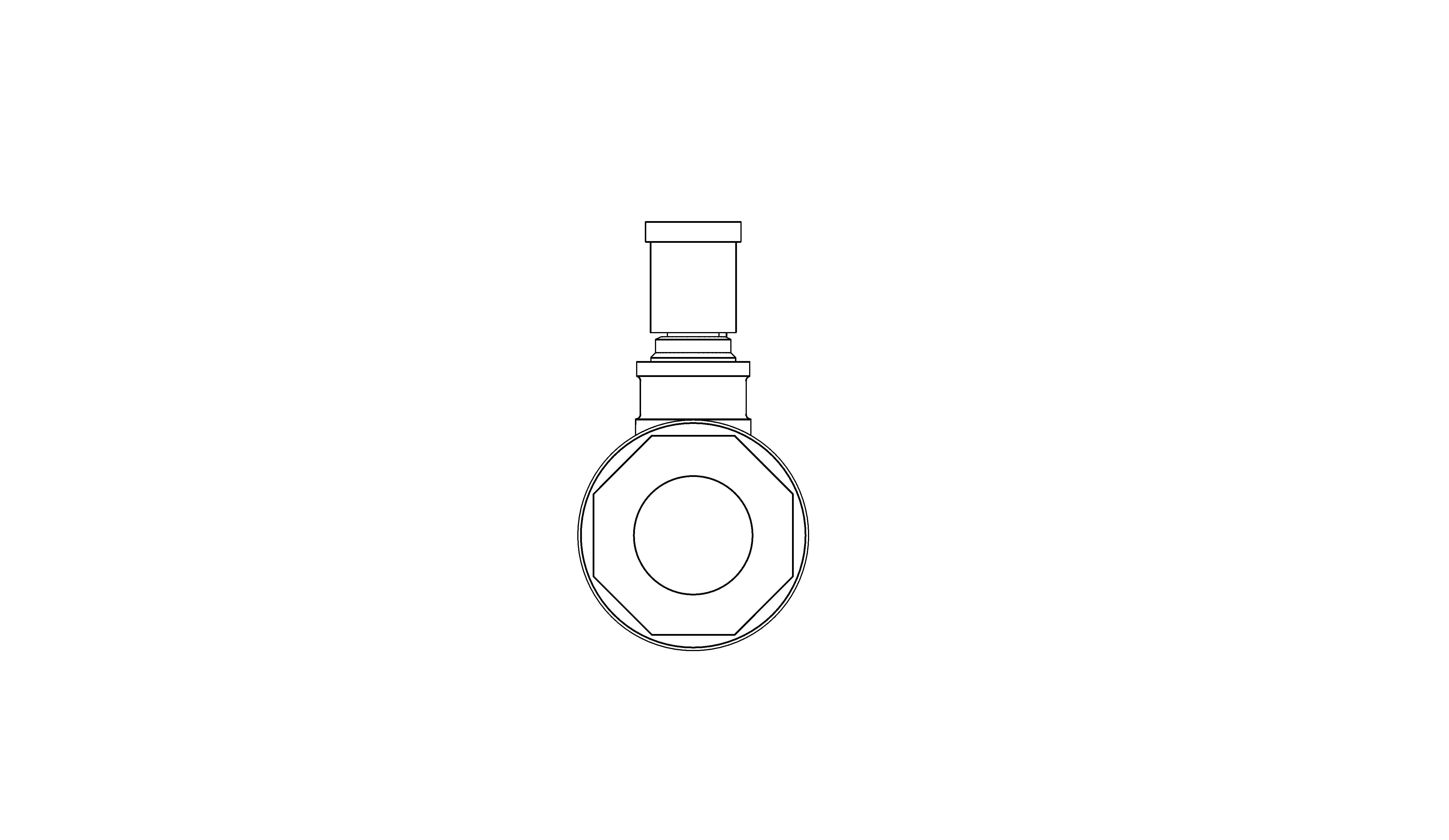

Description

PN25 Ball Valve - Threaded End - Bronze - Lever Operated

Robust design for a long and trouble free service life
Light and compact for easy installation
90° lever operation for simple use
Full bore design to facilitate optimal flow rates with minimum turbulence

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

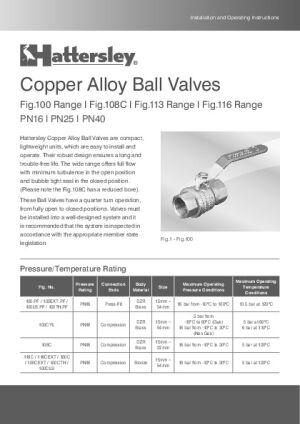

Installation Guide

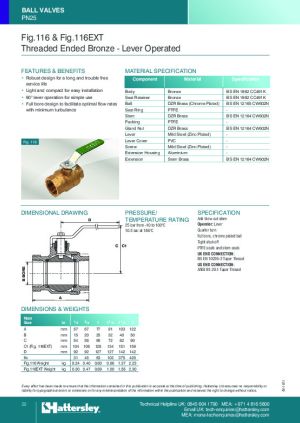

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-116-fig-116ext-ball-valve-bronze/document/object-user-guide
A103.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B40.00 mm
BallDZR Bronze (Chrome Plated) BS EN 12165 CW602N
BIM Object NameHattersley_BallValve_Fig116-116EXT
BodyBronze BS EN 1982 CC491K
Brake Downstand21.00 mm
C82.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorBronze
Connection Size40.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-25 T:09:00:00
D142.00 mm
Default Elevation0.00 mm
DescriptionPN25 Ball Valve - Threaded End - Bronze - Lever Operated
Dim X17.00 mm
Dim XX19.00 mm
Documentation Certificateswww.bimstore.co/products/fig-116-fig-116ext-ball-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-116-fig-116ext-ball-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-116-fig-116ext-ball-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-116-fig-116ext-ball-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-116-fig-116ext-ball-valve-bronze/document/technical-data-sheet
Duration UnitYear
End ConnectionBS EN 10226-2 Taper Thread; ANSI B1.20.1 Taper Thread
Expected Life0
ExtensionStem Brass BS EN 12164 CW602N
Extension HousingAluminium
Features- Robust design for a long and trouble free service life - Light and compact for easy installation - 90° lever operation for simple use - Full bore design to facilitate optimal flow rates with minimum turbulence
Fig 116 EXT Weight1.55 kg
Fig 116 Weight1.37 kg
Finishn/a
Gland NutDZR Brass BS EN 12164 CW602N
Graden/a
Handle Collar Length31.00 mm
Handle Downstand17.00 mm
Handle Length105.00 mm
Handle Width20.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient375
KeynoteS
L123.00 mm
LeverMild Steel (Zinc Plated)
Lever CoverPVC
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze
ModelFig. 116 & Fig. 116EXT
Model NumberFig. 116 & Fig. 116EXT
Model ReferenceFig. 116 & Fig. 116EXT
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth72.50 mm
Nominal Height118.30 mm
Nominal Length193.50 mm
PackingPTFE
Pressure/Temperature Rating25 bar from -10 to 100°C; 10.5 bar at 186°C
Production Year2023
Referenced Standardn/a
Replacement Costn/a
ScrewMild Steel (Zinc Plated)
Seat RetainerBronze BS EN 1982 CC491K
Seat RingPTFE
Shapen/a
Size1 1/2"
Sizemm20.00 mm
Spare Partsn/a
StemDZR Brass BS EN 12164 CW602N
Symbol Length30.00 mm
Type Comments1 1/2"
Type Name1 1/2"
URLwww.hattersley.com/
Valve Hex Calc57.00 mm
Valve Hex Calc 259.00 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
