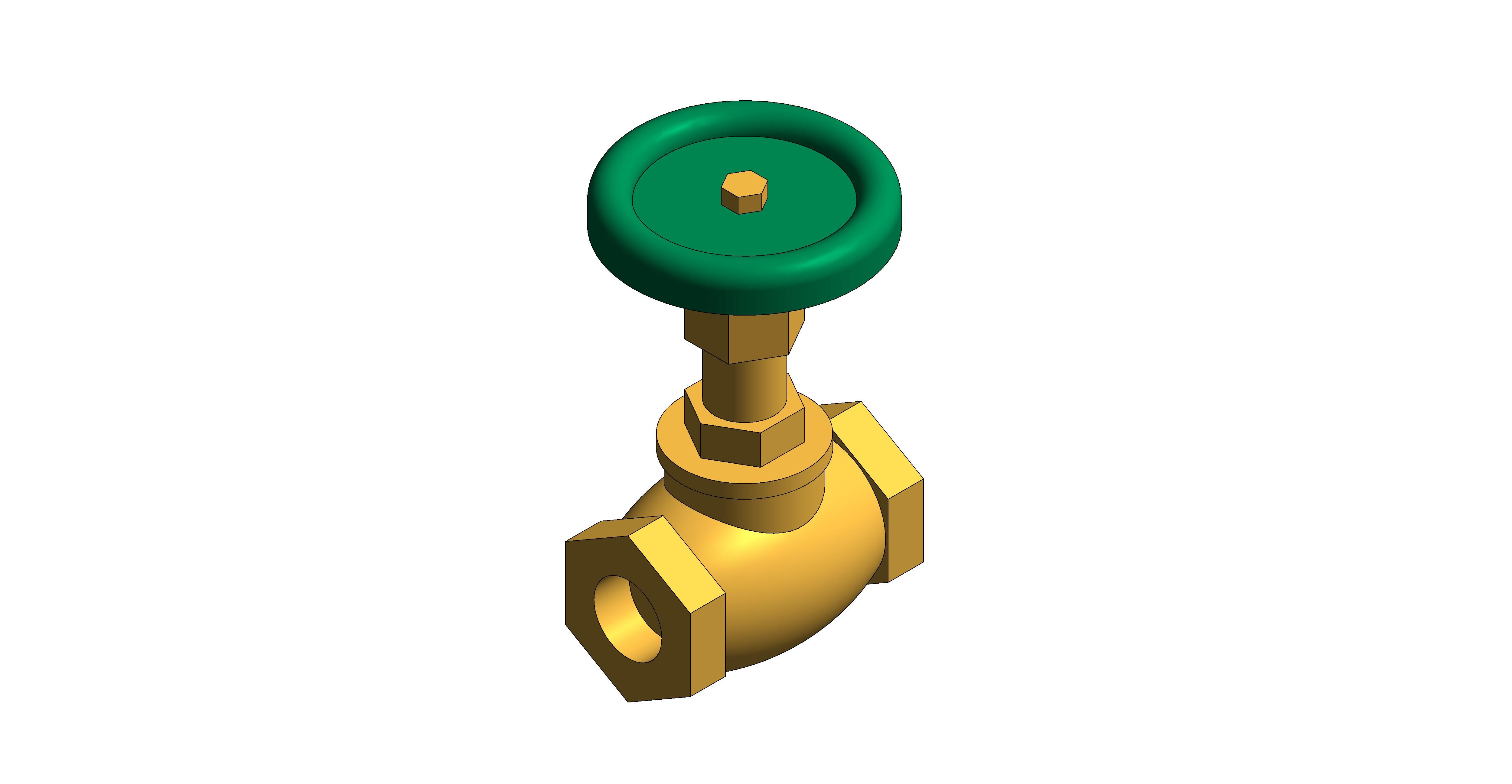

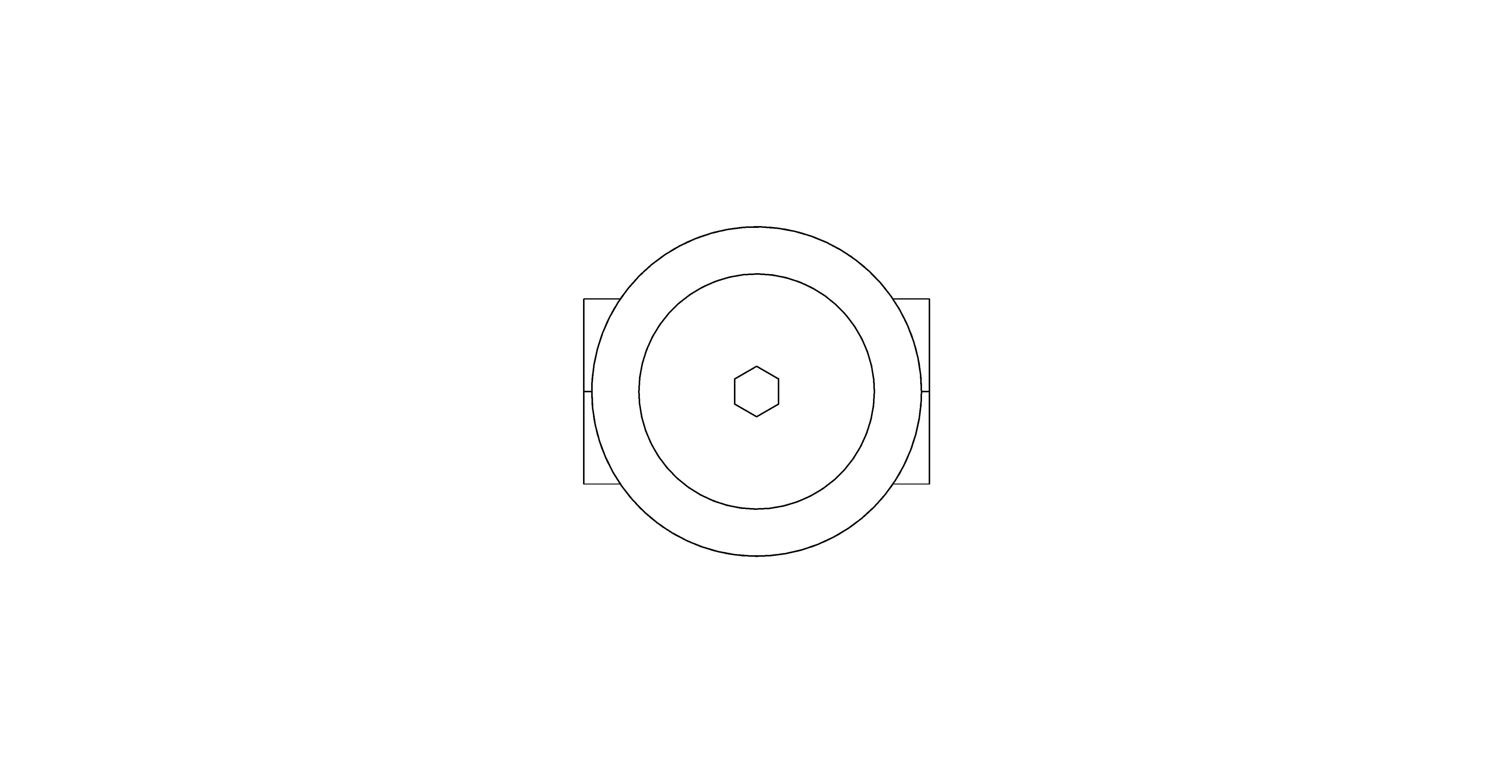

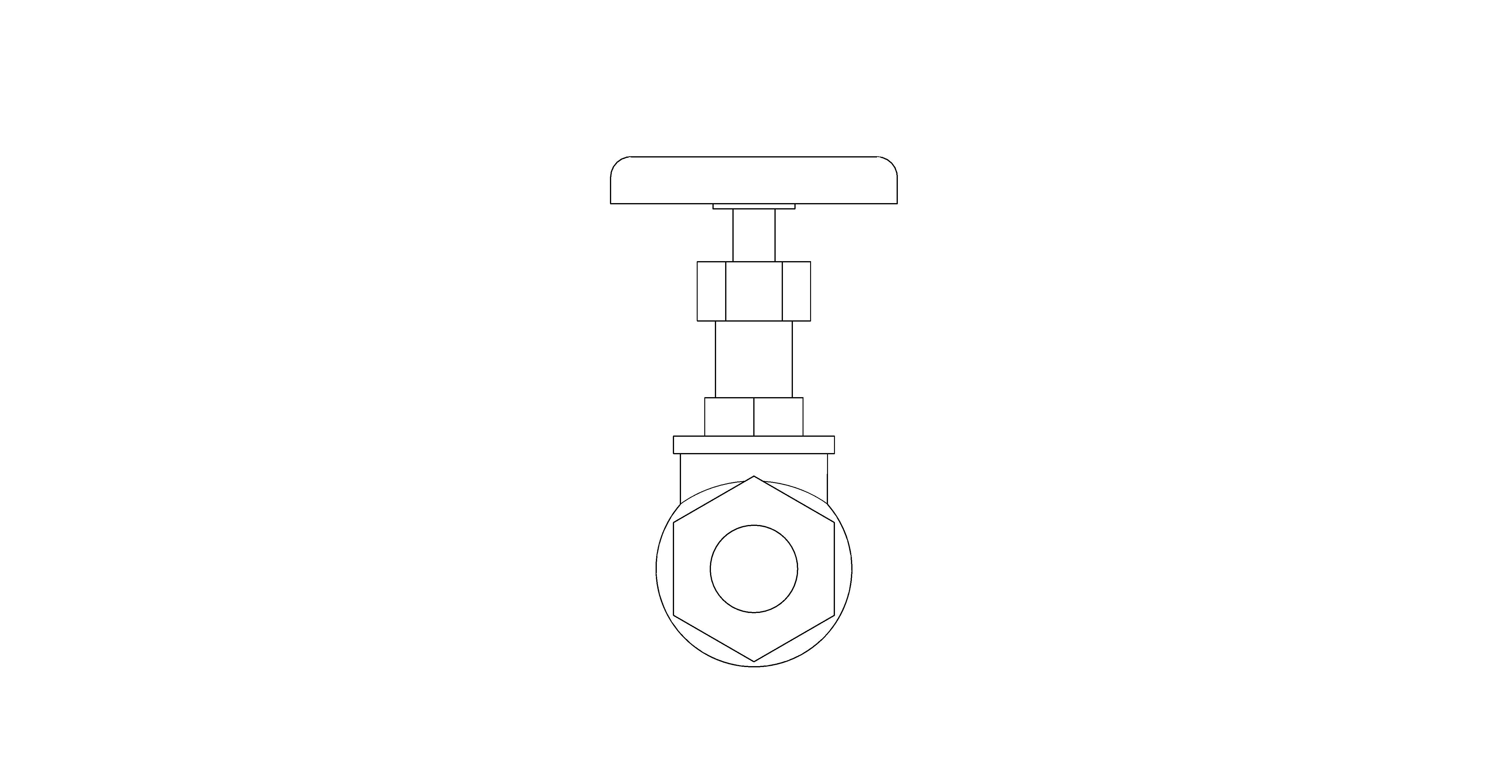

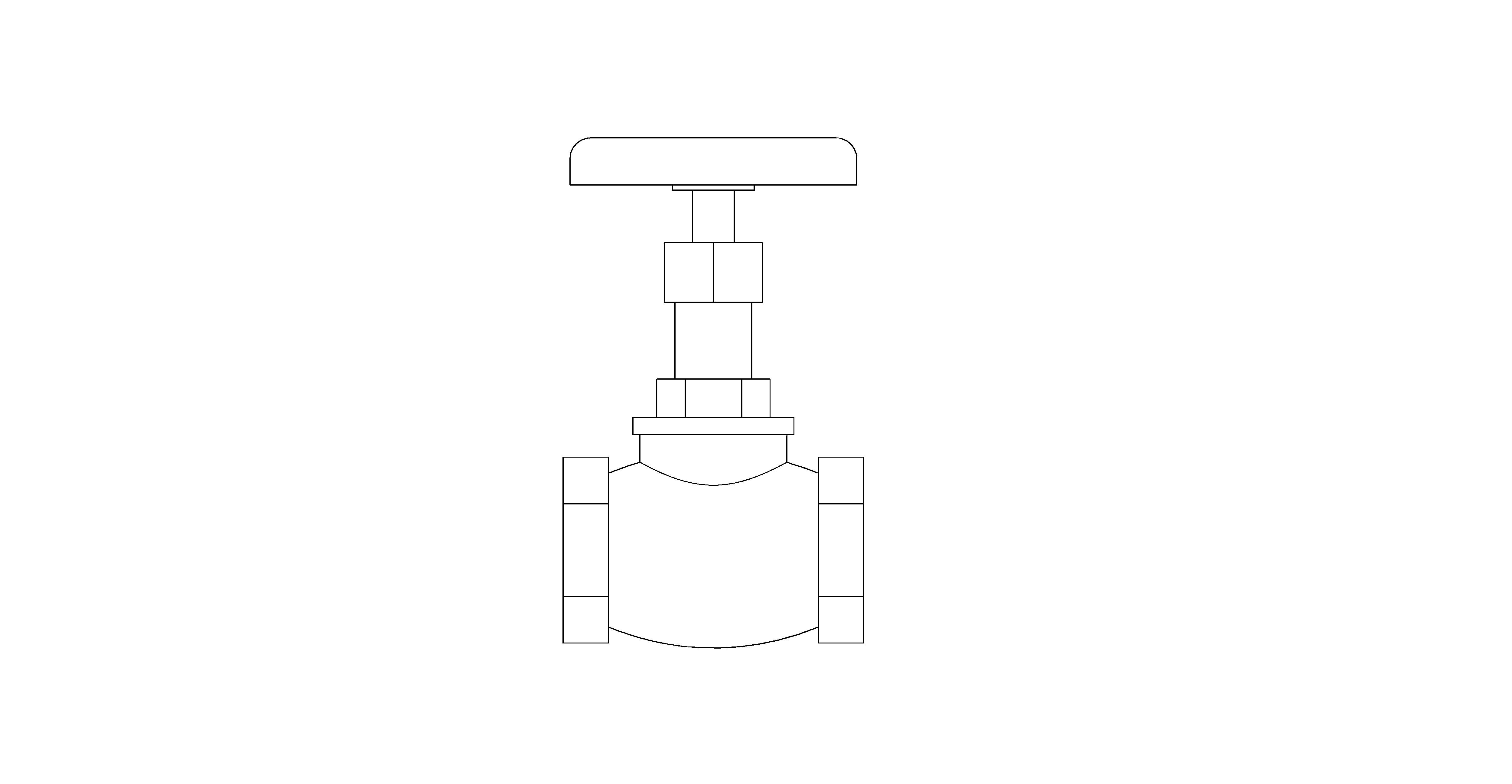

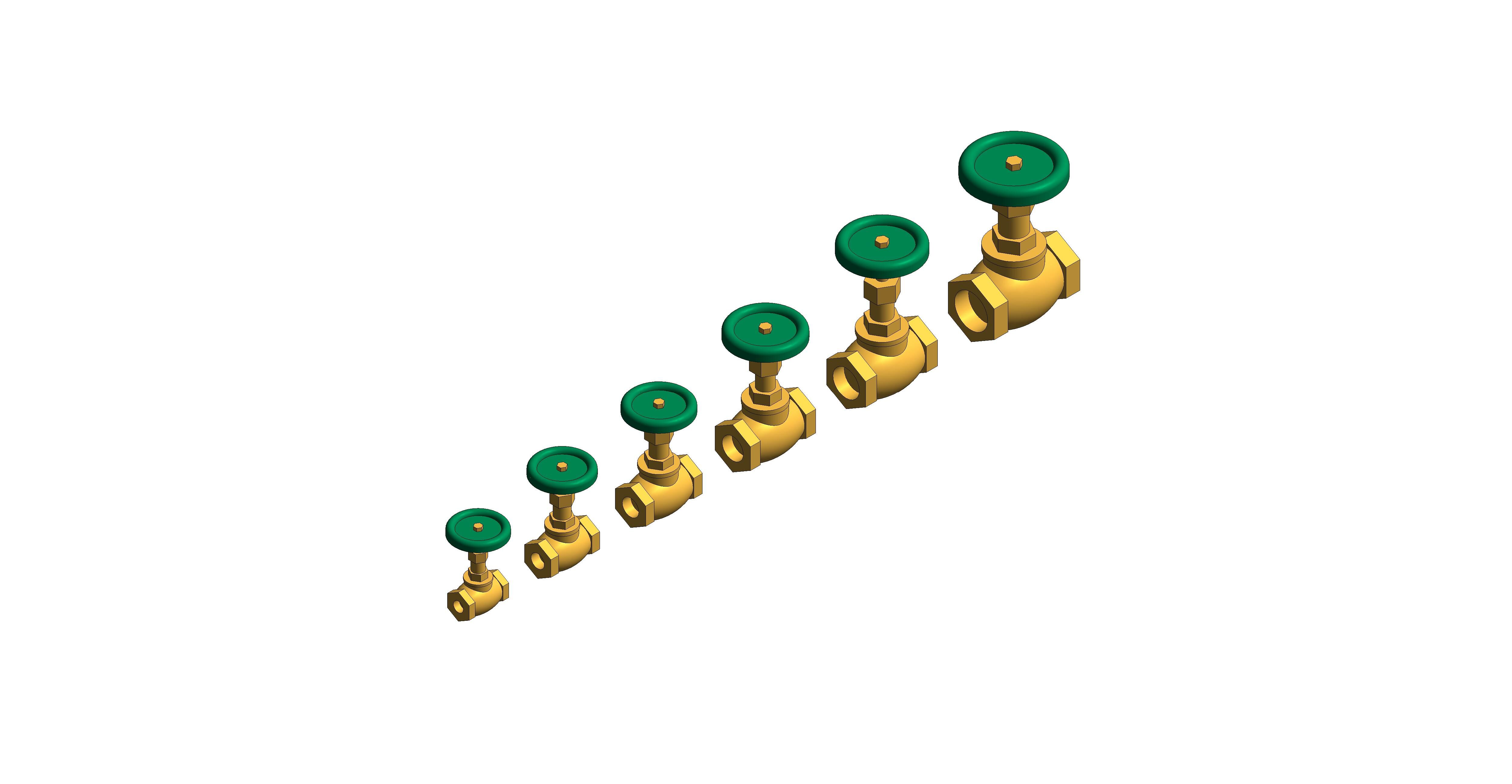

Fig. 5 - Globe Valve - Bronze

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/fig-5/document/object-user-guide
• A109.0 mm
• a18.4 mm
• Accessibility Performancen/a
• Assembly CodeD30
• Asset TypeFixed
• b17.0 mm
• B162.0 mm
• BIM Object NameHattersley_GlobeValve_Fig5
• BodyCast Bronze (BS EN 1982 CC491K; ASTM B62 C83600)
• BonnetBronze (BS EN 1982 CC491K; ASTM B62 C83600)
• C101.0 mm
• c28.0 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_16
• Code Performancen/a
• Colorn/a
• Connection Radius20.0 mm
• Connection Size40.0 mm
• Constituentsn/a
• Created Byenquiries@hattersley.com
• Created On2023-09-11 T09:00:00
• Default Elevation0.0 mm
• DescriptionPN32 Series B Bronze Globe Valve
• DiscBronze (BS EN 1982 CC491K; ASTM B62 C83600)
• Documentation Certificateswww.bimstore.co/products/fig-5/document/product-certificates

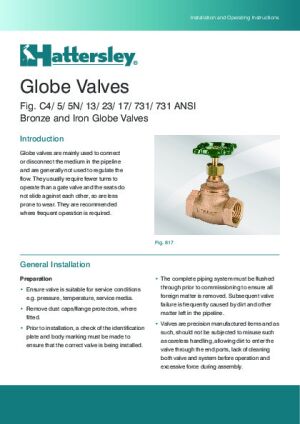

• Documentation Installation Guidewww.bimstore.co/products/fig-5/document/installation-guide

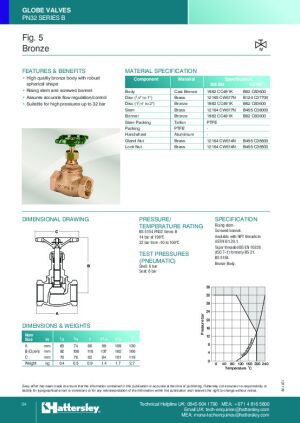

• Documentation Literaturewww.bimstore.co/products/fig-5/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/fig-5/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/fig-5/document/technical-data-sheet
• Duration UnitYear
• e90.0 mm
• End ConnectionTaper threaded BS EN 10226 (ISO 7-1) formerly BS 21
• Expected Life0
• f41.0 mm
• Features- High quality bronze body with robust spherical shape - Rising stem and screwed bonnet - Assures accurate flow regulation/control - Suitable for high pressures up to 32 bar
• Finishn/a
• g6.0 mm
• Gland NutBrass (BS EN 12164 CW614N; ASTM B455 C38500)
• Graden/a
• h27.0 mm
• HandwheelAluminium
• Hex Width 159.0 mm
• Hex Width 235.0 mm
• i29.0 mm
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.REGULATING
• j62.0 mm
• k89.0 mm
• K Coefficient0
• KeynoteS
• l111.0 mm
• Lock NutBrass (BS EN 12164 CW614N; ASTM B455 C38500)
• Loss MethodK Coefficient
• m7.0 mm
• ManufacturerHattersley
• Manufacturer NameHattersley
• MaterialBronze
• ModelFig. 5
• Model NumberFig. 5
• Model ReferenceFig. 5 - Globe Valve - Bronze
• n13.0 mm
• NBS DescriptionCopper alloy globe valves
• NBS Noten/a
• NBS Object NameHattersley - Copper alloy globe valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/344
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• o13.0 mm
• PackingPTFE
• Pressure RatingPN32
• Production Year2023
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size1-1/2"
• Spare Partsn/a
• StemBrass (BS EN 12164 CW617N; ASTM B455 C38000)
• Stem PackingTeflon PTFE
• Test PressureShell: 6 bar (pneumatic); Seat: 6 bar (pneumatic)
• Type Comments1-1/2"
• Type Name1-1/2"
• URLwww.hattersley.com
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsenquiries@hattersley.com
• Weight1.70 kg
