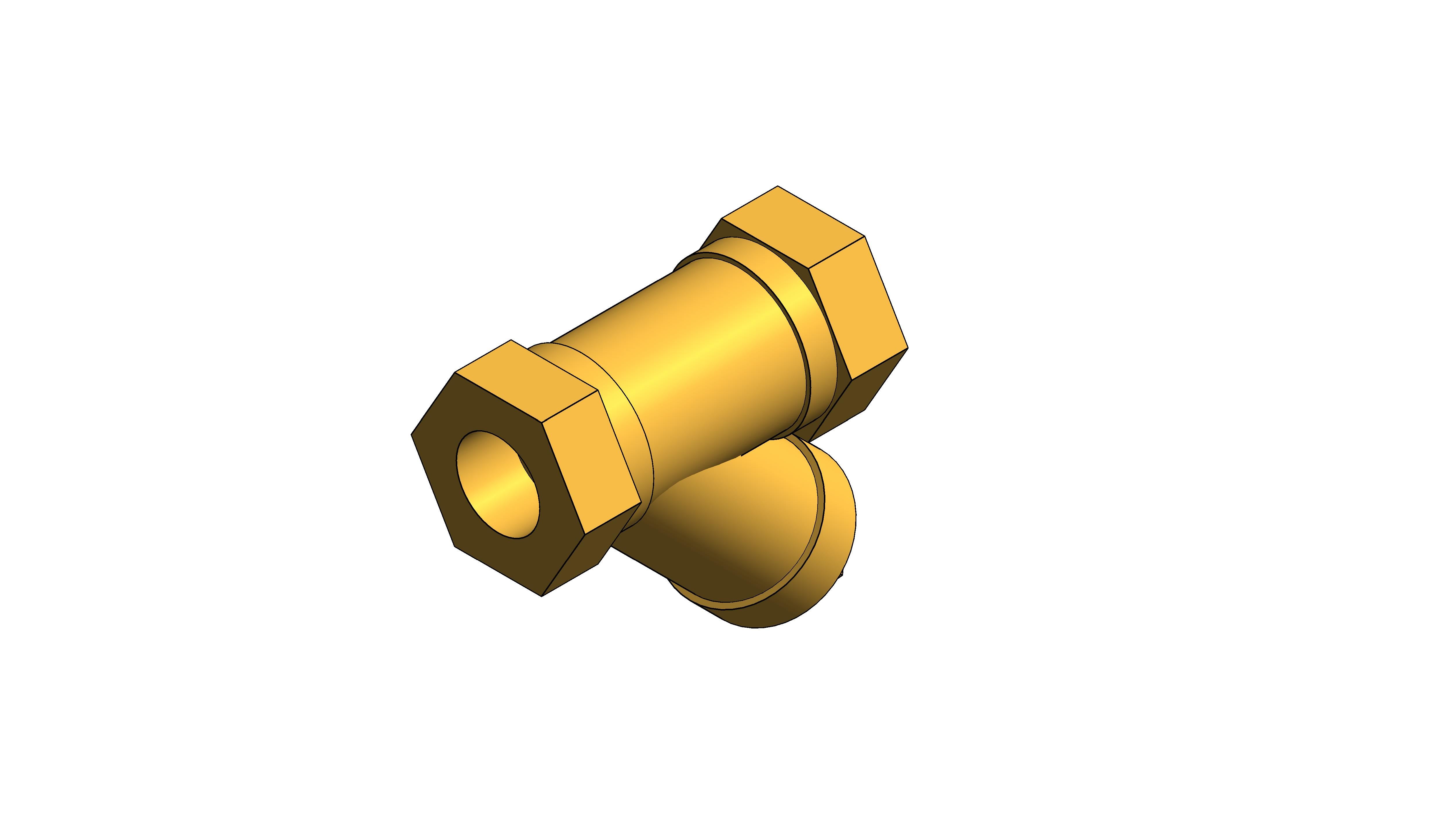

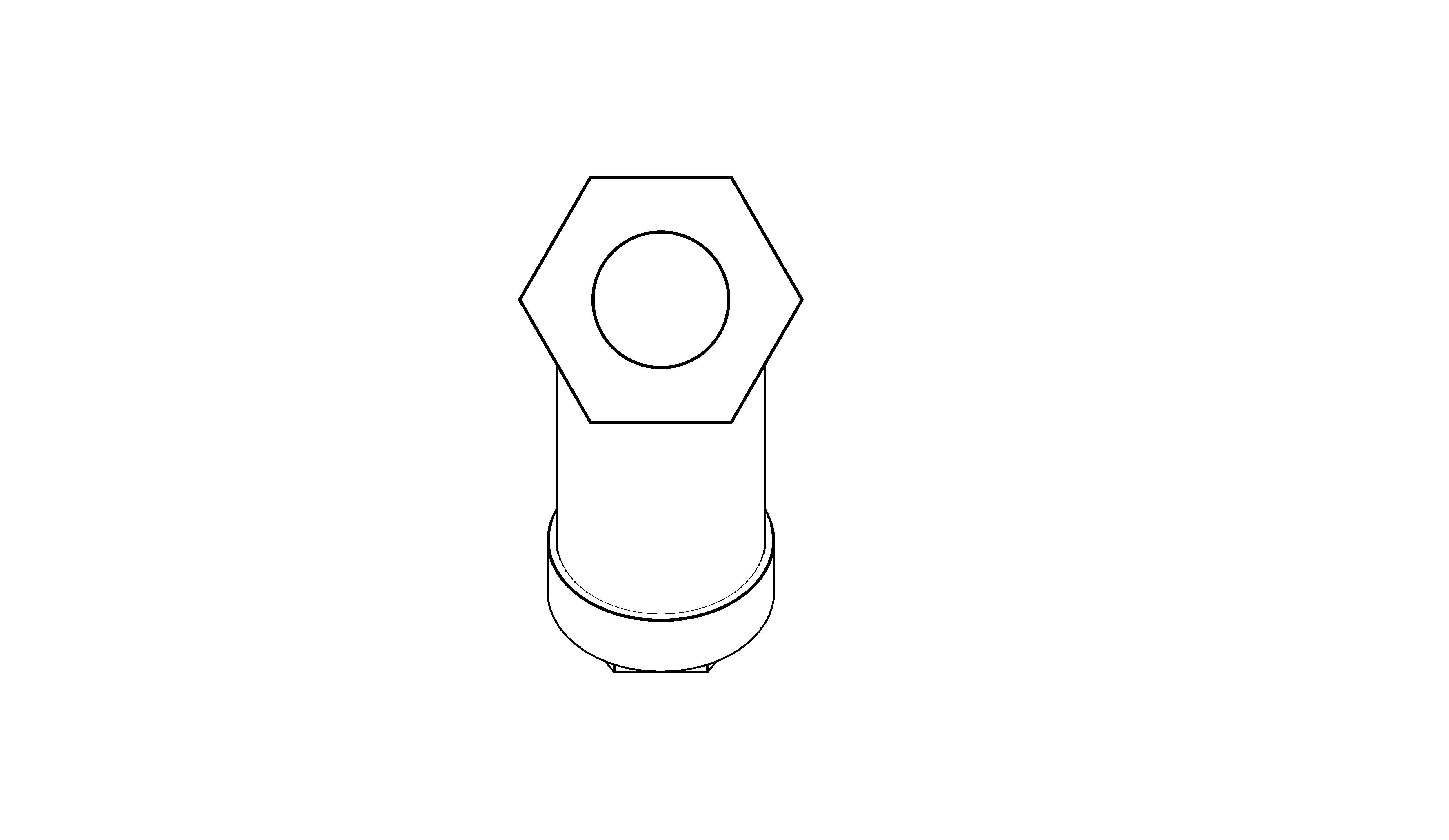

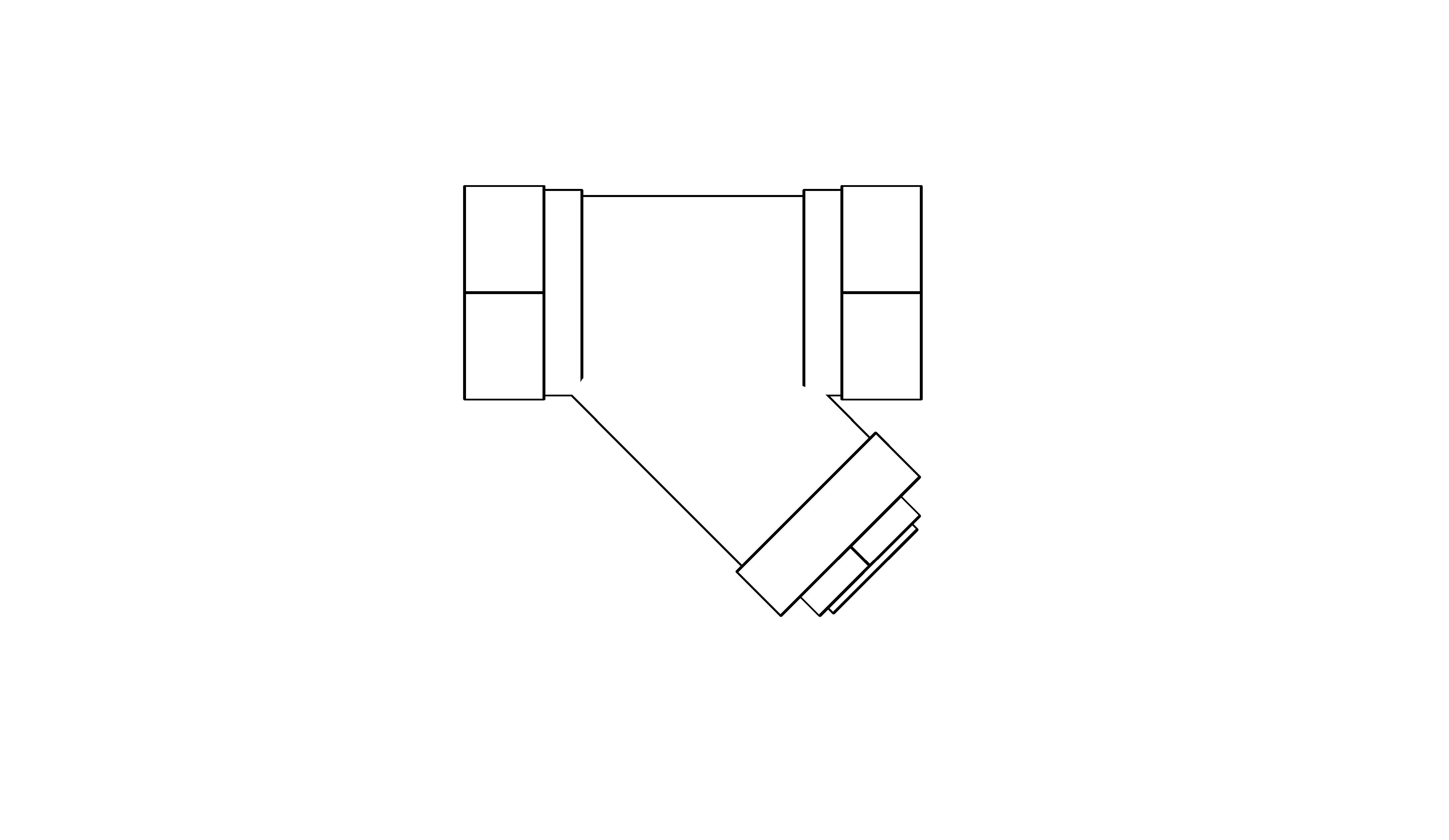

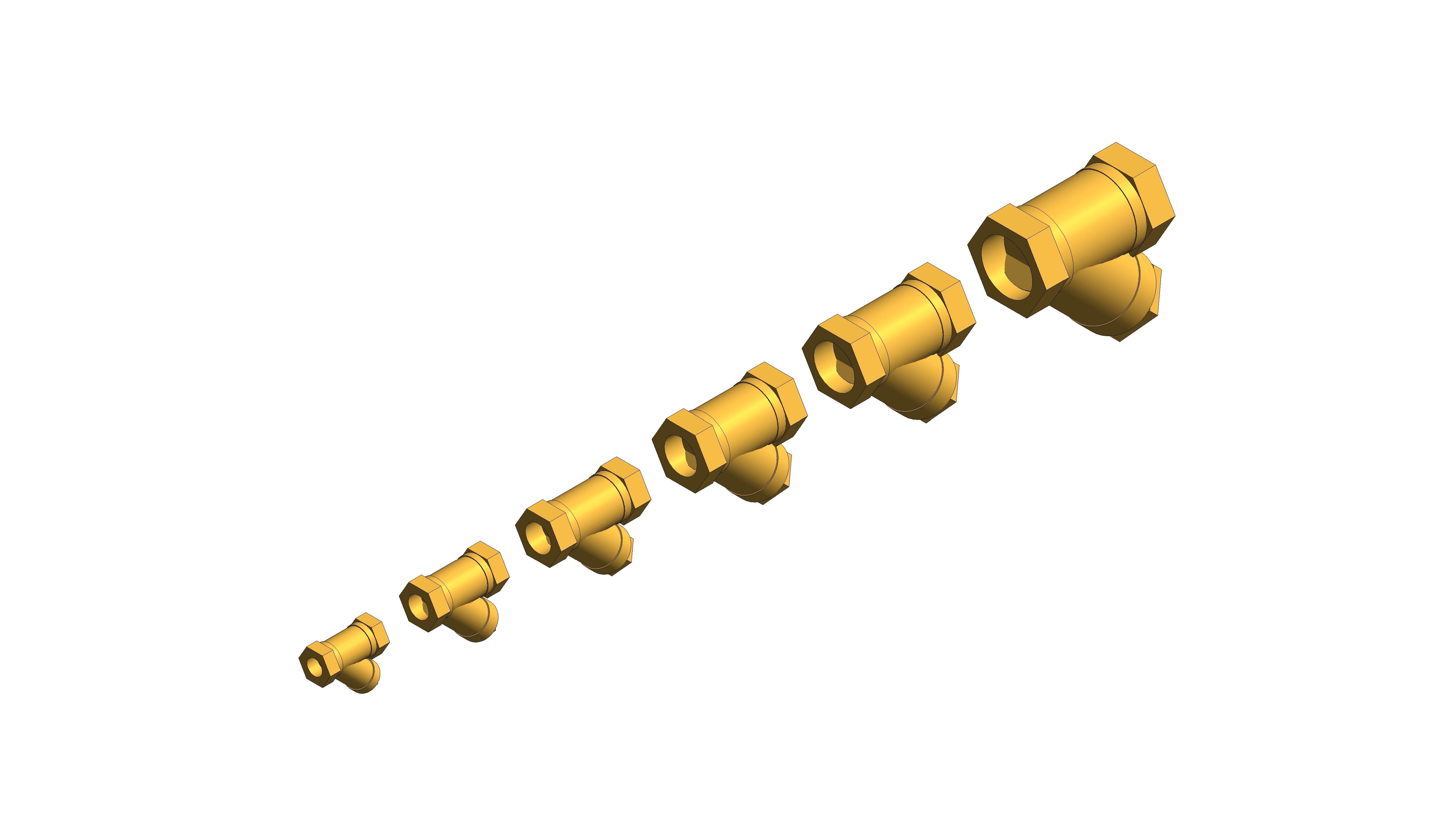

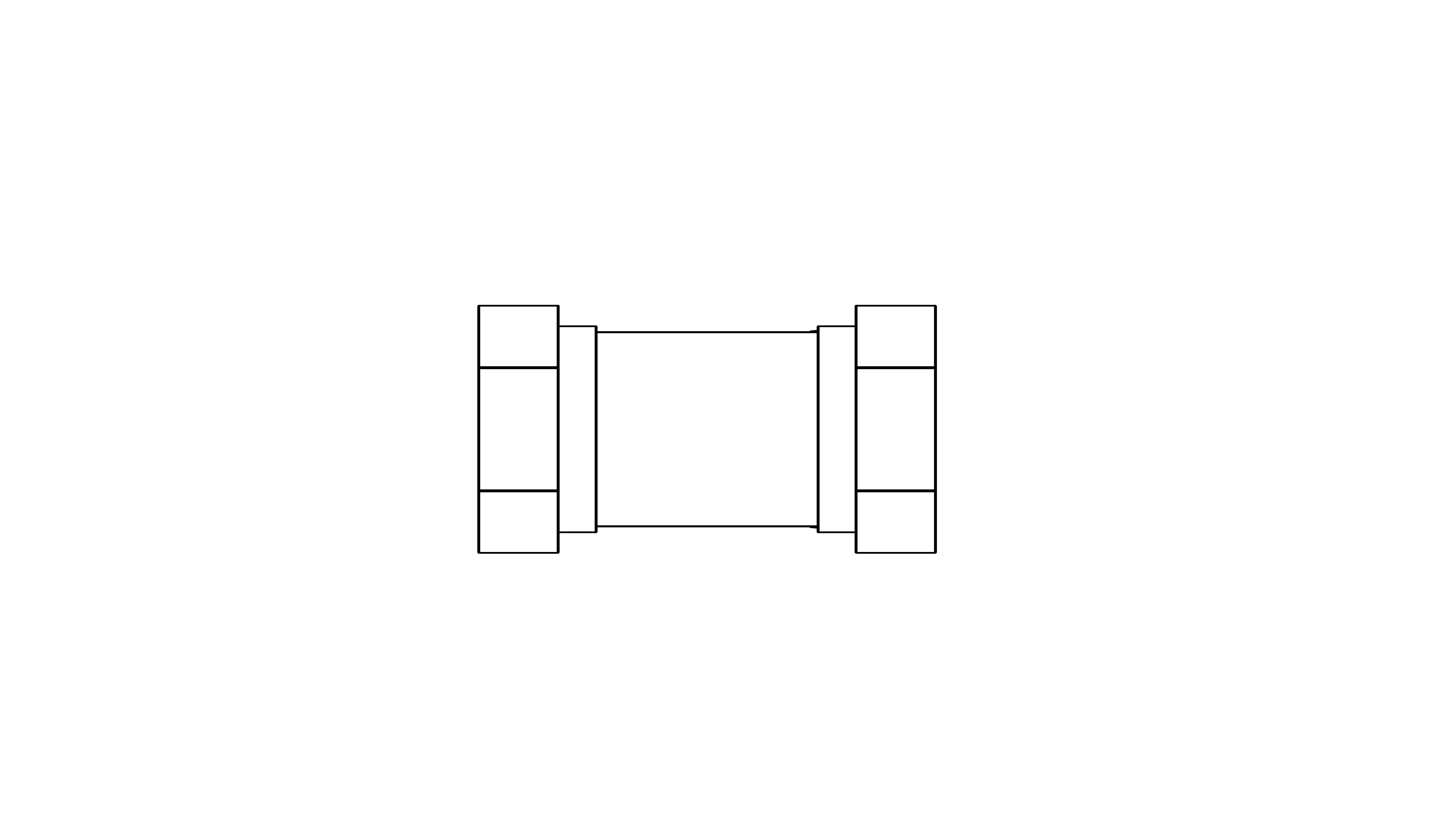

Fig. 827 - Strainer - Bronze

by Hattersley

Download Add to collection

Description

PN20 Y-Type Strainer - Bronze

• Hattersley strainers will help eliminate the problems caused by foreign matter within piping systems
• Robust and high quality bronze body
• Streamlined flow contours minimise pressure drop
• Compact design with short face to face
• Perforated stainless steel screen
• Captive asbestos-free non-stick gasket

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/fig-827-strainer-bronze-1/document/object-user-guide
A58 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B33 mm
Base Hex Thickness4 mm
BIM Object NameHattersley_Strainer_Fig827
BodyBronze 1982 CC491K
Body Calc12 mm
BSYes
C40 mm
CapBronze 1982 CC491K
Cap Dia8 mm
Cap SealPTFE
Cap Thickness1 mm
Classification NameUniclass 2015
Classification ValuePr_65_55_86_99
Code Performancen/a
ColorBronze
Connection Size15 mm
Connection Size Calc8 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-25 T:09:00:00
D55 mm
Default Elevation0 mm
DescriptionPN20 Strainer - Bronze
Documentation Certificateswww.bimstore.co/products/fig-827-strainer-bronze-1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-827-strainer-bronze-1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-827-strainer-bronze-1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-827-strainer-bronze-1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-827-strainer-bronze-1/document/technical-data-sheet
Downstand Body Dia11 mm
Downstand Hex Dia18 mm
Downstand Hex Dia Calc9 mm
Downstand Length38 mm
Downstand Offset12 mm
Downstand Round Dia12 mm
Downstand Round Width8 mm
Duration UnitYear
E62 mm
End ConnectionThreaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI.
End Round Dia13 mm
End Round Thickness5 mm
Expected Life0
F27 mm
Features- Hattersley strainers will help eliminate the problems caused by foreign matter within piping systems - Robust and high quality bronze body - Streamlined flow contours minimise pressure drop - Compact design with short face to face - Perforated stainless steel screen - Captive asbestos-free non-stick gasket
Finishn/a
Graden/a
Hex Dia Calc27 mm
Hex Thickness10 mm
Identity PlateAluminium
Ifc Export AsIfcValve
Ifc Export TypeIfcFilterTypeEnum.STRAINER
K Coefficient0
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze
MeshStainless Steel 304
ModelFig. 827 - Strainer - Bronze
Model NumberFig. 827 - Strainer - Bronze
Model ReferenceFig. 827 - Strainer - Bronze
NBS DescriptionY-type strainers
NBS Noten/a
NBS Object NameHattersley - Y-type strainers
NBS Office Master Tagn/a
NBS Reference90-20-80/320
Nominal Depth31 mm
Nominal Height55 mm
Nominal Length58 mm
Pressure RatingPN20
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partsn/a
Temperature Rating20 bar at -10°C to 100°C. 9 bar at 180°C. For WRAS approval -10°C to 85°C
Type CommentsDN15
Type NameD298 - Strainer - Bronze
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
