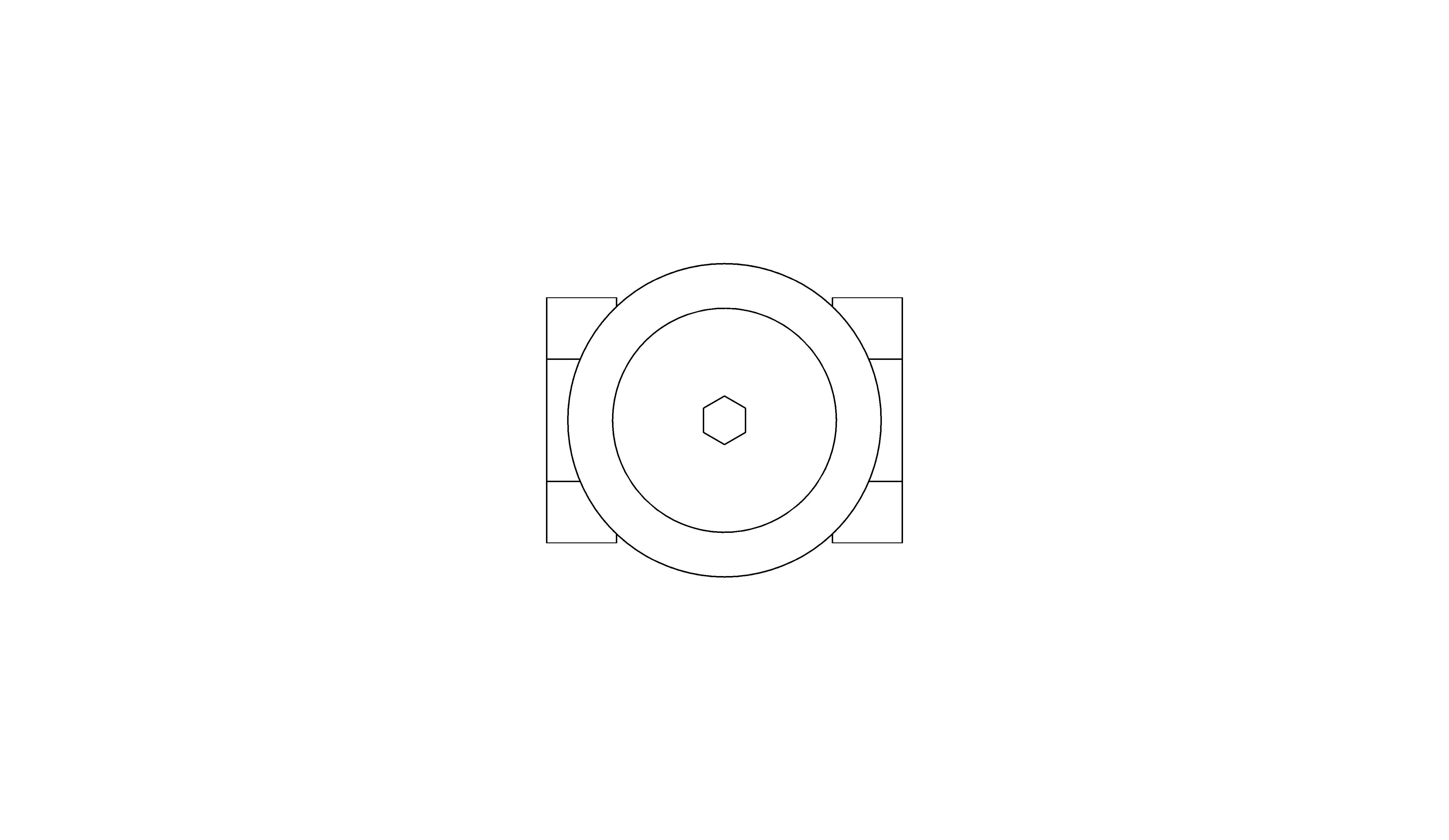

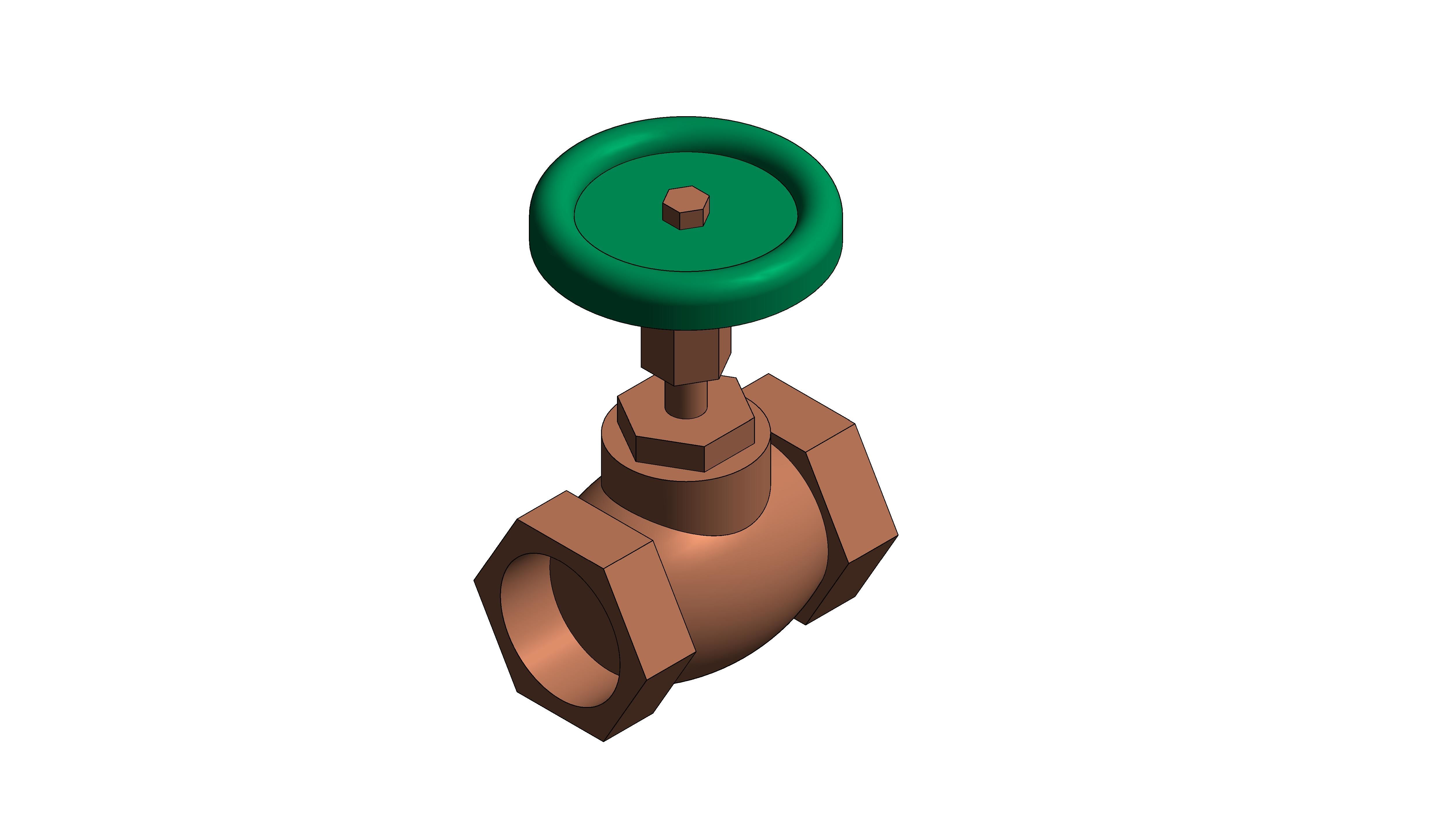

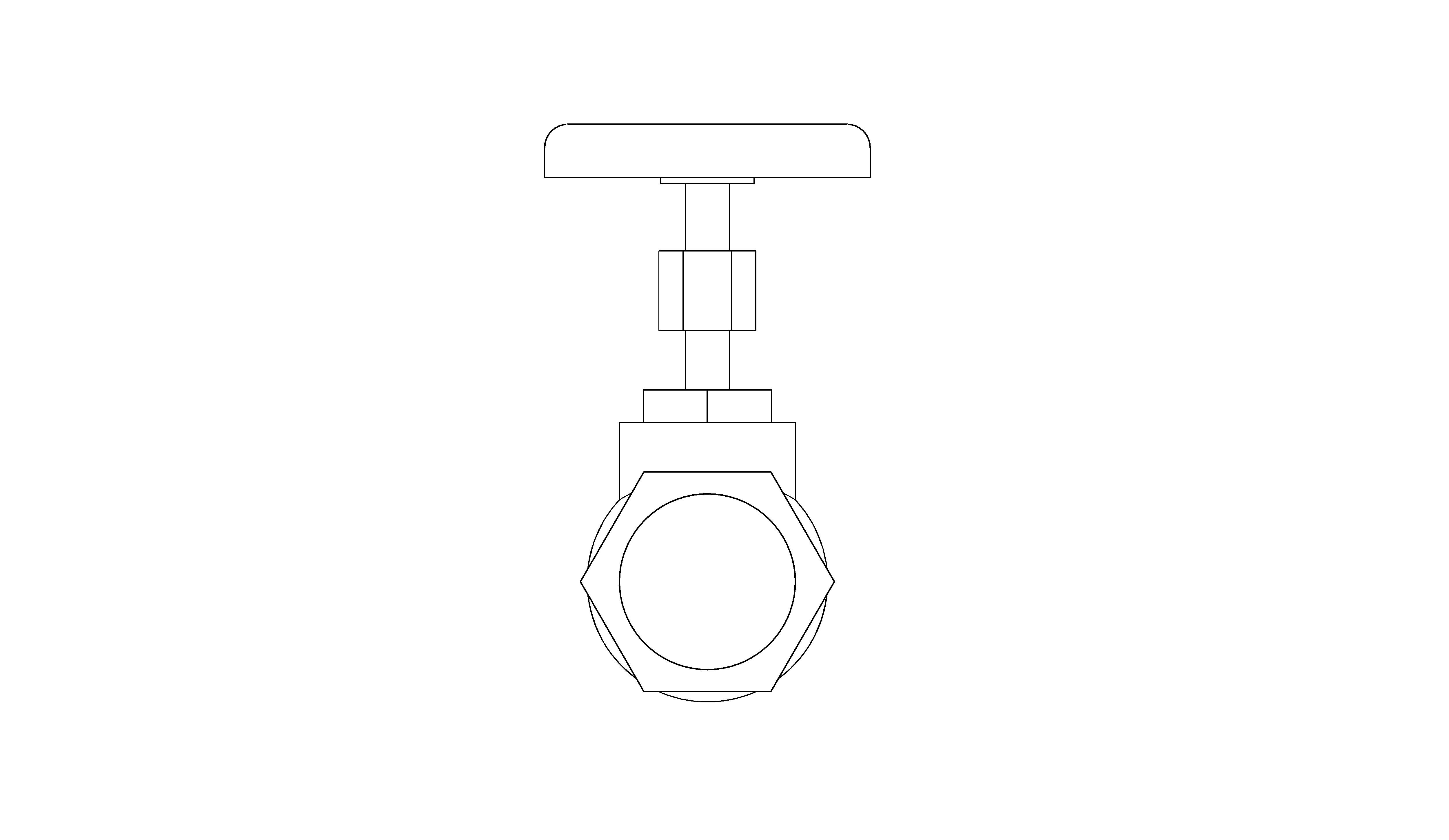

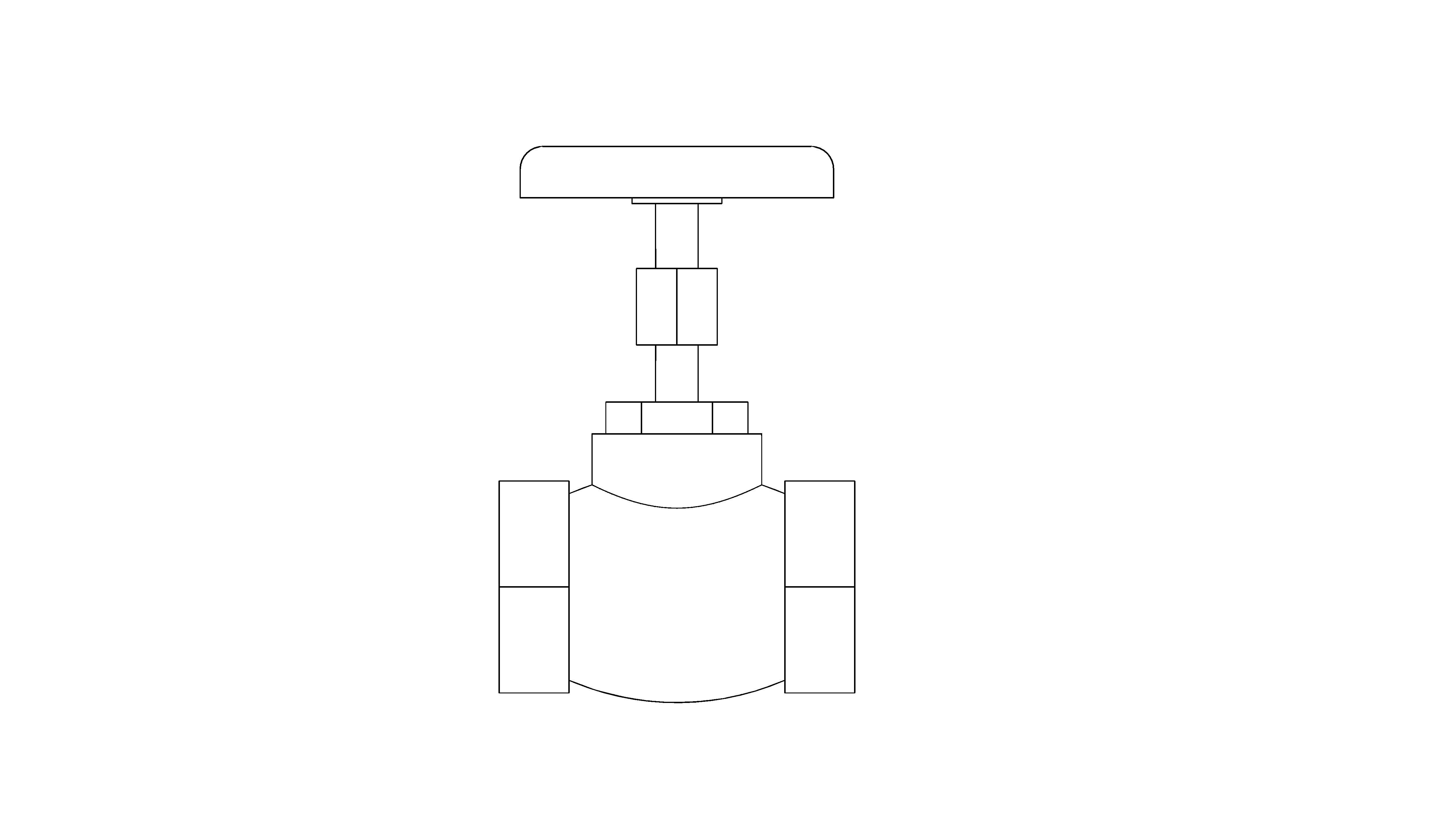

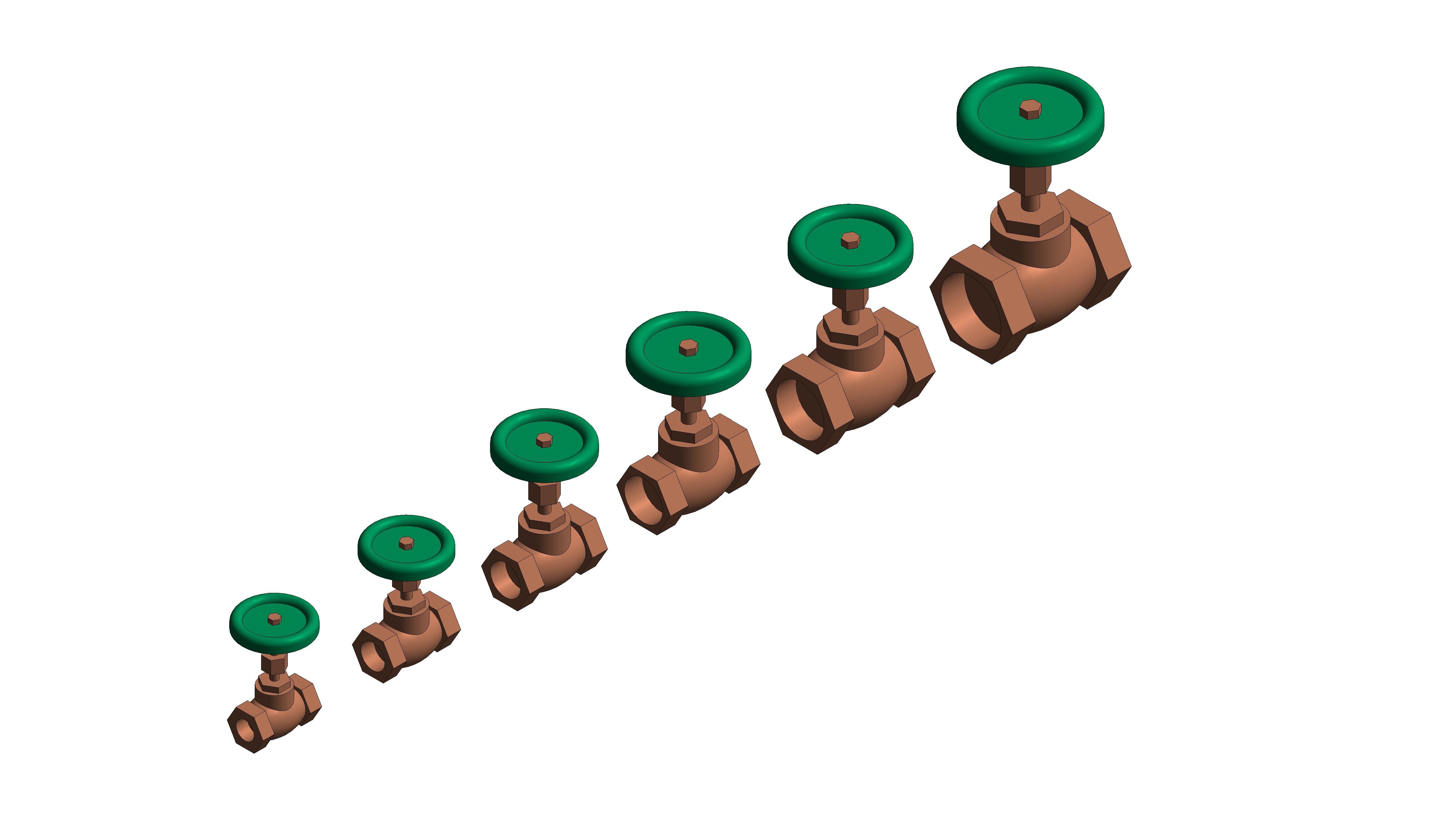

Fig. C4 - Globe Valve - Bronze

Download Add to collection

Description

PN16 Series B Globe Valve - Bronze

High quality bronze body with robust spherical shape
Rising stem and screwed bonnet
Assures accurate flow regulation/control
Suitable for high pressures up to 16 bar

Object Data

1 Revision

Last Updated

30/10/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

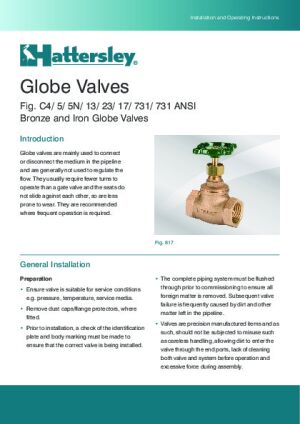

Installation Guide

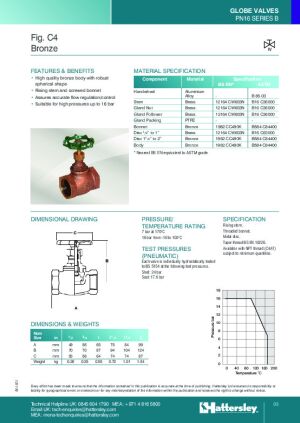

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/fig-c4-globe-valve-bronze/document/object-user-guide
a16.5 mm
Accessibility Performancen/a
Assembly CodeD30
Asset TypeFixed
b64.0 mm
BIM Object NameHattersley_GlobeValve_FigC4
BodyCast Bronze ASTM B584 C84400
BonnetCast Bronze ASTM B584 C84400
c22.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_16
Code Performancen/a
Colorn/a
Connection Radius20.0 mm
Connection Size40.0 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2023-09-11 T09:00:00
d20.0 mm
D74.0 mm
Default Elevation0.0 mm
DescriptionPN16 Class 125S, 200WOG Bronze Globe Valve
DiscBrass ASTM B16 C36000
Documentation Certificateswww.bimstore.co/products/fig-c4-globe-valve-bronze/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/fig-c4-globe-valve-bronze/document/installation-guide
Documentation Literaturewww.bimstore.co/products/fig-c4-globe-valve-bronze/document/product-literature
Documentation Maintenancewww.bimstore.co/products/fig-c4-globe-valve-bronze/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/fig-c4-globe-valve-bronze/document/technical-data-sheet
Duration UnitYear
e36.2 mm
Expected Life0
f7.4 mm
Features- High quality bronze body with robust spherical shape - Rising stem and screwed bonnet - Assures accurate flow regulation/control - Suitable for high pressures up to 16 bar
Finishn/a
g13.5 mm
GlandBrass ASTM B16 C36000
Graden/a
h18.1 mm
H104.0 mm
HandwheelCast Iron ASTM A126 CLASS B
Hex Width50.0 mm
Hex Width 229.0 mm
Hex Width 319.0 mm
i13.5 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
j5.0 mm
k13.0 mm
K Coefficient0
KeynoteS
L84.0 mm
Lock NutBrass ASTM B16 C36000
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
MaterialBronze
ModelFig. C4
Model NumberFig. C4
Model ReferenceFig. C4
Name PlateAluminium ASTM B209 1100
NBS DescriptionCopper alloy globe valves
NBS Noten/a
NBS Object NameHattersley - Copper alloy globe valves
NBS Office Master Tagn/a
NBS Reference90-10-90/344
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Packing NutBrass ASTM B16 C36000
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
StemBrass ASTM B16 C36000
Stem PackingTeflon PTFE
Test Pressure Seat[Air]80 psi
Test Pressure Shell[Water]300 psi
Type Comments1-1/2"
Type Name1-1/2"
URLwww.hattersley.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
Wheel NutSteel ASTM A563 Zn PLATED
Working Pressure Non-Shock[Cold Water-Oil-Gas]125 psi
Working Pressure Non-Shock[Saturated Steam]200 psi
