Full Height Clinical Basin IPS Assembly

by Trade Washrooms

Download Add to collection

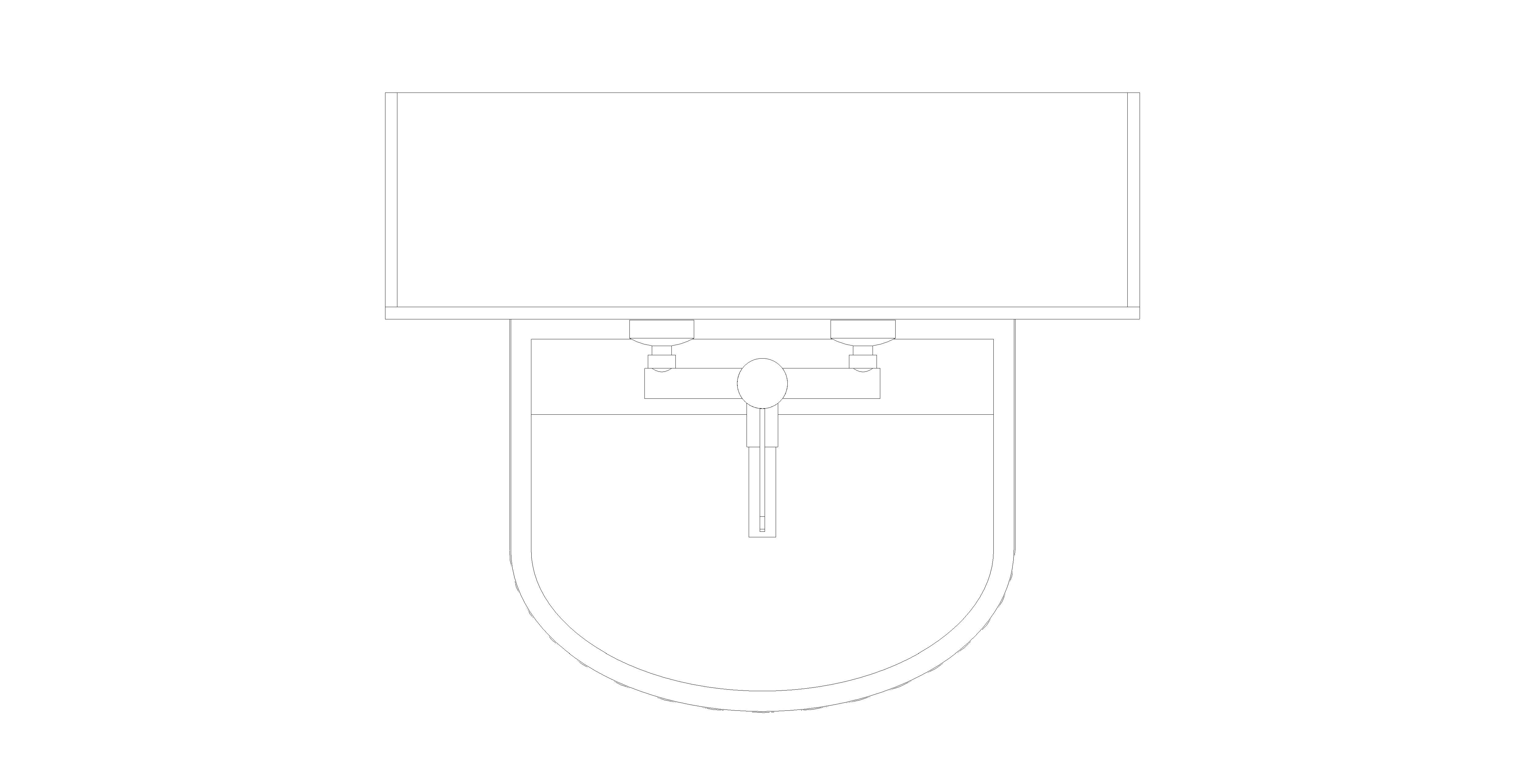

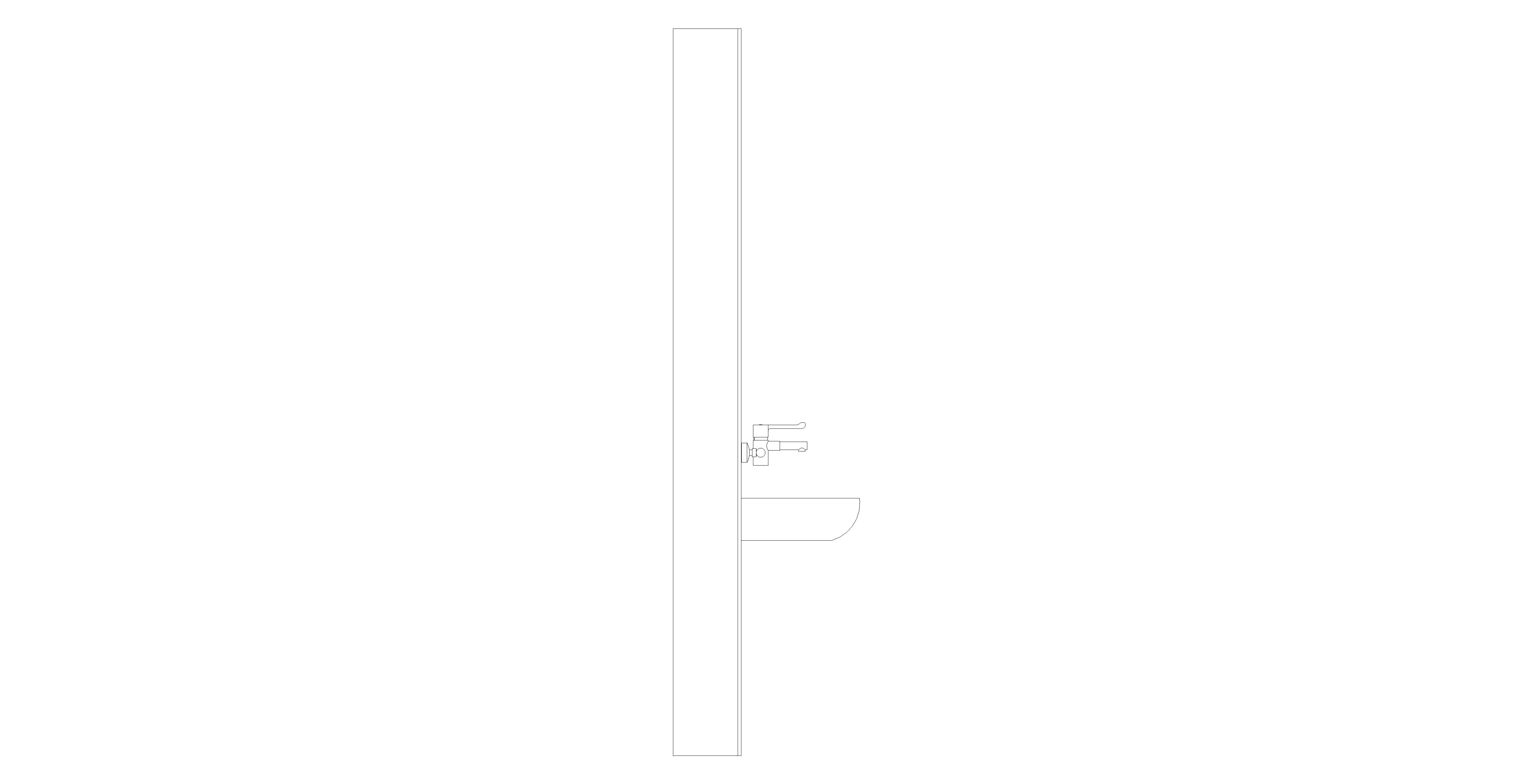

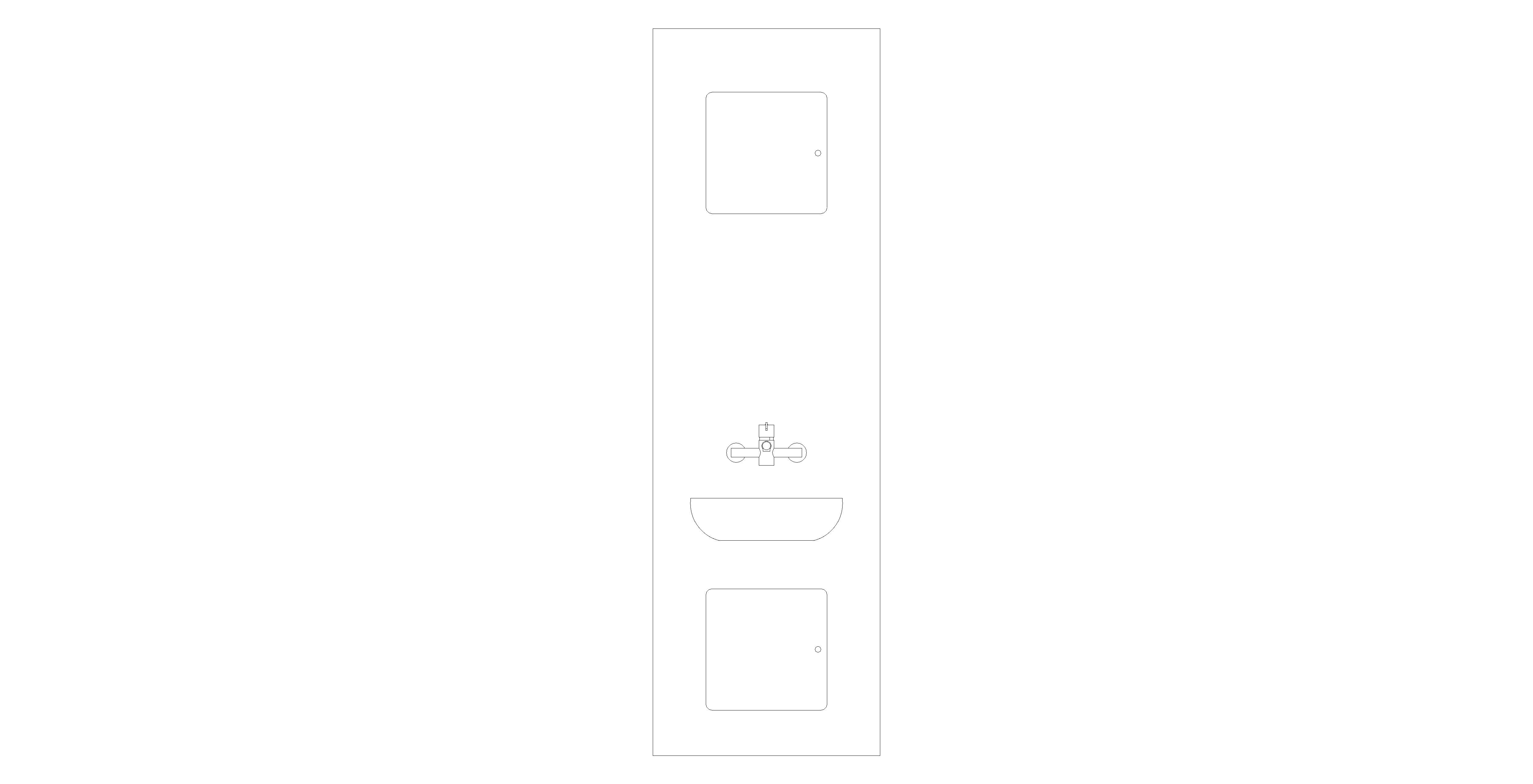

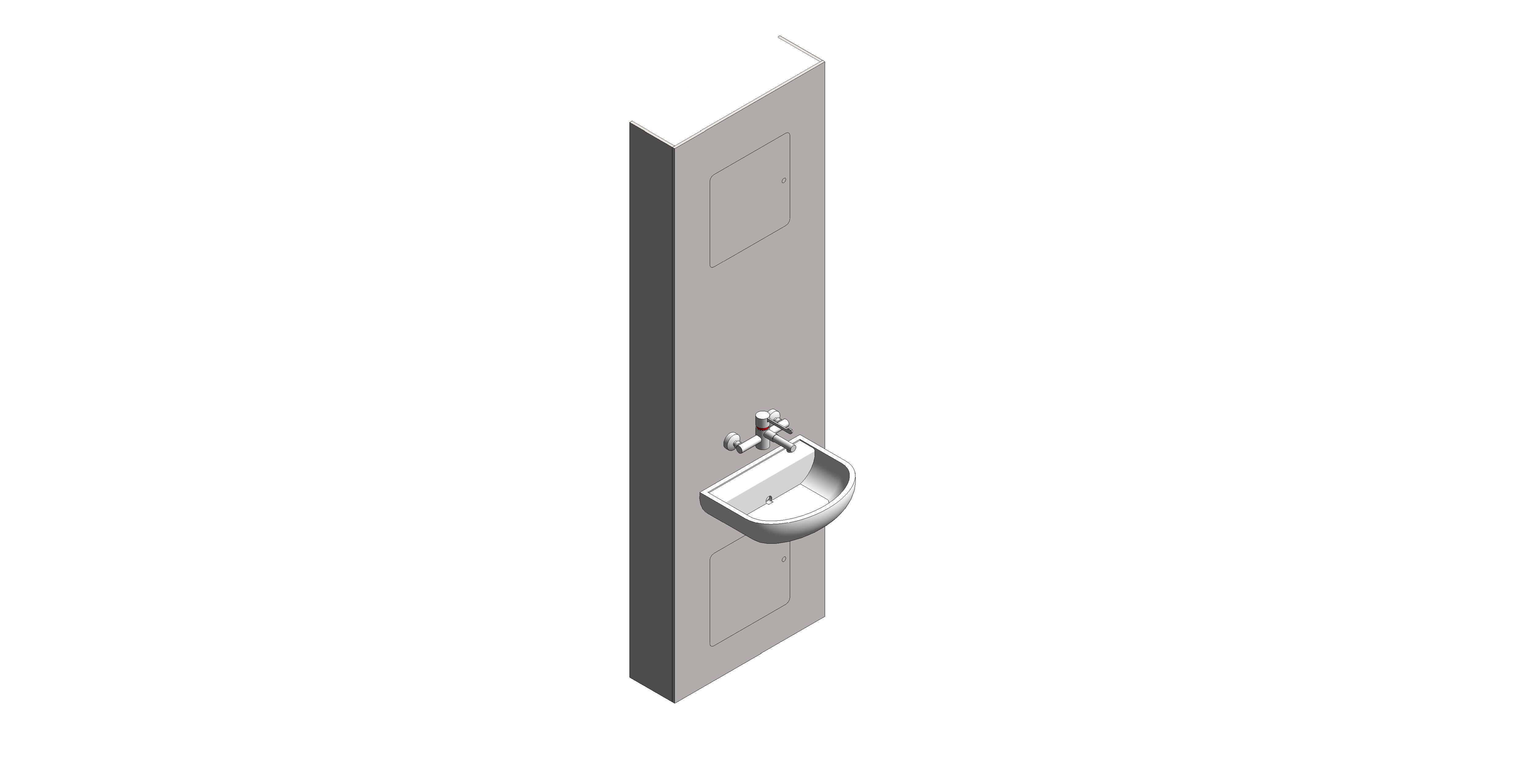

Description

This full-height IPS panel assembly from Trade Washrooms complies with Healthcare Building Note (HBN) 00-10 Part C (previously HTM 64). Boxed-out IPS units like this are preferred to maintain the integrity of rear firewalls and acoustic rated walls. The 225mm depth allows for all services to be fitted within the boxed-out unit.

Object Data

1 Revision

Last Updated

11/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

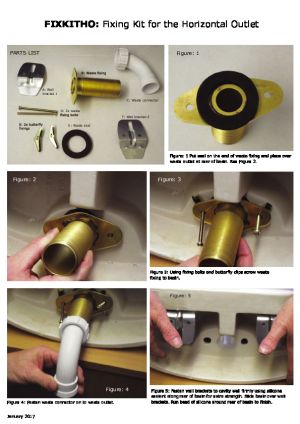

Installation Guide

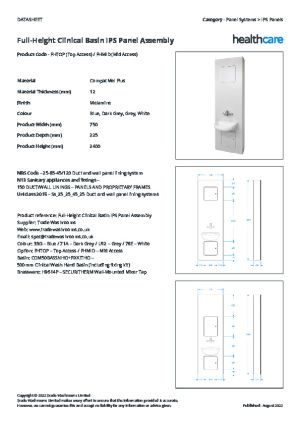

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradewashrooms_PlumbingFixture_IPS_ClinicalBasinAssembly_FullHeight
CategorySs_25_25_45_25:Duct and wall panel lining systems
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
ColorBeige, Blue, Dark Grey, Green, Grey, Purple, White, Yellow
ConstituentsIPS, Basin and Tap
Created Byspec@tradewashrooms.co.uk
Created On2020-02-07T09:00:00
CW ConnectionYes
CWFU0
DescriptionFull-Height Clinical Basin IPS Panel Assembly
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/panel-systems/ips-panels/full-height-clinical-basin-ips-panel-assembly/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/panel-systems/ips-panels/full-height-clinical-basin-ips-panel-assembly/
Duration UnitYears
Expected Life10
FeaturesA pre-assembled full-height IPS unit for clinical wash stations in medical and healthcare environments.
FinishMelamine
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompacMEL Plus
Material Thickness12 mm
ModelClinical Basin IPS Panel Assembly
Model NumberFHIPS
Model ReferenceHalf-Height Clinical Basin IPS Panel Assembly
NameFull-Height Clinical Basin IPS Panel Assembly
NBS DescriptionPre-plumbed installation frames
NBS Object NameTrade Washrooms - Pre-plumbed installation frames
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth225 mm
Nominal Height2400 mm
Nominal Length750 mm
Production Year2020
Referenced StandardHBN 00-10 Part C and ISO 22196: 2011
Replacement Costn/a
Shapen/a
Size2400 x 750 x 225mm
Spare Partsn/a
Sustainability PerformanceCompacMel saves up to 80% of the emission of greenhouse gases compared to traditional solid grade laminates, and the material is fully recyclable.
Type CommentsFHIPS
Type NameClinical Basin IPS Panel Assembly
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description10-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
