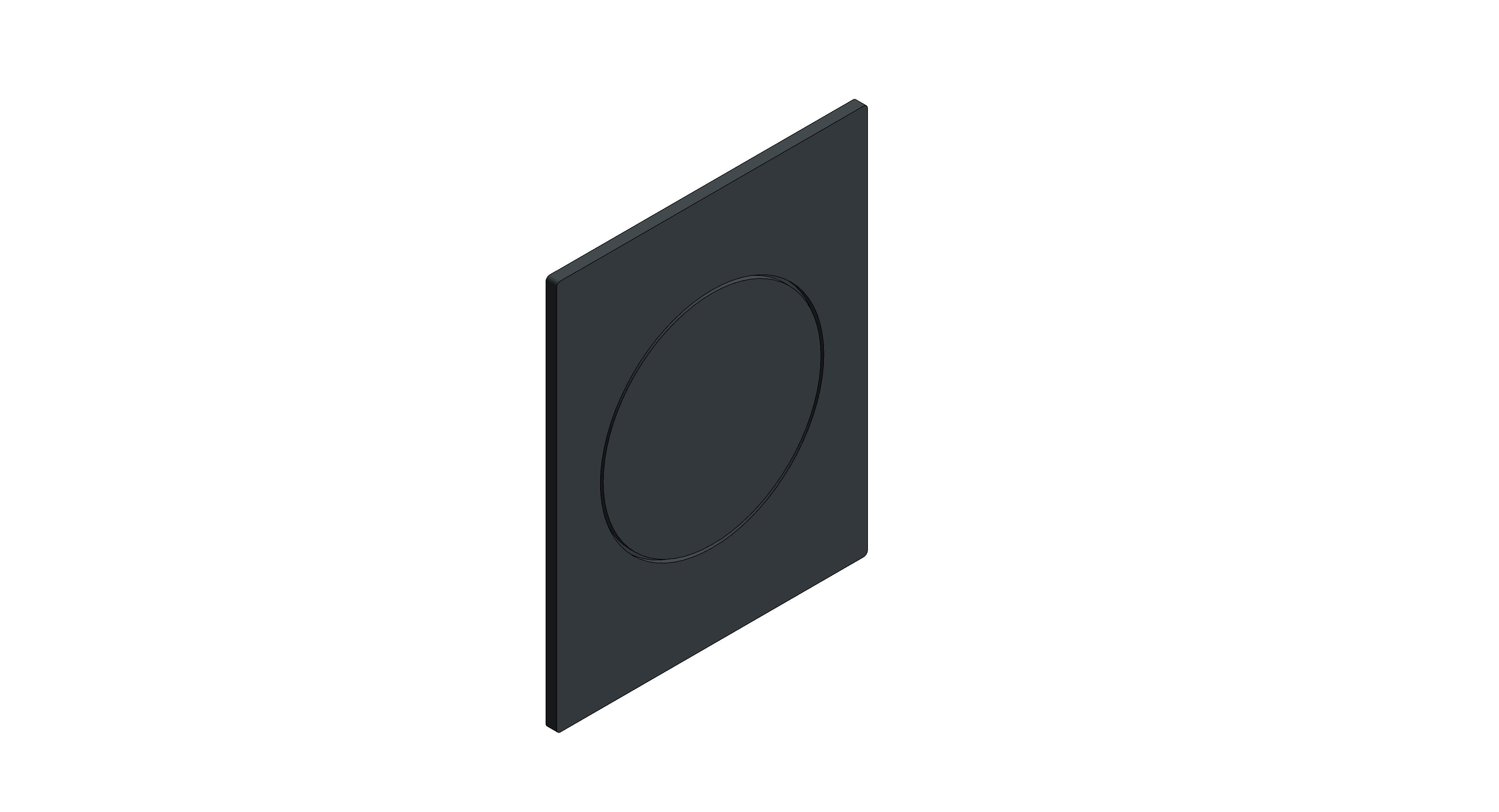

SPA Flush Plate (1046450000)

Download Add to collection

Description

Product Number -1046450000

Colour - Anthracite

PRODUCT MAIN FEATURES

for dual flush actuation
for pneumatic discharge valve AV1
vertical installation
160 x 201 mm
material: ABS
GROHE Long-Life finish
GROHE Water Saving - Less water, perfect flow
for combination with Rapid SL and Uniset with GD 2 cistern, slim cistern and 80 mm cistern
compatible with auto flush of Sensia Arena, Sensia Pro and Hygiena
6 V lithium battery, type CR-P2
battery lifetime: 4 years for a 3 person household (approx. 17000 actuations)
battery status warning
auto flush
cleaning mode
for mains supply please order transformer 42 470 000

Product page - https://www.grohe.co.uk/en_gb/-1046450000.html

Object Data

1 Revision

Last Updated

07/10/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM 191
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/spa-flush-plate-1046450000/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameGrohe_FlushPlate_SpaPremium_1046450000
Classification NameUniclass2015
Classification ValuePr_75_50_46_31
CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
Code Performancen/a
ColorAnthracite
Constituentsn/a
Cradle To Cradle Certificationn/a
Created Byinfo-uk@grohe.com
Created On2024-09-04T:09:00:00
CW ConnectionNo
Default Elevation0 mm
DescriptionSPA Flush Plate
Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/100000/100000/100000/100300/100360/100365/100365178/1280/100365178.jpg
Documentation Certificateswww.bimstore.co/products/spa-flush-plate-1046450000/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/spa-flush-plate-1046450000/document/installation-guide
Documentation Literaturewww.bimstore.co/products/spa-flush-plate-1046450000/document/product-literature
Documentation Maintenancewww.bimstore.co/products/spa-flush-plate-1046450000/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/spa-flush-plate-1046450000/document/technical-data-sheet
Duration UnitYears
EcojoyNo
EF000007Anthracite
EF000008160
EF000040201
EF00143851
EF002147Two button
EF002169Plastic
EF006331false
EF006949Pneumatic
EF010109false
EF020827true
EF020828false
EF023751true
EF023752true
Expected Life0
Featuresn/a
Finishn/a
Full Recyclability Of PlasticAll plastic components are fully recycable
Graden/a
GROHE Social Committmentgreen.grohe.com/social_engagement
GROHE Sustainabilitygreen.grohe.com
HW ConnectionNo
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteN13
ManufacturerGrohe
Manufacturer NameGrohe
Materialn/a
Model1046450000
Model Number1046450000
Model ReferenceSPA Flush Plate
NBS DescriptionFlush control devices
NBS Noten/a
NBS Object NameGrohe - Flush control devices
NBS Office Master Tagn/a
NBS Reference90-15-35/470
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
PQ Diagram Linkn/a
Primary MaterialGrohe_Anthracite
Product Descriptionfor dual flush actuation for pneumatic discharge valve AV1 vertical installation 160 x 201 mm material: ABS GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow for combination with Rapid SL and Uniset with GD 2 cistern, slim cistern and 80 mm cistern compatible with auto flush of Sensia Arena, Sensia Pro and Hygiena 6 V lithium battery, type CR-P2 battery lifetime: 4 years for a 3 person household (approx. 17000 actuations) battery status warning auto flush cleaning mode for mains supply please order transformer 42 470 000
Production Year2024
Product Number1046450000
Product Short TextFlush plate with soft touch actuation
Product Typen/a
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsinfo-uk@grohe.com
Sustainability Awardgreen.grohe.com/awards
Sustainability Reportgreen.grohe.com/reporting
TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2200/2220/2226/2226057/original/2226057.pdf
Type CommentsSPA Flush Plate
Type NameSPA Flush Plate
URLwww.grohe.co.uk/
Vent ConnectionNo
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo-uk@grohe.com
Warranty Guarantor Partsinfo-uk@grohe.com
Waste ConnectionNo

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
