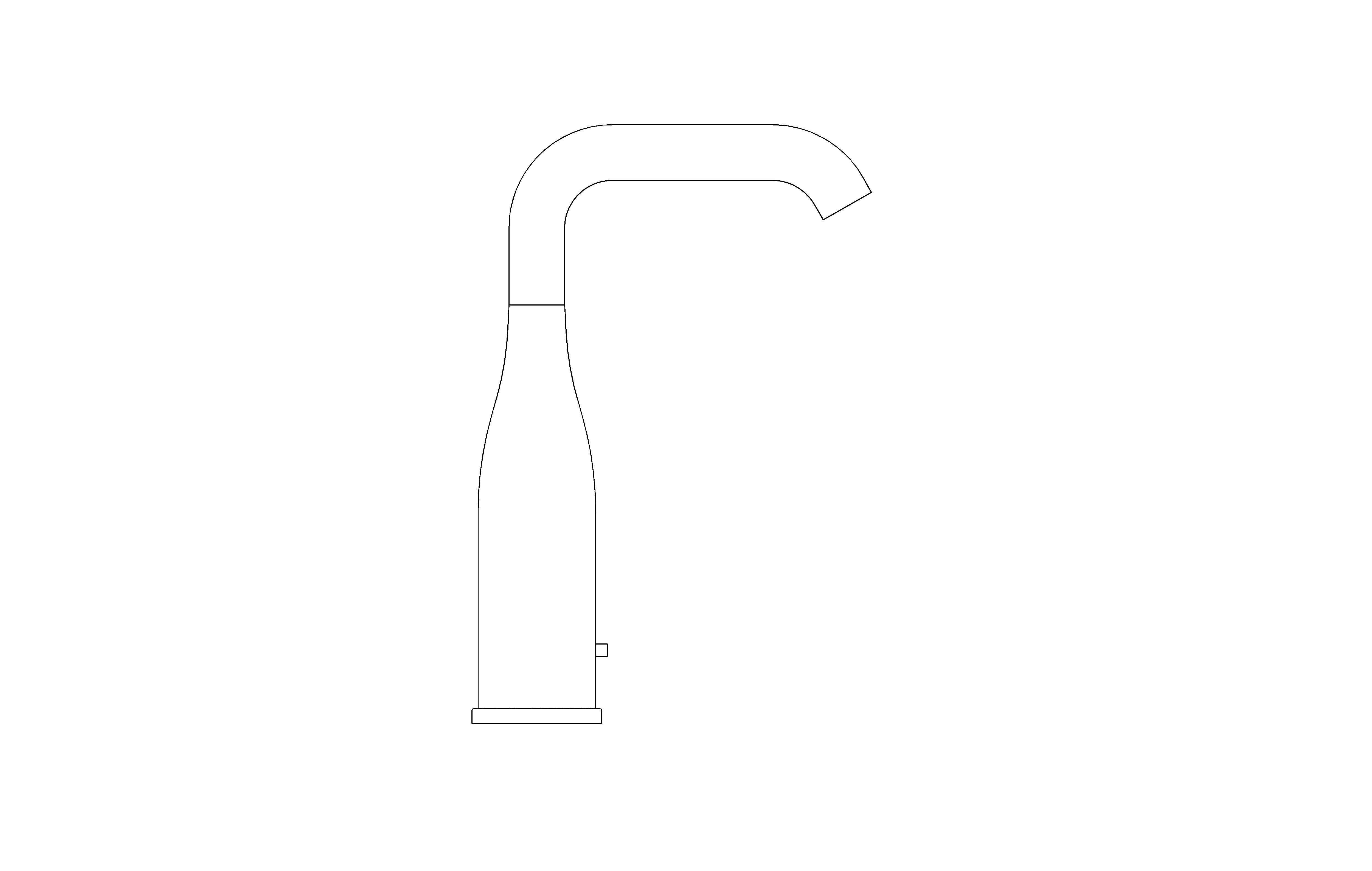

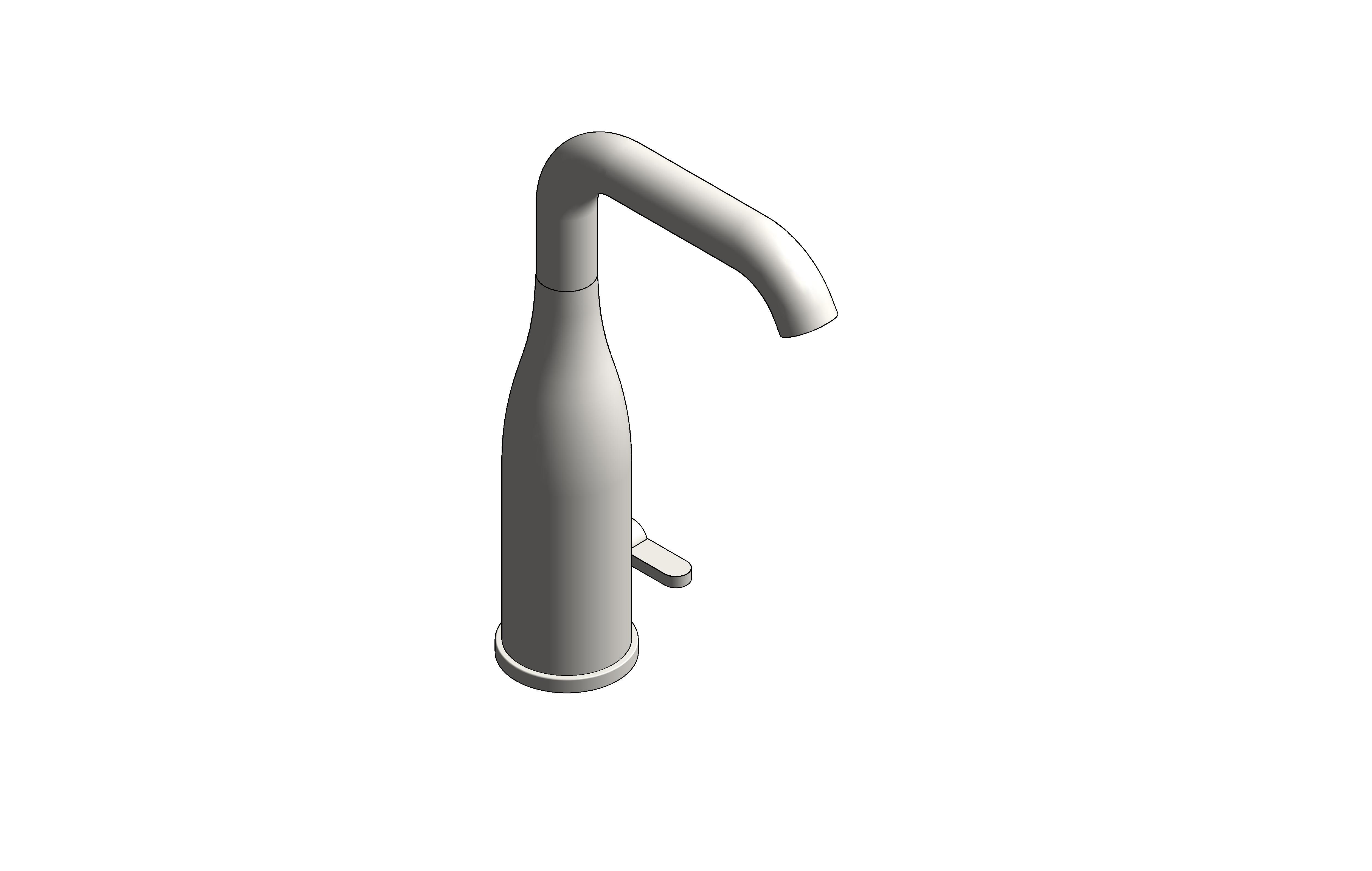

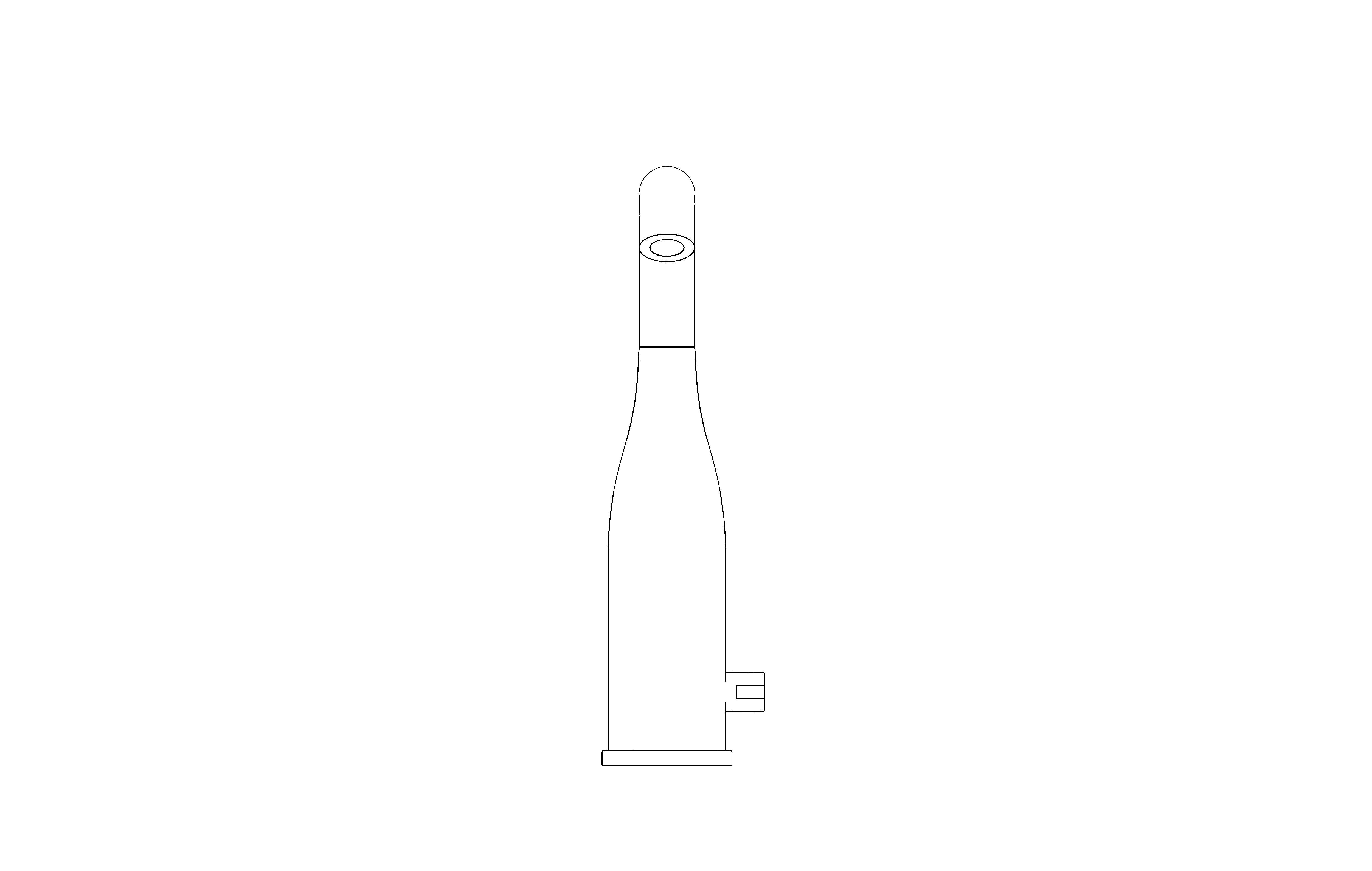

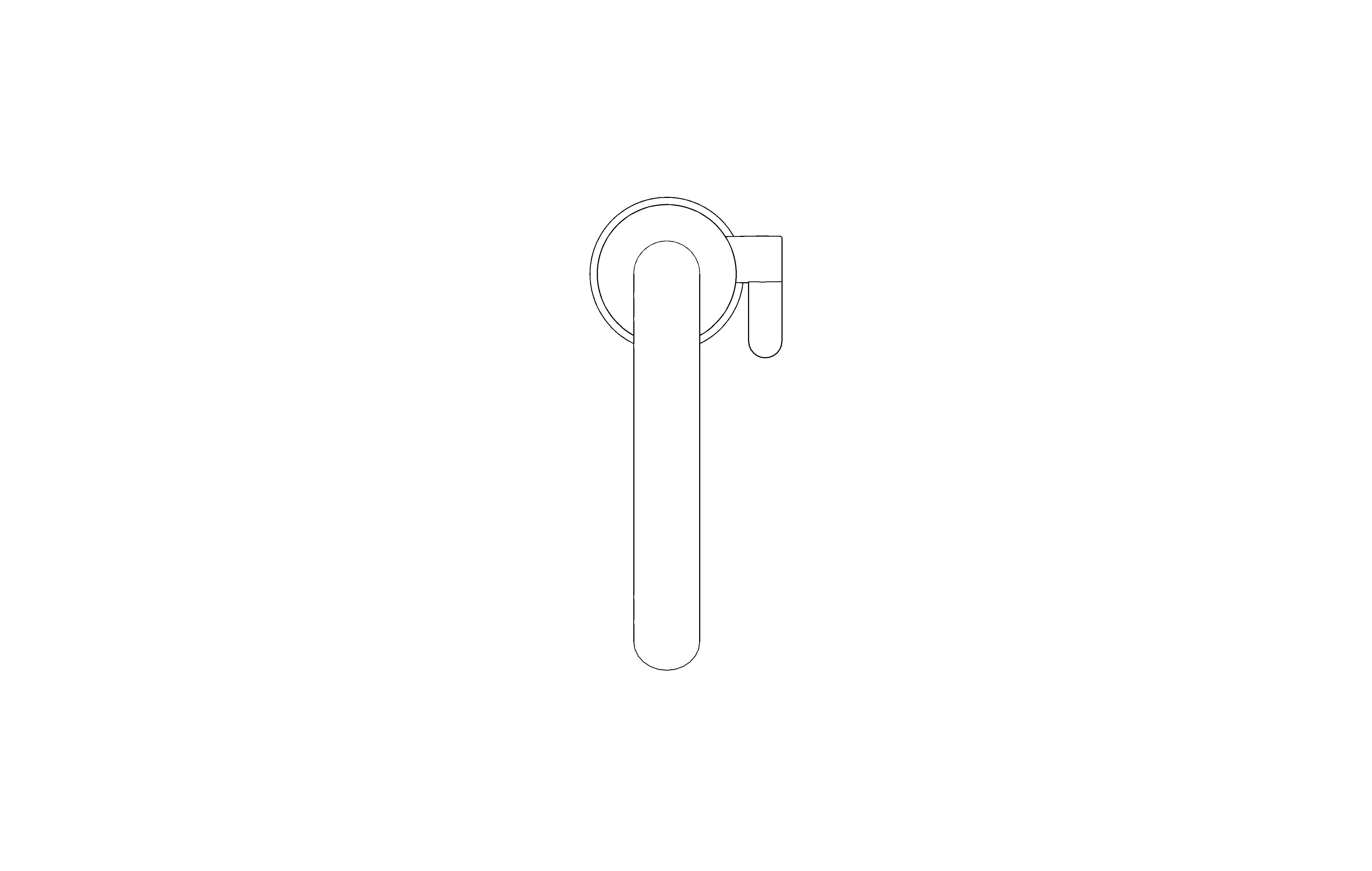

ESSENCE E Infra-Red Electronic Basin Mixer (36445DC0)

Object metadata

• _AuthorSM 192
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/euro-eco-single-lever-mixer-36445DC0/document/object-user-guide
• Accessibility Performancen/a
• Assembly CodeD2010
• Asset TypeFixed
• BIM Object NameGrohe_SingleLeverMixer_Euroeco_36445DC0
• Classification NameUniclass2015
• Classification ValuePr_40_20_87_55
• CO2 Neutral ProductionGROHE is one of the first leading manufacturer within the sanitary industry having a CO2-neutral production.
• Code Performancen/a
• ColorChrome
• Constituentsn/a
• Cradle To Cradle CertificationN/A
• Created Byinfo-uk@grohe.com
• Created On2024-10-14T:09:00:00
• CW ConnectionYes
• Default Elevation0 mm
• Descriptionwith infrared sensor for bi-directional communication for monitoring, configuration and servicing 6 V lithium battery, type CR-P2 battery lifetime: approx. 7 years (150 actuations a day) GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 5 l/min adjustable swivel area 0° / 150° / 360° laminar spray regulator flexible connection hoses non-return valve dirt strainers with integrated solenoid valve external battery rapid installation system multistage battery status display 7 pre-set programs: auto flush thermal disinfection cleaning mode additional functions and precise settings by remote control 36 407 CE approved noise classification I in accordance with DIN 4109 type of protection faucet IP 59K min. recommended pressure 1.0 bar
• Dimensions Document Linkcdn.cloud.grohe.com/dimdraw/2000/2100/2100/2101/2101768/1280/2101768.jpg
• Documentation Certificateswww.bimstore.co/products/euro-eco-single-lever-mixer-36445DC0/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/euro-eco-single-lever-mixer-36445DC0/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/euro-eco-single-lever-mixer-36445DC0/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/euro-eco-single-lever-mixer-36445DC0/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/euro-eco-single-lever-mixer-36445DC0/document/technical-data-sheet
• Duration UnitYears
• EcojoyNo
• EF000003Top/tap hole
• EF000139Other
• EF000278false
• EF0003320
• EF000958false
• EF001469Battery
• EF00170770 °C
• EF002149TRUE
• EF002286Hose (gland nut)
• EF002671Stainless steel.
• EF0036256
• EF0041210
• EF0054640
• EF005474IP59K
• EF006013true
• EF006974Manually operated
• EF007955FALSE
• EF011775EB
• EF011779FALSE
• EF011781not applicable
• EF012635true
• EF012637false
• EF0127535.00
• EF014578not applicable
• EF014591true
• EF015280not relevant
• EF016731Group I,<= 20 dB(A)
• EF020075Yes
• EF020103not relevant
• EF020105Yes
• EF020776false
• EF020779false
• EF020780Single-grip
• EF020781Plastic cartridge
• EF0207853/8 inch
• EF020787Group I,<= 20 dB(A)
• EF020788true
• EF020789127
• EF020791Brass
• EF020792FALSE
• EF020794FALSE
• EF020795Fixed, bottom
• EF020796245 mm
• EF020797211
• EF020798Pop-up waste (click-clack)
• EF020799TRUE
• EF020800false
• EF020801FALSE
• EF020825false
• EF020826true
• EF020871false
• EF020872false
• EF020873false
• EF020966false
• EF021720true
• EF0218081-hole
• EF0218275.0
• EF0218350
• EF021836false
• EF022042None
• EF022117Infrared
• EF022133false
• EF022168TRUE
• EF0222320
• EF022750Cast
• EF023686not applicable
• EF023687TRUE
• EF023688Anti-splash jet nozzle
• EF023957FALSE
• EF024921true
• EF0249224
• EF025098true
• EF02509930
• EF025101not relevant
• EF025102Remote control
• EF025104TRUE
• EF025109Brushed
• EF025247false
• EFDE0022None
• EFNL0001false
• EFSE0002false
• Expected Life0
• Featuresn/a
• FinishChrome
• Full Recyclability Of PlasticAll plastic components are fully recycable
• Graden/a
• GROHE Social Committmentgreen.grohe.com/social_engagement
• GROHE Sustainabilitygreen.grohe.com
• HW ConnectionYes
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• Installation Videon/a
• KeynoteN13
• ManufacturerGrohe
• Manufacturer NameGrohe
• Materialn/a
• ModelESSENCE E Basin Mixer 36445DC0
• Model Number36445DC0
• Model ReferenceESSENCE E Basin Mixer 36445DC0
• NBS DescriptionTaps and water supply fittings for sinks
• NBS Noten/a
• NBS Object NameGrohe - Taps and water supply fittings for sinks
• NBS Office Master Tagn/a
• NBS Reference45-35-70/345
• Nominal Depth0 mm
• Nominal Height0 mm
• Nominal Length0 mm
• PQ Diagram Linkcdn.cloud.grohe.com/PQCharts/lores/3/364/original/36445DC0-pqchart-en_GB.svg
• Primary MaterialGrohe_Supersteel
• Product Descriptionwith infrared sensor for bi-directional communication for monitoring, configuration and servicing 6 V lithium battery, type CR-P2 battery lifetime: approx. 7 years (150 actuations a day) GROHE Long-Life finish GROHE Water Saving - Less water, perfect flow maximum flow rate (at 3 bar): 5 l/min adjustable swivel area 0° / 150° / 360° laminar spray regulator flexible connection hoses non-return valve dirt strainers with integrated solenoid valve external battery rapid installation system multistage battery status display 7 pre-set programs: auto flush thermal disinfection cleaning mode additional functions and precise settings by remote control 36 407 CE approved noise classification I in accordance with DIN 4109 type of protection faucet IP 59K min. recommended pressure 1.0 bar
• Production Year2024
• Product Number36445DC0
• Product Short TextInfra-red electronic basin mixer 1/2" with mixing device and adjustable temperature limiter
• Product TypeSingle Lever Mixer
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare Partsinfo-uk@grohe.com
• Sustainability Awardgreen.grohe.com/awards
• Sustainability Reportgreen.grohe.com/reporting
• TPI Document Linkcdn.cloud.grohe.com/tpi/2000/2100/2190/2197/2197354/original/2197354.pdf cdn.cloud.grohe.com/tpi/2000/2200/2200/2205/2205752/original/2205752.pdf cdn.cloud.grohe.com/tpi/2000/2100/2170/2171/2171304/original/2171304.pdf cdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100240/100240/100240533/original/100240533.pdf cdn.cloud.grohe.com/tpi/100000/100000/100000/100200/100230/100232/100232020/original/100232020.pdf cdn.cloud.grohe.com/tpi/100000/100000/100000/100100/100120/100129/100129724/original/100129724.pdf cdn.cloud.grohe.com/tpi/1000/1800/1890/1895/1895303/original/1895303.pdf
• Type CommentsESSENCE E Basin Mixer 36445DC0
• Type NameESSENCE E Basin Mixer (36445DC0)
• URLwww.grohe.co.uk/
• Vent ConnectionNo
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo-uk@grohe.com
• Warranty Guarantor Partsinfo-uk@grohe.com
• Waste ConnectionNo
