Half Height Clinical Basin IPS Assembly

by Trade Washrooms

Download Add to collection

Description

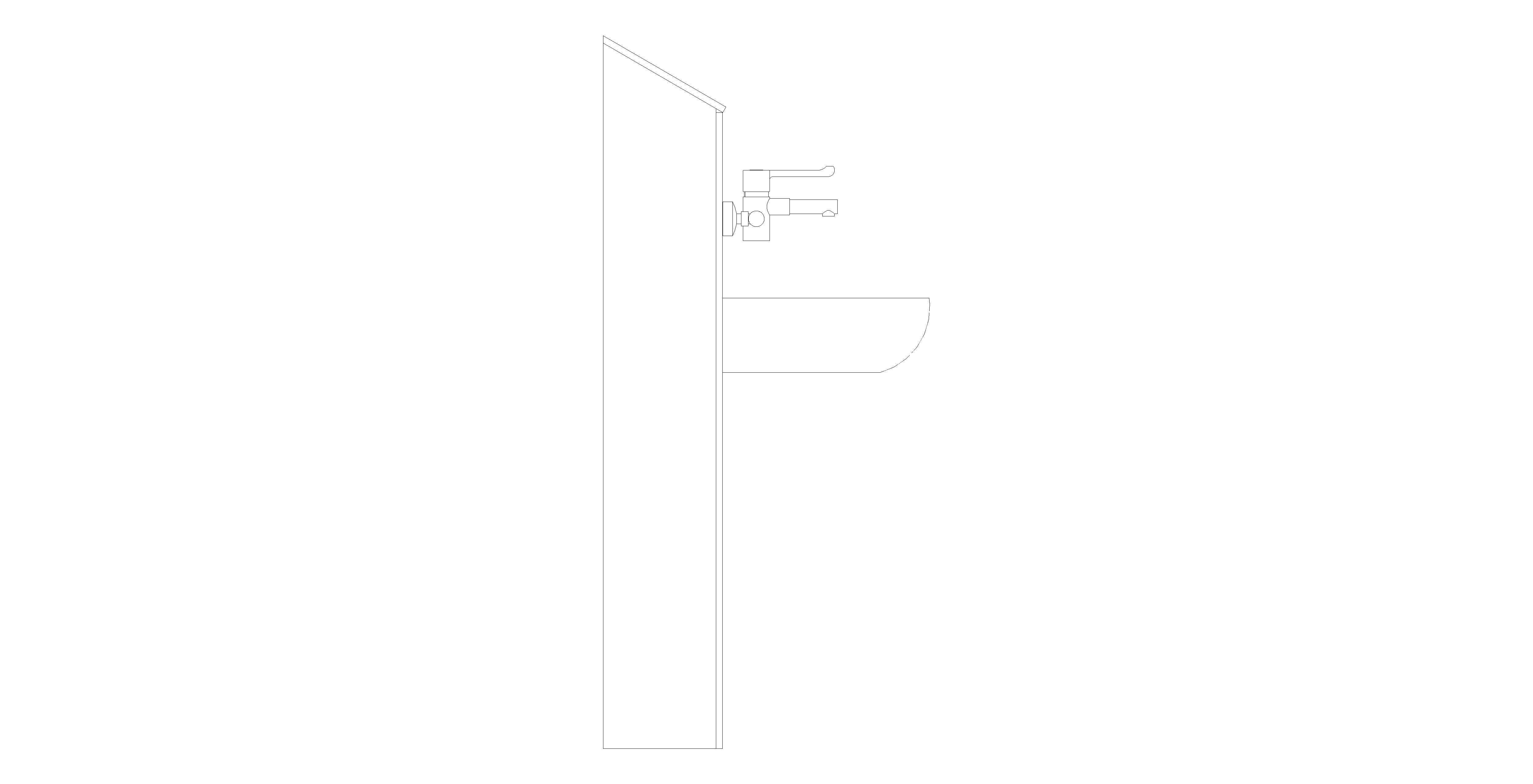

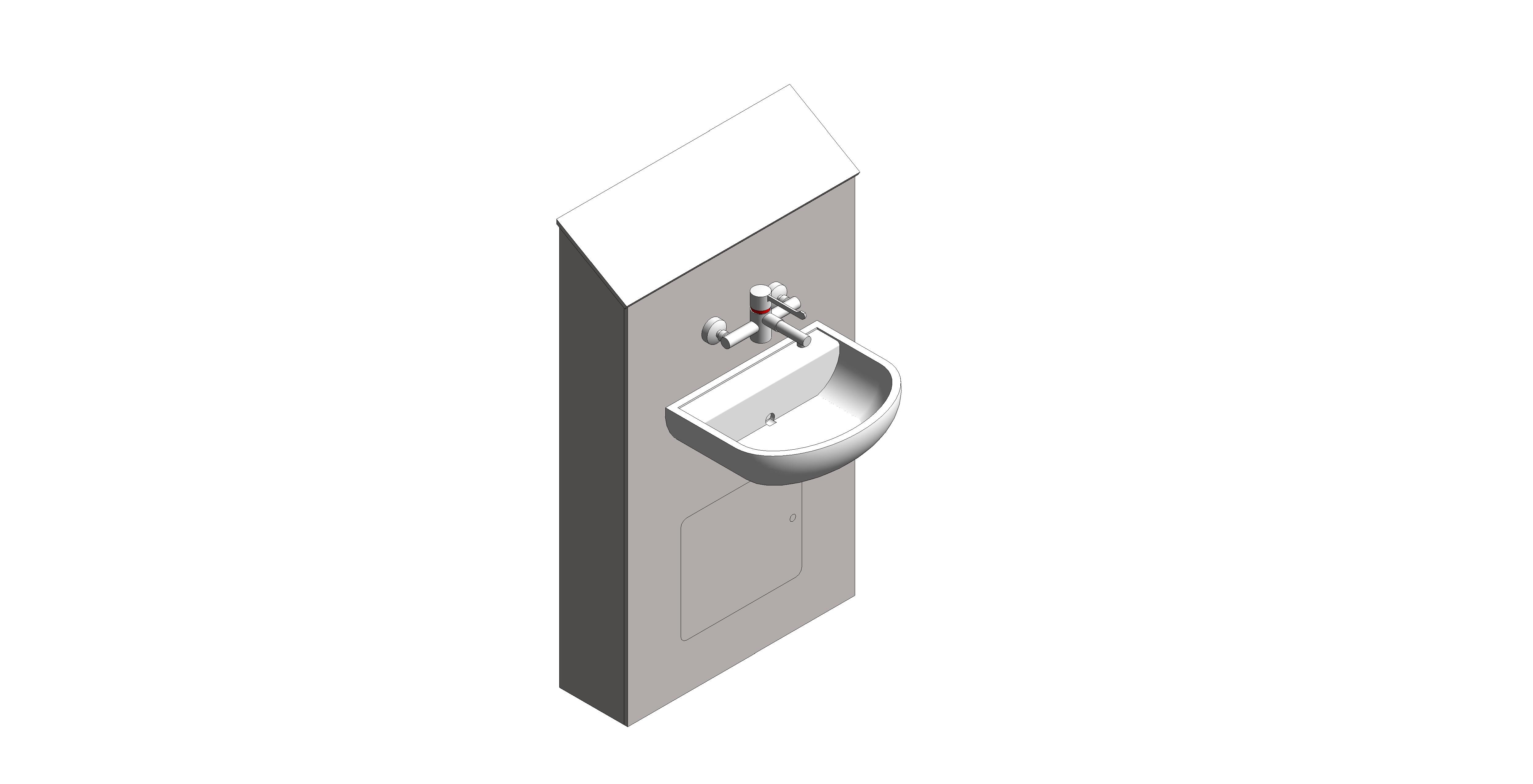

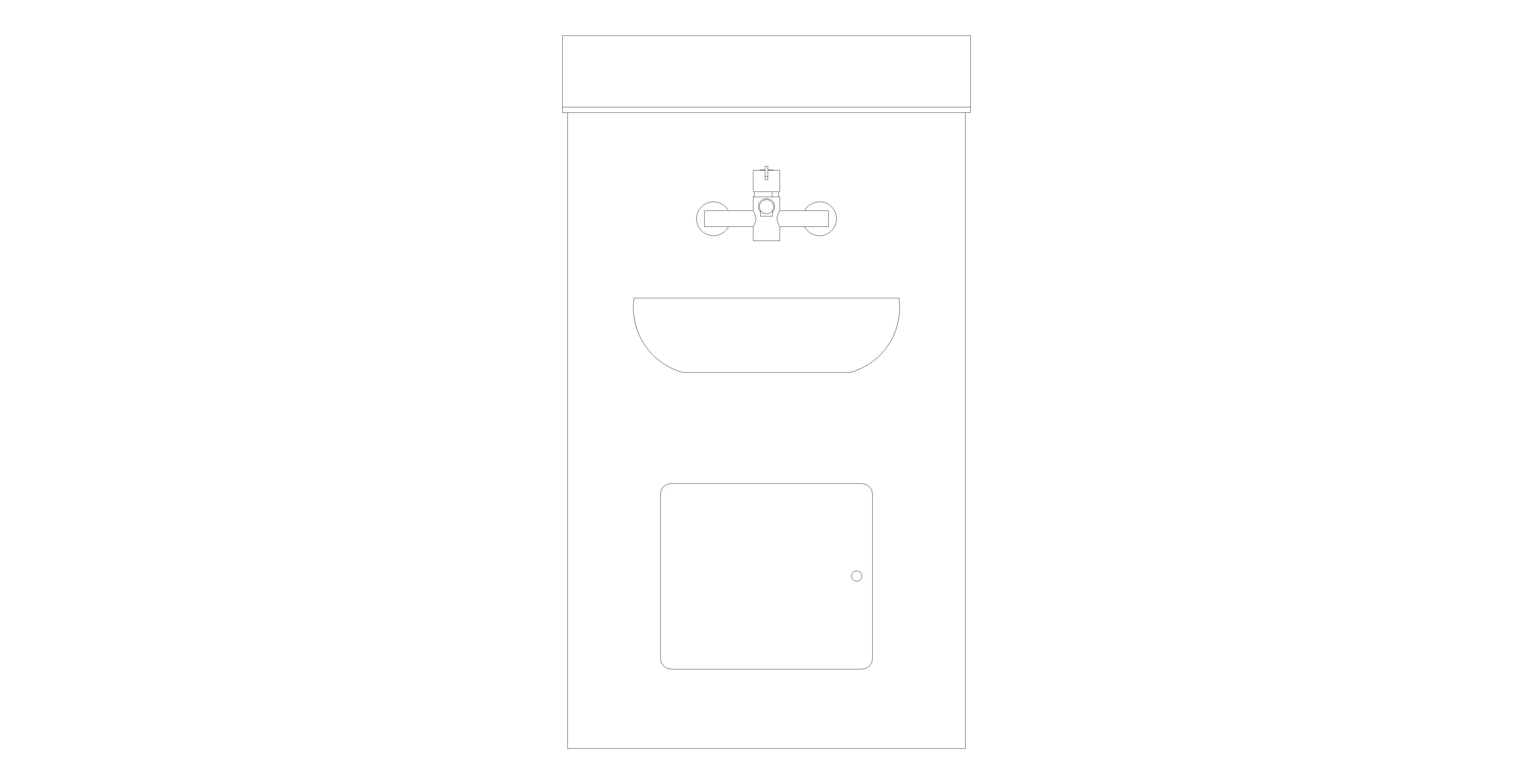

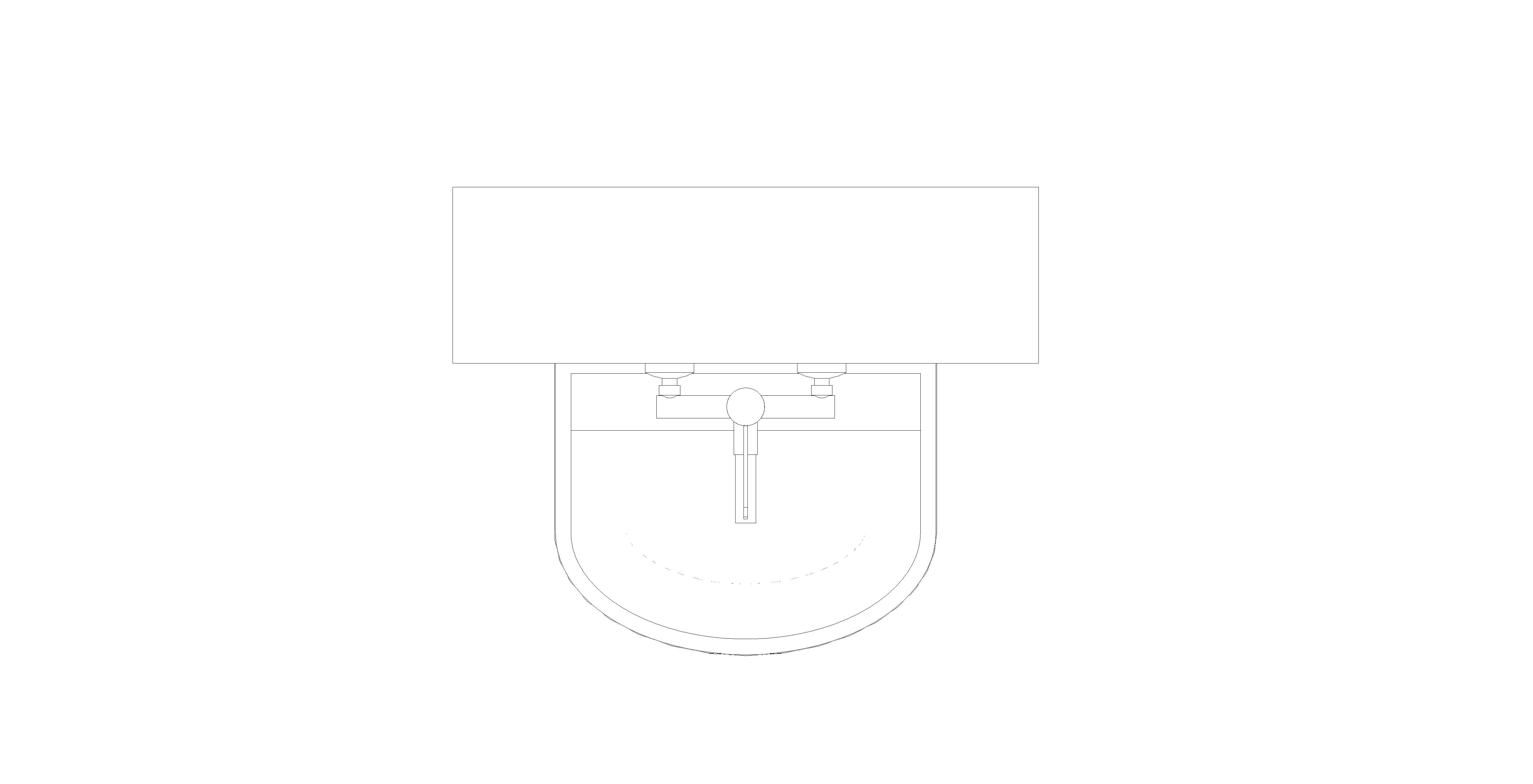

This half-height IPS panel assembly from Trade Washrooms complies with Healthcare Building Note (HBN) 00-10 Part C (previously HTM 64). Boxed-out IPS units like this are preferred to maintain the integrity of rear firewalls and acoustic rated walls. The 225mm depth allows for services to be fitted within the boxed-out unit and the sloping top prevents use as a shelf.

Object Data

1 Revision

Last Updated

11/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

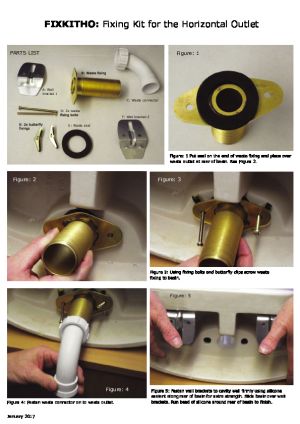

Installation Guide

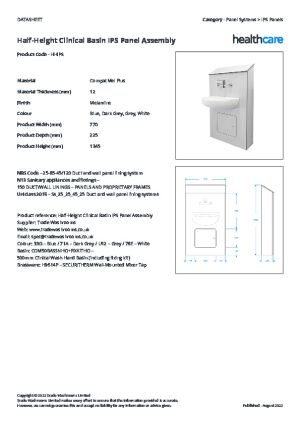

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010900
Asset TypeFixed
BIM Object NameTradewashrooms_PlumbingFixture_IPS_ClinicalBasinAssembly_HalfHeight
CategorySs_25_25_45_25:Duct and wall panel lining systems
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
ColorBeige, Blue, Dark Grey, Green, Grey, Purple, White, Yellow
ConstituentsIPS, Basin and Tap
Created Byspec@tradewashrooms.co.uk
Created On2020-02-07T09:00:00
CW ConnectionYes
CWFU0
DescriptionHalf-Height Clinical Basin IPS Panel Assembly
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/panel-systems/ips-panels/half-height-clinical-basin-ips-panel-assembly/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/panel-systems/ips-panels/half-height-clinical-basin-ips-panel-assembly/
Duration UnitYears
Expected Life10
FeaturesA pre-assembled half-height IPS unit with sloping lid for hospitals and doctors surgeries.
FinishMelamine
Graden/a
HW ConnectionYes
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCompacMEL Plus
Material Thickness12 mm
ModelClinical Basin IPS Panel Assembly
Model NumberHHIPS
Model ReferenceHalf-Height Clinical Basin IPS Panel Assembly
NameHalf-Height Clinical Basin IPS Panel Assembly
NBS DescriptionPre-plumbed installation frames
NBS Object NameTrade Washrooms - Pre-plumbed installation frames
NBS Office Master Tagn/a
NBS Reference45-35-70/421
Nominal Depth225 mm
Nominal Height1345 mm
Nominal Length770 mm
Production Year2020
Referenced StandardHBN 00-10 Part C and ISO 22196: 2011
Replacement Costn/a
Shapen/a
Size1345 x 770 x 225mm
Spare Partsn/a
Sustainability PerformanceCompacMel saves up to 80% of the emission of greenhouse gases compared to traditional solid grade laminates, and the material is fully recyclable.
Type CommentsHHIPS
Type NameClinical Basin IPS Panel Assembly
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description10-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
