Fig. 1732 - Fixed Orifice Double Regulating Valve - Bronze

24.4k
0
5 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

31/08/2021

Download BIM

Add to collection

Available for:

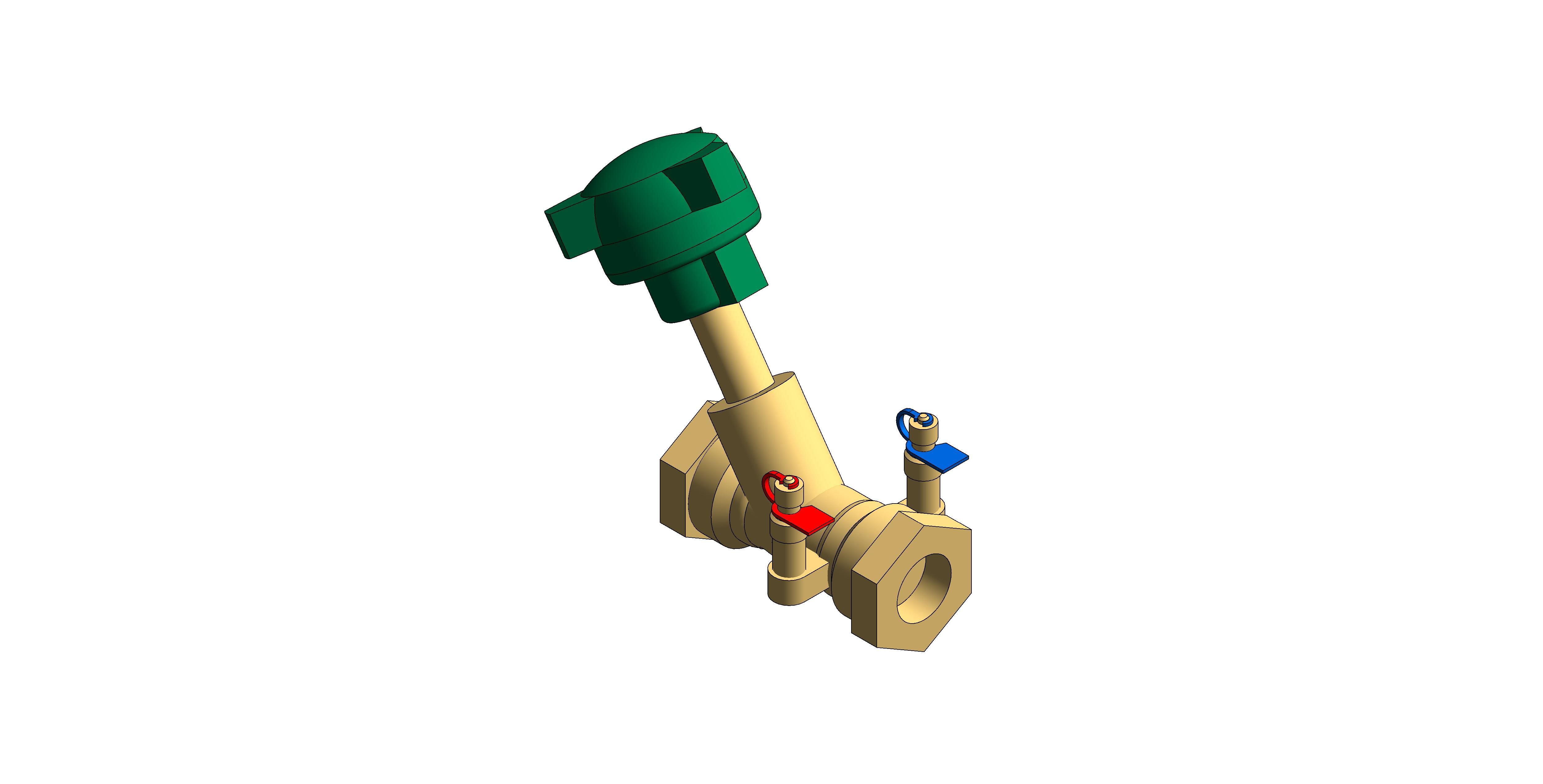

Fixed Orifice Double Regulating Valve - Bronze

Fig. 1732

The bronze commissioning range offers accuracy of +/-5% on all settings. The integral fixed orifice design offers greater accuracy, makes set-up easier and involves fewer connections resulting in lower installation costs.

Features & Benefits

Provides precise and accurate flow regulation
Easy to operate with handwheel and numerical indicator
Integral orifice and test points - no need for separate DRV and metering station
WRAS Approved for use with potable water to 85°C
Positive flow control at all handwheel settings
Material Specification - Handwheel Plastic - Stem DZR copper alloy 12165 CW602N Stem Seals EPDM - Disc DZR copper alloy 12165 CW602N Disc Seal (1-2") PTFE - B

Pressure Rating	PN20
Temperature Rating	Please see Datasheet for details
Product Material	Bronze
End Connections	Please see Datasheet for details

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-1732/document/object-user-guide
A87 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B105 mm
BIM Object NameHattersley_DoubleRegulatingValve_FixedOrifice_Fig1732
C46 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_26
Code Performancen/a
Colorn/a
Connection Size15 mm
Connection Size Radius8 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 1732 - Fixed Orifice Double Regulating Valve - Bronze
DN15 VisibilityYes
DN20 VisibilityNo
DN25 VisibilityNo
DN32 VisibilityNo
DN40 VisibilityNo
DN50 VisibilityNo

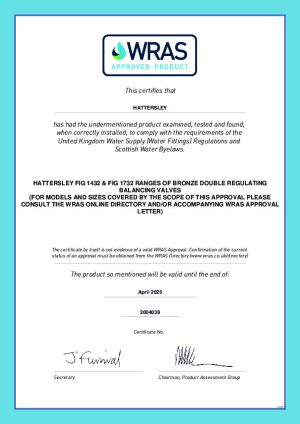

Documentation Certificateswww.bimstore.co/products/hattersley-fig-1732/document/product-certificates

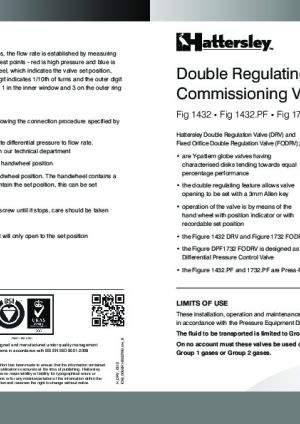

Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-1732/document/installation-guide
