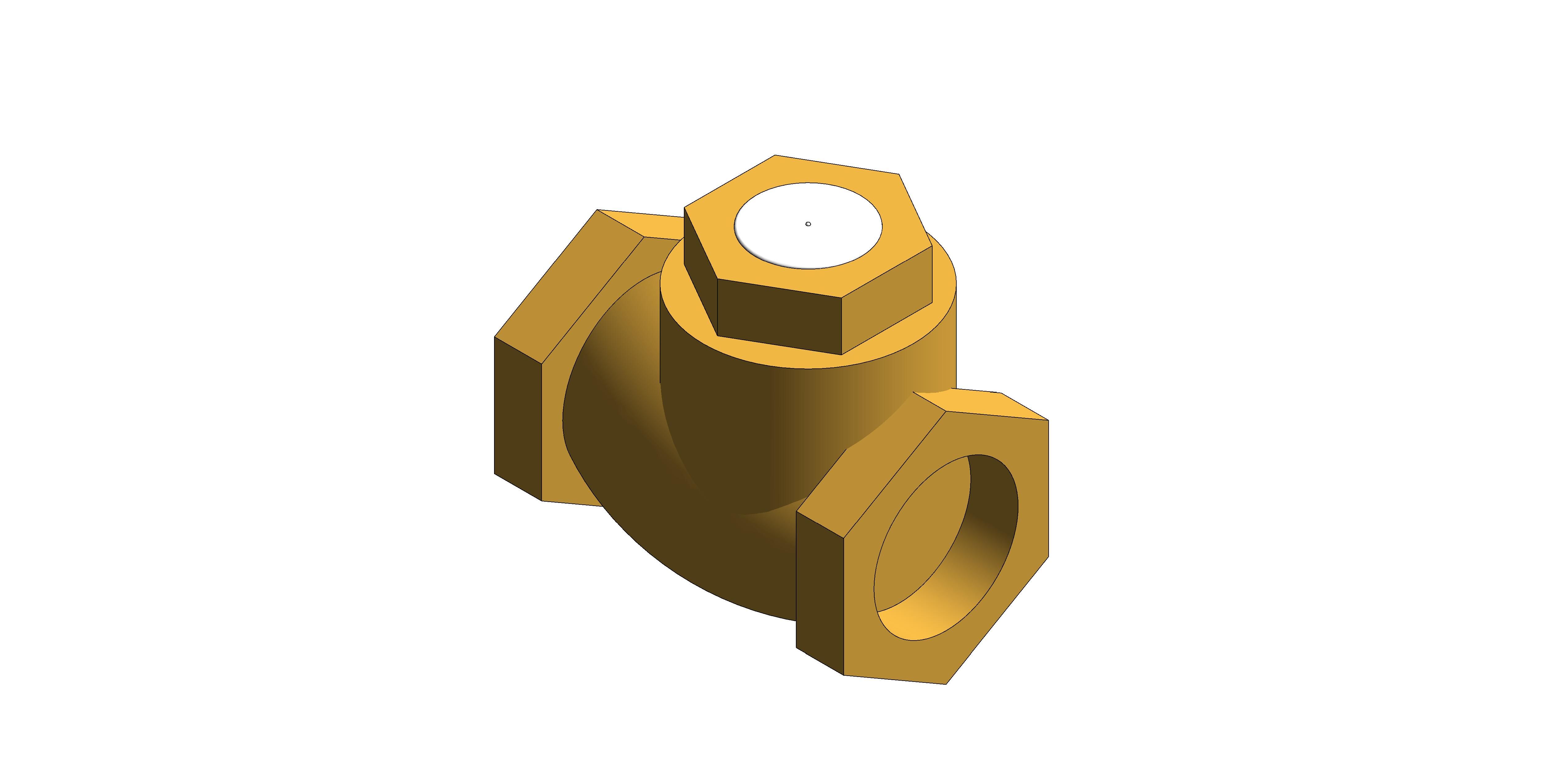

Check Valve - Swing Pattern - Bronze

Fig. 47

Features & Benefits

Horizontal swing pattern.
Robust and high quality bronze body.
Metal to metal seat for enhance sealing.
Taper threaded to BS EN 10226 ISO 7-1 (BS 21)

Size	1/4" to 3"
Pressure Rating	PN25
Product Material	Bronze
End Connections	Taper threaded to BS EN 10226 ISO 7-1 (BS 21)
Test Pressure	Shell: 6 bar (pneumatic) Seat: 27.5 bar (hydraulic)

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-47/document/object-user-guide
A95.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B65.00 mm
BIM Object NameHattersley_CheckValve_Fig47
Body Curve Centre67.10 mm
Body Radius100.00 mm
Body Width61.00 mm
Cap Diameter46.39 mm
Cap Height13.25 mm
Cap Offset13.80 mm
Centre Radius30.93 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_40_13
Code Performancen/a
Colorn/a
Connection Size42.00 mm
Connection Size Radius21.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 47 - Check Valve - Swing Pattern - Bronze

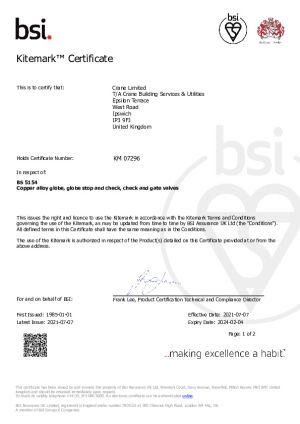

Documentation Certificateswww.bimstore.co/products/hattersley-fig-47/document/product-certificates

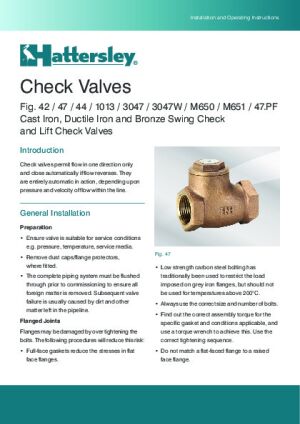

Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-47/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-47/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-47/document/maintenance-information

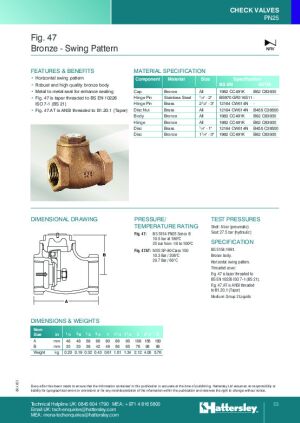

Documentation Technicalwww.bimstore.co/products/hattersley-fig-47/document/technical-data-sheet
Duration UnitYear
End Nut Diameter63.10 mm
End Nut Thickness17.00 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
ID Plate Height2.00 mm
ID Plate MaterialHattersley - Metal - Aluminum
ID Plate Radius15.46 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K Coefficient64.77
KeynoteS
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 47 - Check Valve - Swing Pattern - Bronze
Model NumberFig. 47
Model ReferenceFig. 47 - Check Valve - Swing Pattern - Bronze
NBS DescriptionCheck valves
NBS Noten/a
NBS Object NameHattersley - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth66.00 mm
Nominal Height98.00 mm
Nominal Length95.00 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2"
Spare Partsn/a
Top Of Stem49.75 mm
Type CommentsFig. 47 - Check Valve - Swing Pattern - Bronze
Type NameFig. 47 - Check Valve - Swing Pattern - Bronze
