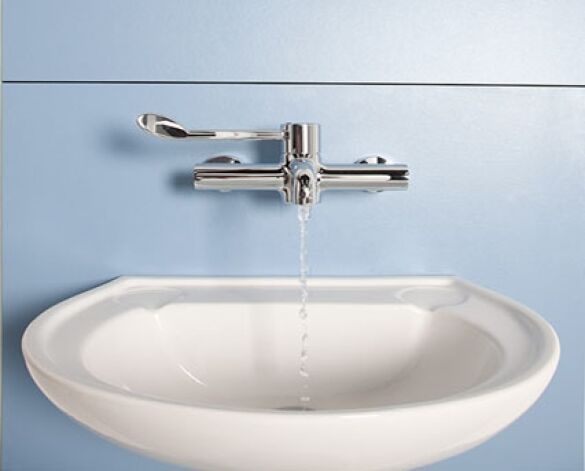

Healthcare IPS

42.4k
0
4 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

12 Revision

Last Updated

04/10/2018

Download BIM

Add to collection

Available for:

A complete IPS Panel System fully compliant with NHS Estate Guidelines and HTM 68 panel specifications.

 This panel only system allows for the reuse of existing sanitary ware but should new sanitary fittings be required, these can be supplied separately from the Plumbware.co.uk ‘Healthcare’ range.

http://www.washroomcubicles.co.uk/healthcare-ips-panel-system/

Version 12 – Updates are base around our periodic maintenance schedule and feedback from our users.

_authorCubicle Centre
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.washroomcubicles.co.uk/
_Current Revision12
_Distributed Bywww.bimstore.co.uk/
Accessibility PerformanceMade to specification
Assembly CodeC1010500
Asset TypeFixed
AuthorCubicle Centre
Base Panel Height430 mm
Base Panel Offset25 mm
BIM Object NameCubicleCentre_IPSPanelSystem_HealthcareCGL
CategoryL516 : Wall linings
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bysales@washroomcubicles.co.uk
Created On1900-12-31T23:59:59
Depth0 mm
DescriptionA complete IPS panel system fully compliant with NHS Estate Guidelines and HTM 68 panel specifications
Documentation Certificatesn/a
Documentation Installation Guidewww.washroomcubicles.co.uk/downloads/Installation_Guide-HealthcareIPS.pdf
Documentation Literaturewww.washroomcubicles.co.uk/downloads/HealthcareIPS_Spec-Cubicle_Centre.pdf
Documentation Maintenancewww.washroomcubicles.co.uk/downloads/Maintenance_Cubicles.pdf
Documentation Technicalwww.washroomcubicles.co.uk/healthcare-ips-panel-system/
Duration Unityear
Expected Life20
FeaturesFactory assembled Box Unit option delivers a uniform, high quality finish to every complete panel system supplied
Finishn/a
Frame Header Section Height170 mm
Graden/a
Ifc ProductIfcBuildingElementProxy
Ifc Type ProductIfcBuildingElementProxyType
KeynoteK32/160
Manufacturersales@washroomcubicles.co.uk
Manufacturer URLwww.washroomcubicles.co.uk/
MaterialCompact Grade Laminate
Mid Panel Height670 mm
ModelHealthcare IPS Panel System
Model NumberHealthcare IPS
Model ReferenceHealthcare IPS Panel System
Name IPS Panel System - Healthcare
NBS DescriptionHealthcare IPS Panel System
NBS Reference25-85-45/120
Nominal Height2400 mm
Nominal Length250 mm
Nominal Width800 mm
Panel Gap0 mm
Panel Thickness13 mm
Plinth Height125 mm
Product Informationwww.washroomcubicles.co.uk/healthcare-ips-panel-system/
Production Yearn/a
Referenced Standardsn/a
Replacement Cost0
Revisionn/a
Sanitary Ware Supplierwww.plumbware.co.uk/product-category/healthcare
ShapeCuboid
Sizen/a
Spare Partsn/a
Sustainability Performancen/a
Tap Height1000 mm
Type CommentsHealthcare IPS-CGL
Uniclass 2015 CodeSs_25_25_45_25
Uniclass 2015 TitleDuct and wall panel lining systems
Uniclass 2015 VersionSystems v1.5
URLwww.washroomcubicles.co.uk/healthcare-ips-panel-system/
Version12
Warranty Description2 year warranty on parts
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@washroomcubicles.co.uk
WHB Height800 mm
