Inset Vanity Unit

43.2k
0
4 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

11 Revision

Last Updated

04/10/2018

Download BIM

Add to collection

Available for:

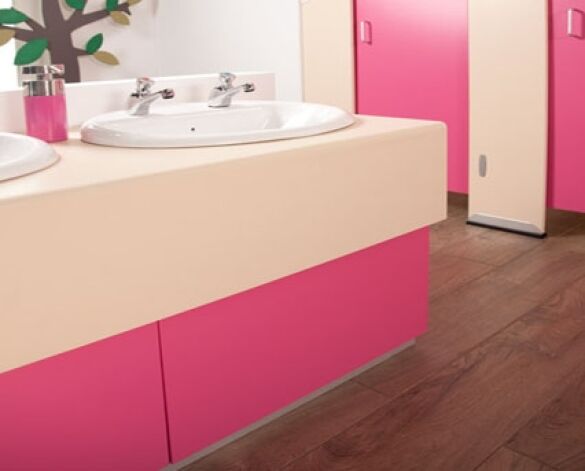

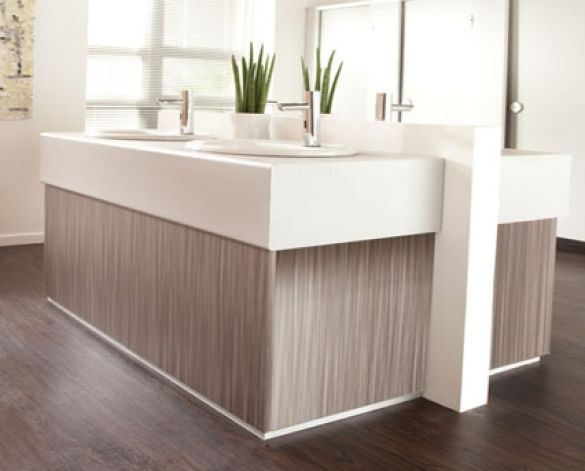

Vanity Units are made to measure and available as Inset (550mm deep) as an alternative to the Semi-Recessed (350mm deep) option.

Vanity tops are 20mm thick with a High Pressure Laminate (HPL) finish as standard. Under panels are constructed from high performance MFC as standard or CGL panels with a CGL vanity kit.

The new, unique design removes the need for a timber frame, saving you both time and money.

Overall vanity height is 850mm (standard). This can be altered to suit your individual requirements.

Vanity units are supplied in kit form for self-assembly.

All colour options from the Cubicle Centre range are included.

http://www.washroomcubicles.co.uk/vanity-units/

Version 11 – Updates are base around our periodic maintenance schedule and feedback from our users.

_authorCubicle Centre
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.washroomcubicles.co.uk/
_Current Revision11
_Distributed Bywww.bimstore.co.uk/
Accessibility PerformanceMade to specification
Assembly CodeC1030400
Asset TypeFixed
AuthorCubicle Centre
Basin Tapswww.plumbware.co.uk/product-category/basin-taps/

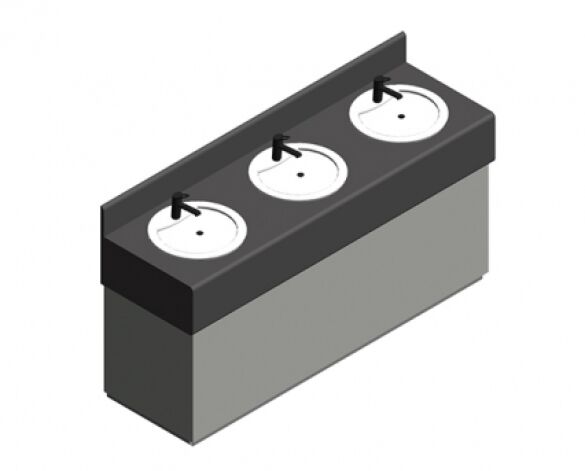

BIM Object NameCubicleCentre_VanityUnitSystem_Inset
CategoryL7212 : Vanity units
Classification NameUniclass2015
Classification ValuePr_40_20_76_94
Code Performancen/a
Colorn/a
ConstituentsVanity top, under panels, floor channel, gallows brackets, spring clips and panel guides
Corner ChannelNo
Corner LH End ChannelYes
Corner LH End UnderpanelYes
Corner Under PanelNo
Created Bysales@washroomcubicles.co.uk
Created On1900-12-31T23:59:59
Depth550 mm
DescriptionAvailable as Inset (550mm deep) or Semi-Recessed (350mm deep)
Documentation Certificateswww.washroomcubicles.co.uk/downloads/Cubicle-Centre-FSC.pdf

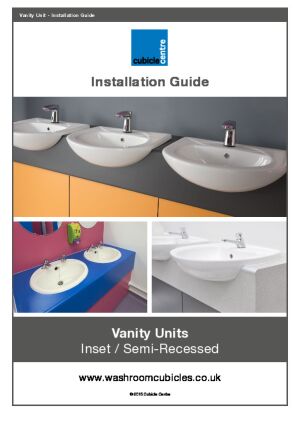

Documentation Installation Guidewww.washroomcubicles.co.uk/downloads/Installation_Guide-VanityUnits.pdf
Documentation Literaturewww.washroomcubicles.co.uk/downloads/Vanity_Spec-Cubicle_Centre.pdf
Documentation Maintenancewww.washroomcubicles.co.uk/downloads/Maintenance_Cubicles.pdf
Documentation Technicalwww.washroomcubicles.co.uk/vanity-units/
Downstand Depth250 mm
Duration Unityear
Expected Life10
FeaturesMetal bracket supports for quick installation - no timber frame required
Finishn/a
Free standing ChannelNo
Free Standing Under PanelNo
Graden/a
Height850 mm
HPL thickness20 mm
Ifc ProductIfcBuildingElementProxy
Ifc Type ProductIfcBuildingElementProxyType
Inclosed ChannelNo
Inclosed Under PanelNo
KeynoteN10/145
LHS End PanelYes
LHS Return ChannelYes
LHS Vanity End PanelYes
Manufacturersales@washroomcubicles.co.uk
Manufacturer URLwww.washroomcubicles.co.uk/
MaterialHigh Pressure Laminate top, Melamine Faced Chipboard or Compact Grade Laminate under panels
ModelInset Vanity Unit
Model NumberInset Vanity Unit
Model ReferenceVanity Unit System
NameVanity Unit System- Inset
NBS DescriptionVanity Unit System
NBS Reference45-35-72/378
Nominal Height850 mm
Nominal Length1800 mm
Nominal Width550 mm
Product Informationwww.washroomcubicles.co.uk/vanity-units/
Production Yearn/a
Referenced Standardsn/a
Replacement Cost0
Revisionn/a
RHS End PanelNo
RHS Return ChannelNo
RHS Vanity End PanelNo
ShapeCuboid
Sizen/a
Spare Partsn/a
SupplierPlumbware.co.uk
Sustainability PerformanceFSC certified on request
Type CommentsCorner Vanity Unit - LH End
Uniclass 2015 CodePr_40_20_76_94
Uniclass 2015 TitleVanity Units
Uniclass 2015 VersionProducts v1.5
URLwww.washroomcubicles.co.uk/vanity-units/
Version11
Warranty Description2 year warranty on parts
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@washroomcubicles.co.uk
Wash Basinwww.plumbware.co.uk/product-category/wash-basins/
Width0 mm
