MERLYN - 8 Series Sliding Door

by MERLYN

Download Add to collection

Description

The Series 8 Sliding Door is an impressive and highly engineered spacious shower enclosure.

8mm Toughened safety glass, 1950mm high and smooth gliding action based on quick release double rollers for easy cleaning results in this enclosure performing to the highest of stanfdards.

This download is for the 8 Series Sliding Door Range created by bimstore.co.uk for Merlyn.

Object Data

1 Revision

Last Updated

02/11/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

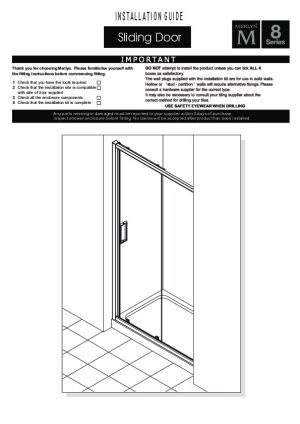

Installation Guide

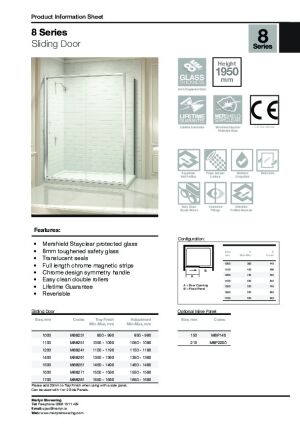

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Adjustment/Wetroom Min950 mm
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameCaseworkEnclosures_Merlyn_Series8_SlidingDoor
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Byinfo@merlyn.ie
Created On2017-08-31-T00:00:00
DescriptionThe Series 8 Sliding Door is an impressive and highly engineered spacious shower enclosure.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2265
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2264
Duration UnitYears
Expected Life30
FeaturesMershield Stayclear protected glass, 8mm toughened safety glass, Translucent seals, Full length chrome magnetic strips, Chrome design symmetry handle, Easy clean double rollers, Lifetime Guarantee, Reverisble
Glass Offset31 mm
Glass Thickness8 mm
Graden/a
Height1950 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
Model8 Series Sliding Door
Model Number8 Series Sliding Door
Model Reference1000mm M88231
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Production Year2017
Referenced StandardCE Standards
Replacement Costn/a
ShapeRectangular
Size1000mm
Spare Partsn/a
Type Comments1000mm M88231
Type Name1000mm M88231
URLwww.ionicbymerlyn.com
Warranty DescriptionLifetime
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@merlyn.ie
Warranty Guarantor Partsinfo@merlyn.ie
Width950 mm
