MERLYN - Ionic Source BiFold Door

by MERLYN

Download Add to collection

Description

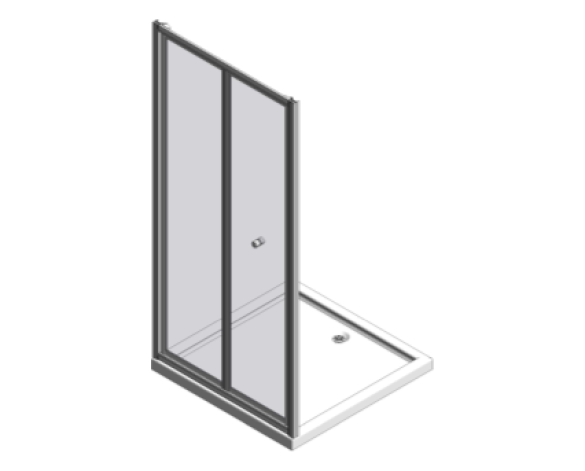

The Source Bifold Door has been developed with a smooth inward opening action making this door ideal for tight spaces. Standing at 1850mm high with discreet modern fittings, the attention to detail and emphasis on quality is clearly evident throughout this range. This frame comes pre-assembled.

This download is for the Ionic Source Bifolding Door Range created by bimstore.co.uk for Merlyn.

Object Data

1 Revision

Last Updated

02/11/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

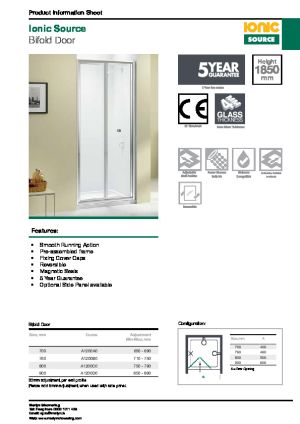

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Bim Spec Guid0
_Bimstore Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Adjustment/Wetroom Min650 mm
Assembly CodeD2010100
Asset TypeFixed
BIM Object NameCaseworkEnclosures_Merlyn_Ionic_Source_BiFoldDoor
Classification NameUniclass2015
Classification ValuePr_40_20_06_79
Code Performancen/a
ColorChrome
Constituentsn/a
Created Byinfo@merlyn.ie
Created On2017-08-31-T00:00:00
DescriptionThe Source Bifold Door has been developed with a smooth inward opening action making this door ideal for tight spaces. Standing at 1850mm high with discreet modern fittings, the attention to detail and emphasis on quality is clearly evident throughout this range. This frame comes pre-assembled.
Documentation Certificatesn/a
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2287
Documentation Literaturen/a
Documentation Maintenancen/a
Documentation Technicalspecifi.bimstore.co.uk/document/share/2286
Duration UnitYears
Expected Life5
FeaturesSmooth Running Action, Pre-assembled frame, Fixing Cover Caps, Reversible, Magnetic Seals, 5 Year Guarantee, Optional Side Panel available
Glass Offset31 mm
Glass Thickness4 mm
Graden/a
Height1850 mm
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeSurface
KeynoteN13/375
ManufacturerMerlyn
Manufacturer NameMerlyn
MaterialGlass & Chrome
Material Merlyn ChromeMerlyn - Chrome
Material Merlyn GlassMerlyn - Glass
Material Merlyn RubberMerlyn - Rubber
ModelIonic Source Bifold Door
Model NumberIonic Source Bifold Door
Model Reference700mm A1200A0
NBS DescriptionShower enclosures
NBS Object NameMerlyn - Shower enclosures
NBS Office Master Tagn/a
NBS Reference45-35-70/332
Production Year2017
Referenced StandardCE Standards
Replacement Costn/a
ShapeRectangular
Size700mm
Spare Partsn/a
Type Comments700mm A1200A0
Type Name700mm A1200A0
URLwww.ionicbymerlyn.com
Warranty Description5 Years
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@merlyn.ie
Warranty Guarantor Partsinfo@merlyn.ie
Width650 mm
