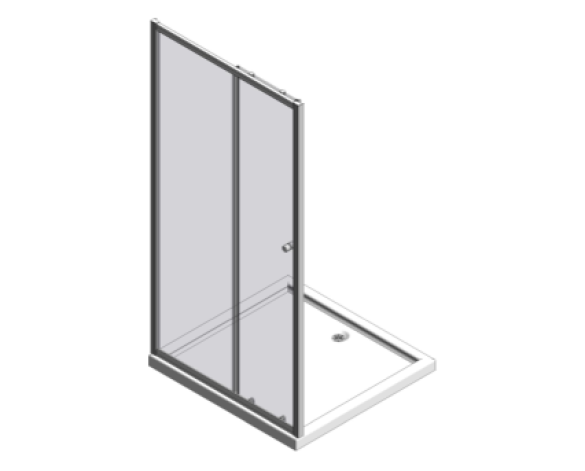

MERLYN - Ionic Source Sliding Door

Object metadata

• _AuthorRyan Lashley
• _Bim Spec Guid0
• _Bimstore Bible Version14
• _Created Bywww.bimstore.co.uk
• _Current Revision1
• _Distributed Bywww.bimstore.co.uk
• Accessibility Performancen/a
• Adjustment/Wetroom Max990 mm
• Adjustment/Wetroom Min950 mm
• Assembly CodeD2010100
• Asset TypeFixed
• BIM Object NameCaseworkEnclosures_Merlyn_Ionic_Source_SlidingDoor
• Classification NameUniclass2015
• Classification ValuePr_40_20_06_79
• Code Performancen/a
• ColorChrome
• Constituentsn/a
• Created Byinfo@merlyn.ie
• Created On2017-08-31-T00:00:00
• DescriptionContemporary in design this Source Sliding Door with 6mm toughened safety glass, easy fit frame, height of 1850mm, magnetic seals and quick release easy clean bottom rollers can be installed with or without side panel.
• Documentation Certificatesn/a
• Documentation Installation Guidespecifi.bimstore.co.uk/document/share/2283
• Documentation Literaturen/a
• Documentation Maintenancen/a

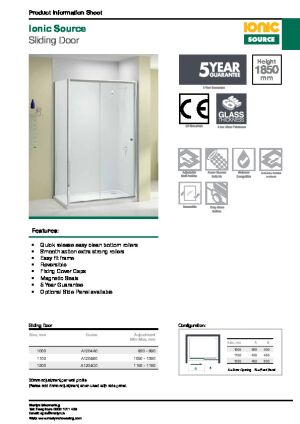

• Documentation Technicalspecifi.bimstore.co.uk/document/share/2282
• Duration UnitYears
• Expected Life5
• FeaturesQuick release easy clean bottom rollers, Smooth action extra strong rollers, Easy fit frame, Reversible, Fixing Cover Caps, Magnetic Seals, 5 Year Guarantee, Optional Side Panel available
• Glass Offset31 mm
• Glass Thickness6 mm
• Graden/a
• Height1850 mm
• Ifc Export AsIfcBuildingElementProxy
• Ifc Export TypeSurface
• KeynoteN13/375
• ManufacturerMerlyn
• Manufacturer NameMerlyn
• MaterialGlass & Chrome
• Material Merlyn ChromeMerlyn - Chrome
• Material Merlyn GlassMerlyn - Glass
• Material Merlyn RubberMerlyn - Rubber
• ModelIonic Source Sliding Door
• Model NumberIonic Source Sliding Door
• Model Reference1000mm A1204A0
• NBS DescriptionShower enclosures
• NBS Object NameMerlyn - Shower enclosures
• NBS Office Master Tagn/a
• NBS Reference45-35-70/332
• Nominal Height1850 mm
• Nominal Length950 mm
• Production Year2017
• Referenced StandardCE Standards
• Replacement Costn/a
• ShapeRectangular
• Size1000mm
• Spare Partsn/a
• Type Comments1000mm A1204A0
• Type Name1000mm A1204A0
• URLwww.ionicbymerlyn.com
• Warranty Description5 Years
• Warranty Duration Laborn/a
• Warranty Duration Partsn/a
• Warranty Duration UnitYears
• Warranty Guarantor Laborinfo@merlyn.ie
• Warranty Guarantor Partsinfo@merlyn.ie
• Width950 mm
