Stainless Steel Orifice Plate [00/0105]

Description

Stainless Steel Wafer Design Metering Station PN16

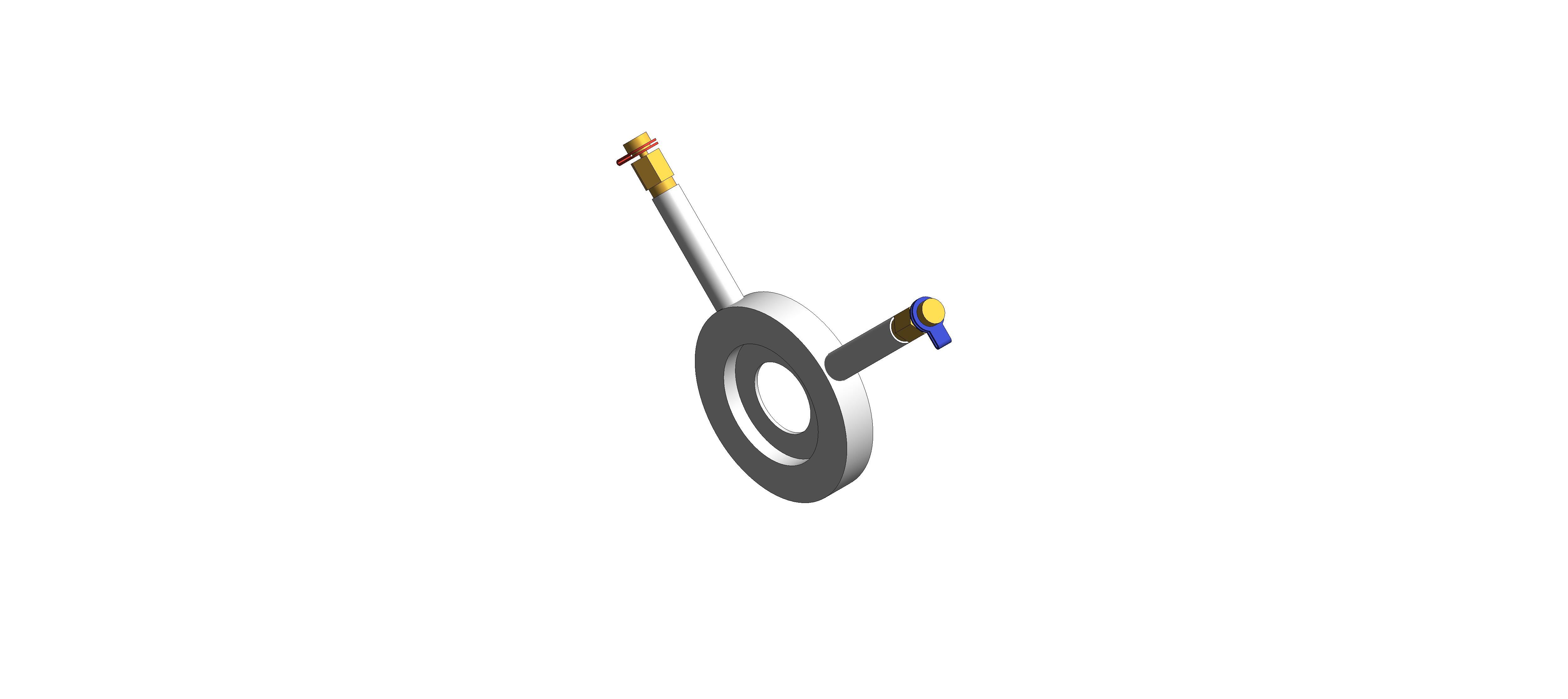

Stainless Steel orifice plate with a square edged aperture. The two stainless steel extension tubes are fitted with pressure test points. Accuracy of flow measurement at normal velocities is +3%.

Flow measurement devices are suitable for use with PN10, PN16 and PN25 flanges or flanged valves having ratings detailed in the appropriate flange or valve product standard. When normally fitted with pressure test valves, the orifice plate is limited to 120°C max. For use at temperatures above 120°C suitable alternative pressure test points should be fitted.
