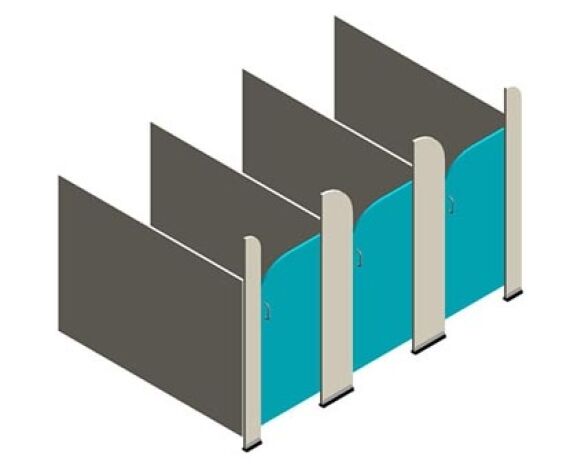

Sydney Pre-School Cubicle System

by Cubicle Centre

Download Add to collection

Description

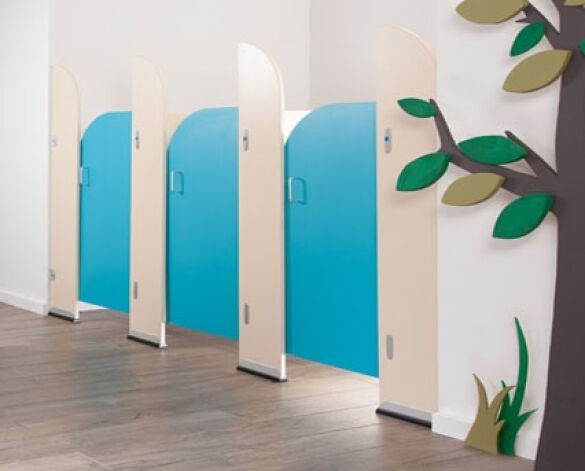

A lively and fun way to introduce young children to toilet cubicles and the washroom environment. Secure floor supports deliver a sturdy and safe cubicle system suited for any nursery / infant school washroom.

Anti-trap hinges and magnetic door catches are supplied as standard with a colour choice to match the Brecon (Junior) cubicle system.

Complete dividing partitions now supplied as standard at 1500mm (deep).

http://www.washroomcubicles.co.uk/sydney-pre-school-cubicles/

Version 11 – Updates are base around our periodic maintenance schedule and feedback from our users. The latest components offer a material choice between MFC or CGL.

Object Data

11 Revision

Last Updated

04/10/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorCubicle Centre
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.washroomcubicles.co.uk
_Current Revision3
_Distributed Bywww.bimstore.co.uk/
Accessibility PerformanceMade to specification
Assembly CodeC1010500
Asset TypeFixed
AuthorCubicle Centre
BIM Object NameCubicleCentre_PanelCubicleSystem_Sydney_CGL
CategoryL2226 : Non-structural cubicles
Classification NameUniclass2015
Classification ValueSs_25_12_60_60
Code Performancen/a
Colorn/a
ConstituentsPanels, brackets, floor supports, hinges and latches
Created Bysales@washroomcubicles.co.uk
Created On1900-12-31T23:59:59
DescriptionA lively and fun way to introduce young children to toilet cubicles and the washroom environment
Documentation Certificatesn/a
Documentation Installation Guidewww.washroomcubicles.co.uk/downloads/Installation_Guide-Sydney.pdf
Documentation Literaturewww.washroomcubicles.co.uk/downloads/Cubicle_Spec-SydneyCGL.pdf
Documentation Maintenancewww.washroomcubicles.co.uk/downloads/Maintenance_Cubicles.pdf
Documentation Technicalwww.washroomcubicles.co.uk/sydney-pre-school-cubicles/
Duration Unityear
End Pilaster Width134 mm
Expected Life20
FeaturesMagnetic door catches for easy use and so small fingers won’t get squished
Finishn/a
Floor Clearance100 mm
Graden/a
Ifc ProductIfcBuildingElementProxy
Ifc Type ProductIfcBuildingElementProxyType
KeynoteK32/120
Latch Height900 mm
LHS Corner PilasterYes
LHS End PilasterNo
LHS Head Rail Extension0 mm
LHS Middle Partition PanelNo
LHS Middle PilasterNo
LHS Middle Pilaster LegNo
LHS Pilaster ChannelYes
Manufacturersales@washroomcubicles.co.uk
Manufacturer URLwww.washroomcubicles.co.uk
MaterialCompact Grade Laminate
ModelSydney CGL Cubicle System
Model NumberSydney CGL
Model ReferenceSydney CGL Cubicle System
NamePanel Cubicle System - Sydney CGL
NBS DescriptionPanel cubicle system
NBS Reference25-05-60/160
Nominal Height1500 mm
Nominal Length1500 mm
Nominal Width750 mm
Panel Thickness13 mm
Partition Panel Height1100 mm
Pilaster Bottom Gap20 mm
Pilaster Height1400 mm
Product Informationwww.washroomcubicles.co.uk/sydney-pre-school-cubicles/
Production Yearn/a
Referenced Standardsn/a
Replacement Cost0
Revisionn/a
RHS Corner PilasterYes
RHS End PilasterNo
RHS Head Rail Extension0 mm
RHS Middle Partition PanelNo
RHS Middle PilasterNo
RHS Middle Pilaster LegNo
RHS Pilaster ChannelYes
ShapeCuboid
Sizen/a
Spare Partsn/a
Sustainability Performancen/a
Top Cover Strip Length2109 mm
Type CommentsInline Cubicle
Uniclass 2015 CodeSs_25_12_60_60
Uniclass 2015 TitlePanel Cubicle System
Uniclass 2015 VersionSystems v1.5
URLwww.washroomcubicles.co.uk/sydney-pre-school-cubicles/
Version3
Warranty Description2 year warranty on parts
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@washroomcubicles.co.uk
Width20 mm

Bimstore on 22 February 2025

Be the first to write a comment...

Sydney Pre-School Cubicle System

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

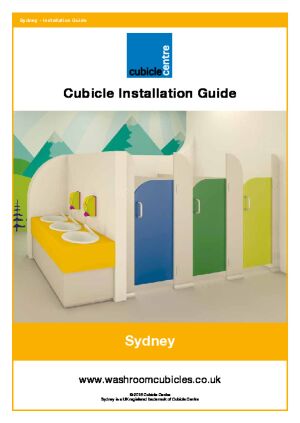

Installation Guide

Product Literature

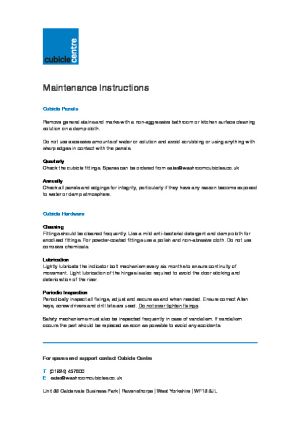

Maintenance Information

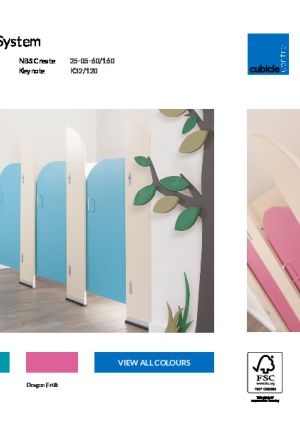

Technical Data Sheet
