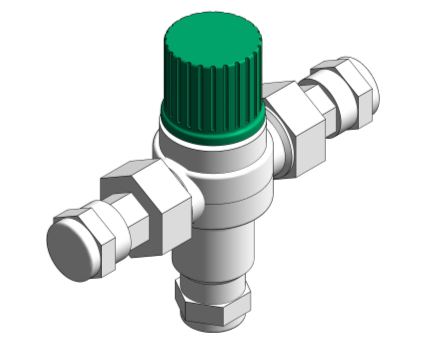

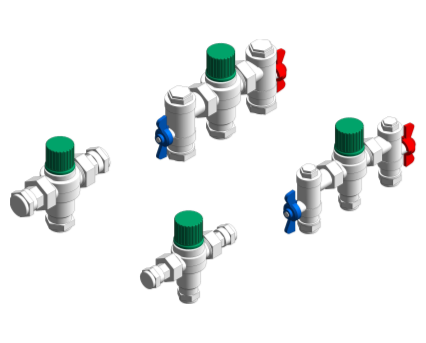

Fig 77 / Fig 78 - Thermal Circulation Valves

Download Add to collection

Description

Features & Benefits:

Blends hot and cold water to ensure constant, controlled safe outlet temperature
Fulfils the ‘duty of care’ requirements against scalding
Ideal for healthcare, schools, workplace and domestic environments
Flat face union ensures easy removal for maintenance
Integral strainers and check valves
Tamper proof adjustment
WRAS Approved maximum operating temperature 85°C
Certified under the NSF TMV2 & TMV3 schemes

Object Data

1 Revision

Last Updated

26/03/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

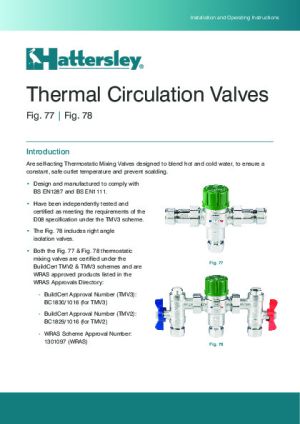

Installation Guide

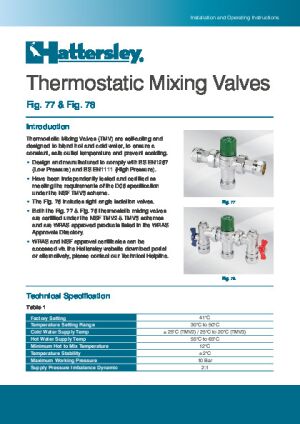

Product Literature

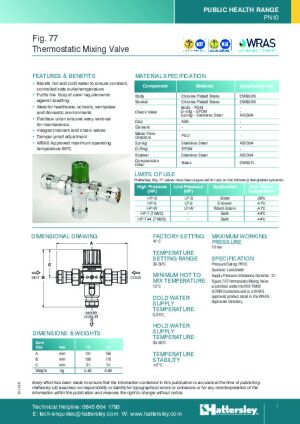

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Lashley
_Authorized ByRyan Lashley
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
A131 mm
Accessibility Performancen/a
Assembly CodeD2010
Asset TypeFixed
B108 mm
BIM Object NameHattersley_PipeAccessories_ThermostaticMixingValve_Fig77
BrassChrome Plated Brass
C51 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_88
Code Performancen/a
ColorGreen
Connection Diameter15 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2018-11-01T09:00:00
DescriptionThermostatic Mixing Valves (TMV) are self-acting and designed to blend hot and cold water, to ensure a constant, safe outlet temperature and prevent scalding.
DN15
Documentation Certificatesn/a
Documentation Installation Guidewww.bimstore.co/product/29a54cbc-3bb3-482f-8676-ac450965e774/document/1f1ee074-3911-4da9-865c-df86815c1bbb/download
Documentation Literaturewww.bimstore.co/product/29a54cbc-3bb3-482f-8676-ac450965e774/document/6b24360a-d511-41ec-8f52-ebfa47736aa3/download
Documentation Maintenancen/a
Documentation Technicalwww.bimstore.co/product/29a54cbc-3bb3-482f-8676-ac450965e774/document/c1d72b1c-ca30-4d99-8a5a-6bd5a6d48938/download
Duration UnitYears
Expected Life0
FeaturesA self-acting Thermostatic Mixing Valve designed to blend hot and cold water, to ensure a constant, controlled safe outlet temperature. Fulfils the ‘duty of care’ requirements against scalding.Ideal for healthcare, schools, workplace and domestic environments. Flat face union ensures easy removal for maintenance. Integral strainers and check valves. Tamper-proof adjustment. WRAS Approved maximum operating temperature 85°C.
Finishn/a
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.REGULATING
IR15 mm
KeynoteS
LH28 mm
ManufacturerHattersley
Manufacturer NameHattersley
MaterialDZR Brass
MH22 mm
ModelThermostatic Mixing Valves
Model NumberFig. 77
Model ReferenceThermostatic Mixing Valves
NBS DescriptionThermostatic mixing valves
NBS Object NameHattersley - Thermostatic mixing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/370
Nominal Depth39 mm
Nominal Height108 mm
Nominal Length131 mm
Production Year2018
R21 mm
RedPVC, Green
Referenced Standardn/a
Replacement Costn/a
SH17 mm
Shapen/a
SizeDN15
Spare Partsn/a
Type CommentsDN15 - Fig. 77
Type NameDN15 - Fig. 77
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsenquiries@hattersley.com
Weight0.49 kg
