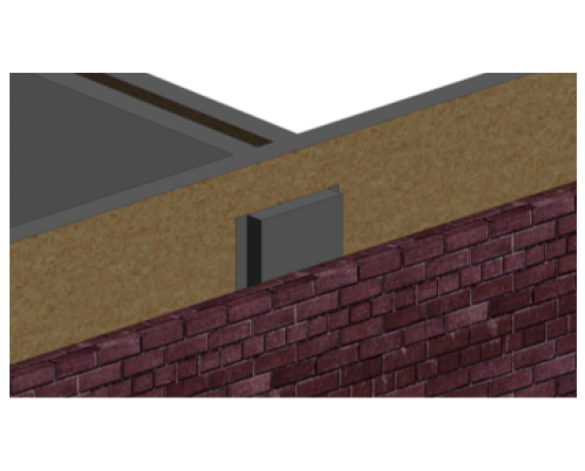

Timber Frame Party Wall Cavity Barrier 551

by SIG Performance Technology

Download Add to collection

Description

Designed to prevent passage of fire through concealed voids within the external fabric of a timber frame building, but more specifically where the junction is formed between the external cavity and the party wall cavity.

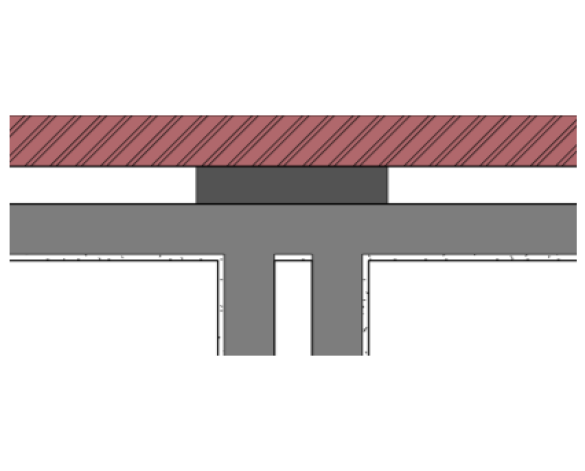

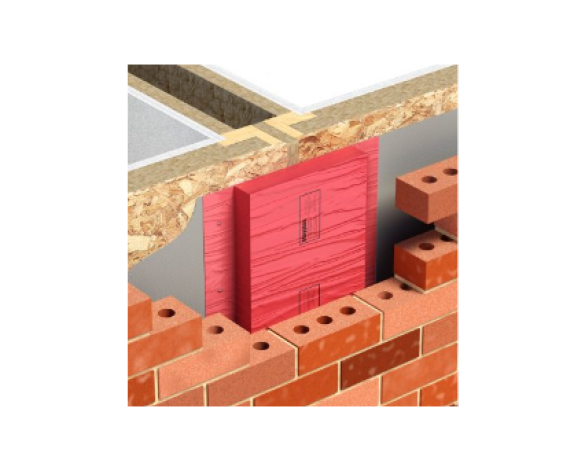

Designed for installation within masonry/timber frame cavities at the junction between the external cavity and party wall cavity. Accommodates a maximum void of 175mm. Easy installation process. Installed under compression. For voids up to 150mm a minimum compression of 15mm is required, thereafter 20mm compression is required up to the maximum void of 175mm. Tested and assessed to the general principles of BS 476 Part 20: 1987. Suitable for vertical application. Provides up to 120 minutes fire resistance performance

This download is for the Timber Frame Party Wall Cavity Barrier 551 Range of cavity barriers by Mayplas.

Object Data

1 Revision

Last Updated

16/10/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorRW
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD4030900
Asset TypeFixed
BIM Object NameMayplas_FireStopping_TimberFramePartyWallCavityBarrier_551
Cavity Barrier MaterialMayplas-TimberFramePartyWallCavityBarrier
Cavity Width100 mm
Classification NameUniclass2015
Classification ValuePr_25_80_81_51
Code Performancen/a
ColorRed
Constituentsn/a
Created Byperformancetechnology@sigplc.com
Created On2017-09-22 T00:00:00
Default Elevation1219 mm
DescriptionDesigned to prevent passage of fire through concealed voids within the external fabric of a timber frame building, but more specifically where the junction is formed between the external cavity and the party wall cavity.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2313
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYear
Expected Life0
FeaturesDesigned for installation within masonry/timber frame cavities at the junction between the external cavity and party wall cavity. Accommodates a maximum void of 175mm. Easy installation process. Installed under compression. For voids up to 150mm a minimum compression of 15mm is required, thereafter 20mm compression is required up to the maximum void of 175mm. Tested and assessed to the general principles of BS 476 Part 20: 1987. Suitable for vertical application. Provides up to 120 minutes fire resistance performance
FinishPolythene enclosed rockfibre
Fire Rating120 minutes integrity / 60 minutes insulation
Graden/a
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeIfcBuildingElementProxy
KeynoteP12/360
ManufacturerMayplas
Manufacturer NameMayplas
MaterialPolythene enclosed rockfibre
ModelTimber Frame Party Wall Cavity Barrier
Model Number115mm x 380mm
Model ReferenceMayplas Timber Frame Party Wall Cavity Barrier
NBS DescriptionMineral wool fire stopping
NBS Object NameMayplas - Timber Frame Party Wall Cavity Barrier
NBS Office Master Tagn/a
NBS Reference45-45-70/427
Production Year2017
ShapeRectangle
SizeCavity Width: 100mm (115mm x 380mm)
Type Comments100mm Cavity (115mmx380mm)
Type Name100mm Cavity (115mmx380mm)
URLmayplas.co.uk/
Warranty Duration UnitYear
Warranty Guarantor Laborperformancetechnology@sigplc.com
Warranty Guarantor Partsperformancetechnology@sigplc.com
