Stainless Steel BSP Male Axial Expansion Joints [33/0612]

by Valves Instruments Plus

Download Add to collection

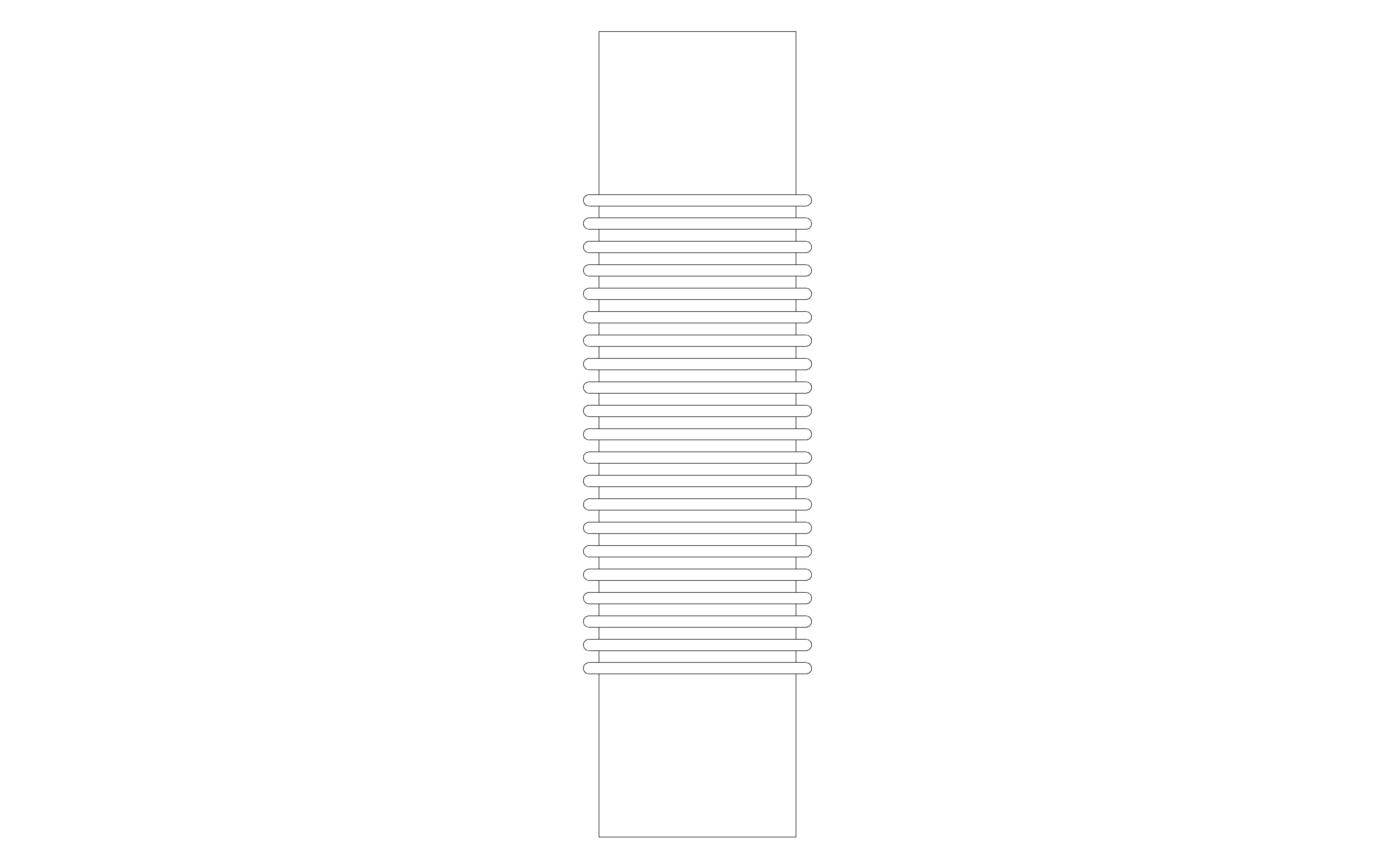

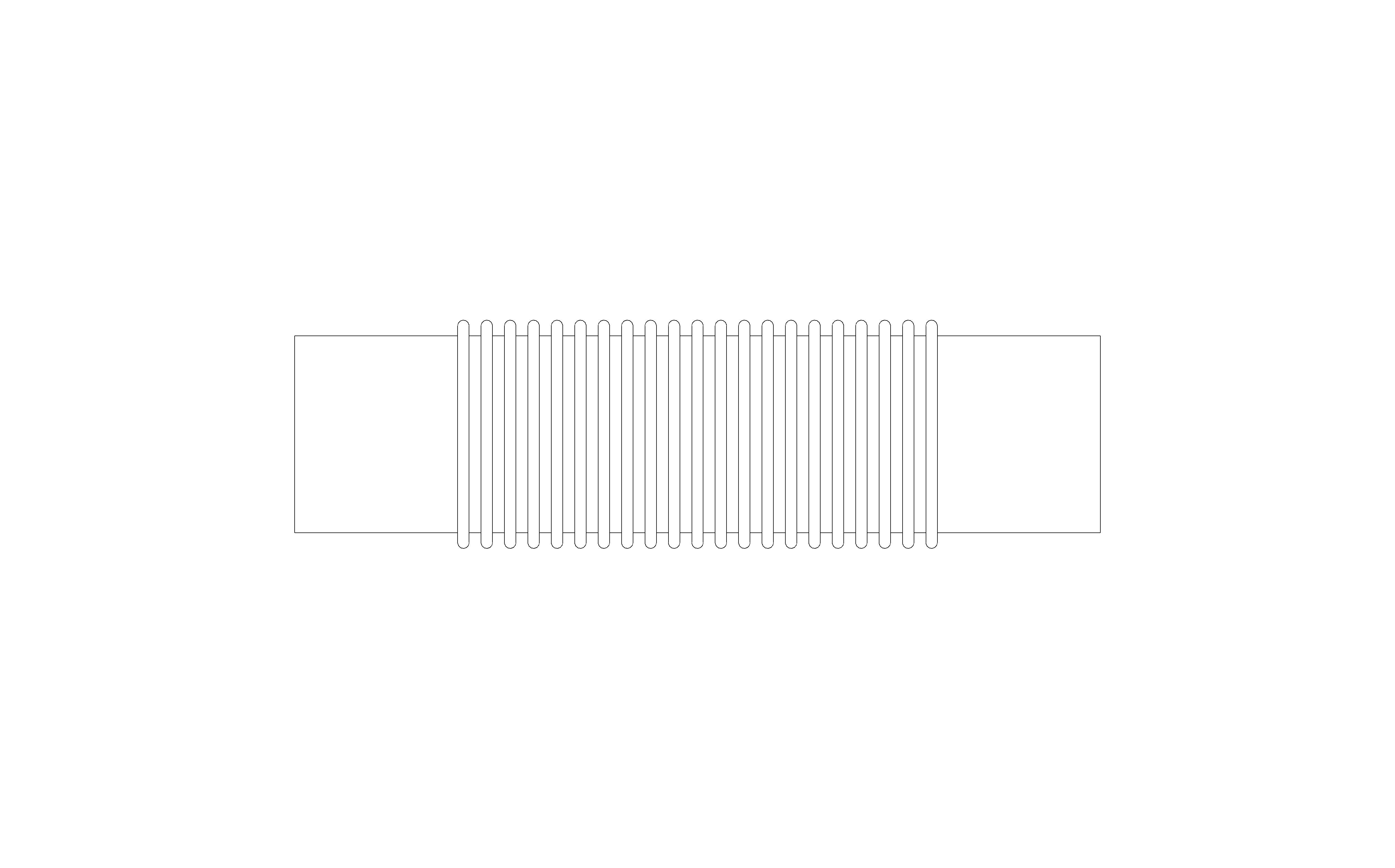

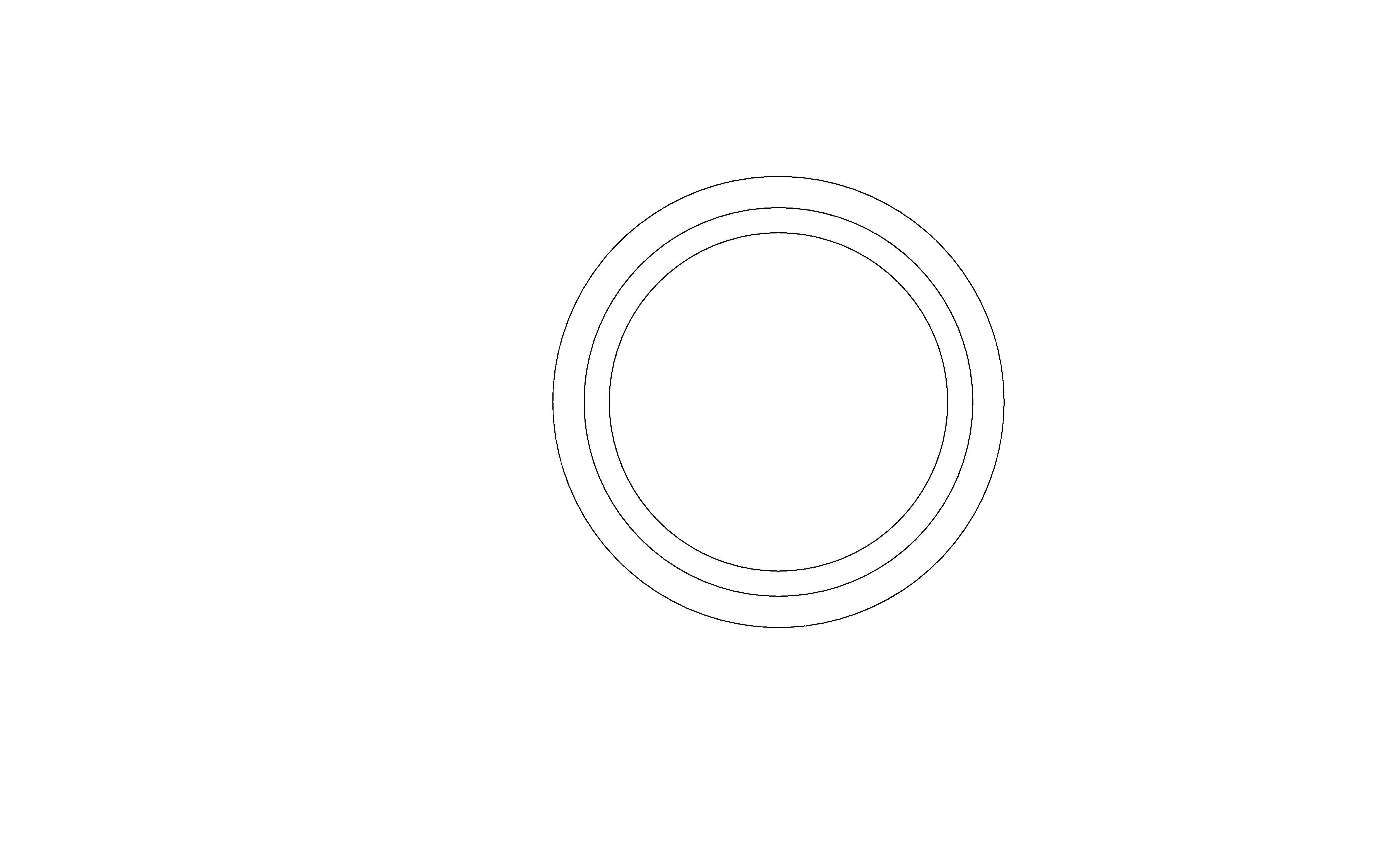

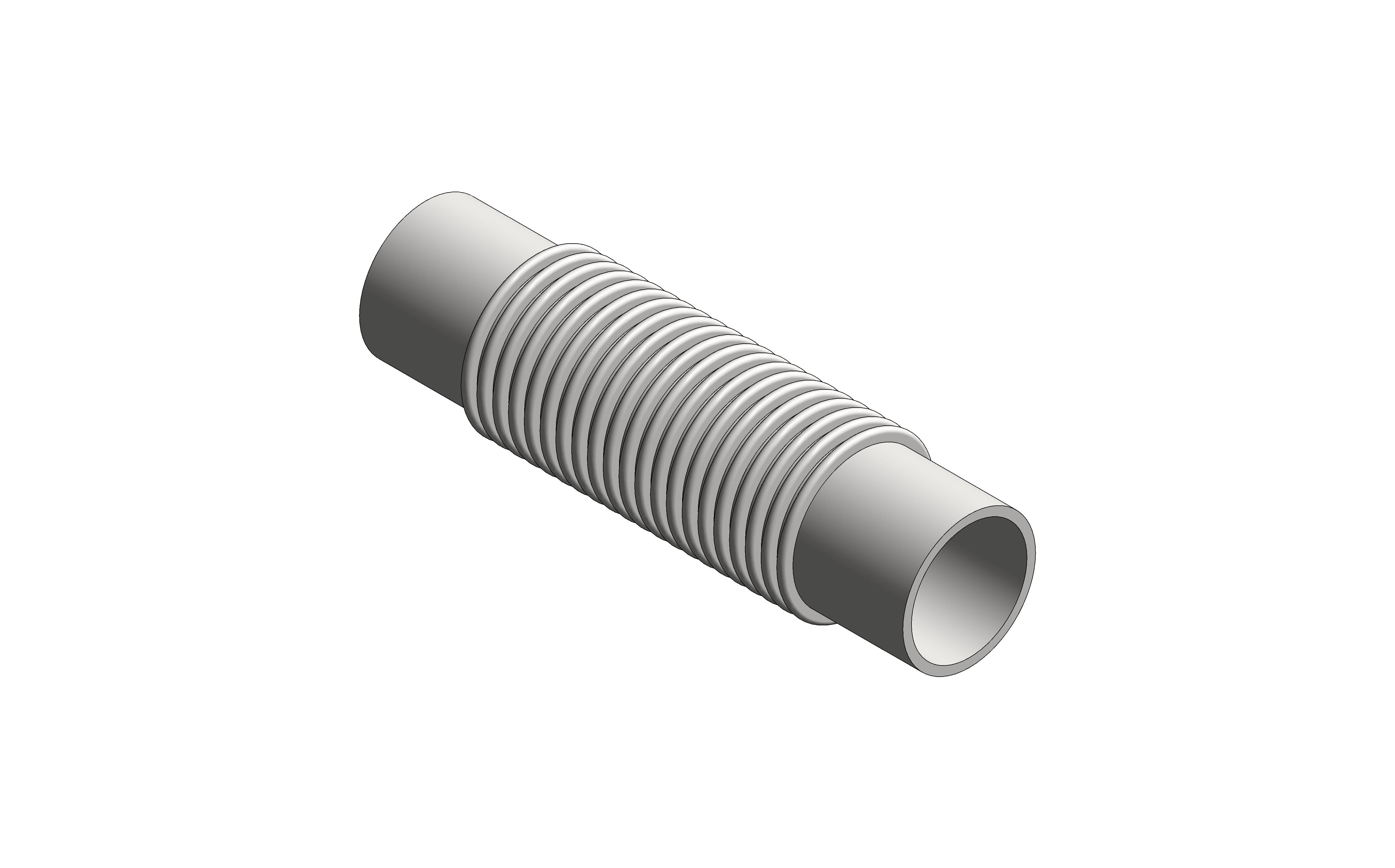

Description

VIP stainless steel expansion joints are designed to absorb thermal expansion within straight pipelines. They are suitable for use with drinking water, HWS, DHWS, LTHW, MTHW, Steam and other hot liquids and gases.

Designed to, and complies with, the EJMA design standard. Require full guiding and only one expansion joint should be located between two main anchors.

Specification:

Maximum working temperature: 300ºC.
Maximum working pressure: 10 bar at 120ºC.
Maximum test pressure: 1.5 x working pressure (15 Bar max)

Object Data

1 Revision

Last Updated

16/01/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Technical Data Sheet

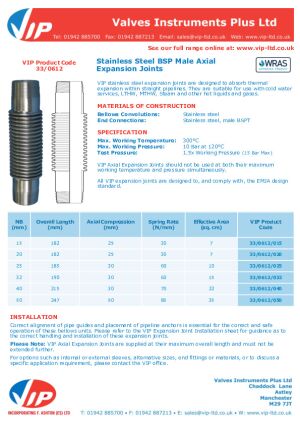

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/28f3ad04-288b-480e-a1f8-0ea605eb3847/document/object-user-guide
Accessibility Performancen/a
Applicable Fluidssuitable for use with drinking water, HWS, DHWS, LTHW, MTHW, Steam and other hot liquids and gases
Assembly CodeD2010
Asset TypeFixed
Axial Compression25 mm
Axial Spring Rate30 N/mm
Bellows External Diameter33 mm
Bellows Internal Diameter20 mm
Bellows Width2 mm
BIM Object NameVIP_StainlessSteelAxialExpansionJoints_(33-0612)
Classification NameUniclass 2015
Classification ValuePr_35_90_27
Code Performancen/a
ColorGrey
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2025-01-13T09:00:00
Default Elevation0 mm
DescriptionVIP stainless steel expansion joints are designed to absorb thermal expansion within straight pipelines. They are suitable for use with drinking water, HWS, DHWS, LTHW, MTHW, Steam and other hot liquids and gases.
DN15 mm
Documentation Certificateswww.bimstore.co/products/28f3ad04-288b-480e-a1f8-0ea605eb3847/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/28f3ad04-288b-480e-a1f8-0ea605eb3847/document/installation-guide
Documentation Literaturewww.bimstore.co/products/28f3ad04-288b-480e-a1f8-0ea605eb3847/document/product-literature
Documentation Maintenancewww.bimstore.co/products/28f3ad04-288b-480e-a1f8-0ea605eb3847/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/28f3ad04-288b-480e-a1f8-0ea605eb3847/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L140 mm
Length182 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working Pressure300ºC
Max Working Temperature10 bar at 120ºC
Model33/0612 Stainless Steel BSP Male Axial Expansion Joints
Model Number33-0612-015
Model ReferenceExpansion Joints
NBS DescriptionExpansion joints
NBS Noten/a
NBS Object NameVIP - Expansion joints
NBS Office Master Tagn/a
NBS Referencen/a
No Bellows24
Nominal Depth33 mm
Nominal Height33 mm
Nominal Length182 mm
Pipe Inside Diameter12 mm
Pipe Inside Radius6 mm
Pipe Outside Diameter21 mm
Pipe Outside Radius11 mm
Primary MaterialVIP - Stainless Steel
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Test Pressure1.5 x working pressure (15 Bar max)
Type CommentsJP115 Stainless Steel Axial Expansion Joint Screwed
Type NameDN15
URLwww.vip-ltd.co.uk/Expansion/Expansion_Joints_Unrestrained/33_0612/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
