VRB Lite

by SIG Performance Technology

Download Add to collection

Description

Polythene sleeved Mineral Wool Fire Barrier for Rainscreen Systems – allowing ventilation and drainage of the cavity under service.

AIM VRB Lite, offers an effective fire barrier solution for ventilated cavities. VRB Lite offers a superior fire rating and allows a continuous ventilation space of up to 25mm. This provides excellent ventilation behind the cladding whilst leaving sufficient room for easy installation of the cladding panels.

This download is for the VRB Lite Range of cavity barriers by AIM and includes the following types;

60min FR

Object Data

1 Revision

Last Updated

16/10/2017

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

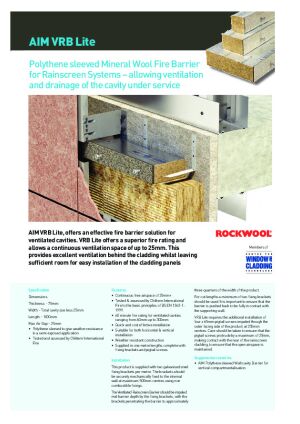

Product Literature

Product Data Sheet

Object metadata

_AuthorRW
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Air Gap25 mm
Assembly CodeD4030900
Asset TypeFixed
BIM Object NameAIM_FireStopping_VRB_Lite
Cavity Barrier MaterialAIM-VRB-Lite-60mins
Classification NameUniclass2015
Classification ValuePr_25_80_81_51
Code Performancen/a
ColorSilver / Yellow
Constituentsn/a
Created Byperformancetechnology@sigplc.com
Created On2017-09-22 T00:00:00
Default Elevation1219 mm
DescriptionAIM VRB Lite, offers an effective fire barrier solution for ventilated cavities. VRB Lite offers a superior fire rating and allows a continuous ventilation space of up to 25mm. This provides excellent ventilation behind the cladding whilst leaving sufficient room for easy installation of the cladding panels.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2309
Documentation Maintenancen/a
Documentation Technicaln/a
Duration UnitYear
Expected Life0
FeaturesContinuous free airspace of 25mm+. Tested & assessed by Chiltern International Fire to the basic principles of BS EN 1363-1:1999. 60 minute fire rating for ventilated cavities ranging from 60mm up to 300mm. Quick and cost effective installation. Suitable for both horizontal & vertical installation. Weather resistant construction. Supplied in one metre lengths complete with fixing brackets and pigtail screws
FinishPolythene sleeved Mineral Wool
Fire Rating60mins
Graden/a
Ifc Export AsIfcBuildingElementProxy
Ifc Export TypeIfcBuildingElementProxy
KeynoteP12/360
ManufacturerAIM
Manufacturer NameAIM
MaterialPolythene sleeved Mineral Wool
ModelVRB Lite - 60Min FR
Model NumberVRB Lite
Model ReferenceAIM VRB Lite
NBS DescriptionMineral wool fire stopping
NBS Object NameAIM - VRB Lite
NBS Office Master Tagn/a
NBS Reference45-45-70/427
Nominal Height75 mm
Production Year2017
ShapeRectangle
SizeThickness : 75mm. Length: 1000mm. Width: Total cavity size less 25mm
Thickness75 mm
Type CommentsPolythene sleeved Mineral Wool Fire Barrier for Rainscreen Systems – allowing ventilation and drainage of the cavity under service.
Type NameAIM VRB Lite
URLwww.aimlimited.co.uk
Warranty Duration UnitYear
Warranty Guarantor Laborperformancetechnology@sigplc.com
Warranty Guarantor Partsperformancetechnology@sigplc.com
