Wall Panel System

39k
0
3.7 / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

12 Revision

Last Updated

04/10/2018

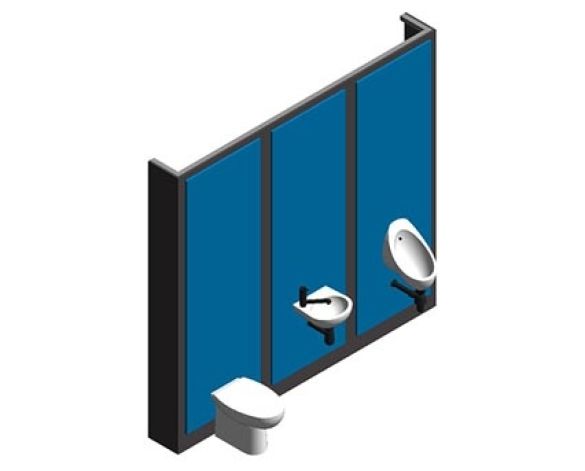

Download BIM

Add to collection

Available for:

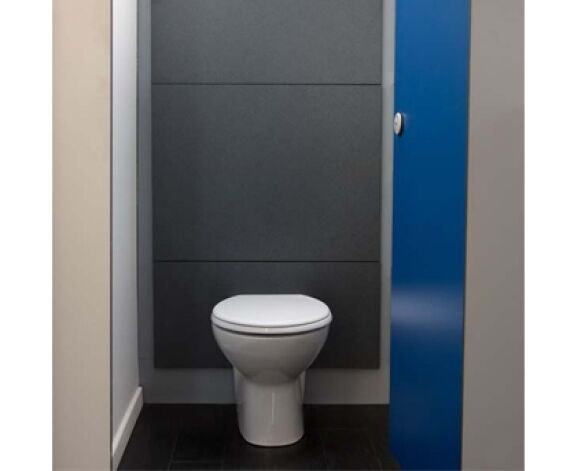

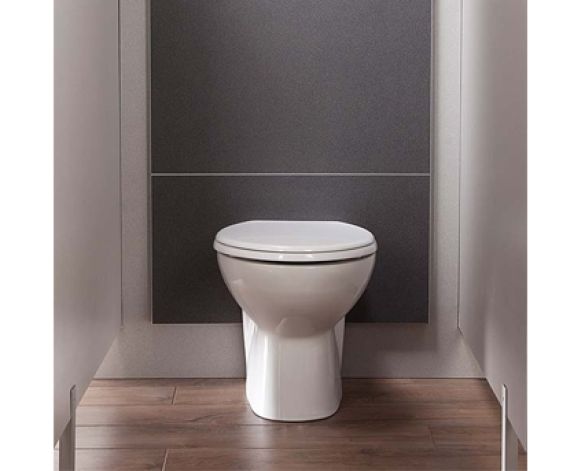

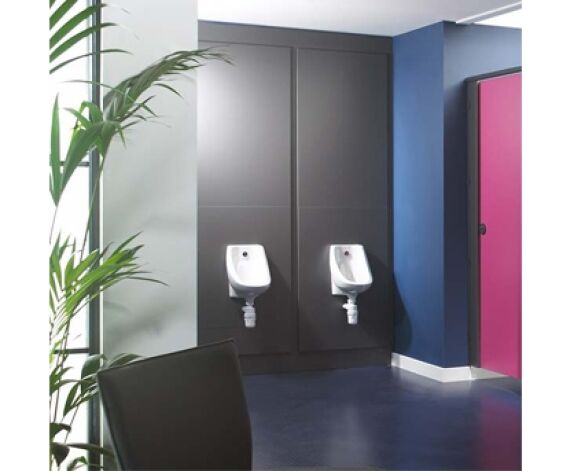

Full height wall panel systems can be supplied to match your cubicle colour configuration.

Panels are Melamine Faced Chipboard (MFC) as standard, with a protective PVC edging. For wet areas, such as changing rooms, Compact Grade Laminate (CGL) wall panel systems can be supplied. CGL is a completely water proof product.

Component height can be amended to suit your ceiling requirement as well as optional lid accessory. All colour options from the Cubicle Centre range included.

http://www.washroomcubicles.co.uk/wall-panel-systems/

Version 12 – Updates are base around our periodic maintenance schedule and feedback from our users.

_authorCubicle Centre
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.washroomcubicles.co.uk/
_Current Revision12
_Distributed Bywww.bimstore.co.uk/
Accessibility PerformanceMade to specification
Assembly CodeC3010140
Asset TypeFixed
AuthorCubicle Centre
BIM Object NameCubicleCentre_WallPanelSystemMFC
CategoryL516 : Wall linings
Cistern Depth156 mm
Cistern Offset85 mm
Cistern Width410 mm
Classification NameUniclass2015
Classification ValueSs_25_25_45_25
Code Performancen/a
Colorn/a
ConstituentsPanels, flash gaps, and clips
Created Bysales@washroomcubicles.co.uk
Created On1900-12-31T23:59:59
Depth0 mm
DescriptionFull-height panel system for easy cleaning and a finished look
Documentation Certificateswww.washroomcubicles.co.uk/downloads/Cubicle-Centre-FSC.pdf

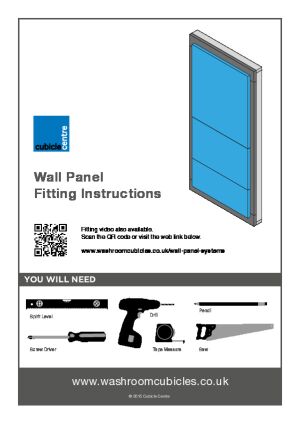

Documentation Installation Guidewww.washroomcubicles.co.uk/downloads/Installation_Guide-WallPanels.pdf

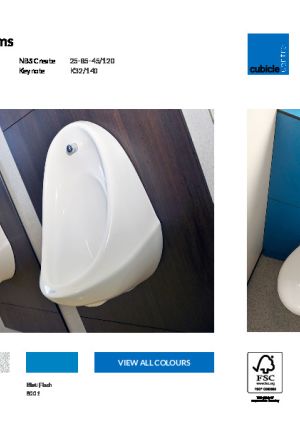

Documentation Literaturewww.washroomcubicles.co.uk/downloads/WallPanel_Spec-Cubicle_Centre.pdf
Documentation Maintenancewww.washroomcubicles.co.uk/downloads/Maintenance_Cubicles.pdf
Documentation Technicalwww.washroomcubicles.co.uk/wall-panel-systems/
Duration Unityear
Expected Life10
FeaturesMade to measure, so they’re suitable for any ceiling height
Finishn/a
Flash Gap Width5 mm
Graden/a
Ifc ProductIfcBuildingElementProxy
Ifc Type ProductIfcBuildingElementProxyType
KeynoteK32/140
LHS End UprightYes
LHS End Upright Width75 mm
Manufacturersales@washroomcubicles.co.uk
Manufacturer URLwww.washroomcubicles.co.uk/
MaterialMelamine Faced Chipboard or High Pressure Laminate
Middle UprightYes
Middle Upright Width168 mm
ModelWall Panel System
Model NumberWall Panel System
Model ReferenceWall Panel System
NameWall Panel System
NBS DescriptionWall Panel System
NBS Reference25-85-45/120
Nominal Height2400 mm
Nominal Length300 mm
Nominal Width850 mm
Panel Offset2 mm
Panel overlap25 mm
Panel Thickness18 mm
Plinth Flashgap Height175 mm
Product Informationwww.washroomcubicles.co.uk/wall-panel-systems/
Production Yearn/a
Referenced Standardsn/a
Replacement Cost0
Revisionn/a
RHS End UprightNo
RHS End Upright Width75 mm
ShapeCuboid
Sizen/a
Spare Partsn/a
Sustainability PerformanceFSC certified on request
Top Flashgap Height75 mm
Type CommentsLeft Hand Configuration
Uniclass 2015 CodeSs_25_25_45_25
Uniclass 2015 TitleDuct and wall panel lining systems
Uniclass 2015 VersionSystems v1.5
Urinal Height650 mm
URLwww.washroomcubicles.co.uk/wall-panel-systems/
Version12
Warranty Description2 year warranty on parts
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration Unityear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@washroomcubicles.co.uk
WHB Height750 mm
