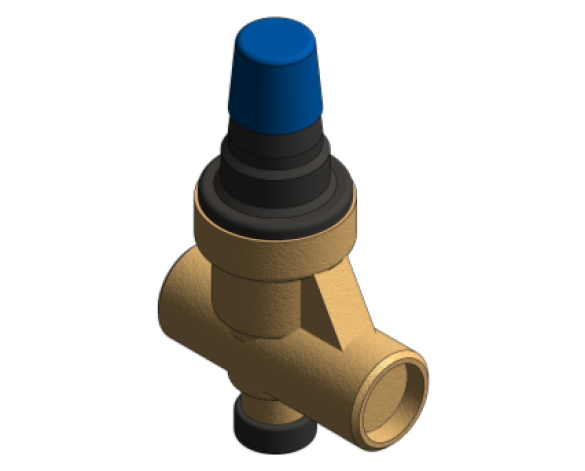

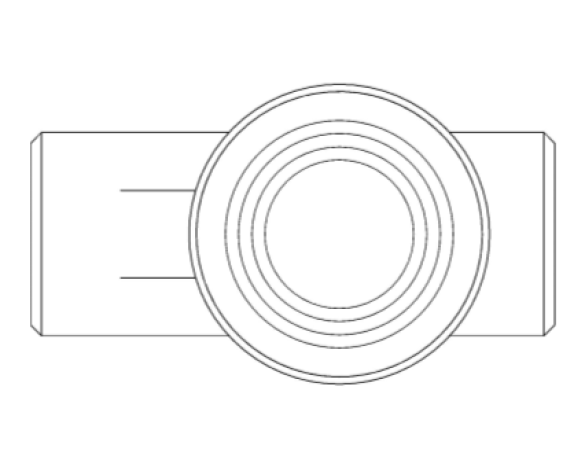

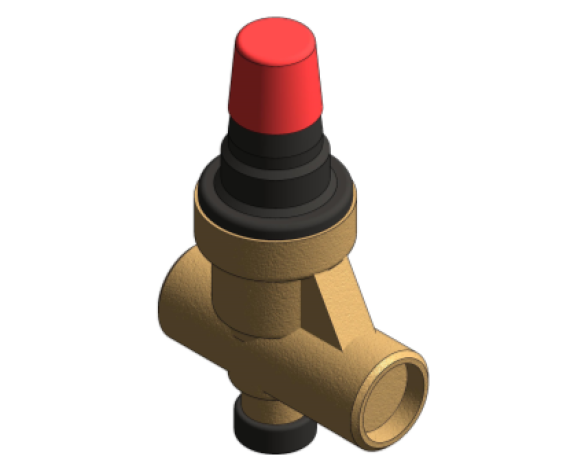

320 Series Pressure Reducing Valve

by Reliance Valves

Download Add to collection

Description

- For up to 16 bar and 80oC.- Adjustable between 1.5 – 6.0 bar- High flow rate design- ‘Lift and turn’ mechanism for ease of pressure adjustment- One piece Easiset cartridge- Fully serviceable strainer- Can be installed in any orientation- MBSP connection complete with union fitting for ease of servicing- Drop tight valve, controls the pressure under both flow and no-flow conditions- Single gauge port on the base of the valve- Available with SharkBite® Metal Push-fit connections for even quicker installation

PRED320050PRED320055PRED320051PRED320056PRED320060PRED320065

Object Data

1 Revision

Last Updated

31/08/2016

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_authorized byKris Atkinson
_BIMspec_GUID1
_created byElisabeth Matuki
_current revision1
_distributed bywww.bimstore.co.uk
Accessibility Performancen/a
Assembly CodeD2020300
Asset TypeFixed
B_Center To Cap Top92 mm
Cap MaterialRWC Blue
Classification NameUniclass
Classification ValuePr_65_54_40_44
Code Performancen/a
ColorBrass
Connection Type1/2in FF
Constituentsn/a
Created Bytechnical@rwc.co.uk
Created On2016
DescriptionThe Reliance Water Controls brand specialises in pressure, temperature, flow control and washroom products and has a long history in supplying the sanitary plumbing market and hot water system manufacturers. With our heritage and expertise, Reliance Worldwide Corporation (UK) Ltd (RWC UK) played a key role in the development of thermostatic technology and unvented hot water systems in the UK. Today we remain at the forefront of the industry delivering new innovations each year to drive water efficiency and improve water safety in both domestic and commercial applications.
Duration UnitYears
Expected Life0
FeaturesFor up to 16 bar and 45oC. Adjustable between 1.5 – 6.0 bar. High flow rate design. ‘Lift and turn’ mechanism for ease of pressure adjustment. One piece Easiset cartridge. Fully serviceable strainer. Can be installed in any orientation. MBSP connection complete with union fitting for ease of servicing. Drop tight valve, controls the pressure under both flow and no-flow conditions. Single gauge port on the base of the valve. Available with SharkBite® Metal Push-Fit connections for even quicker installation.
FinishDRZ Brass
Fittings MaterialRWC DRZ Brass Sandblasted
Graden/a
Inlet 1_Diameter21 mm
Inlet 1_Radius11 mm
KeynoteS12
ManufacturerReliance Worldwide Corporation
Manufacturer AddressReliance Worldwide Corporation (UK) Ltd, Worcester Road, Evesham, Worcestershire, WR11 4RA, UK
Manufacturer Fax+44 (0) 1386 712401
Manufacturer Tel+44 (0) 1386 712400
MaterialDRZ Brass
Max Pressure5.5 bar
Min Pressure1.5 bar
ModelAdjustable PRV 320F
Model NumberPlease record on commissioning
NBS DescriptionIsolating valves;
NBS Object Name90-15-40/325 Isolating valves;
NBS Reference90-15-40/325
Nominal Height0 mm
Nominal Length72 mm
Nominal Width42 mm
Outlet 1_Diameter21 mm
Outlet 1_Radius11 mm
Pressure Reduction Ratio10:1
Product CodePRED320001
Production Year2016
Referenced StandardWRAS Approved No. 0605101, DVGW, BS EN 1567
Replacement Costn/a
Shapen/a
Size70 x 92 x 26mm
Spare Partsn/a
Type NamePRED320001
URLwww.rwc.co.uk
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Working Pressure Max16.0 bar
Working Temp Max45 °C
