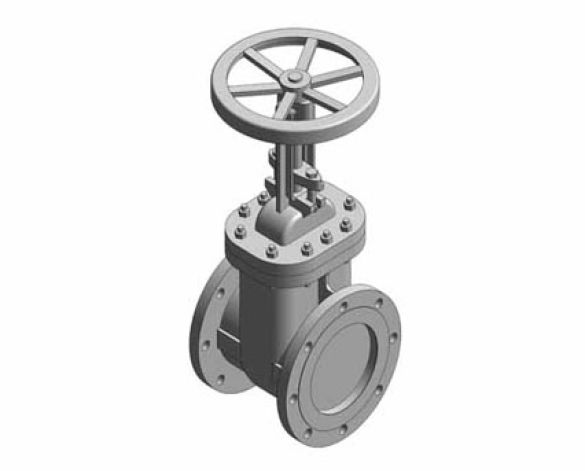

47XU-F - Gate Valve

by Crane Fluid Systems

Download Add to collection

Description

Class 150 Steel Gate Valve

Features & Benefits:

Efficient stop valves with flow in either direction
Commonly used where a minimum pressure drop is important
Flexible wedge disc compensates for deformation of body due to pipe stress
Outside screw and yoke
Flanged
Seat ring is seal welded to eliminate leak paths

Object Data

1 Revision

Last Updated

26/05/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_authorMark Thompson
_BIMspec_GUID0
_Bonnet Gap0 mm
_current revision1
_distributed bywww.bimstore.co.uk
_End Flange Diameter406 mm
_End Flange Hole Centre362 mm
_End Flange Hole Diameter25 mm
_End Flange Raised Diameter324 mm
_End Flange Raised Height2 mm
_End Flange Thickness30 mm
_Height Closed786.6666667 mm
_Inner Flange Diameter320 mm
_Upper Bonnet Width110 mm
12_HolesYes
16_HolesNo
20_HolesNo
4_HolesNo
8_HolesNo
A mm330 mm
Assembly CodeD30
B mm1180 mm
Barcode0
BodyCarbon Steel ASTM A216 Gr WCB
Body Protrusion Depth272.832 mm
Body Protrusion Thickness51.968 mm
Body Radius129.92 mm
Body Width270 mm
BonnetCarbon Steel ASTM A216 Gr WCB
Bonnet Disk Depth33.83333333 mm
Bonnet Disk Length270 mm
Bonnet Disk Width342.9888 mm
Bonnet Nut Centre 1108 mm
Bonnet Nut Centre 2274.39104 mm
Bonnet Nut Centre 3216 mm
Bonnet Nut Depth67.66666667 mm
Bonnet Nut Diameter24.54545455 mm
Bonnet StudAlloy Steel ASTM A193 Gr. B7
Bonnet Stud NutCarbon Steel ASTM A182 F6a
C mm404 mm
Connection Size250 mm
Connection Size Radius125 mm
DescriptionCrane gate valves offer the ultimate in dependable service wherever minimum pressure drop is important. Class 300 and Outside Screw and Yoke and Flexible Wedge Disk
DiscCarbon Steel ASTM A216 Gr. WCB
Disc Facings13% Cr Steel AWS A5.9
DocumentationLink URLwww.cranefs.com/files/productDataSheets/CFS_47XU_Gate_DS.pdf
Expected Life0
Fin Side Depth135.3333333 mm
Fin Width52.5 mm
GasketLow Carbon Steel ASTM A108 Gr.1010
Gland13% Cr Steel ASTM A182 Gr. F6a
Gland FlangeCarbon Steel ASTM A105
Grease FittingCarbon Steel
Grease Lubricator Offset399.6526316 mm
HandwheelCarbon Steel
Handwheel Depth40.4 mm
Handwheel NutCarbon Steel
ID PlateStainless Steel 18/8
K Coefficient7681.73
KeynoteS
Loss Method2
ManufacturerCrane Fluid Systems
Model47XU-F
PackingFlexible Graphite
Pressure (BAR)www.cranefs.com/files/productDataSheets/CFS_47XU_Gate_DS.pdf
Pressure Rating (Cat)Class 150
Product DescriptionCast Steel Gate Valve
Product Documentation Linkwww.cranefs.com/files/productDataSheets/CFS_47XU_Gate_DS.pdf
Product Page URLwww.cranefs.com/products/prodDetail.asp?pc=47XU-F&valveType=5&valveMaterial=&valvePressureRating=&valveSize=&figSearch=&productNameSearch=&searchType=
Retainer NutCarbon Steel
Seat RingCarbon Steel ASTM A105
Serial Number0
Side Fin Height203 mm
Stem13% Cr Steel ASTM A182 Gr. F6a
Stem Corner Radius57.1648 mm
Stem Height448.3333333 mm
Stem Loop Depth285.824 mm
Stem Loop Width165 mm
Stem Lower Circle Radius142.912 mm
Stem Offset8.280701754 mm
Stem Radius16.5 mm
Temperature deg C-10 to 100 deg C
Top of Stem270.6666667 mm
Type Comments10"
Type Name10"
Uniclass 2WR-90-94-95
Upper Bonnet Length190.5493333 mm
URLwww.cranefs.com/
Valve MaterialCarbon Steel
Warranty Duration12 months
Warranty Duration Unit12 months
Weight (kg)198
YokeCarbon Steel ASTM A216 Gr WCB
Yoke SleeveNi-Resist Iron ASTM A439 Gr.D2
