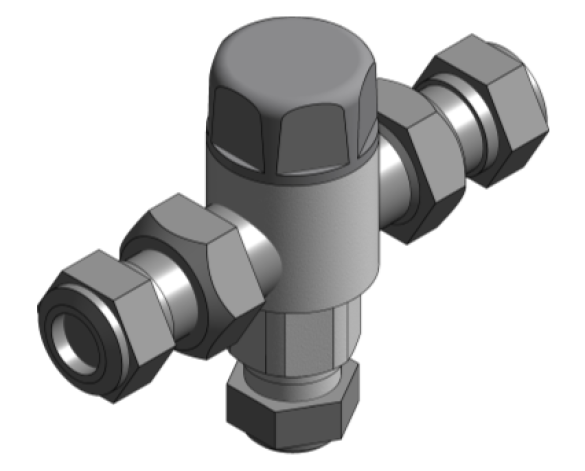

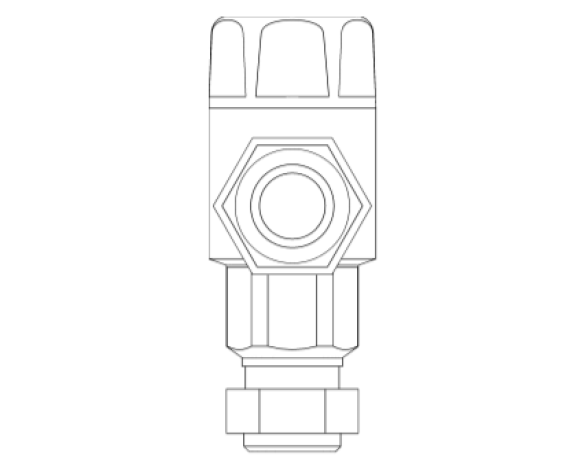

5213 Merchant Thermostatic Mixing Valve

Unapproved This content has not yet been through the Bimstore QA process and as such may not meet our minimum standards for content hosting.

10.4k
0
3 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

01/12/2016

Download BIM

Add to collection

Available for:

The merchant fail safe thermostatic mixing valve has been specifically designed and manufactured to meet the requirements of the latest National Health Service model engineering specification - D08 and BS 7942 for use in care homes.

Application

Thermostatic mixing valves are used to maintain the domestic hot water supplied to the user at a constant and safe temperature, when variations in the hot and cold water supply conditions and draw off flow rates occur. The failsafe design shuts off the mixed water flow automatically in the event of disruption in the hot or cold water supply to the valve.

TMV2 and TMV3

The merchant range of failsafe thermostatic mixing valves have been designed and manufactured to meet the requirements of BS7942:2000 and the National Health Service model engineering specification D08 for use in healthcare premises, hospitals, care homes, and schools.

The elderly, young children and the disabled are at particular risk of life threatening scalds due to a potential lack of mobility, skin sensitivity or the ability to communicate with their carer.

The valve has been independently tested and approved as a type 3 valve under the TMV3 scheme.

The valve also meets the requirements of BS EN 1111: 1999 and BS EN1287: 1999 and the TMV2 Type Scheme. The valves have been independently tested and approved as a type 2 valve under the Buildcert TMV2 scheme by the WRc - NSF Limited / Buildcert Limited.

Merchant TMV2 thermostatic mixing valves are suitable for use in domestic housing and commercial buildings for single user outlets including wash basins, showers, baths and bidets but are also suitable for multiple outlet use.

This download contains

1 Pipe Accessory Family with two types; CA-100822 - 15mm Thermostatic Mixing Valve CA-100824 - 22mm Thermostatic Mixing Valve

COBie and NBSCreate Parameters

Altecnic BIM Userguide

rev2 - Hex cap and lower body adjustment, parameter update

_authorized byKris Atkinson
_BIMspec_GUID1
_created bySean Sands (v2)
_current revision2
_distributed bywww.bimstore.co.uk
15mmYes
22mmNo
A141 mm
Accessibility Performancen/a
Assembly CodeD2090800
Asset TypeFixed
B68 mm
Body MaterialAltecnic - DZR, Chrome Plated
Body Type1
C99 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_88
Code Performancen/a
ColorSilver
Constituentsn/a
Created Bytechnical@altecnic.co.uk
Created On2016
D43 mm
DescriptionEstablished near Stafford in 1988, we’ve built our reputation on supplying what our customers need now, while our dedicated technical team works on what you’ll need in the future. Development work by our European manufacturing partners Caleffi constantly anticipates new regulations and market trends.
Duration UnitYears
E56 mm
Expected Life0
F34 mm
FeaturesThermostatic mixing valves are used to maintain the domestic hot water supplied to the user at a constant and safe temperature, when variations in the hot and cold water supply conditions and draw off flow rates occur. The failsafe design shuts off the mixed water flow automatically in the event of disruption in the hot or cold water supply to the valve.
FinishChrome Plated
Graden/a
Inlet temp range - cold supply0.5 - 20 °C
Inlet temp range - hot supply52 - 65°C
Inlet 1_Diameter15 mm
KeynoteS12
ManufacturerAltecnic
Manufacturer AddressAltecnic Ltd, Mustang Drive, Stafford, Staffordshire, ST16 1GW
Manufacturer Fax+44 (0)1785 218201
Manufacturer Tel+44 (0)1785 218200
MaterialDZR Brass
Max. inlet temperature85 °C
Max. working pressure10.0 bar
Max. working pressure - dynamic5.0 bar
MediumWater
ModelMerchant - Series 5213
Model NumberCA-100822
NBS DescriptionThermostatic mixing valves;
NBS Object Name90-10-90/370 Thermostatic mixing valves;
NBS Reference90-10-90/370;
Nominal Height99 mm
Nominal Length141 mm
Nominal Width34 mm
Production Year2016
Ref. noCA-100822
Referenced StandardCertification in compliance with standard: EN 1567, Brass -BS EN 12165 CW602N, BS 7942:2000 and the National Health Service model engineering specification D08 for use in healthcare premises, hospitals, care homes, and schools.
Replacement Costn/a
Shapen/a
Size141 x 34 x 99mm
Spare Partsn/a
Type Comments15mm
Type NameMerchant - Series 5213
URLwww.altecnic.co.uk/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Partsn/a
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
