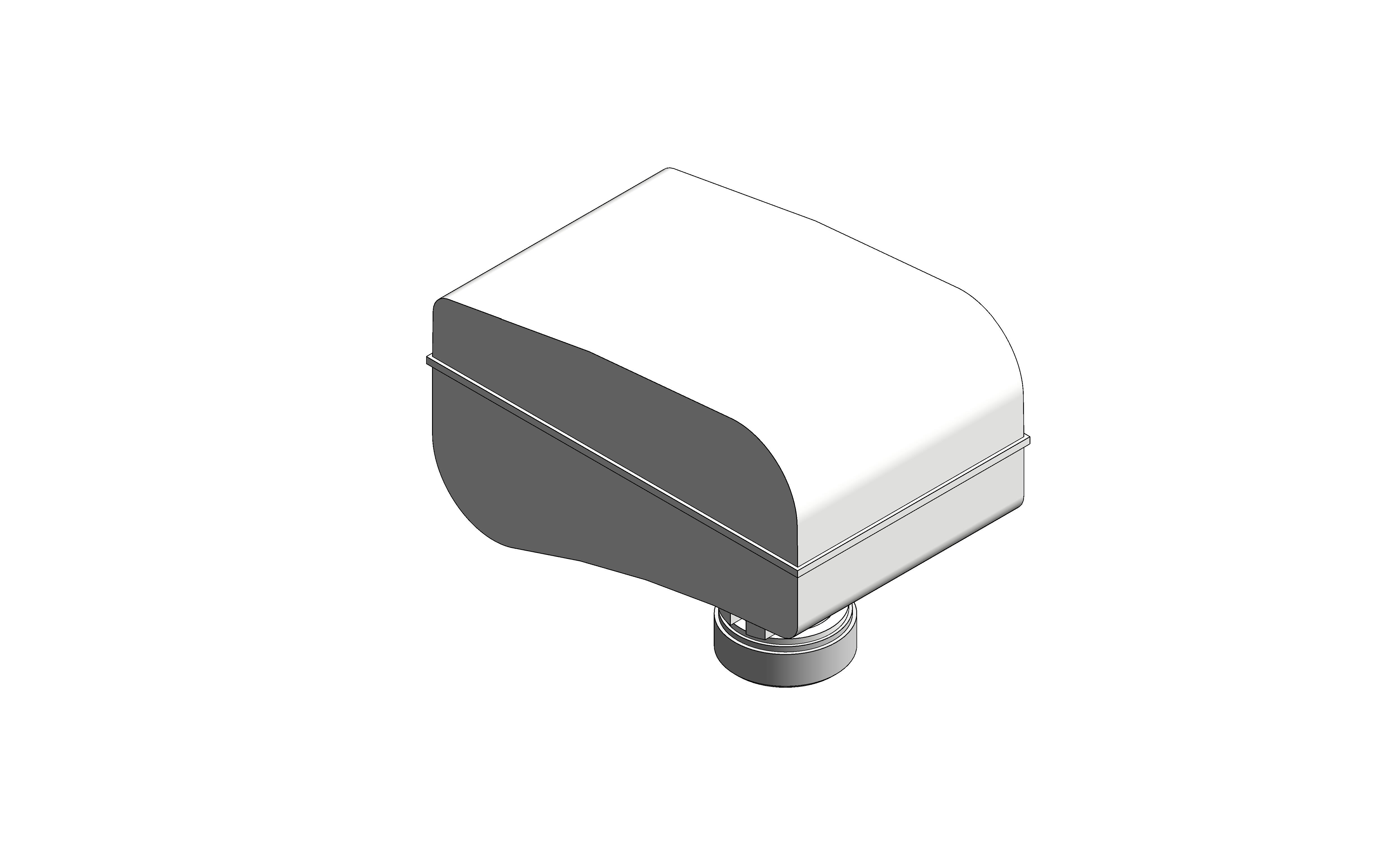

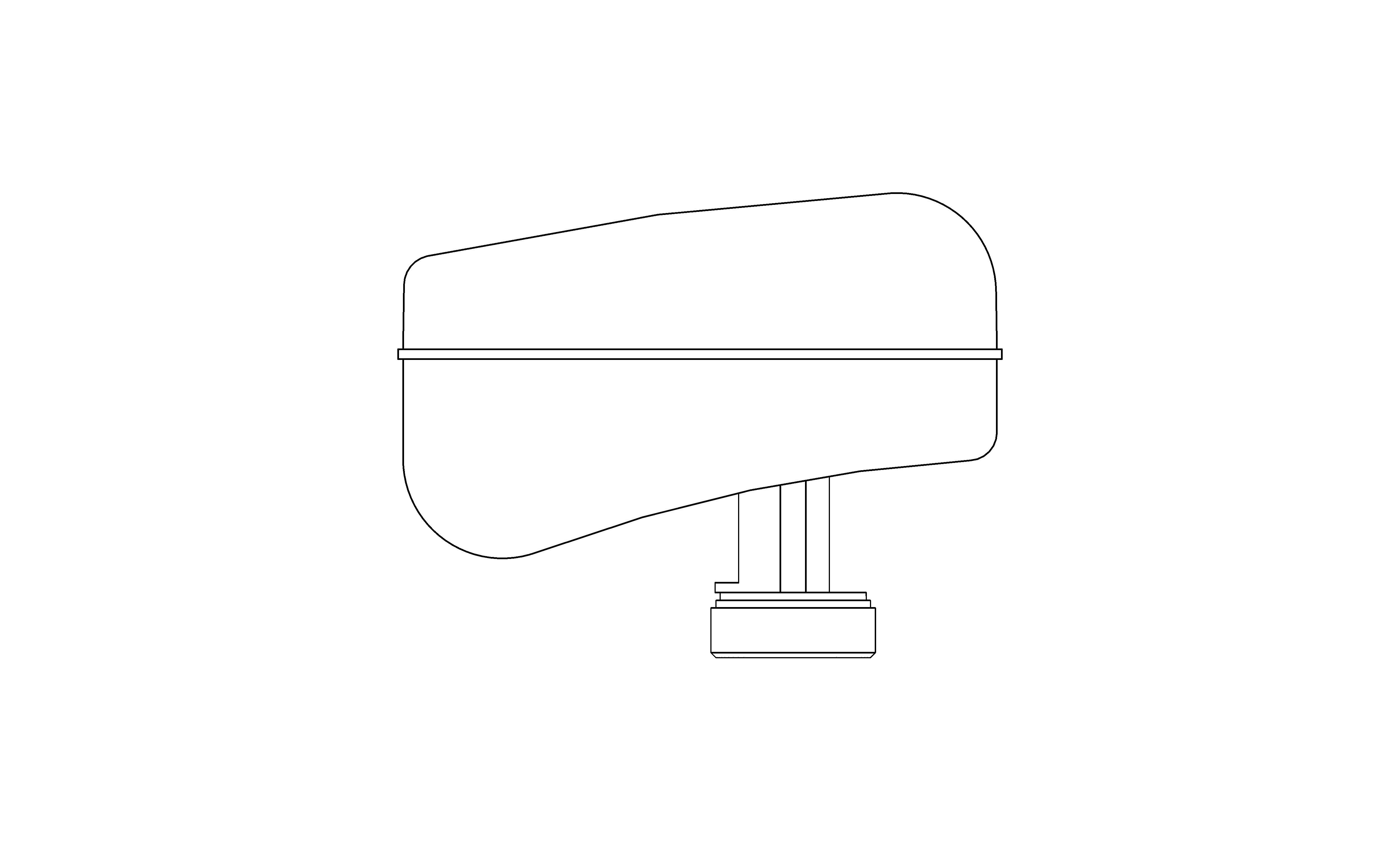

ACTMDBUS - Modulating Actuator with Modbus

by Crane Fluid Systems

Download Add to collection

Description

Modulating actuator with Modbus

Features and benefits

Modulating actuator providing linear and equal percentage control for heating and cooling applications
Failsafe function protects the system in case of power failure by moving to the fully open or fully closed position
Modbus protocol enables communication with other Modbus devices
Position feedback communicated via Modbus
Diagnostic functions and LED behaviour indicate operating status and any errors for fast maintenance
Good shut-off performance due to high force
Fast response due to high speed

Object Data

1 Revision

Last Updated

25/04/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/actmdbus-modulating-actuator-with-modbus/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_ModulatingActuatorWithModbus_ACTMDBUS
Cable5 wires, 1.5m (CEI 20-22/II)
Charging Time For Supercapacitors~45 sec
Classification NameUniclass2015
Classification ValuePr_75_50_02_94
Code Performancen/a
Colorn/a
Constituentsn/a
Consumption-Moving6W
Consumption-Supercapacitor Charging12W
Consuption-Holding Position1.5W
Created Byenquiries@cranefs.com
Created On2023-04-24 T09:00:00
Default Elevation0.0 mm
DescriptionModulating actuator with Modbus
Documentation Certificateswww.bimstore.co/products/actmdbus-modulating-actuator-with-modbus/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/actmdbus-modulating-actuator-with-modbus/document/installation-guide
Documentation Literaturewww.bimstore.co/products/actmdbus-modulating-actuator-with-modbus/document/product-literature
Documentation Maintenancewww.bimstore.co/products/actmdbus-modulating-actuator-with-modbus/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/actmdbus-modulating-actuator-with-modbus/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Feedback Signalvia Modbus
Finish• Modulating actuator providing linear and equal percentage control for heating and cooling applications • Failsafe function protects the system in case of power failure by moving to the fully open or fully closed position • Modbus protocol enables communication with other Modbus devices • Position feedback communicated via Modbus • Diagnostic functions and LED behaviour indicate operating status and any errors for fast maintenance • Good shut-off performance due to high force • Fast response due to high speed
Force300N
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.USERDEFINED
KeynoteS
Manual Overridewith 3mm hex key
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelACTMDBUS
Model NumberACTMDBUS
Model ReferenceModulating actuator with Modbus
NBS DescriptionValve actuators
NBS Noten/a
NBS Object NameCraneFS - Valve actuators
NBS Office Master Tagn/a
NBS Reference90-65-50/310
Nominal Depth76.0 mm
Nominal Height89.0 mm
Nominal Length123.0 mm
Operating Temperature-5°C to 55°C
Power Supply24 Vac/dc ± 10%
Primary MaterialCraneFS - Plastic - White
Production Year2022
Protection DegreeIP54
Reference Directive And StandardsEMC 2014/30/UE according to EN 61326-1:2013
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size123mm (L) x 89mm (H) x 76mm (D)
Spare Partsn/a
Speed(Configurable Via Modbus)5 s/mm (defualt) or 3 s/mm
Speed In Emergency Positioning3 s/mm
Storage Temperature25°C to 65°C
Transformer Sizing30VA
Type CommentsModulating actuator with Modbus
Type NameACTMDBUS
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight0.40 kg
