Air & Dirt Separator

by ADEY

Download Add to collection

Description

ADEY’s range of Air & Dirt Separators protect boilers, pumps, and fittings used in sealed heating and cooling water systems, extending the service life of pumps, control equipment, and other system accessories by filtering out micro air bubbles and dirt particles from the system without interrupting a system's operation.

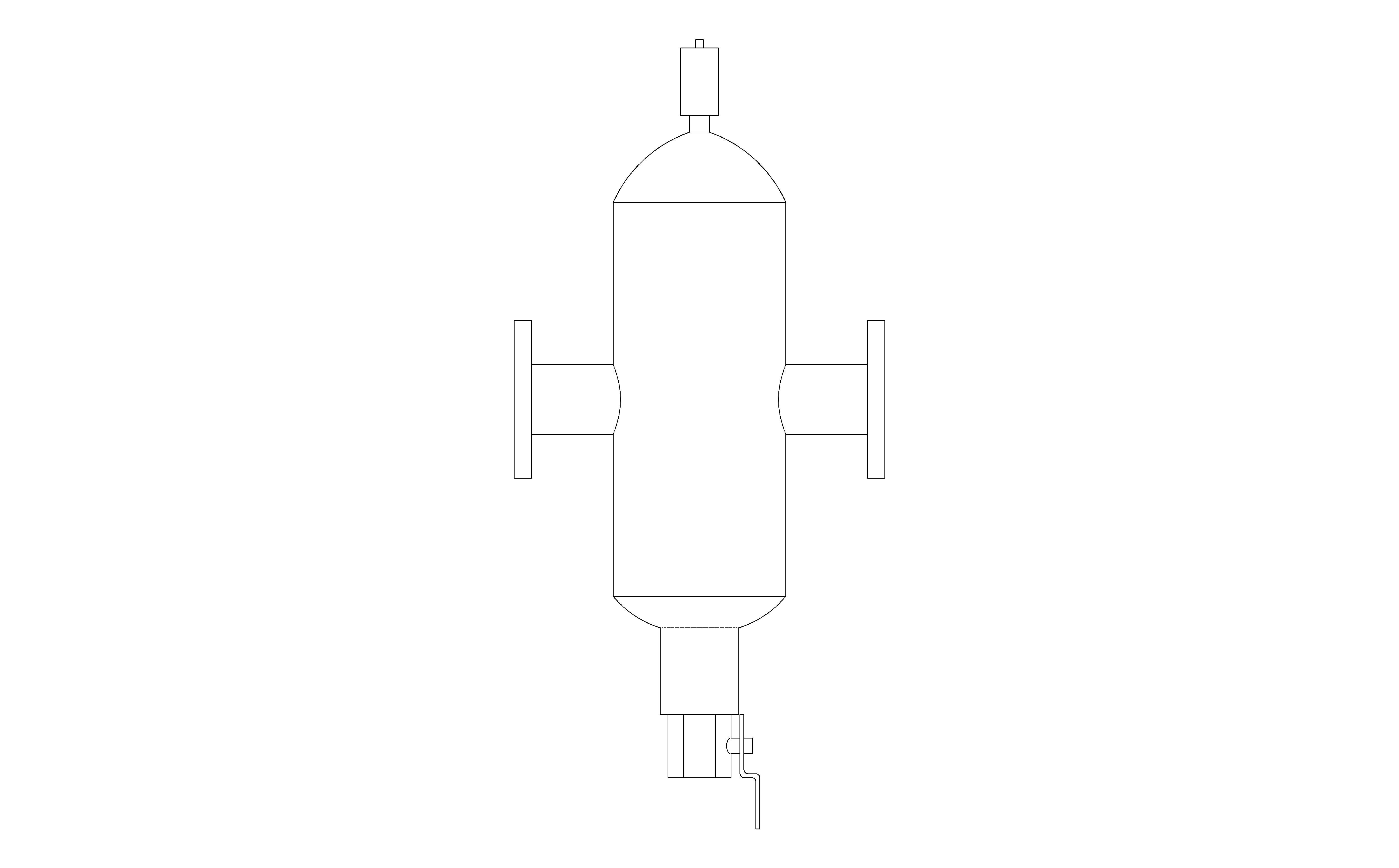

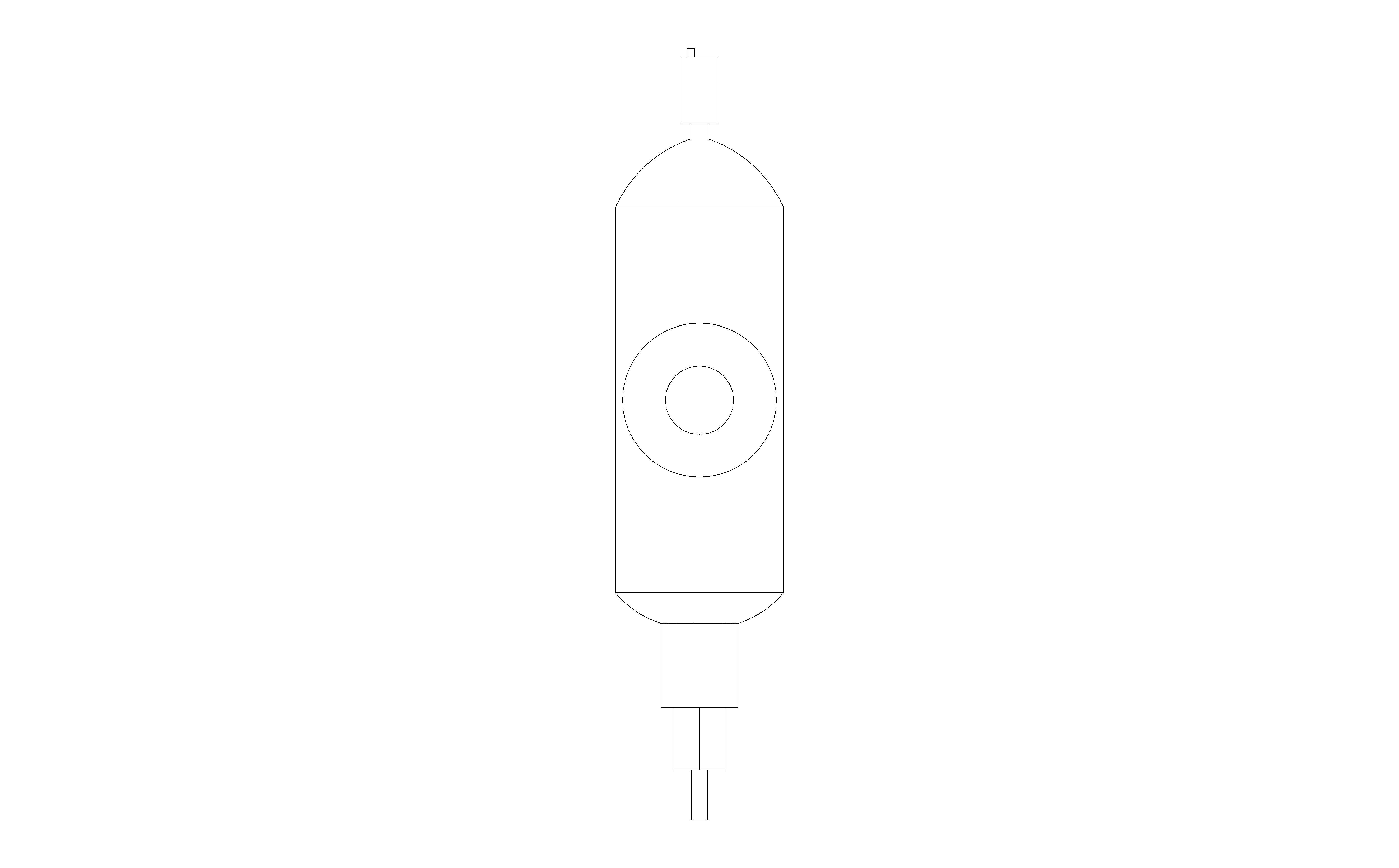

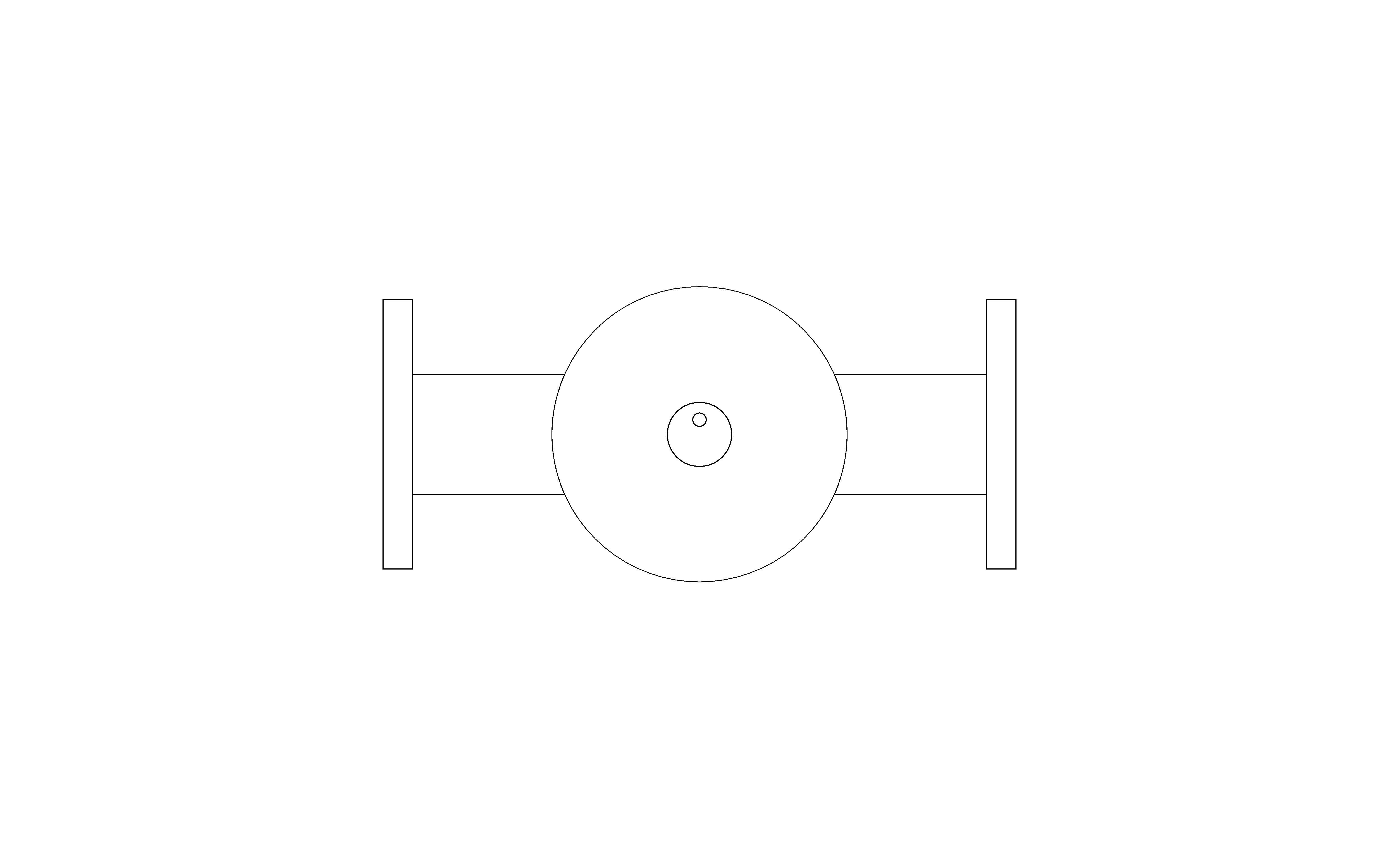

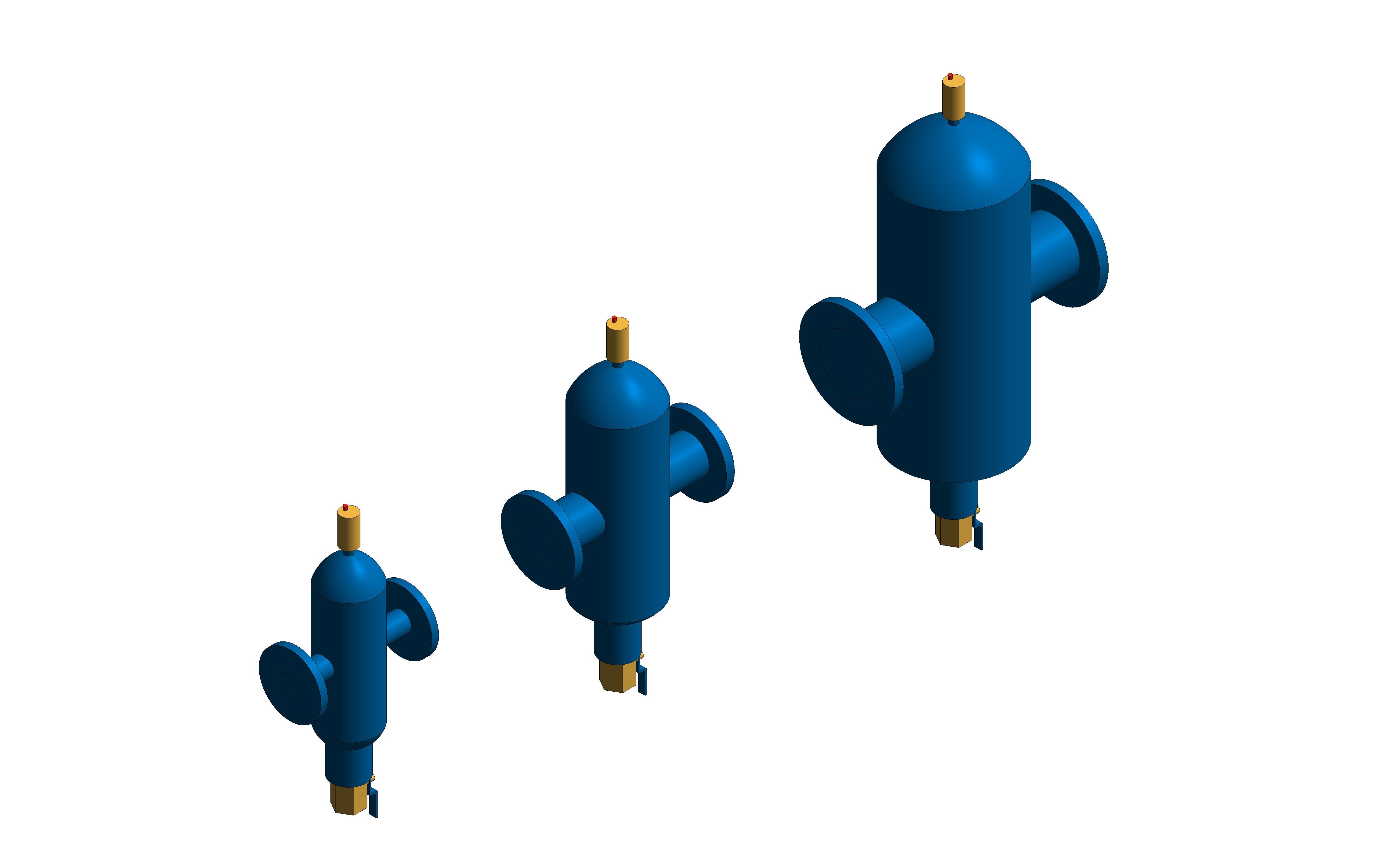

Available in the following sizes:

FL1-03-04295 - DN50
FL1-03-04296 - DN65
FL1-03-04297 - DN80
FL1-03-04298 - DN100
FL1-03-04299 - DN125
FL1-03-04300 - DN150
FL1-03-04301 - DN200

Object Data

1 Revision

Last Updated

11/02/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

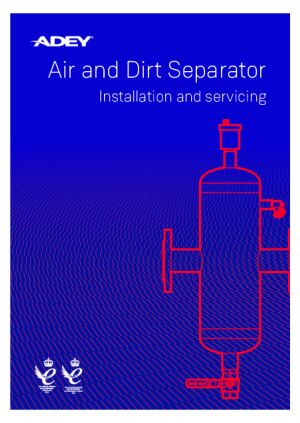

Installation Guide

Product Data Sheet

Object metadata

_Authorinfo@adey.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Byinfo@adey.com
_Current Revision2
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Asset TypeFixed

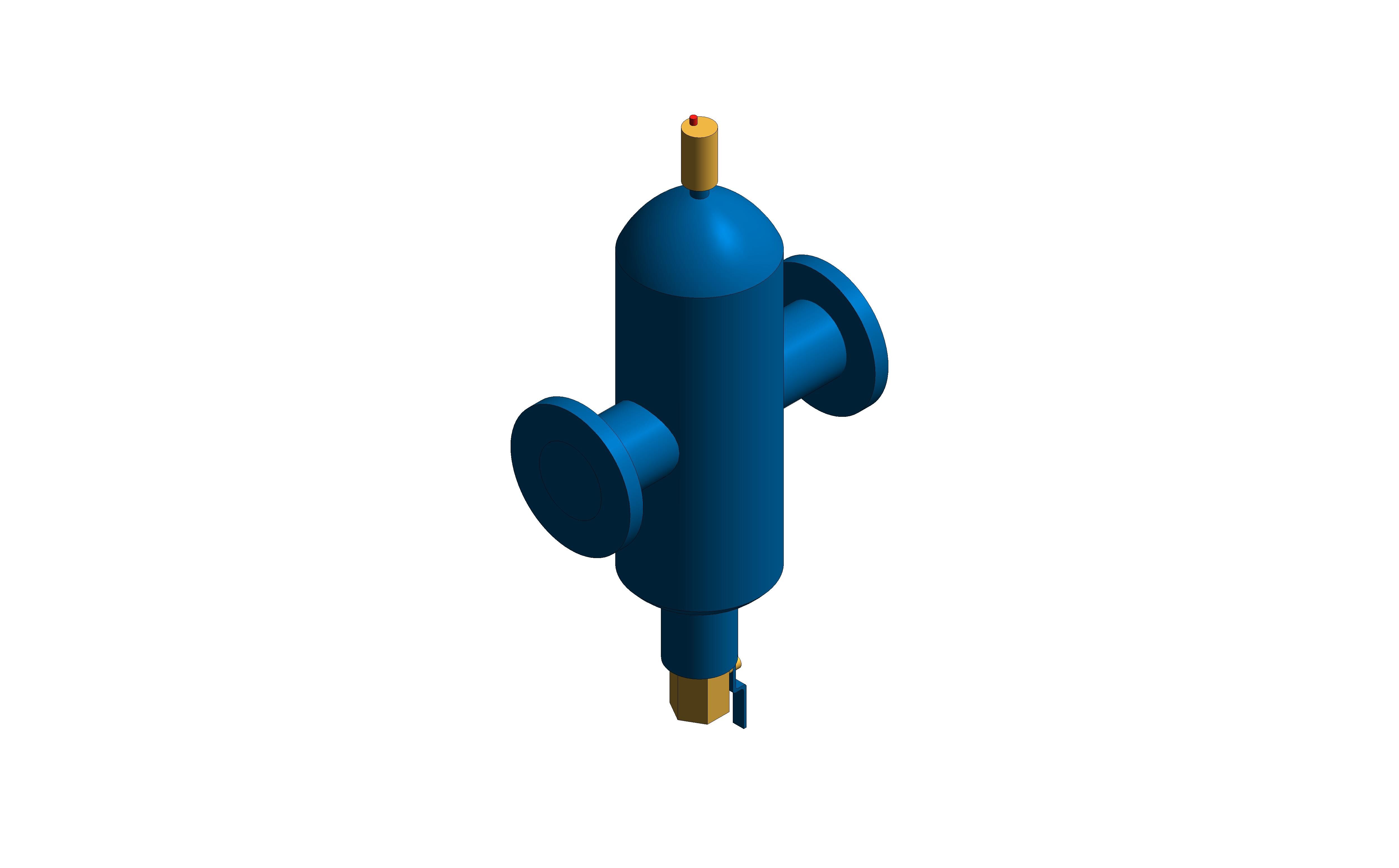

BIM Object NameAdey_PipeAccessories_AirAndDirtSeparator
Body Diameter159 mm
Body Diameter /280 mm
Body Length360 mm
Center Connection to Top410 mm
Centre Connection to Bottom460 mm
Classification NameUniclass2015
Classification ValuePr_60_55_97
Code Performancen/a
ColorBlue
Connection - Pipe Diameter60 mm
Connection Diameter50 mm
Constituentsn/a
Created Byinfo@adey.com
Created On2020-02-10:T09:00:00
DescriptionAir and Dirt Seperator
Documentation Certificateswww.adey.com/product/air-dirt-separator
Documentation Installation Guidewww.adey.com/product/air-dirt-separator
Documentation Literaturewww.adey.com/product/air-dirt-separator
Documentation Maintenancewww.adey.com/product/air-dirt-separator
Documentation Technicalwww.adey.com/product/air-dirt-separator
Duration UnitYears
Expected Life0
Featuresn/a
FinishPowder coated RAL5005
Flange Diameter185 mm
Flange Thickness20 mm
Graden/a
Height831 mm
Height of Bottom Dome135 mm
Height Of Top Dome95 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS12
ManufacturerAdey
Manufacturer NameAdey
MaterialFittings - Carbon Steel PN16 Flanges | Body - Carbon steel | Valves - Brass
ModelAir & Dirt Separator
Model NumberFL1-03-04296 - DN50
Model ReferenceAir & Dirt Separator
NBS DescriptionWater treatment products
NBS Object NameAdey - Water treatment products
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth185 mm
Nominal Height831 mm
Nominal Length350 mm
PHD Product Weight Per 1 Unit20.00 kg
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN50
Spare Partsn/a
Type CommentsFL1-03-04296 - DN50
Type NameFL1-03-04296 - DN50
URLwww.adey.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@adey.com
Width350 mm
