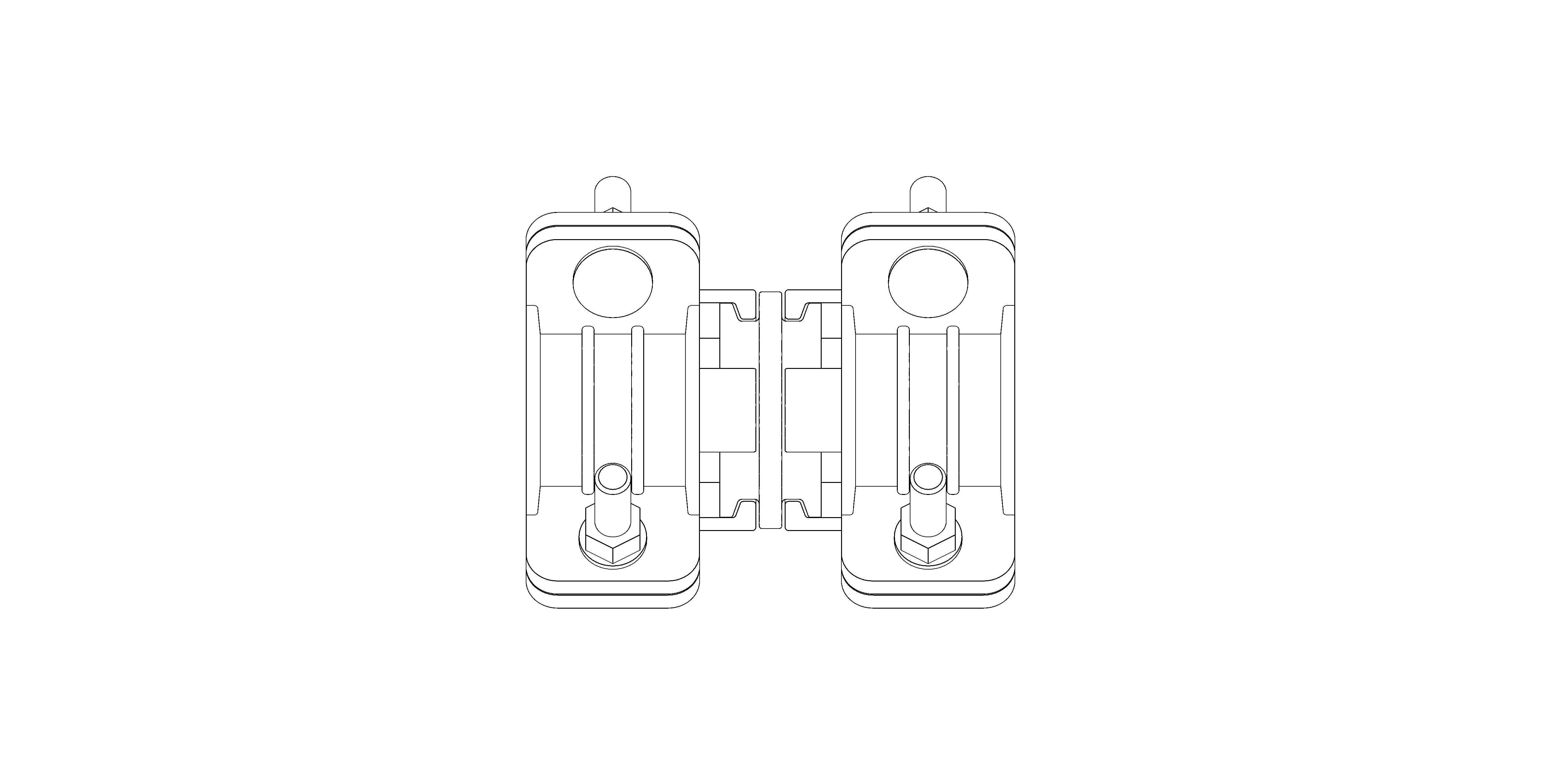

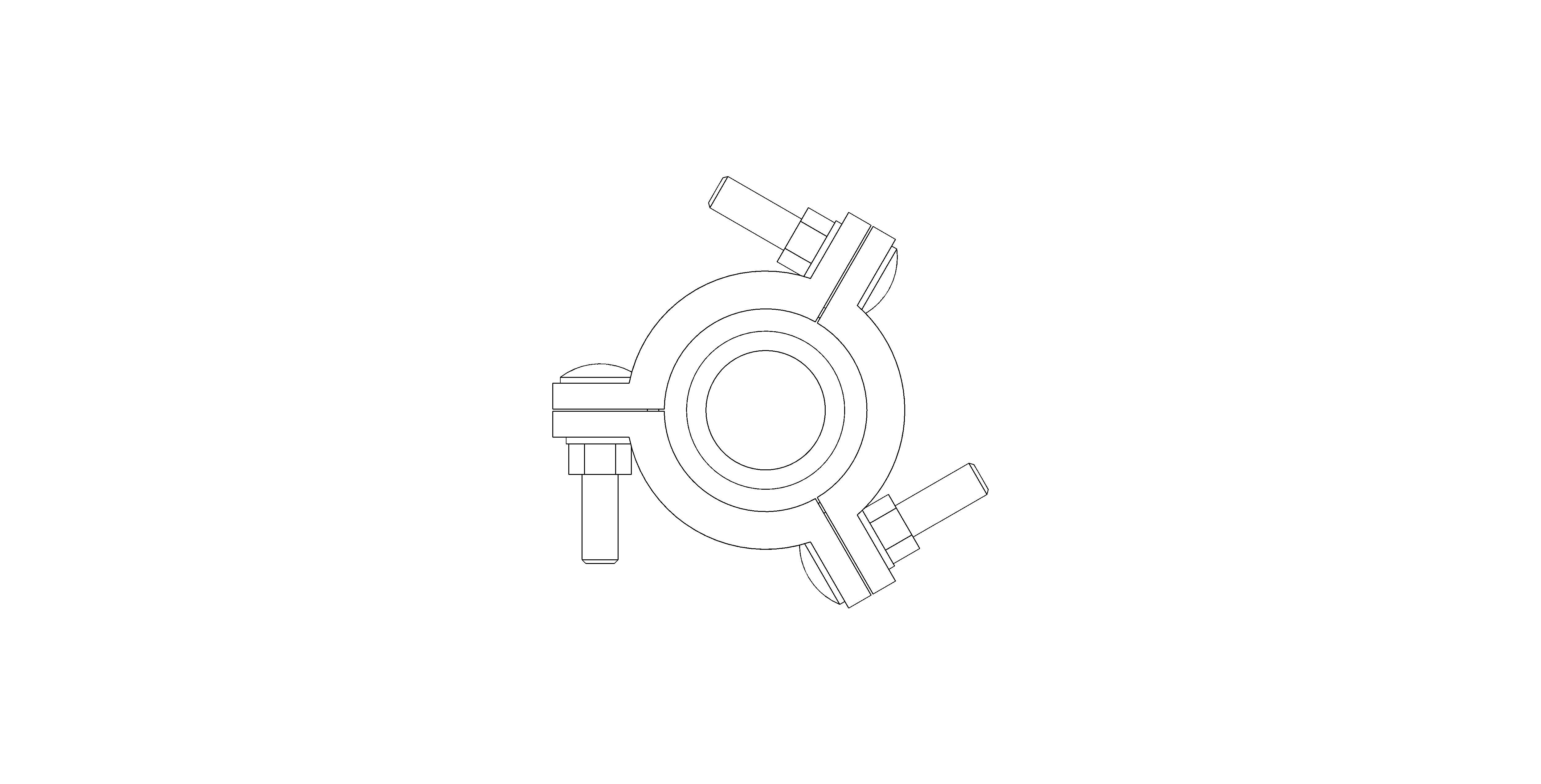

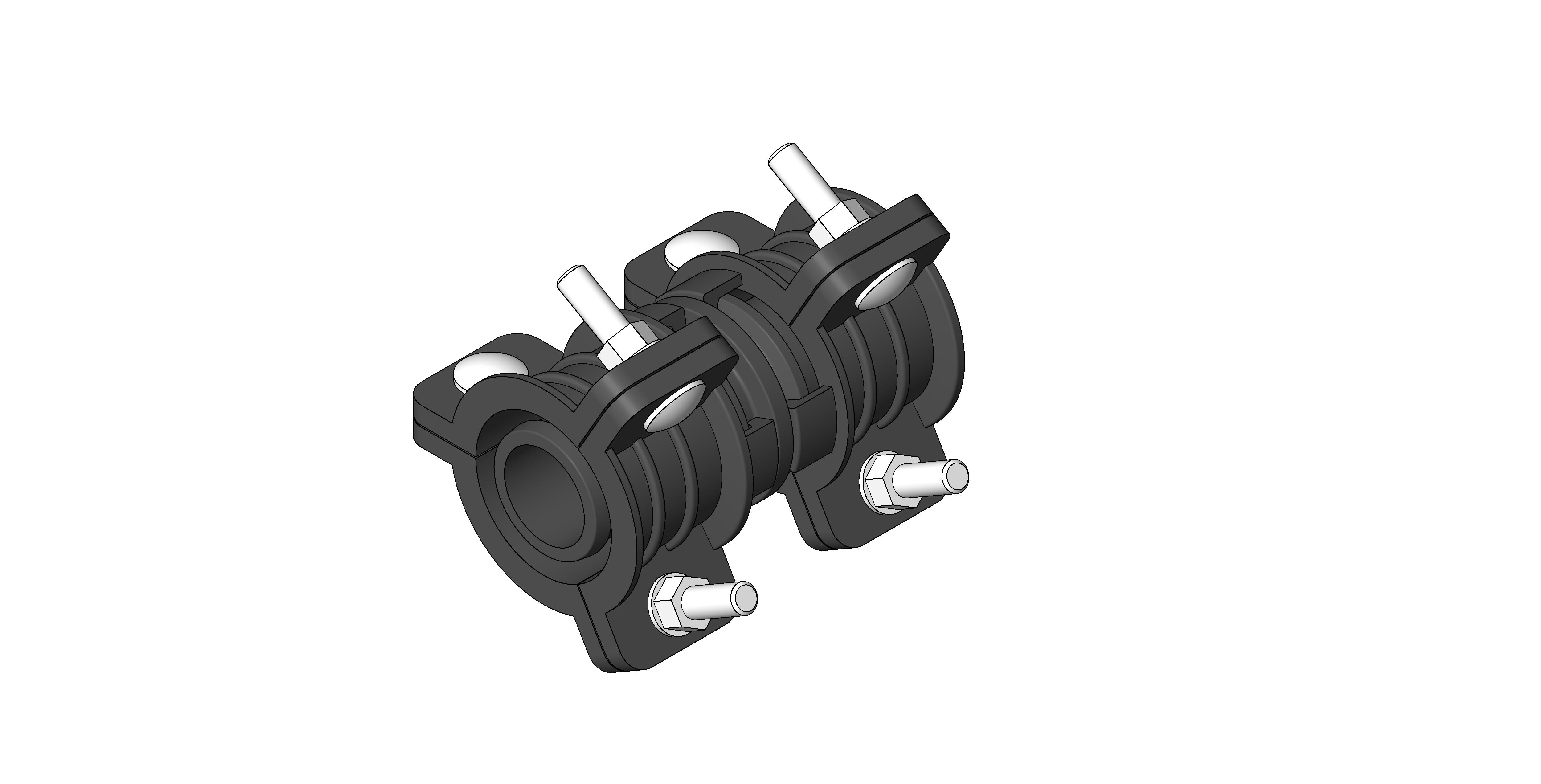

AquaShield Coupling [DN90]

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co/
• _Current Revision1
• _Distributed Bywww.bimstore.co/
• _Object User Guidewww.bimstore.co/products/aquashield-coupling/document/object-user-guide
• Accessibility Performancen/a
• Angularityn/a
• ApprovalsThe following water contact materials used in AquaShield® are approved for use with potable water: Rilsan Nylon 11: WRAS, AS/NZS 4020, DVGW, W270, ACS & KIWA Permeation test in accordance with BS 8588:2017 (section 7.7) conducted and independently verified by RINA test laboratory. Verification of compliance with BS 8561:2021 and BS 8588:2017 (section 7.7) by Water Research Centre (WRc). KIWA UK Reg4 Approval (Pending).
• Assembly CodeD2040100
• Asset Typen/a
• BIM Object NameVikingJohnson_Coupling_AquaShield
• BoltsStainless Steel grade A2-70
• Bolt Torque/SpannerTorque: 200-210Nm on every bolt. Spanner size: A/F 24mm.
• Clamp BandsSG Iron to BS EN 1563 Symbol EN-GJS-450-10
• Classification NameUniclass2015
• Classification ValuePr_20_29_14_15
• CoatingsCast/Metal Components: Rilsan Nylon 11 (Black); Bolts and Nuts: Delta Seal Silver GZ
• Code Performancen/a
• Colorn/a
• Connection Size90.0 mm
• Constituentsn/a
• CouplingSG Iron to BS EN 1563 Symbol EN-GJS-450-10
• Created Bywww.vikingjohnson.com/en/page/contact-us
• Created On2022-06-07 T09:00:00
• DescriptionAquaShield® is a non-permeable universal fitting, available as a coupling or a flange adaptor to be used on new installations and repairs to connect different barrier pipe systems reliably. These fittings prevent contaminants entering water networks by sealing the barrier pipe from within while keeping the outer layer of the barrier pipe intact. It can also be used as a transition to a standard PE water network. AquaShield® is rated to 16 bar working pressure and has a unique gripping mechanism offering WIS 4-24-01 type-1 end load restraint which means the pipe will fail before the fitting. AquaShield® forms a leak-tight seal without the need for a gasket simply by torquing up the bolts. The spigot profile design ensures a firm and secure connection is made from inside the pipe.
• Documentation Certificateswww.bimstore.co/products/aquashield-coupling/document/product-certificates

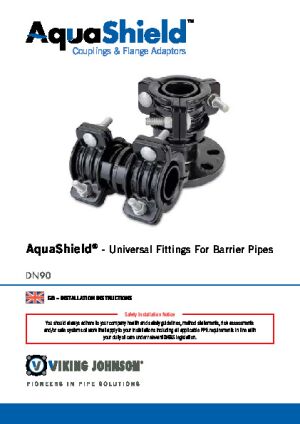

• Documentation Installation Guidewww.bimstore.co/products/aquashield-coupling/document/installation-guide

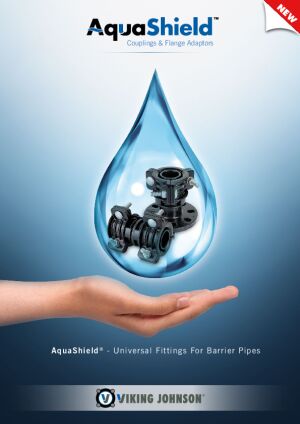

• Documentation Literaturewww.bimstore.co/products/aquashield-coupling/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/aquashield-coupling/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/aquashield-coupling/document/technical-data-sheet
• Duration UnitYear
• End Load Due To Internal PressureAquaShield® fully restrained fitting, designed to meet the performance requirements of WIS 4-24-01 Type 1 and BS 8561:2021.
• Expected Life0
• Featuresn/a
• Finishn/a
• Flange AdaptorSG Iron to BS EN 1563 Symbol EN-GJS-450-10
• Graden/a
• Ifc Export AsIfcPipeFitting
• Ifc Export TypeIfcPipeFittingType
• KeynoteS
• ManufacturerViking Johnson
• Manufacturer NameViking Johnson
• Materialn/a
• ModelAquaShield Coupling DN90
• Model NumberAquaShield Coupling DN90
• Model ReferenceCoupler
• NBS DescriptionCoupler connections
• NBS Noten/a
• NBS Object NameViking Johnson - Coupler connections
• NBS Office Master Tagn/a
• NBS Reference45-50-70/352
• Nominal Depth189.0 mm
• Nominal Height189.0 mm
• Nominal Length217.0 mm
• NutsStainless Steel grade A4-80
• Pipe MaterialCompatible with following barrier pipe materials: GPS Protecta-Line, Radius Puriton, Egeplast SLA. In addition, works on standard PE 100 Pipe to BS EN 12001:2011/2012. In all cases the SDR rating must be either 11 or 17.
• Production Year2022
• Referenced StandardIndependently tested and approved to BS 8561:2021 and certified by WRc and RINA for permeation against contaminants as per BS 8588:2017 (section 7.7).
• Replacement Costn/a
• Shapen/a
• Site Test Pressure1.5 times working pressure for short duration (2 hours)
• Size217mm (L) x 189mm (H) x 189mm (D)
• Spare Partswww.vikingjohnson.com/en/page/contact-us
• Temperature Rating-20°C to +40°C. For optimal installation temperature, please refer to the installation manual.
• Type CommentsCoupler
• Type NameCoupler
• URLwww.vikingjohnson.com/en
• Vaccuum PressureCapable of accommodating a vacuum pressure of -0.8 bar
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partsn/a
• Working Pressure RatingWater: 16 bar; Gas: not approved
