ART 135GB - Butterfly Valve [DN350-600]

by Albion Valves

Download Add to collection

Description

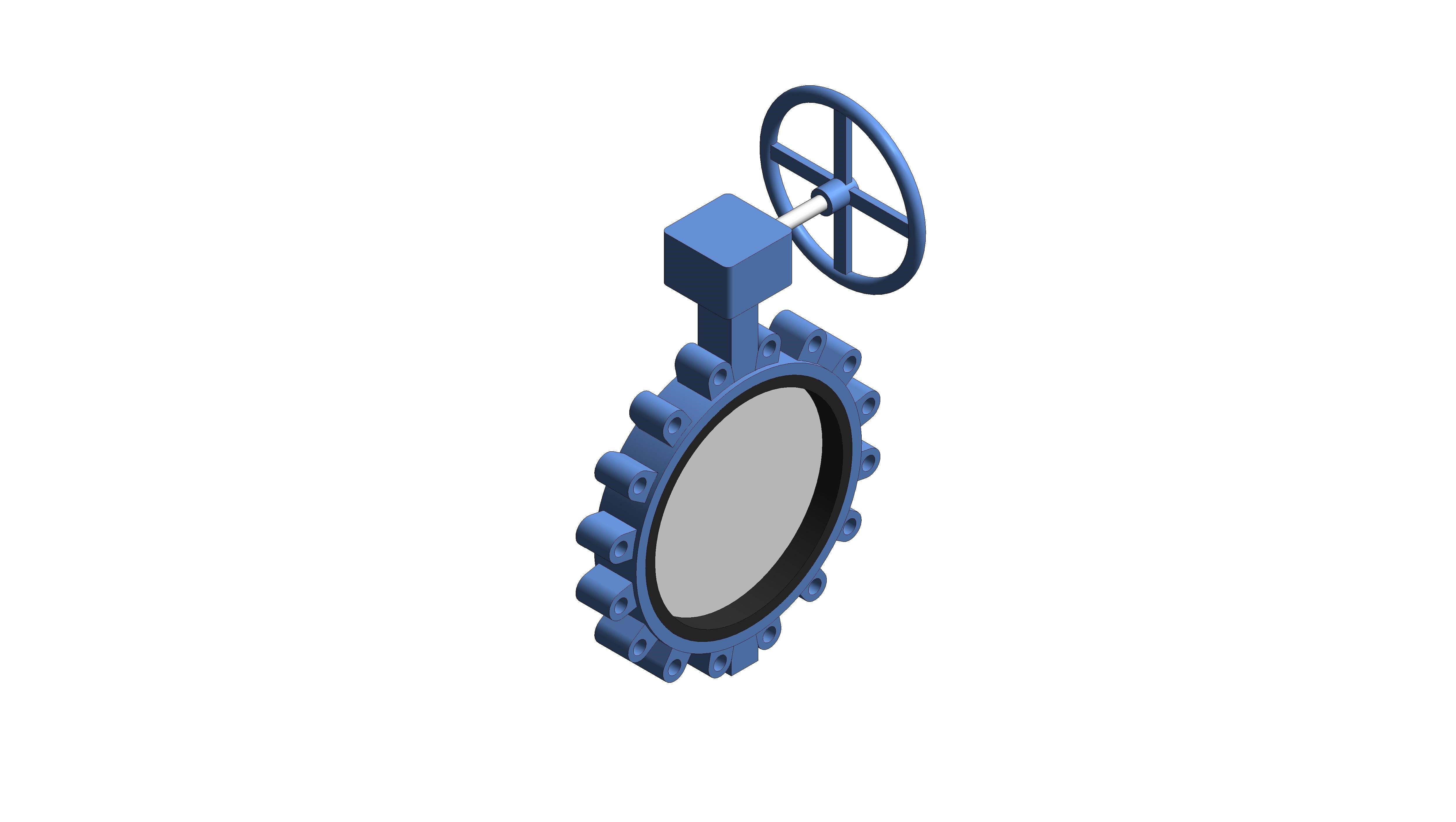

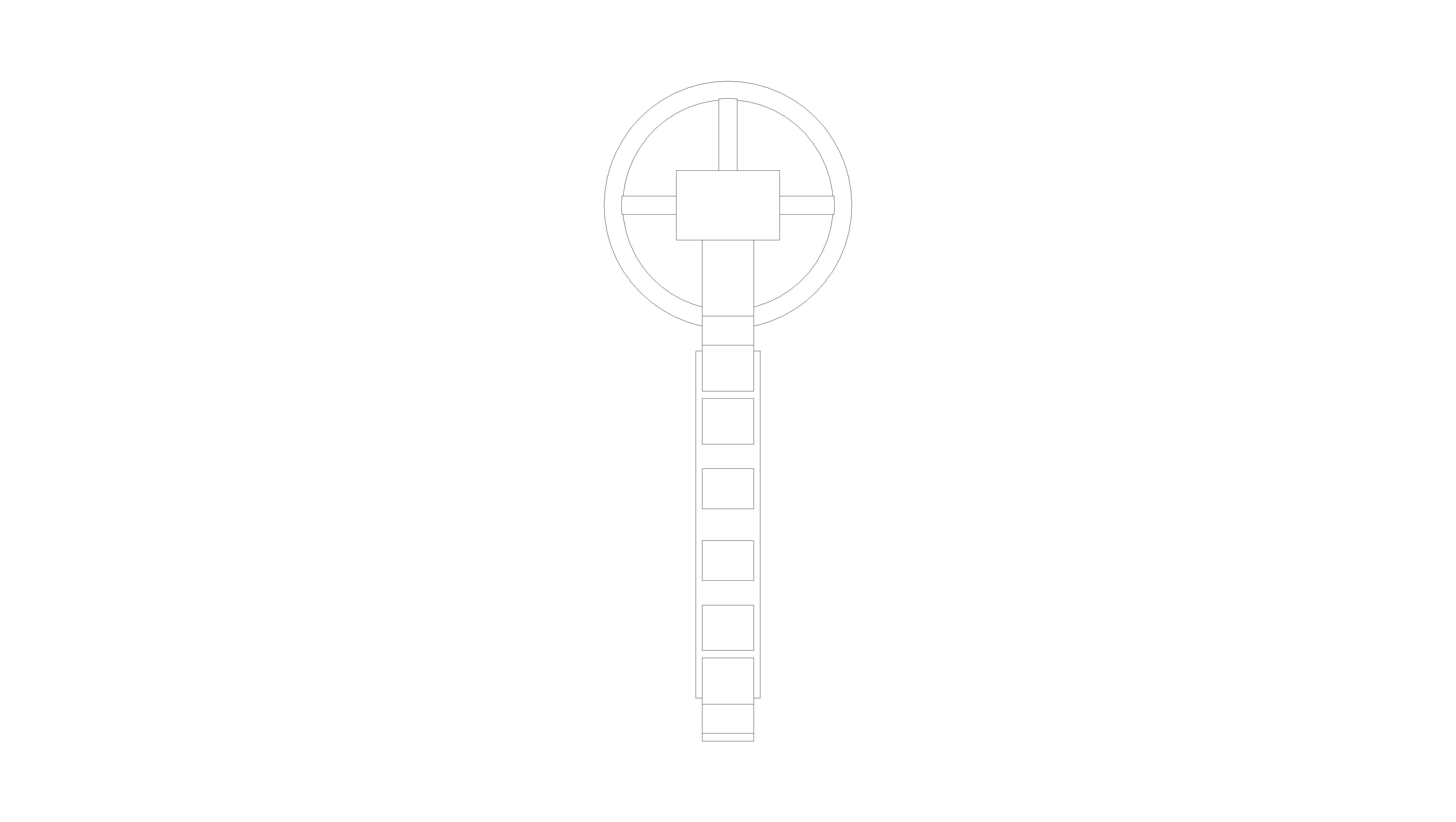

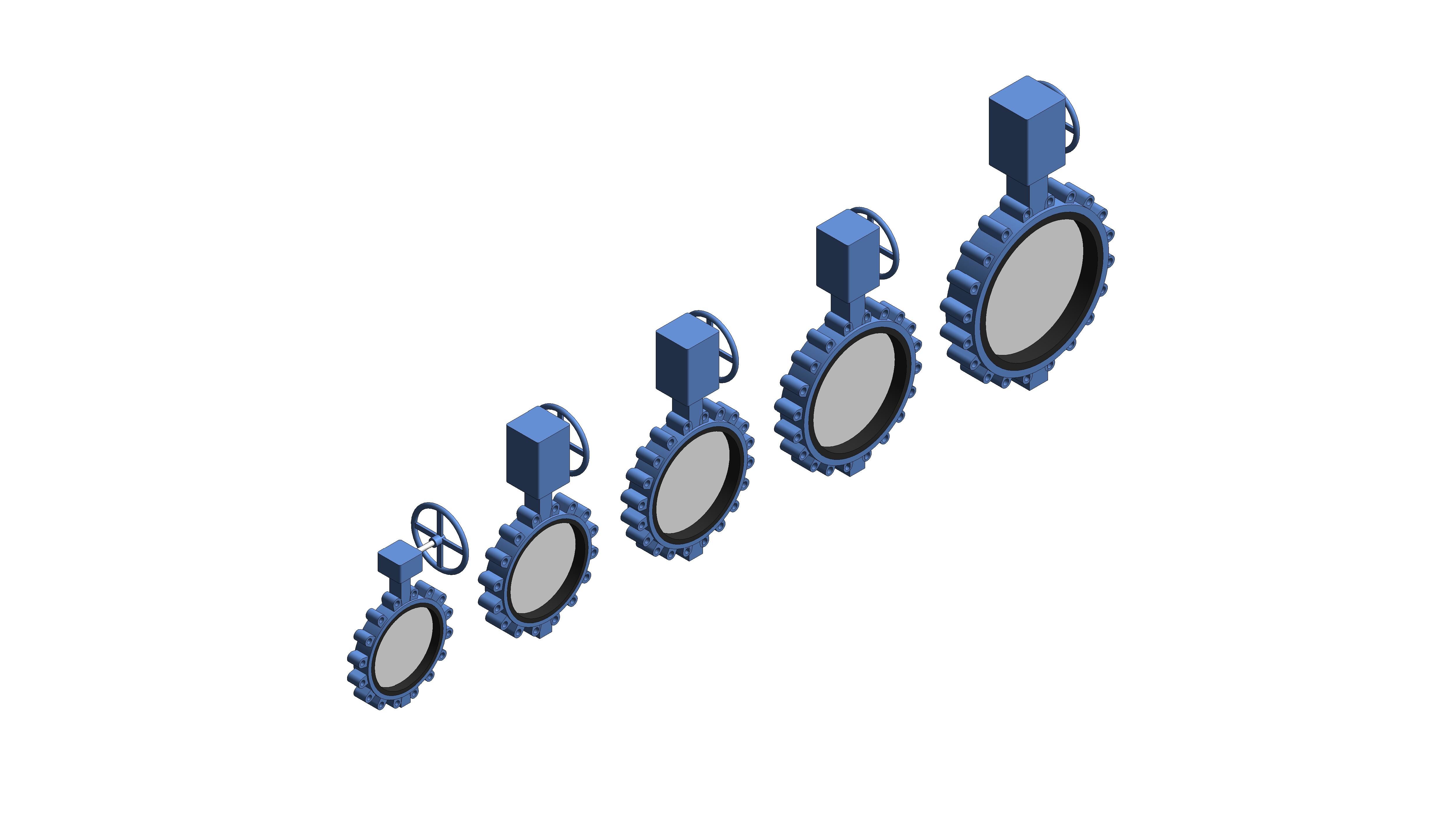

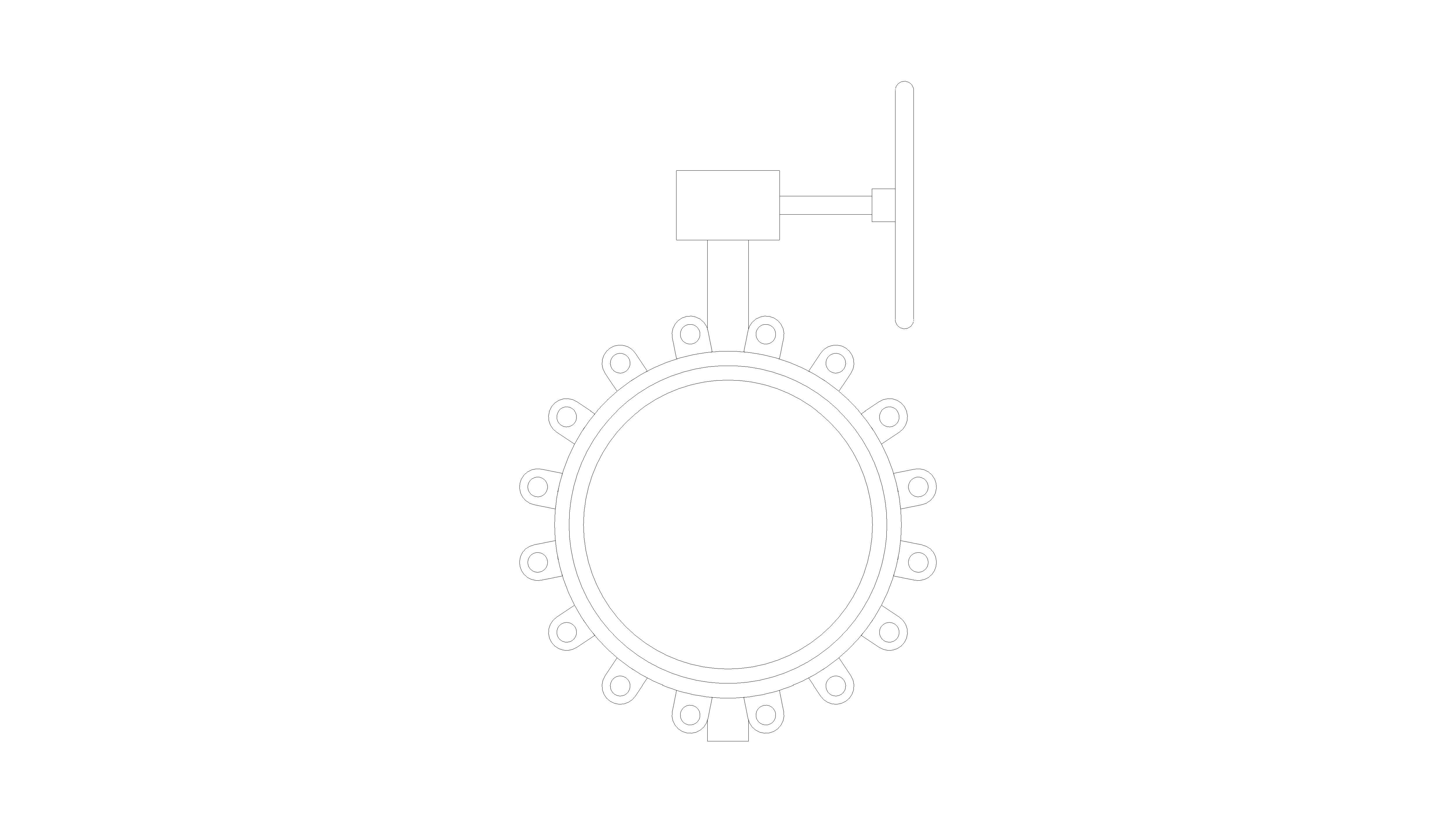

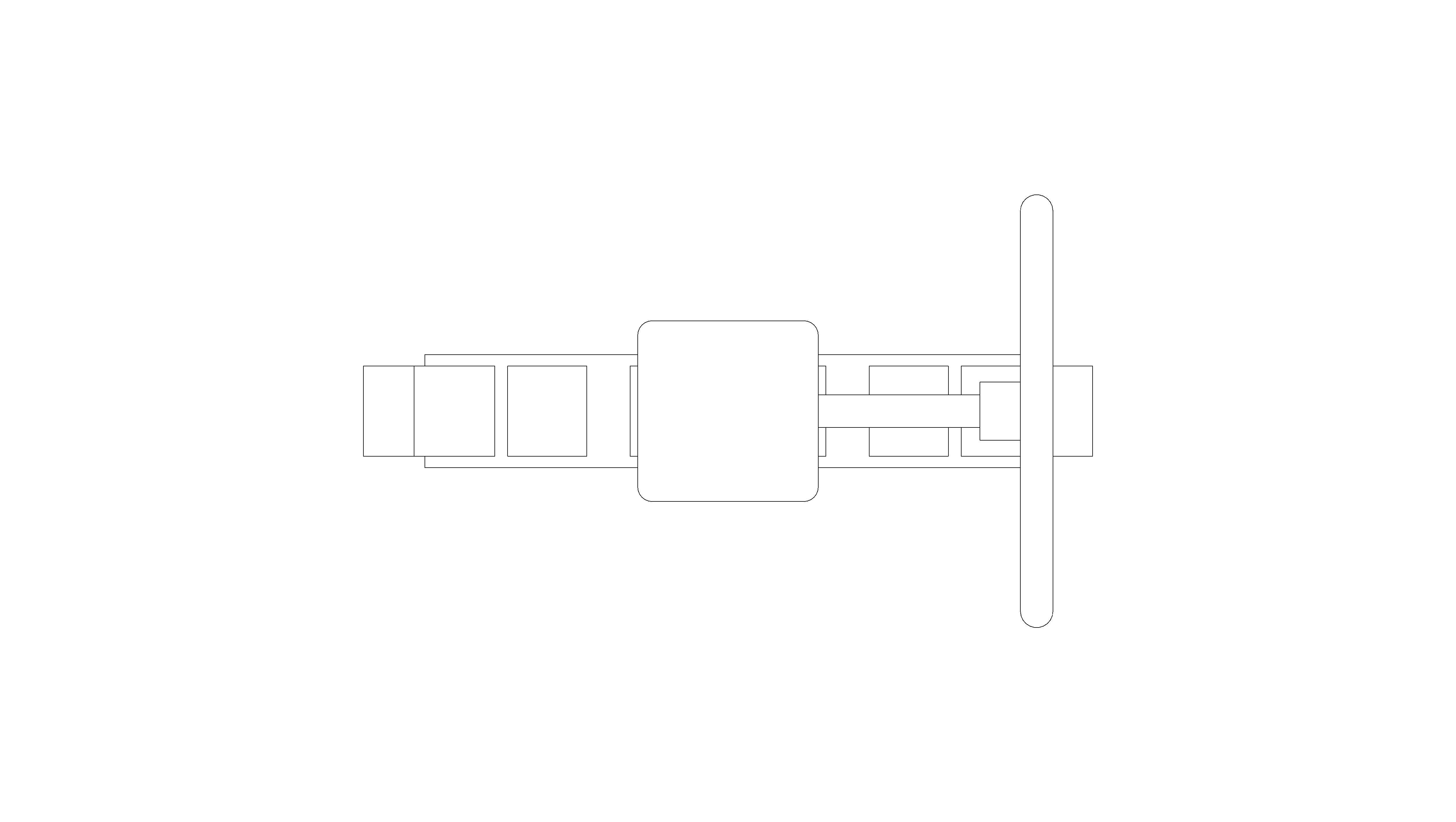

ART 135GB PN16 DN350-600 Ductile Iron Butterfly Valve

Lugged and Tapped

Flange mounting PN16 only

Epoxy coat finish

BS5155 (BS EN 593)

MSS-SP-67

ISO 5211 direct mount

Object Data

1 Revision

Last Updated

21/11/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

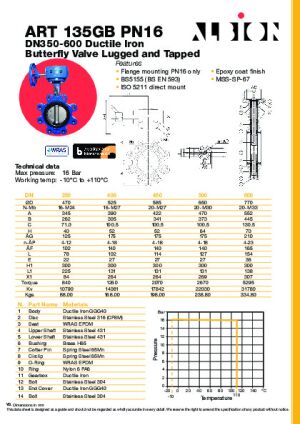

Accompanying literature

Object User Guide

Product Certificates

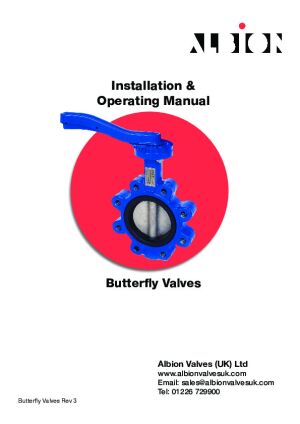

Installation Guide

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-135-butterfly-valve-1/document/object-user-guide
a192.5 mm
A345.0 mm
A1470.0 mm
Accessibility Performancen/a
AF102.0 mm
AG125.0 mm
Assembly CodeD20
Asset TypeFixed
b49.9 mm
B262.0 mm
BIM Object NameAlbionValves_PipeAccessories_ButterflyValve_ART135GB
BodyDuctile Iron GGG40
BoltStainless Steel 304
BushingBrass H65
c27.7 mm
C71.0 mm
CirclipSpring Steel 65Mn
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue
Connection Size350.0 mm
Connection Size Rad175.0 mm
Constituentsn/a
Cotter PinSpring Steel 65Mn
Created Bysales@albionvalvesuk.com
Created On2023-08-07 T09:00:00
d150.0 mm
D1 Rad235.0 mm
Default Elevation0.0 mm
DescriptionDN350-600 Ductile Iron Butterfly Valve Lugged and Tapped
DiscStainless Steel 316 (CF8M)
Documentation Certificateswww.bimstore.co/products/art-135-butterfly-valve-1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/art-135-butterfly-valve-1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/art-135-butterfly-valve-1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/art-135-butterfly-valve-1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/art-135-butterfly-valve-1/document/technical-data-sheet
Duration UnitYear
e35.0 mm
E22.0 mm
End CoverDuctile Iron GGG40
Expected Life0
f42.0 mm
Features• Flange mounting PN16 only • Epoxy coat finish • BS5155 (BS EN 593) • MSS-SP-67 • ISO 5211 direct mount
FinishDuctile Iron
GearboxDuctile Iron
Graden/a
H40.0 mm
H1300.0 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
Kv10790
L78.0 mm
L1225.0 mm
Lower ShaftStainless Steel 431
Lug 10 Angle123.75 °
Lug 11 Angle123.75 °
Lug 12 Angle101.25 °
Lug 13 Angle146.25 °
Lug 14 Angle168.75 °
Lug 15 Angle168.75 °
Lug 16 Angle146.25 °
Lug 17 Angle11.25 °
Lug 18 Angle11.25 °
Lug 19 Angle11.25 °
Lug 1 Angle11.25 °
Lug 20 Angle11.25 °
Lug 2 Angle11.25 °
Lug 3 Angle78.75 °
Lug 4 Angle78.75 °
Lug 5 Angle33.75 °
Lug 6 Angle33.75 °
Lug 7 Angle56.25 °
Lug 8 Angle56.25 °
Lug 9 Angle101.25 °
Lug Hole Rad12.0 mm
Lug Thickness62.4 mm
Lug Top Rad22.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Maximum Pressure16 bar
ModelART 135GB
Model NumberDN350
Model ReferenceART 135GB
n-AP4-12
N-Mb16-M24
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameAlbion Valves - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
O-RingWRAS EPDM
Outer Rad210.0 mm
Production Year2023
Referenced StandardBS5155 (BS EN 593), ISO 5211
Replacement Costn/a
RingNylon 6 PA6
SeatWRAS EPDM
Shapen/a
SizeDN350
Size DN350
Spare Partsn/a
Thread Inch14
Torque840
Type CommentsDN350
Type NameART 135GB
Upper ShaftStainless Steel 431
URLwww.albionvalvesuk.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts5
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@albionvalvesuk.com
Weight88.0kg
Working Temperature-10°C to +110°C
X184.0 mm
