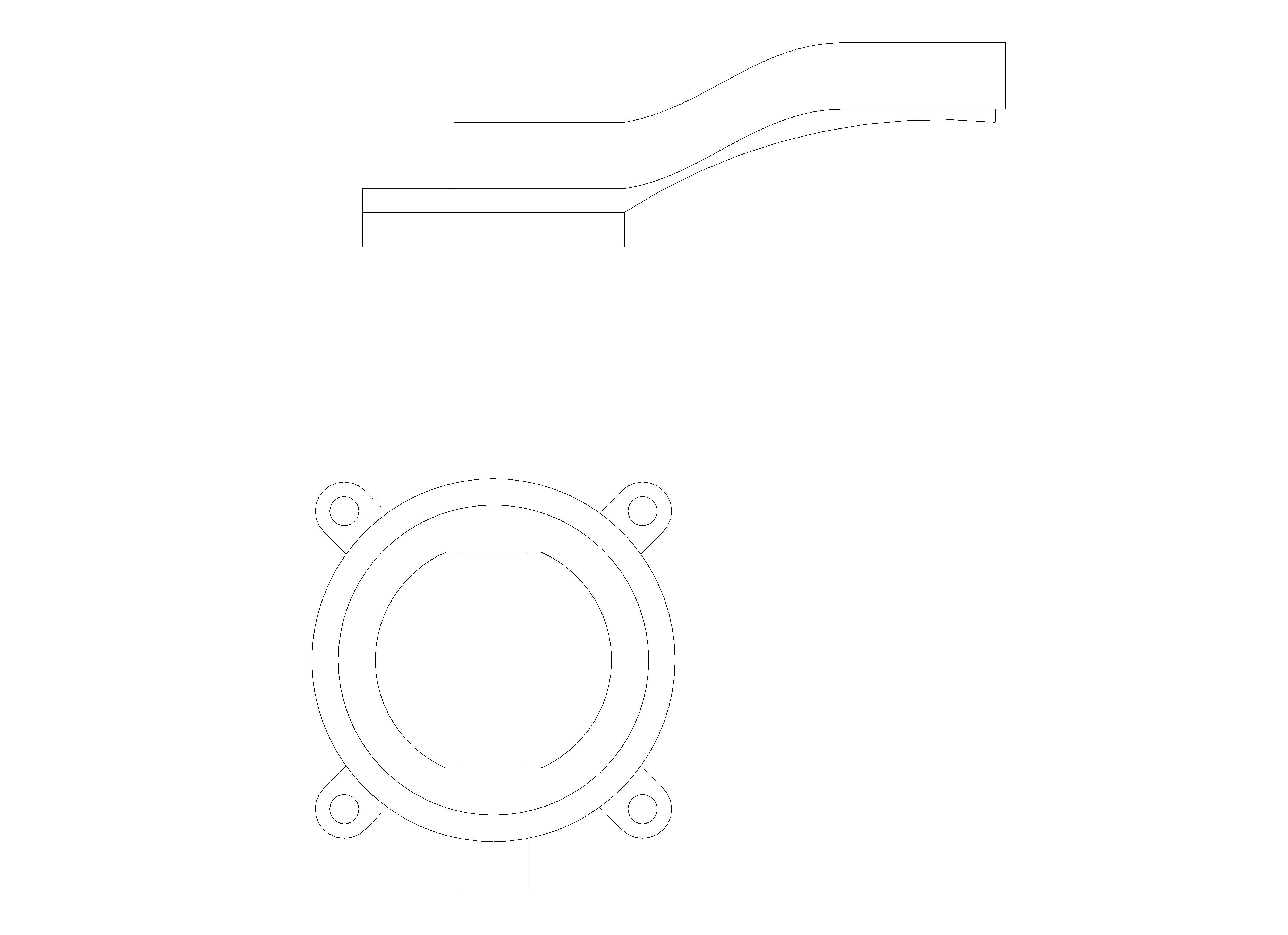

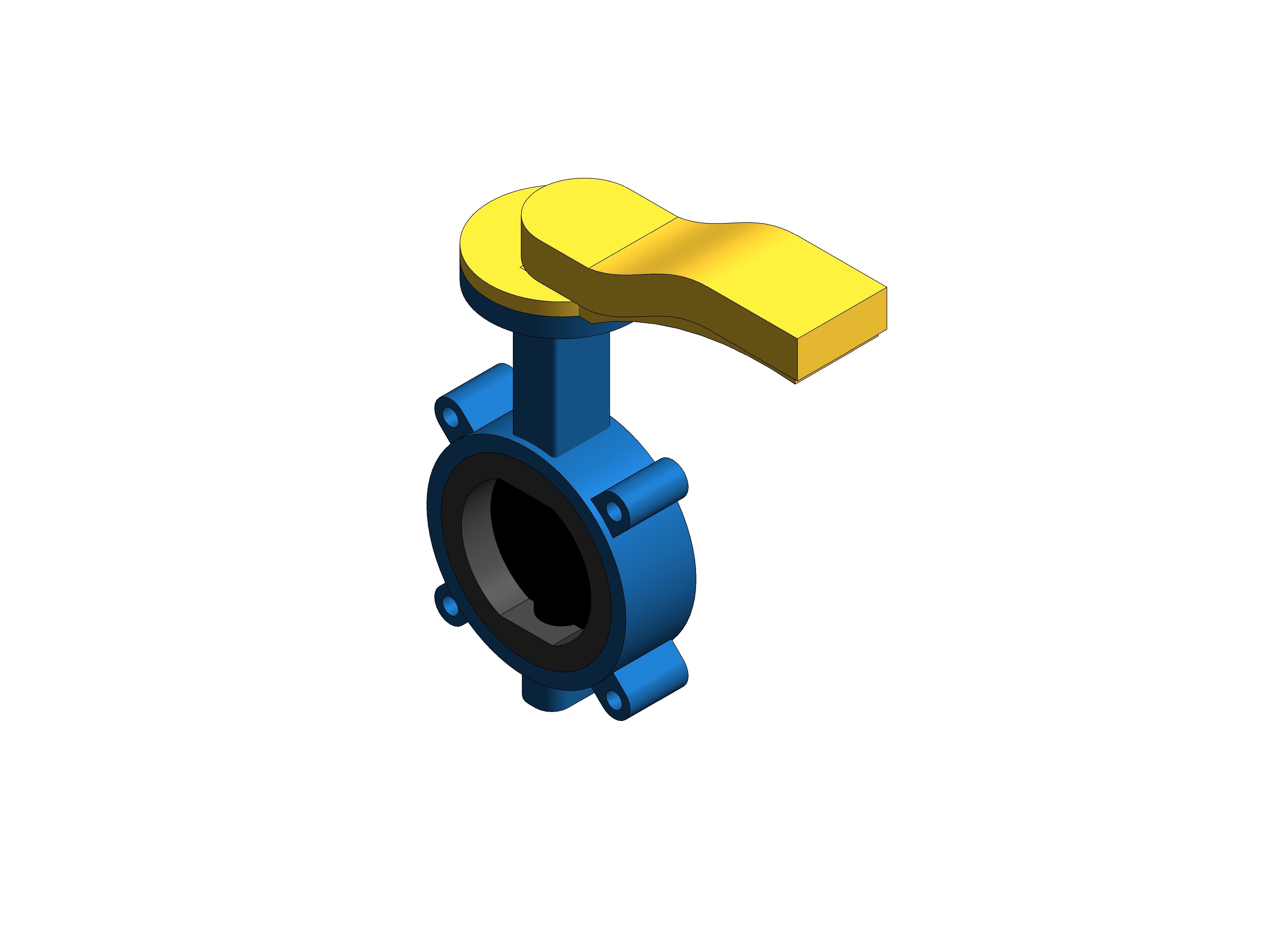

ART 145 - Butterfly Valve

by Albion Valves

Download Add to collection

Description

Description
Ductile Iron Lugged and Tapped Butterfly Valves. NBR Liner. DI Zinc Plated Disc. ISO Top. 8"-12" Gearbox Operated.

Connection
To suit PN16 Flanges

Approvals/ other
CE Approved

Pressure
16 Bar Rated

Temperature
-10°C to +90°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

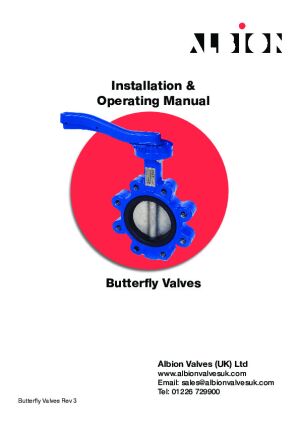

Installation Guide

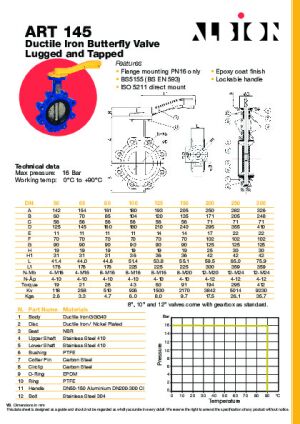

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-145/document/object-user-guide
12 LugsNo
4 LugsNo
8 LugsYes
a30.2 mm
A179.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b46.1 mm
B110.0 mm
BIM Object NameAlbionValves_PipeAccessories_ButterlyValve_ART145
c43.9 mm
C56.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_08
Code Performancen/a
ColorBlue/Yellow
Connection Size100.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
d37.0 mm
D180.0 mm
DescriptionPN16 Ductile Iron Butterfly Valve Lugged and Tapped Type
Disc MaterialStainless Steel
Disc Radius50.4 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-145/document/technical-data-sheet
Duration UnitYears
e13.9 mm
E11.0 mm
Expected Life0
f33.8 mm
F70.0 mm
f/216.9 mm
Featuresn/a
FinishDuctile Iron
g26.9 mm
G90.0 mm
Graden/a
G Radius45.0 mm
h70.0 mm
H19.0 mm
H136.0 mm
Handle Height70.0 mm
Handle MaterialAluminium, Yellow
Handle Mid Length120.0 mm
Handle Radius365.4 mm
Height Calc1.3 mm
Hole Radius10.0 mm
i128.9 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
j175.3 mm
k9.5 mm
KeynoteS
L51.4 mm
L1225.0 mm
Lever Calc1.2 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Max Pressure16 Bar
ModelPN16 Ductile Iron Butterfly Valve Lugged and Tapped Type
Model NumberDN100
Model ReferencePN16 Ductile Iron Butterfly Valve Lugged and Tapped Type
NBS DescriptionButterfly valves
NBS Object NameAlbion Valves - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth90.0 mm
Nominal Height258.5 mm
Nominal Length180.0 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Seat MaterialRubber, EDPM
Shapen/a
SizeDN100
Size DN100
Sleeve Radius Inner66.2 mm
Sleeve Radius Outer77.5 mm
Spare Partsn/a
Symbol Height55.0 mm
Symbol Width17.1 mm
Thread Inch4
Thread Millimetre101.6 mm
Torque43
Type CommentsDN100
Type NamePN16 Ductile Iron Butterfly Valve Lugged and Tapped Type
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight7 Kgs
Width Calc1.4 mm
Working Temperature0°C to + 90°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
