ART 167 - PN25 Cast Iron Swing Check Valve

by Albion Valves

Download Add to collection

Description

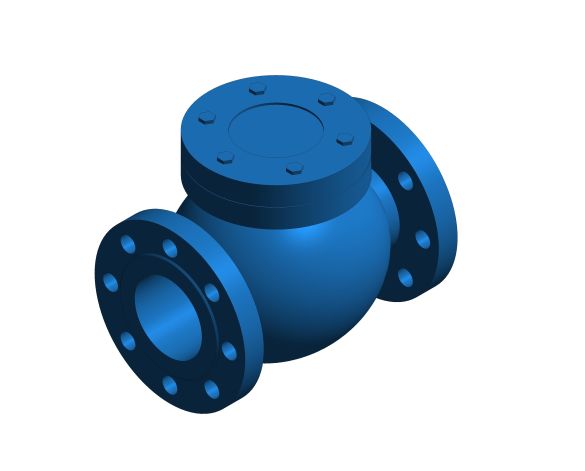

PN25 Cast Iron Swing Check Valve

Features

Flange Mounting PN25 Only
Flange conforms to BS EN1092 PN25
BS5153 (BS EN 558-1 Series 21)

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

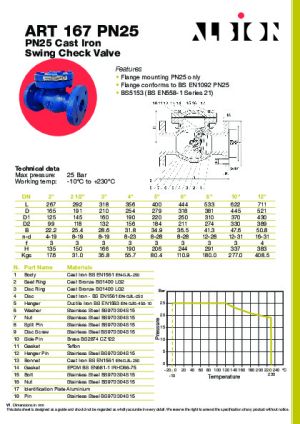

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-167-pn25-cast-iron-swing-check-valve/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B32 mm
BIM Object NameAlbionValves_PipeAccessories_SwingCheckValve_ART167
Circle Height127 mm
Circle Width143 mm
Classification NameUniclass2015
Classification ValuePr_65_54_40_13
Code Performancen/a
ColorBlue
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
D254 mm
DescriptionPN25 Cast Iron Swing Check Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-167-pn25-cast-iron-swing-check-valve/document/technical-data-sheet
Duration UnitYears
Expected Life0
F3 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
Flange D2156 mm
Flange Dia254 mm
Flange Holes Dia190 mm
Graden/a
H190 mm
H132 mm
H232 mm
Half L178 mm
H Dia200 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L356 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast iron
Max Pressure25 Bar
ModelSwing Check Valve
Model NumberDN100 - DN4"
Model ReferenceSwing Check Valve
NBS DescriptionCheck valves
NBS Object NameAlbion Valves - Check valves
NBS Office Master Tagn/a
NBS Reference90-15-40/323
Nominal Depth254 mm
Nominal Height322 mm
Nominal Length356 mm
Nut Centre75 mm
Nut Dia20 mm
Nut Gap65 mm
Nut Height5 mm
Outside Diameter110 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NameSwing Check Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight55.7 kgs
Working Temperature-10°C to +230°C
