ART 18 - Compression Isolation Valve

by Albion Valves

Download Add to collection

Description

Compression Isolation Valve

Features

Compression ends in accordance with BS EN1254-2
WRAS Approved

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

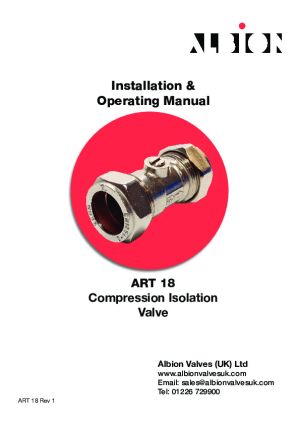

Installation Guide

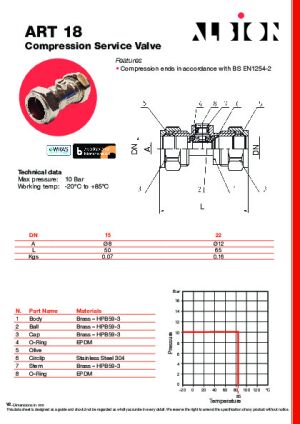

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-18-compression-isolation-valve/document/object-user-guide
A8 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameAlbionValves_PipeAccessories_CompressionIsolation_ART18
Classification NameUniclass2015
Classification ValuePr_80_77_94_15
Code Performancen/a
ColorSilver
Connection Size15 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
D110 mm
DescriptionCompression Isolation Valve
DN118 mm
DN220 mm
DN323 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-18-compression-isolation-valve/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishChrome Plated
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L50 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass Nickel Plate
Max Pressure10 Bar
ModelCompression Isolation Valve
Model NumberDN15
Model ReferenceCompression Isolation Valve
N13 mm
N28 mm
NBS DescriptionCompression isolators
NBS Object NameAlbion Valves - Compression isolators
NBS Office Master Tagn/a
NBS Reference90-90-95/320
Nominal Depth25 mm
Nominal Height25 mm
Nominal Length50 mm
Nut Size25 mm
Production Year2020
R1 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Size DN15
Socket Depth 116 mm
Socket Depth 217 mm
Spare Partsn/a
Thread Inch1/2
Thread Millimetre15 mm
Type CommentsDN15
Type NameCompression Isolation Valve
URLwww.albionvalvesuk.com/
Valve FinishDZR Brass - Nickel Plated
W32 mm
W45 mm
W59 mm
W63 mm
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.07 kg
Working Temperature-20°C to +85°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
