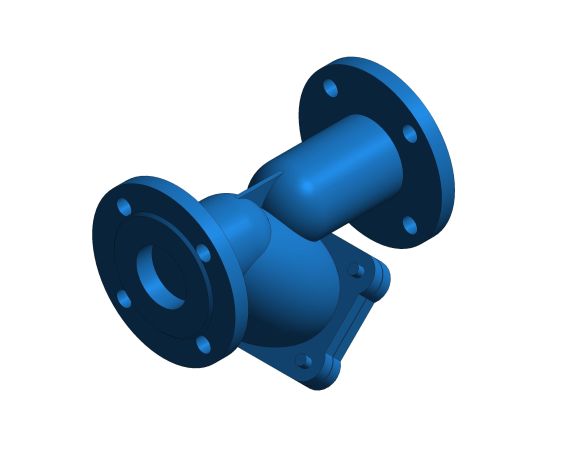

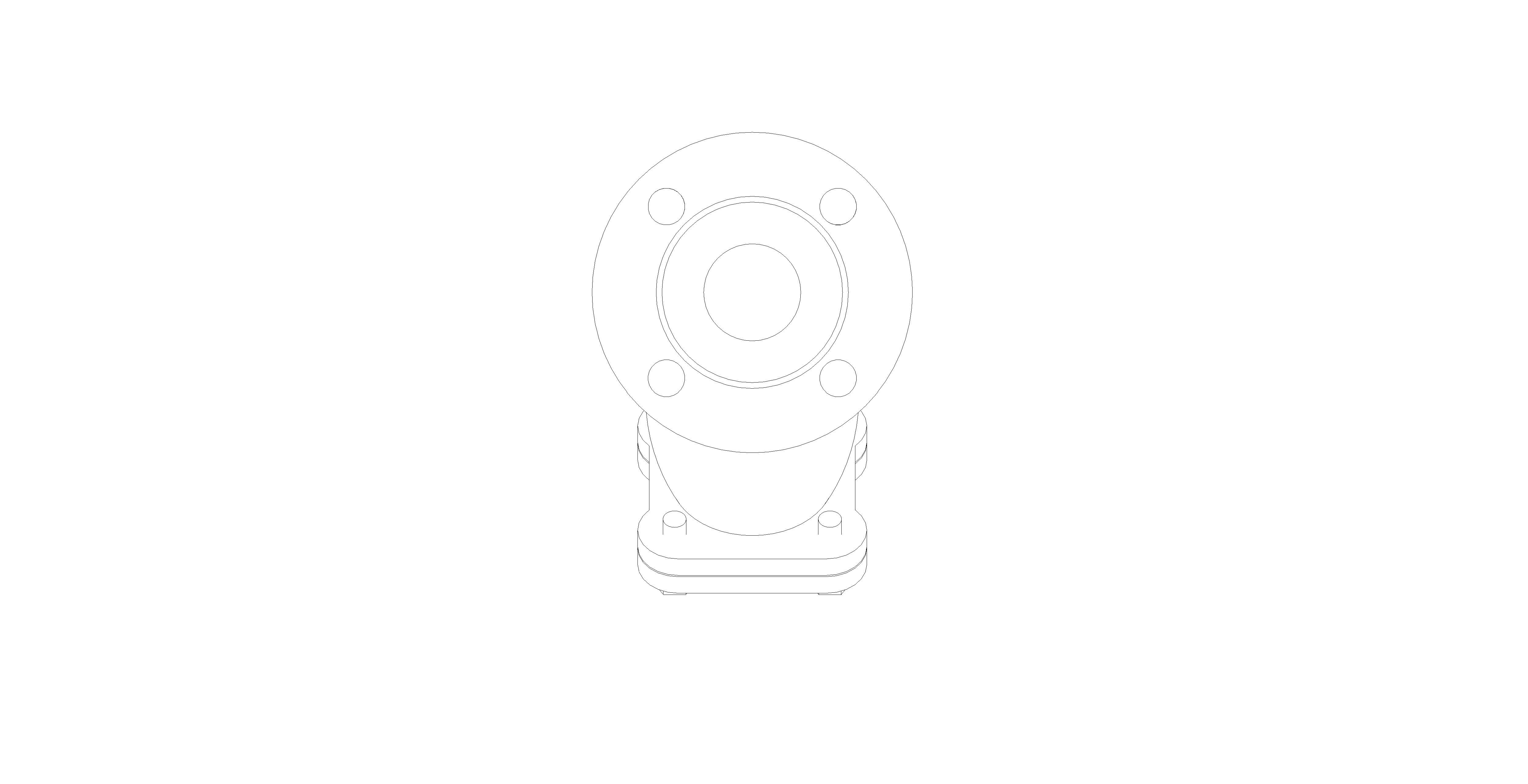

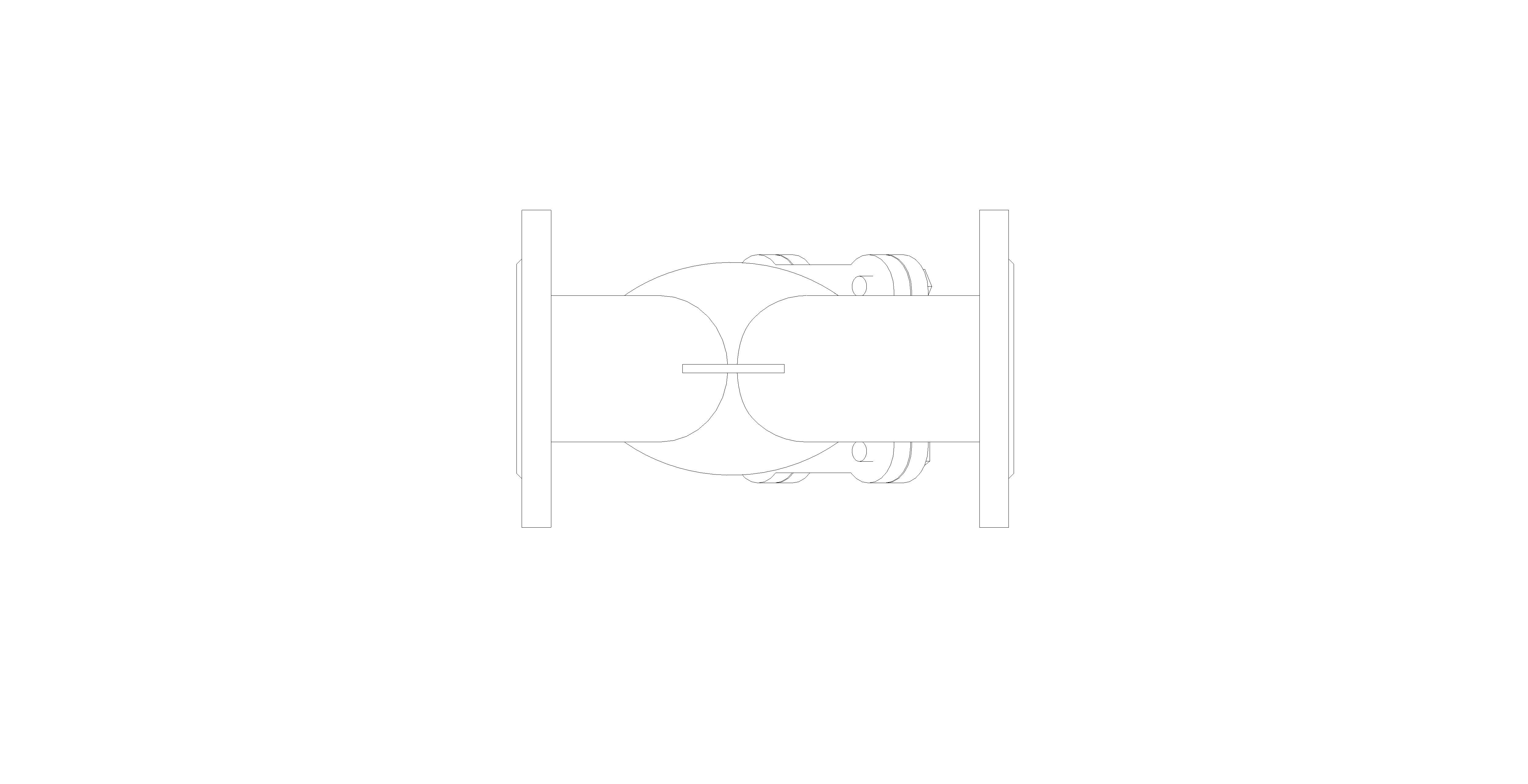

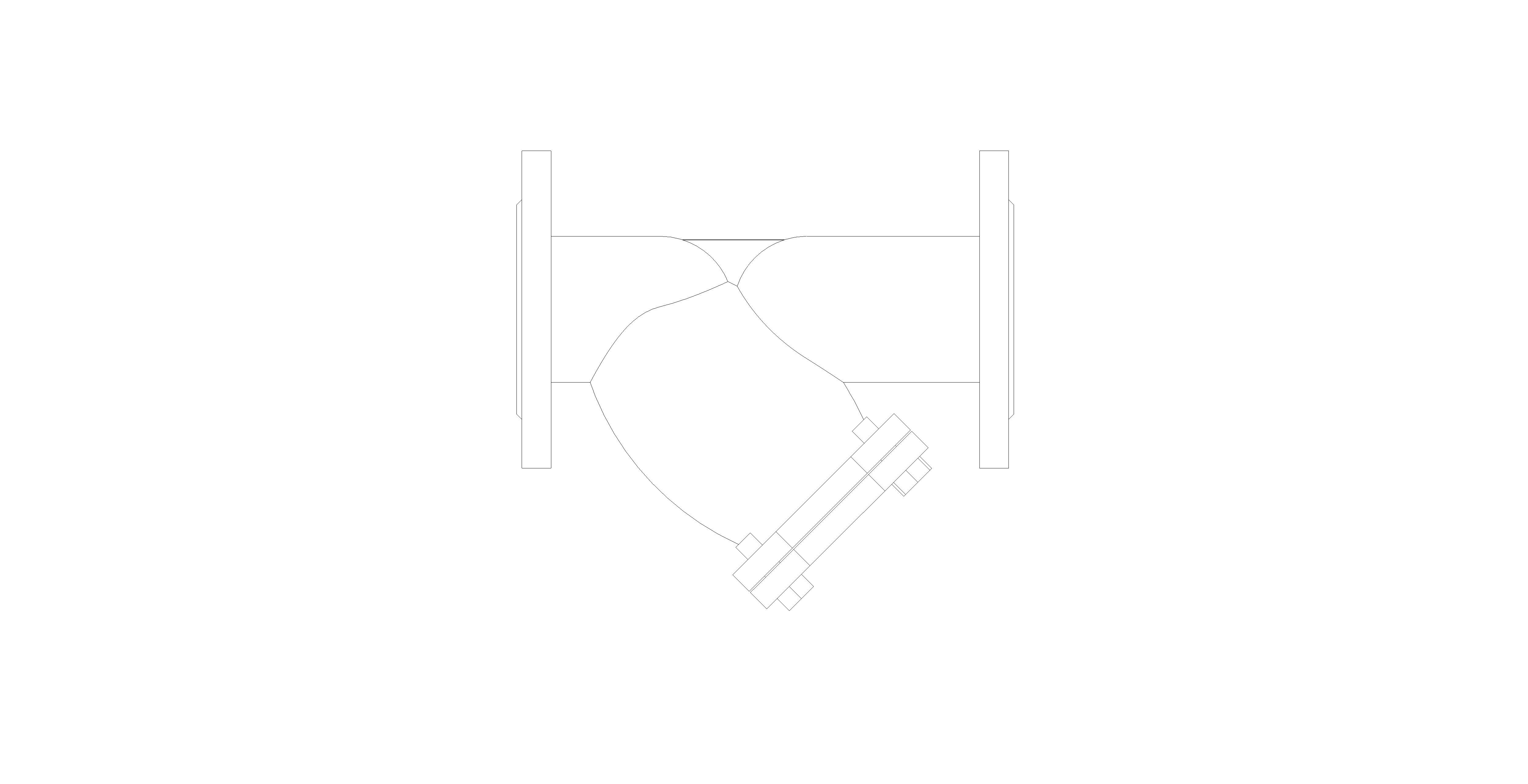

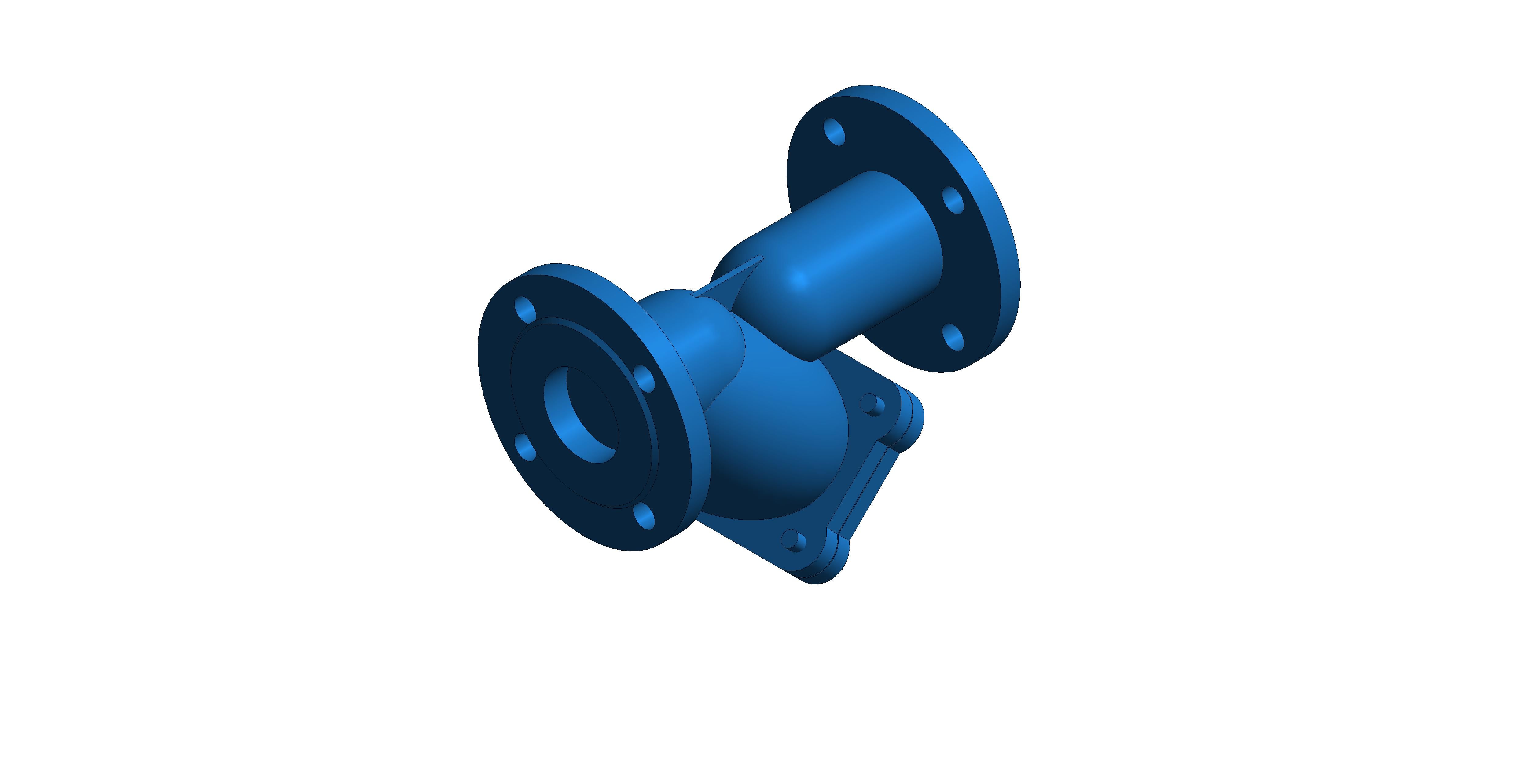

ART 183 - Flanged 'Y' Type Strainer

by Albion Valves

Download Add to collection

Description

PN16 Cast Iron 'Y' Strainer. BS EN 558-1 Series 1. DN50 & DN65 square drain port. DN80 - DN600 circular drain port. Fusion bonded Epoxy coat finish.

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

Accompanying literature

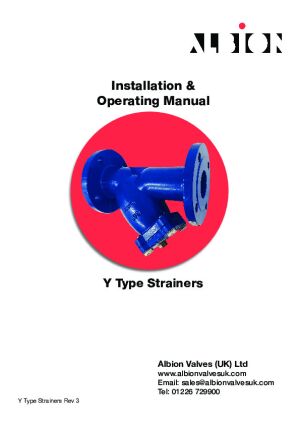

Installation Guide

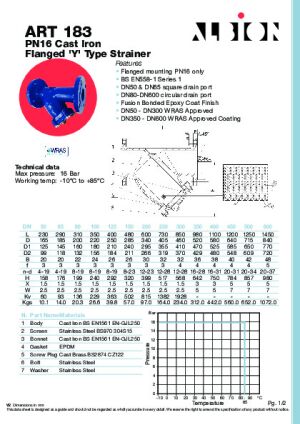

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/3cd937a3-5de9-4110-a412-2d98d18b8534/document/object-user-guide
113.8 mm
252.3 mm
364.6 mm
48.5 mm
5223.1 mm
6207.7 mm
712.3 mm
a78.8 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b152.6 mm
B24.0 mm
BIM Object NameAlbionValves_PipeAccessories_Strainer_ART185
Bolt Placement76.0 mm
Circular Drain PortYes
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorBlue
Connection Radius50.0 mm
Connection Size100.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-03-10T09:00:00
d273.9 mm
D220.0 mm
D1180.0 mm
D2156.0 mm
D2 Radius78.0 mm
Default Elevation0.0 mm
DescriptionPN16 Cast Iron Y-type Strainer
Documentation Certificateswww.albionvalvesuk.com/wp-content/uploads/2020/06/ART-183-WRAS-Cert.pdf
Documentation Installation Guidewww.albionvalvesuk.com/y-type-strainer-iom/
Documentation Literaturewww.albionvalvesuk.com/part/art-183/
Documentation Maintenancewww.albionvalvesuk.com/y-type-strainer-iom/
Documentation Technicalwww.bimstore.co/products/3cd937a3-5de9-4110-a412-2d98d18b8534/document/technical-data-sheet
D Radius110.0 mm
Drain Port Height38.5 mm
Drain Port Width181.5 mm
Duration UnitYears
Expected Life0
f3.0 mm
Featuresn/a
FinishCast Iron
Graden/a
H240.0 mm
Height Calc1.5 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L350.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast Iron
Max Pressure16 Bar
ModelPN16 Cast Iron Y-type Strainer
Model NumberDN100
Model ReferencePN16 Cast Iron Y-type Strainer
n-d19.0 mm
NBS DescriptionY-type water strainers
NBS Object NameAlbion Valves - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
Nominal Depth220.0 mm
Nominal Height350.0 mm
Nominal Length350.0 mm
Nut Diameter20.0 mm
Nut Height8.0 mm
Outside Diameter118.0 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Size DN100
Spare Partsn/a
Square Drain PortNo
Strainer Symbol Length175.0 mm
Strainer Symbol Width75.0 mm
Thread Inch4
Thread Millimetre101.6 mm
Type CommentsDN100
Type NamePN16 Cast Iron Y-type Strainer
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight26.6 Kgs
Width Calc1.5 mm
Working Temperature-10°C to +200°C
