ART 689 - Pressure Reducing Valve

by Albion Valves

Download Add to collection

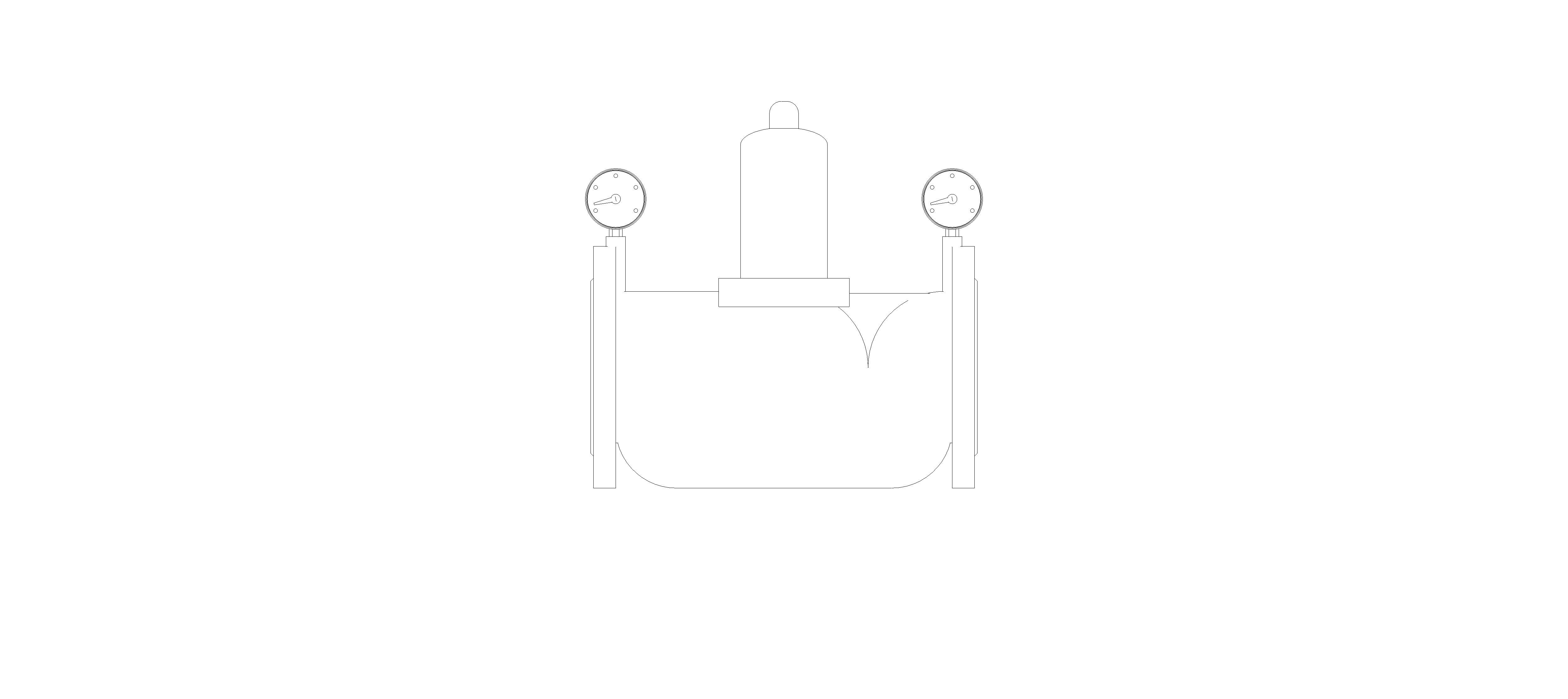

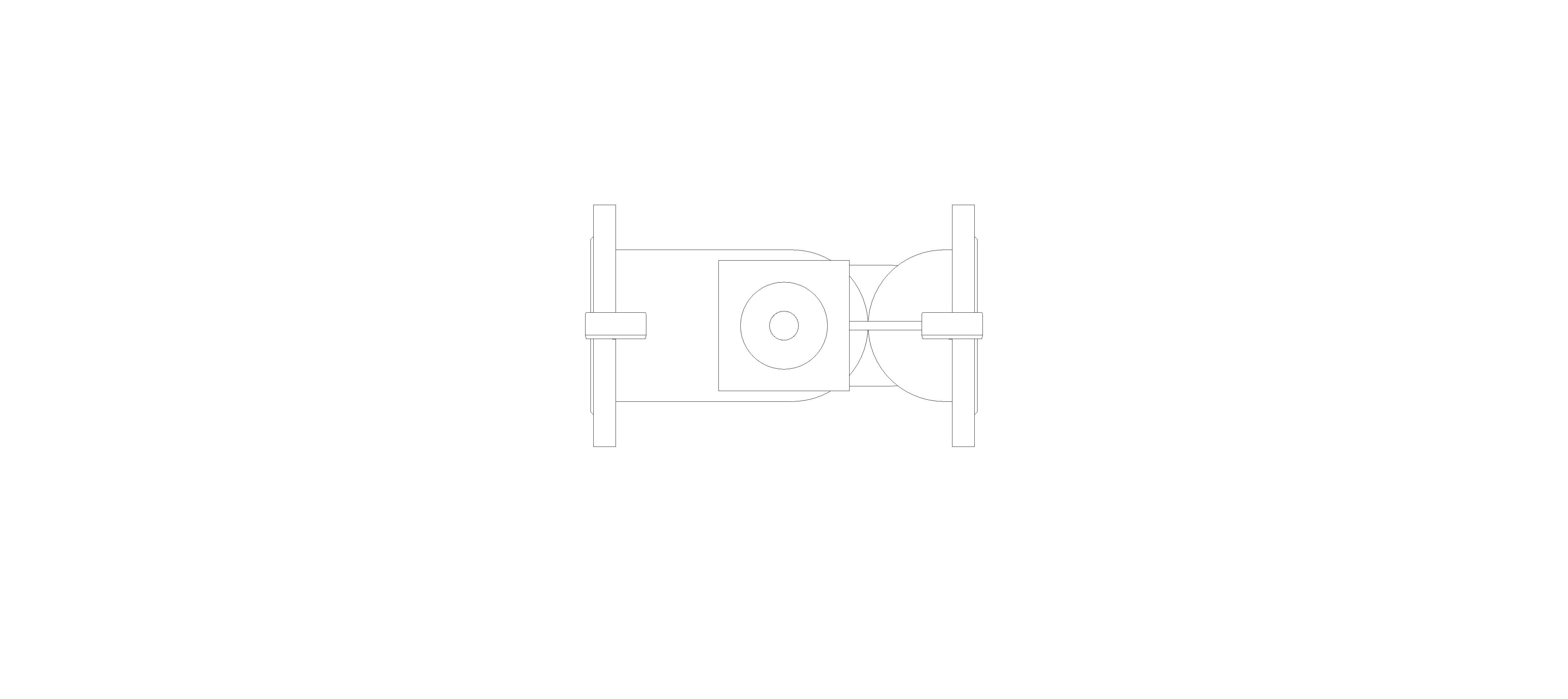

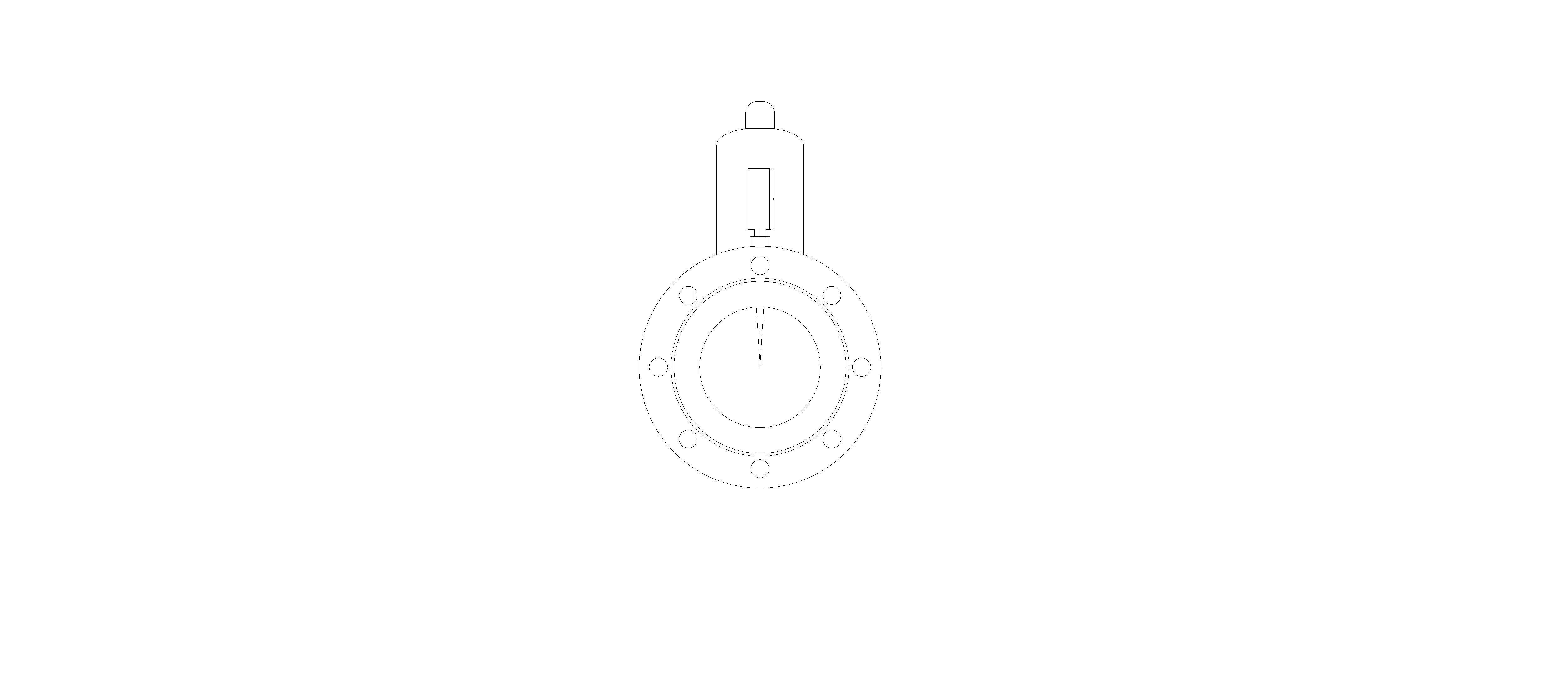

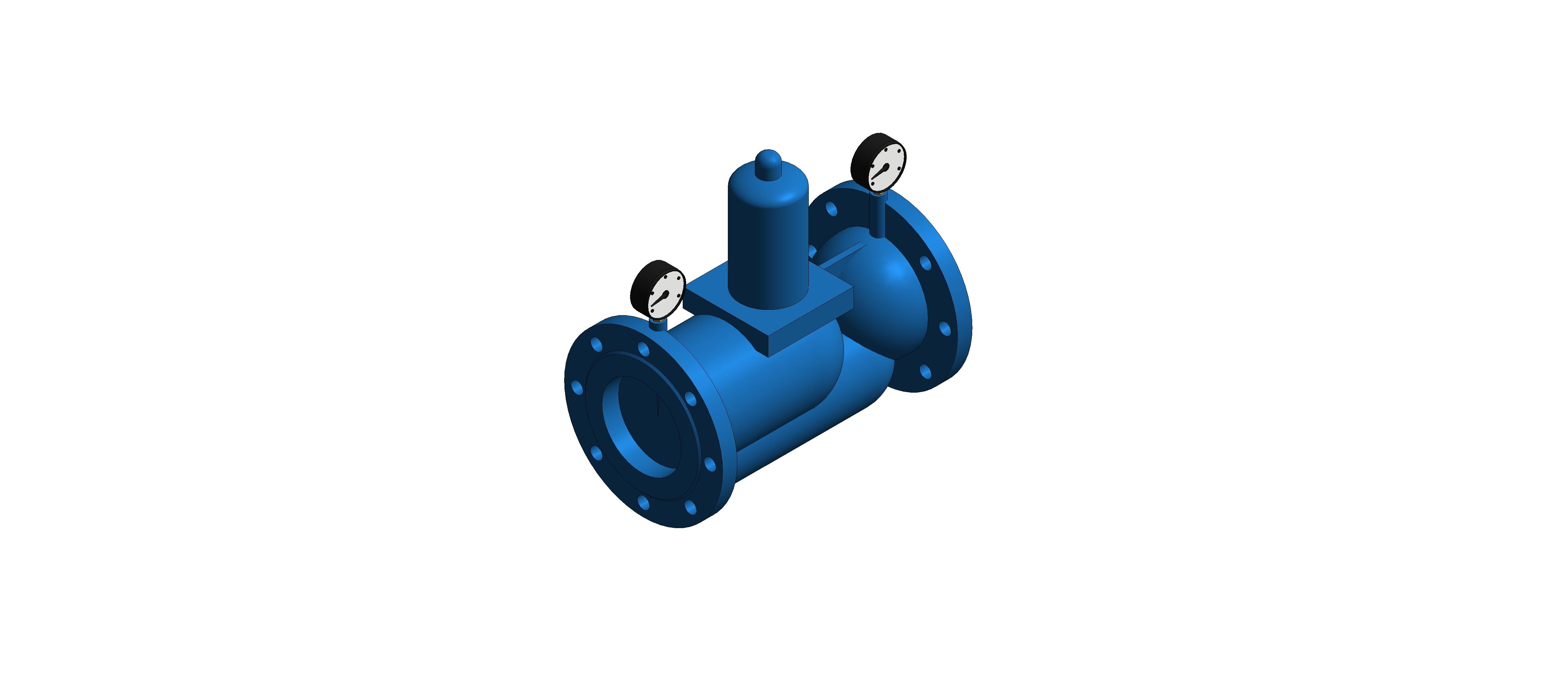

Description

PN25 Cast Iron Pressure Reducing Valve. Suitable for liquids. Adjustment dial for setting without operating pressure; bonnet can be positionable. Conforms to BS EN 1567. Supplied with pressure gauges.

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

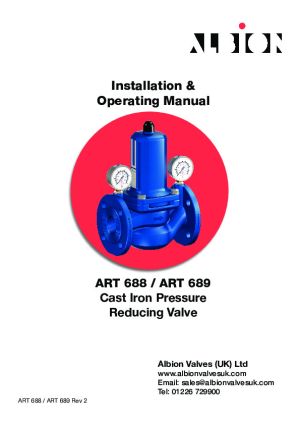

Installation Guide

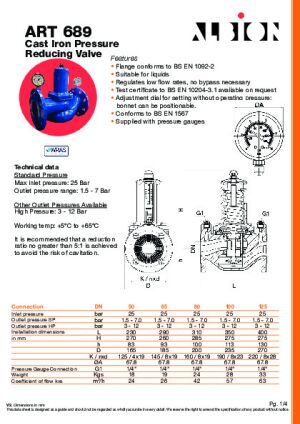

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/0263183d-32fb-41a0-9e08-91cfec1debdf/document/object-user-guide
115.9 mm
259.9 mm
374.0 mm
49.7 mm
5255.6 mm
6238.0 mm
714.1 mm
a78.8 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b98.9 mm
B24.0 mm
BIM Object NameAlbionValves_PipeAccessories_PressureReducingValve_ART689
Bolt Placement76.0 mm
Circular Drain PortYes
Classification NameUniclass2015
Classification ValuePr_65_54_95_66
Code Performancen/a
ColorBlue
Connection Radius50.0 mm
Connection Size100.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2025-03-10T09:00:00
d273.9 mm
D235.0 mm
D1180.0 mm
D2156.0 mm
D2 Radius78.0 mm
Default Elevation0.0 mm
DescriptionPN25 Cast Iron Pressure Reducing Valve
Documentation Certificateswww.albionvalvesuk.com/wp-content/uploads/2024/10/ART-688-ART-689-WRAS-Cert.pdf
Documentation Installation Guidewww.albionvalvesuk.com/wp-content/uploads/2024/08/ART-688-ART-689-IOM-Rev-2.pdf
Documentation Literaturewww.albionvalvesuk.com/part/art-689/
Documentation Maintenancewww.albionvalvesuk.com/wp-content/uploads/2024/08/ART-688-ART-689-IOM-Rev-2.pdf
Documentation Technicalwww.bimstore.co/products/0263183d-32fb-41a0-9e08-91cfec1debdf/document/technical-data-sheet
D Radius117.5 mm
Drain Port Height44.1 mm
Drain Port Width208.0 mm
Duration UnitYears
Expected Life0
f3.0 mm
Featuresn/a
FinishCast Iron
Graden/a
H275.0 mm
Height Calc1.8 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L350.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast Iron
Max Pressure25 Bar
ModelPN25 Cast Iron Pressure Reducing Valve
Model NumberDN100
Model ReferencePN25 Cast Iron Pressure Reducing Valve
n-d19.0 mm
NBS DescriptionPressure reducing valves
NBS Object NameAlbion Valves - Pressure reducing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/410
Nominal Depth220.0 mm
Nominal Height392.5 mm
Nominal Length350.0 mm
Nut Diameter20.0 mm
Nut Height8.0 mm
Outside Diameter118.0 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Size DN100
Spare Partsn/a
Square Drain PortNo
Strainer Symbol Length175.0 mm
Strainer Symbol Width75.0 mm
Thread Inch4
Thread Millimetre101.6 mm
Type CommentsDN100
Type NamePN25 Cast Iron Pressure Reducing Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight28 Kgs
Width Calc1.5 mm
Working Temperature+5°C to +65°C
