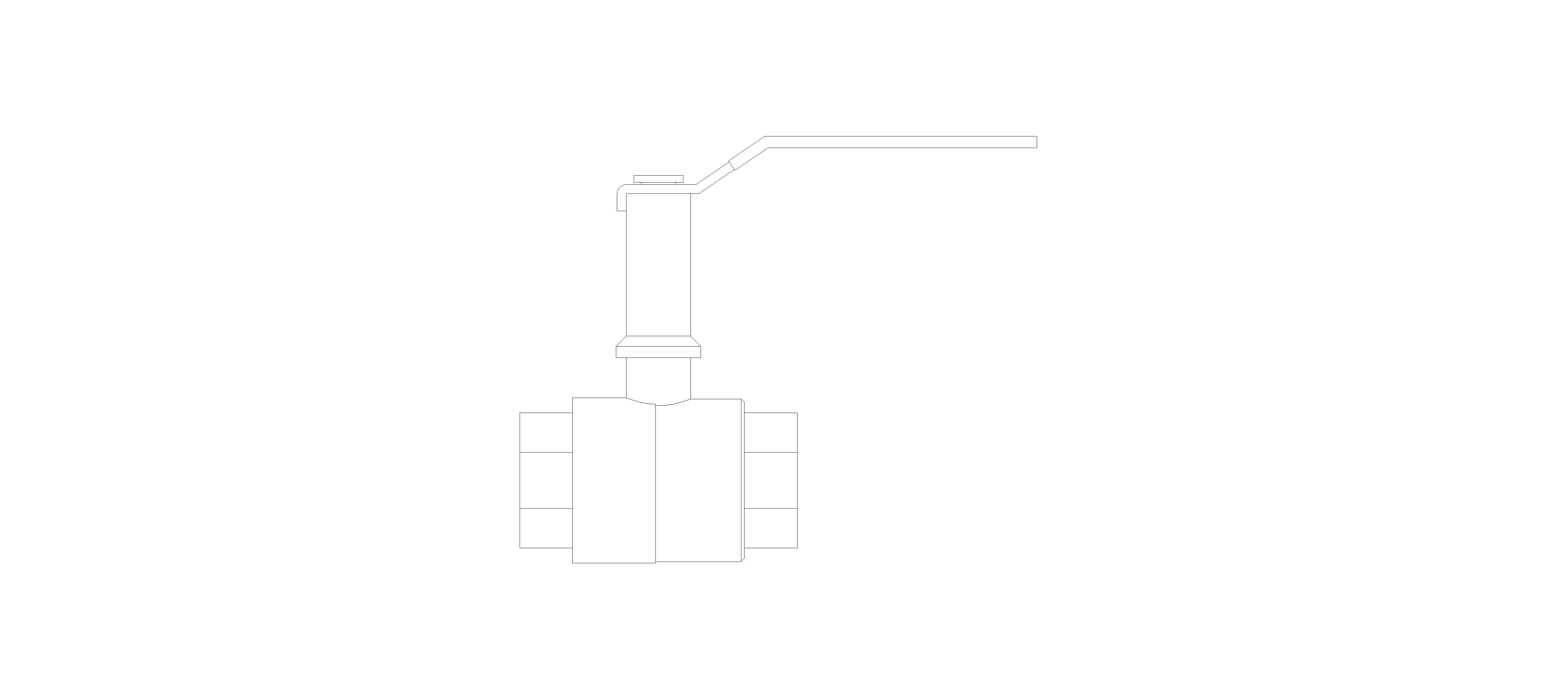

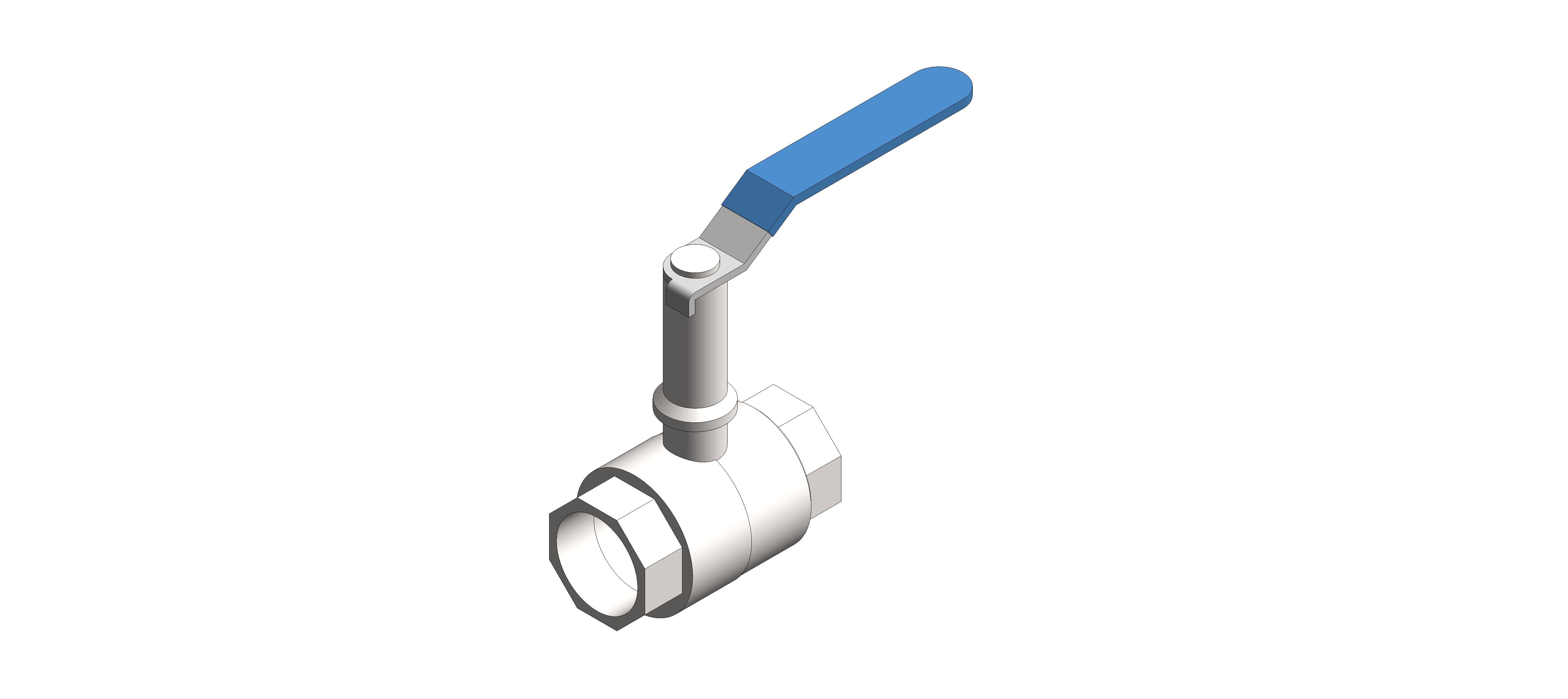

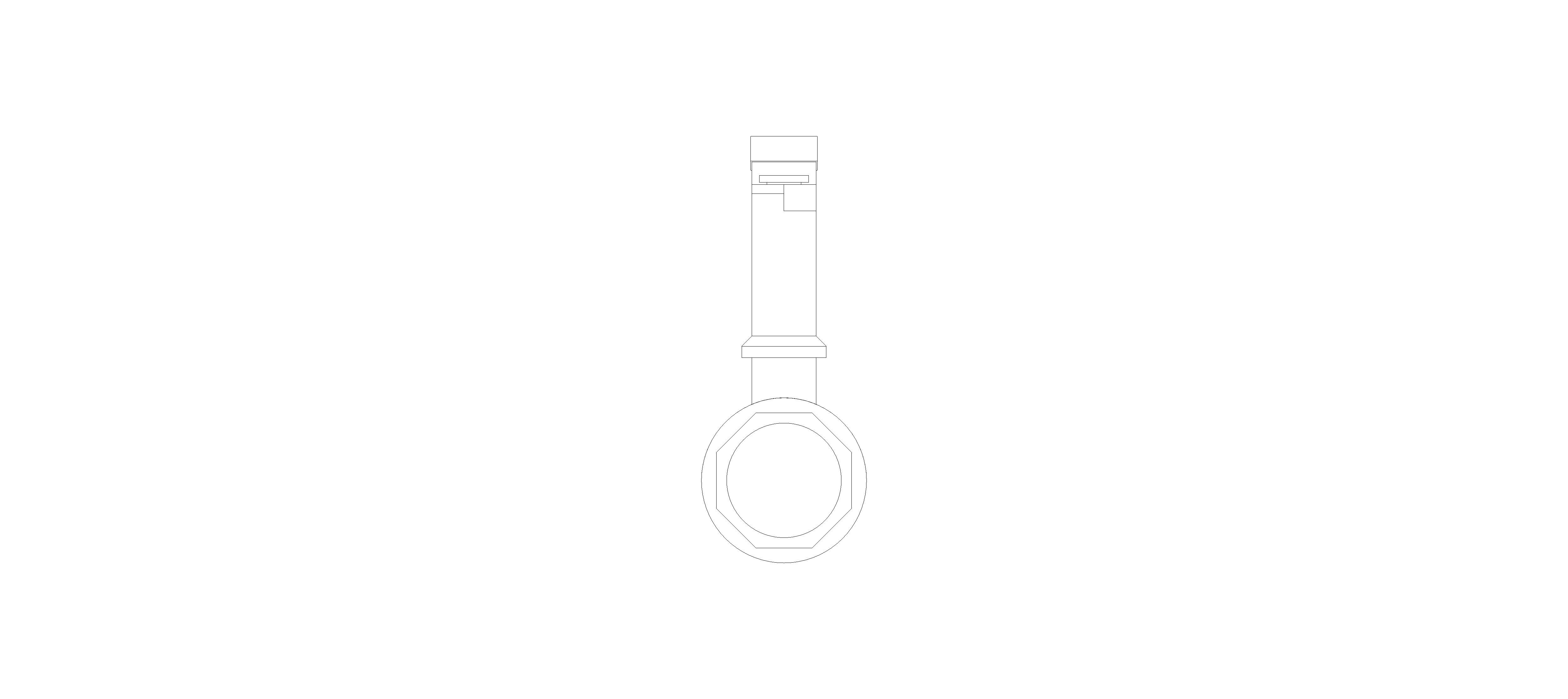

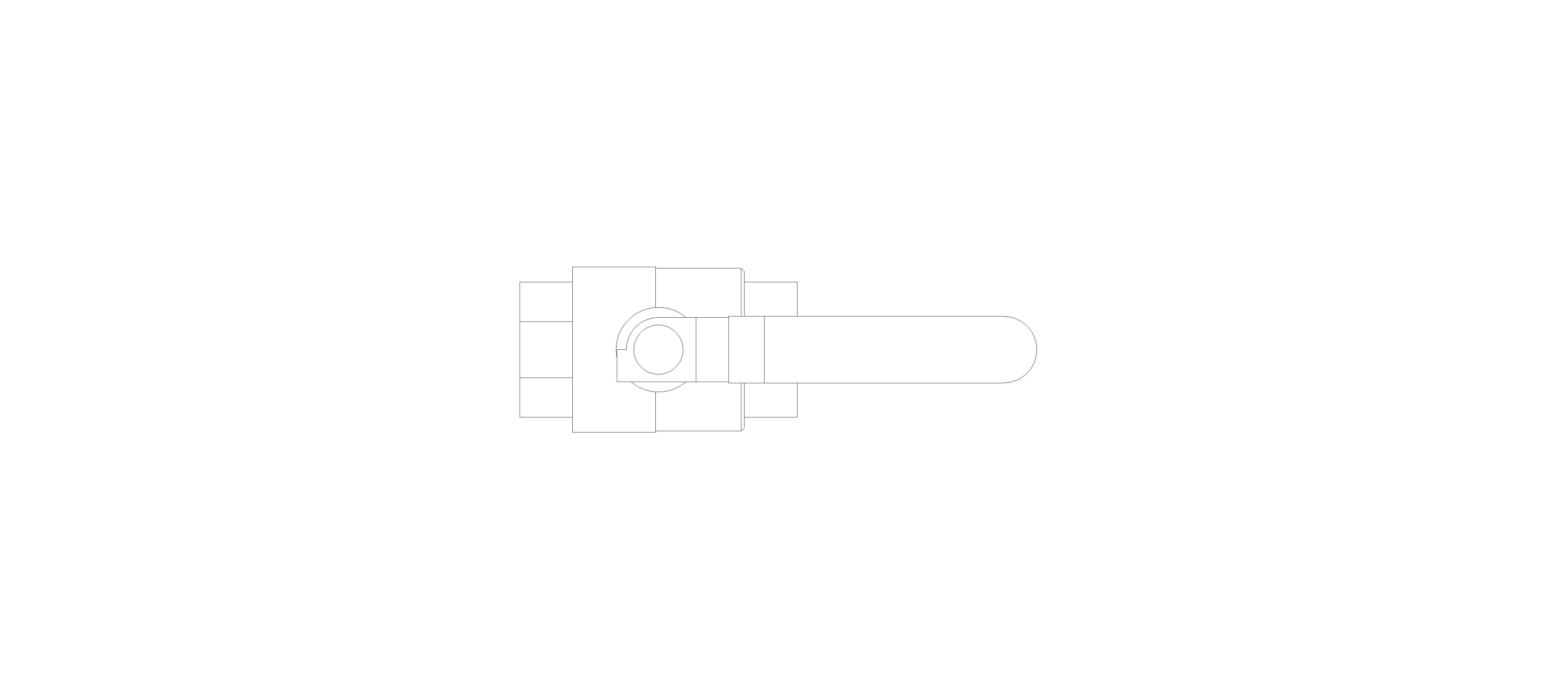

ART 40P 97X - Ball Valve complete with Thermal Extension

by Albion Valves

Download Add to collection

Description

PN40 Brass Ball Valve complete with Thermal Extension. Full bore.

Object Data

1 Revision

Last Updated

27/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

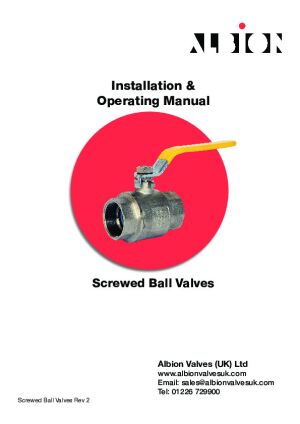

Installation Guide

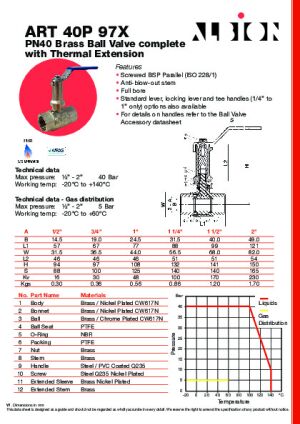

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/9f83aa0f-30e8-43fc-ac46-682bcda001ef/document/object-user-guide
117.1 mm
21.0 mm
312.0 mm
421.0 mm
a12.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b7.0 mm
BIM Object NameAlbionValves_PipeAccessories_BallValve_ART40P97X
c4.0 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_06
Code Performancen/a
ColorNickel
Connection Radius7.5 mm
Connection Size15.0 mm
Constituentsn/a
Cover MaterialPVC Plastic - Blue
Created Bysales@albionvalvesuk.com
Created On2025-03-10T09:00:00
d10.0 mm
Default Elevation0.0 mm
DescriptionART 40P 97X Brass Ball Valve
DN15.0 mm
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/wp-content/uploads/2022/07/Screwed-Ball-Valve-IOM-Rev-2.pdf
Documentation Literaturewww.albionvalvesuk.com/part/art-40p-with-thermal-extension/
Documentation Maintenancewww.albionvalvesuk.com/wp-content/uploads/2022/07/Screwed-Ball-Valve-IOM-Rev-2.pdf
Documentation Technicalwww.bimstore.co/products/9f83aa0f-30e8-43fc-ac46-682bcda001ef/document/technical-data-sheet
Duration UnitYears
e20.0 mm
Expected Life0
F15.0 mm
Featuresn/a
FinishBrass/Nickel plated
Graden/a
H94.0 mm
Handle MaterialSteel
Handle Placement69.0 mm
Handle Thickness2.5 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L87.5 mm
L152.0 mm
L2100.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialBrass/Nickel plated
Max Pressure40 Bar
ModelART 40P 97X Brass Ball Valve
Model NumberDN 1/2"
Model ReferenceART 40P 97X Brass Ball Valve
NBS DescriptionBall valves
NBS Object NameAlbion Valves - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth24.0 mm
Nominal Height106.0 mm
Nominal Length57.0 mm
Nut Radius8.5 mm
Nut Width11.0 mm
O14.5 mm
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SI57.0 mm
SizeDN 1/2"
Size DN15
Spare Partsn/a
Thread Inch1/2
Thread Millimetre12.7 mm
Type CommentsDN 1/2"
Type NameART 40P 97X Brass Ball Valve
URLwww.albionvalvesuk.com/
Valve FinishNickel Plating
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.30kg
Working Temperature-20°C to +140°C
