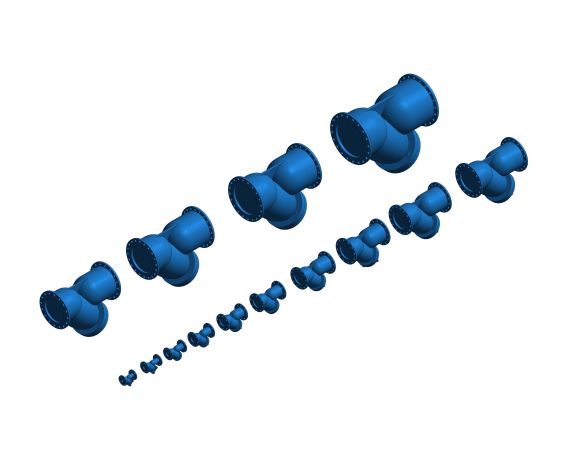

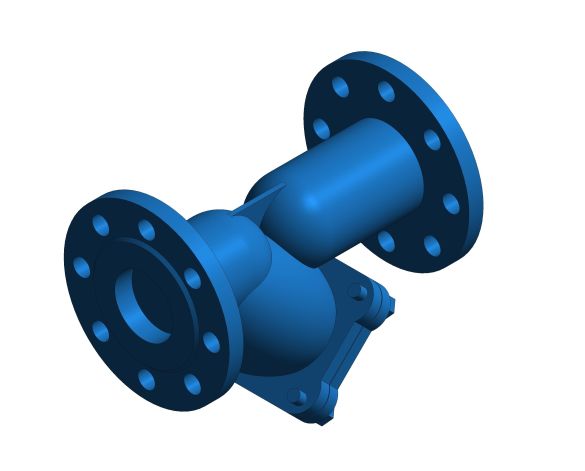

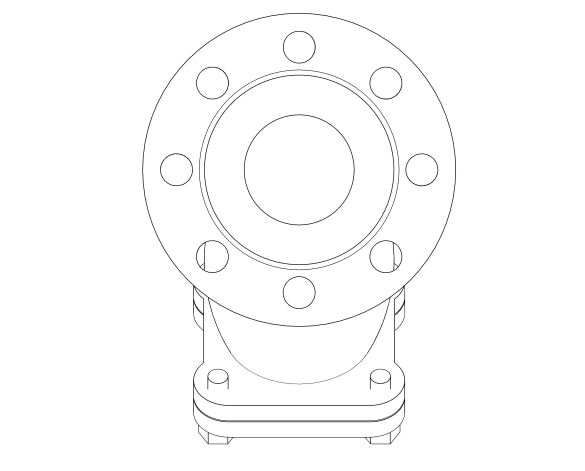

ART 187 - PN25 Ductile Iron “Y” Strainer

by Albion Valves

Download Add to collection

Description

PN25 Ductile Iron “Y” Strainer

Features

Flange Mounting PN25 Only
Flange conforms to BS EN1092 PN25
Conforms to BS EN558-1 Series 1

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

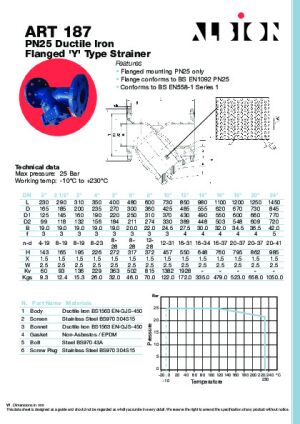

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-187-pn25-ductile-iron-y-strainer/document/object-user-guide
113.0 mm
249.3 mm
360.8 mm
48.0 mm
5210.1 mm
6189.9 mm
711.6 mm
a78.8 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b152.6 mm
B19.0 mm
BIM Object NameAlbionValves_PipeAccessories_Strainer_ART187
Bolt Placement76.0 mm
Circular Drain PortYes
Classification NameUniclass2015
Classification ValuePr_65_57_96_99
Code Performancen/a
ColorBlue
Connection Radius50.0 mm
Connection Size100.0 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
d273.9 mm
D235.0 mm
D2 Radius78.0 mm
DescriptionPN25 Cast Iron Y-type Strainer
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-187-pn25-ductile-iron-y-strainer/document/technical-data-sheet
D Radius117.5 mm
Drain Port Angle85.5 mm
Drain Port Height36.2 mm
Drain Port Width170.9 mm
Duration UnitYears
Expected Life0
f3.0 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
Flange D2156.0 mm
Flange Holes Dia190.0 mm
Graden/a
H226.0 mm
H2319.6 mm
Height Calc1.4 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L350.0 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Max Pressure25 Bar
ModelPN25 Cast Iron Y-type Strainer
Model NumberDN100 - DN4"
Model ReferencePN25 Cast Iron Y-type Strainer
n-d19.0 mm
NBS DescriptionY-type water strainers
NBS Object NameAlbion Valves - Y-type water strainers
NBS Office Master Tagn/a
NBS Reference90-10-60/400
Nominal Depth235.0 mm
Nominal Height343.5 mm
Nominal Length350.0 mm
Nut Diameter20.0 mm
Nut Height8.0 mm
Outside Diameter118.0 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Square Drain PortNo
Strainer Symbol Length175.0 mm
Strainer Symbol Width75.0 mm
Thread Inch4
Thread Millimetre101.6 mm
Type CommentsDN100 - DN4"
Type NamePN25 Cast Iron Y-type Strainer
URLwww.albionvalvesuk.com/
Valve FinishDuctile Iron, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight26 kg
Width Calc1.5 mm
Working Temperature-10°C to +230°C
