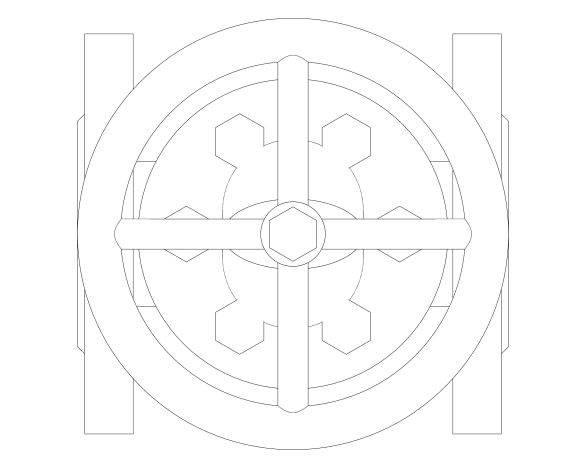

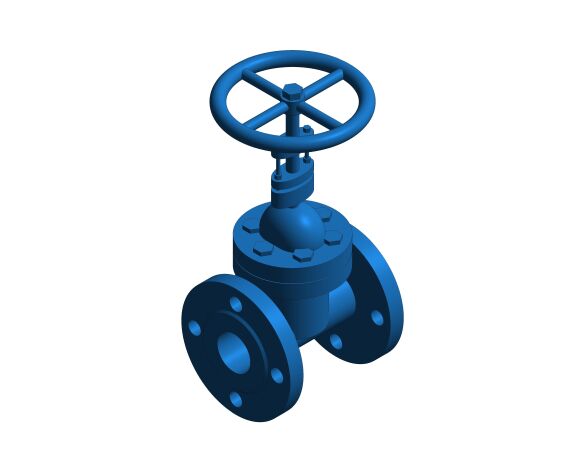

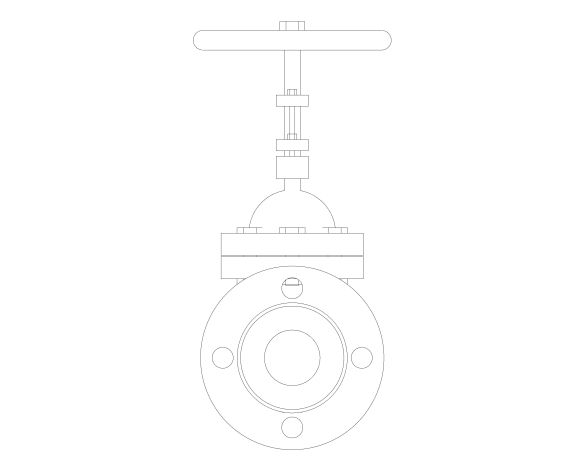

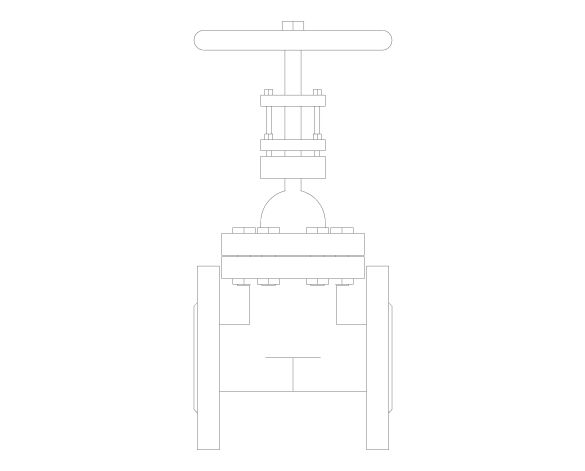

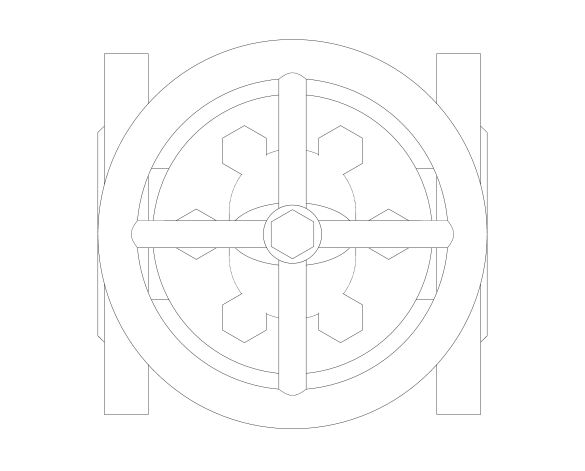

ART 235 - Gate Valve

by Albion Valves

Download Add to collection

Description

Description
Cast Iron PN16 Gate Valve. Bronze Trim. Stainless Steel Stem.

Connection
Flanged PN16

Approvals/ other
BS 5150
CE Approved

Pressure
16 Bar Rated

Temperature
-10°C to +230°C

Object Data

1 Revision

Last Updated

03/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

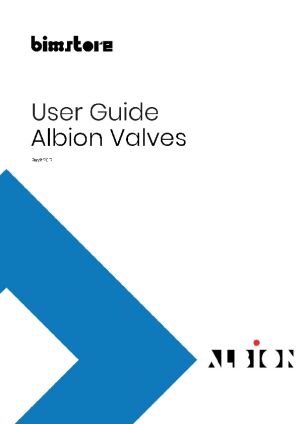

Object User Guide

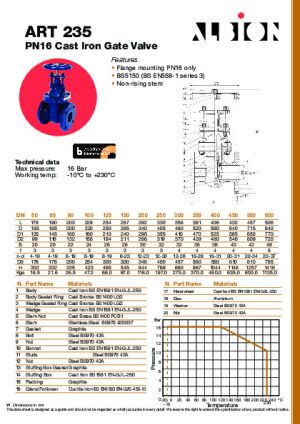

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-235/document/object-user-guide
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B24.00 mm
BIM Object NameAlbionValves_PipeAccessories_GateValve_ART235
Classification NameUniclass2015
Classification ValuePr_65_54_95_12
Code Performancen/a
ColorBlue
Connection Size100.00 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D220.00 mm
DescriptionPN16 Cast Iron Gate Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.albionvalvesuk.com/
Duration UnitYears
Expected Life0
F3.00 mm
Featuresn/a
FinishAlkyd Paint Coat Finish
Gland Length Radius54.50 mm
Gland Width Radius27.25 mm
Gland Width Radius Calc10.00 mm
Graden/a
H423.00 mm
H1162.00 mm
H2162.50 mm
Half L114.50 mm
Handle MaterialIron, Cast, Blue
Handwheel Nut Diameter32.25 mm
Handwheel Nut Height7.92 mm
Handwheel Radius127.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
L229.00 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCast Iron
Max Pressure16 Bar
ModelPN16 Cast Iron Gate Valve
Model NumberDN100 - DN4"
Model ReferencePN16 Cast Iron Gate Valve
NBS DescriptionCast iron gate valves
NBS Object NameAlbion Valves - Cast iron gate valves
NBS Office Master Tagn/a
NBS Reference90-10-90/336
Nominal Depth179.00 mm
Nominal Height423.00 mm
Nominal Length229.00 mm
Nut Centre69.50 mm
Nut Dia20.00 mm
Nut Dia 213.63 mm
Nut Gap50.00 mm
Nut Gap 273.00 mm
Nut H124.00 mm
Nut H224.00 mm
Nut H324.00 mm
Nut H412.00 mm
Nut H512.00 mm
Nut Height5.00 mm
Nut Nut Offset35.00 mm
Nut Offset13.63 mm
Outside Diameter110.00 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Stem Height240.38 mm
Stem MaterialIron, Cast, Blue
Stem Radius13.63 mm
Symbol Height60.00 mm
Symbol Width72.00 mm
Thread Inch4
Thread Millimetre101.60 mm
Type CommentsDN100 - DN4"
Type NamePN16 Cast Iron Gate Valve
URLwww.albionvalvesuk.com/
Valve FinishIron, Cast, Blue
Vertial Dia129.00 mm
Vertical Dia 2179.00 mm
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight47.2kgs
Working Temperature-10°C to +230°C

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
