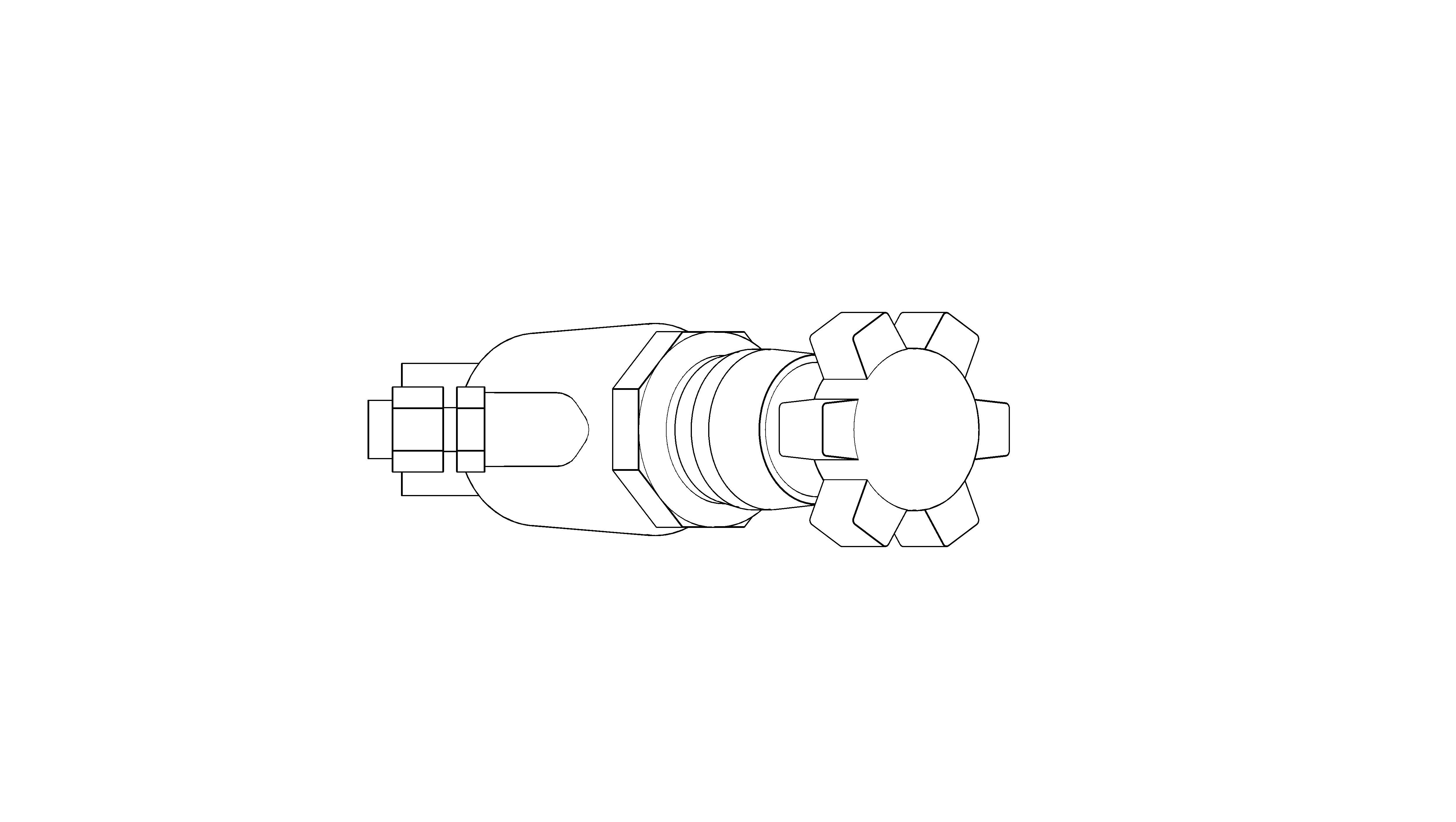

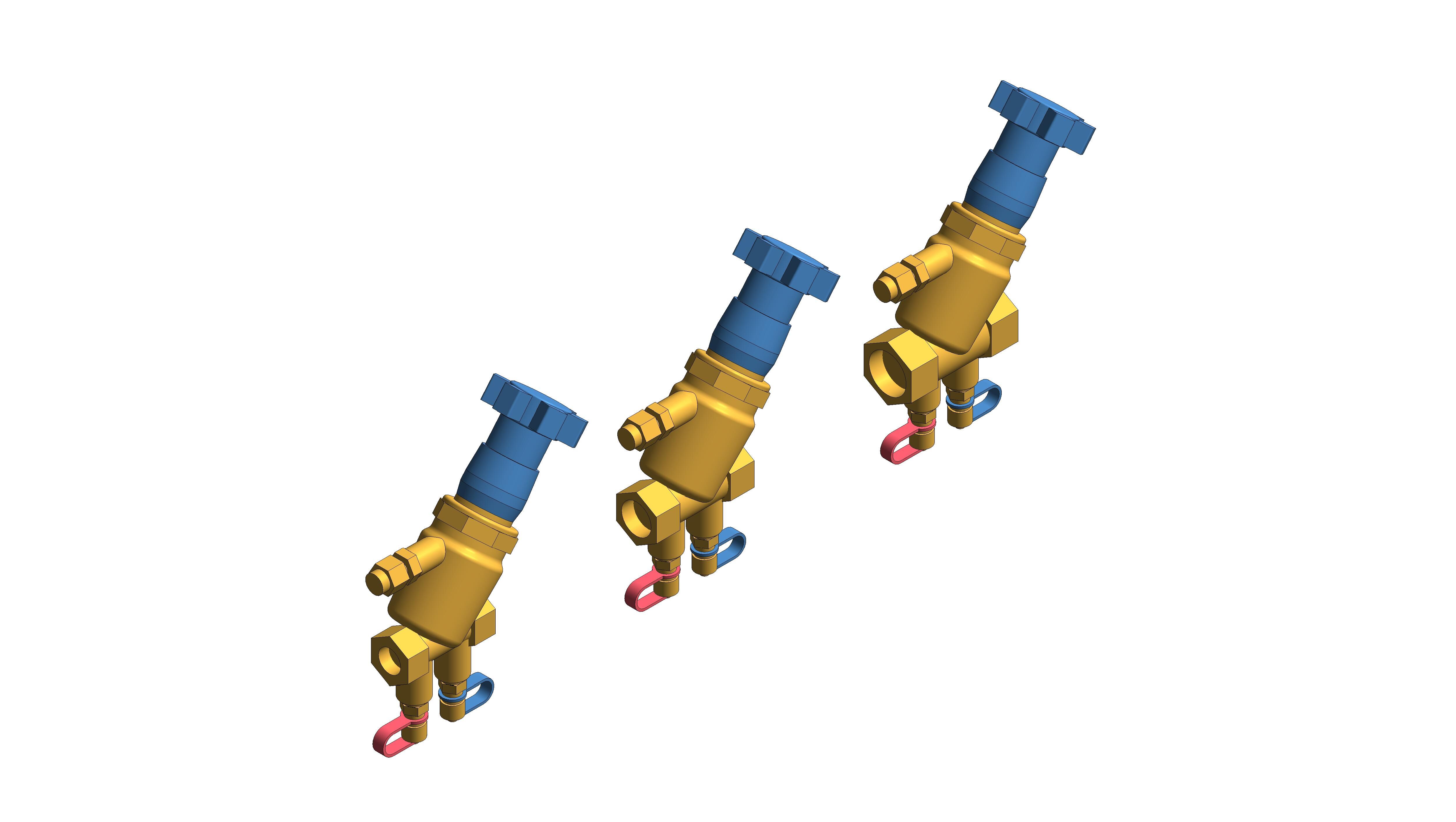

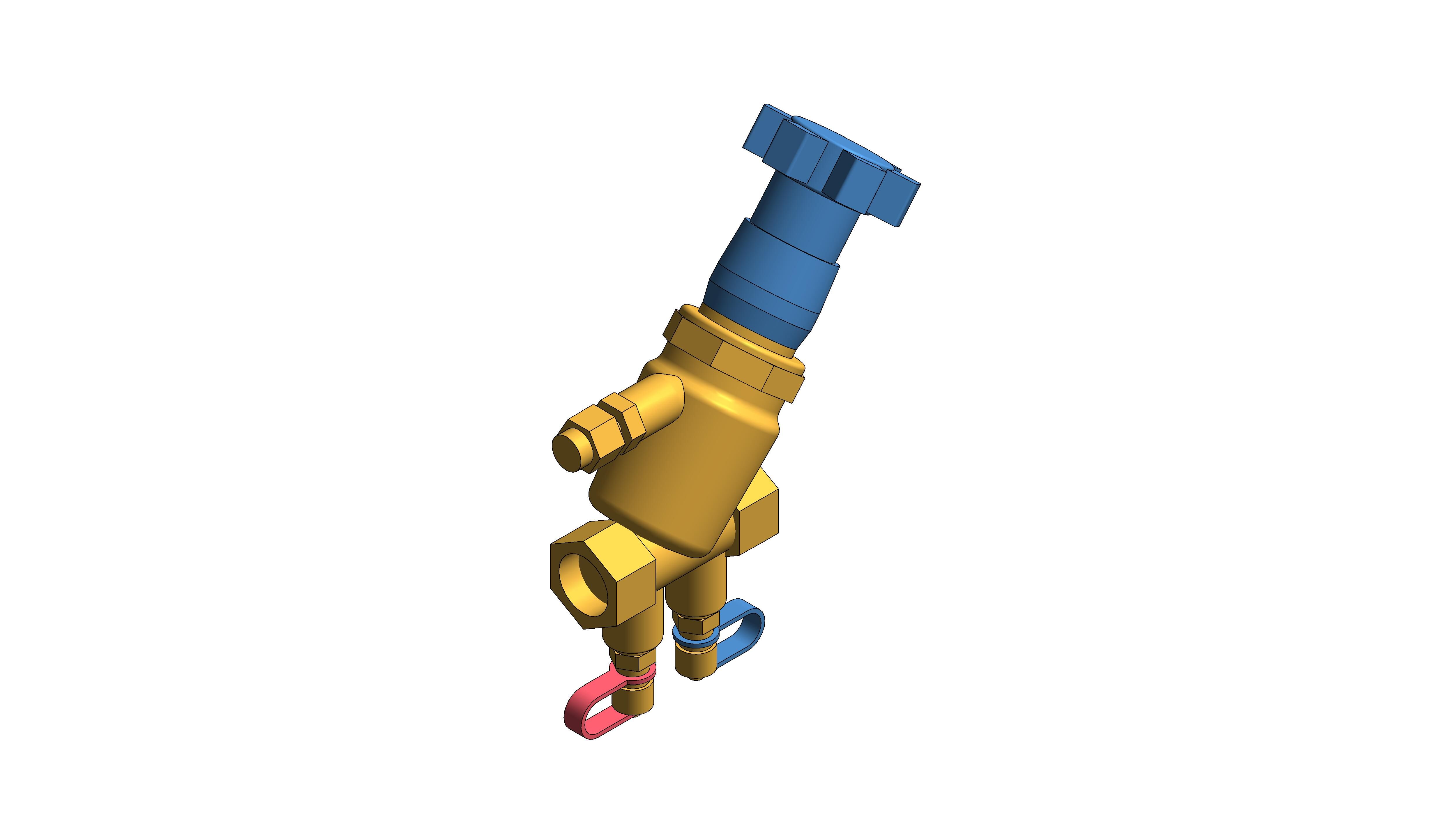

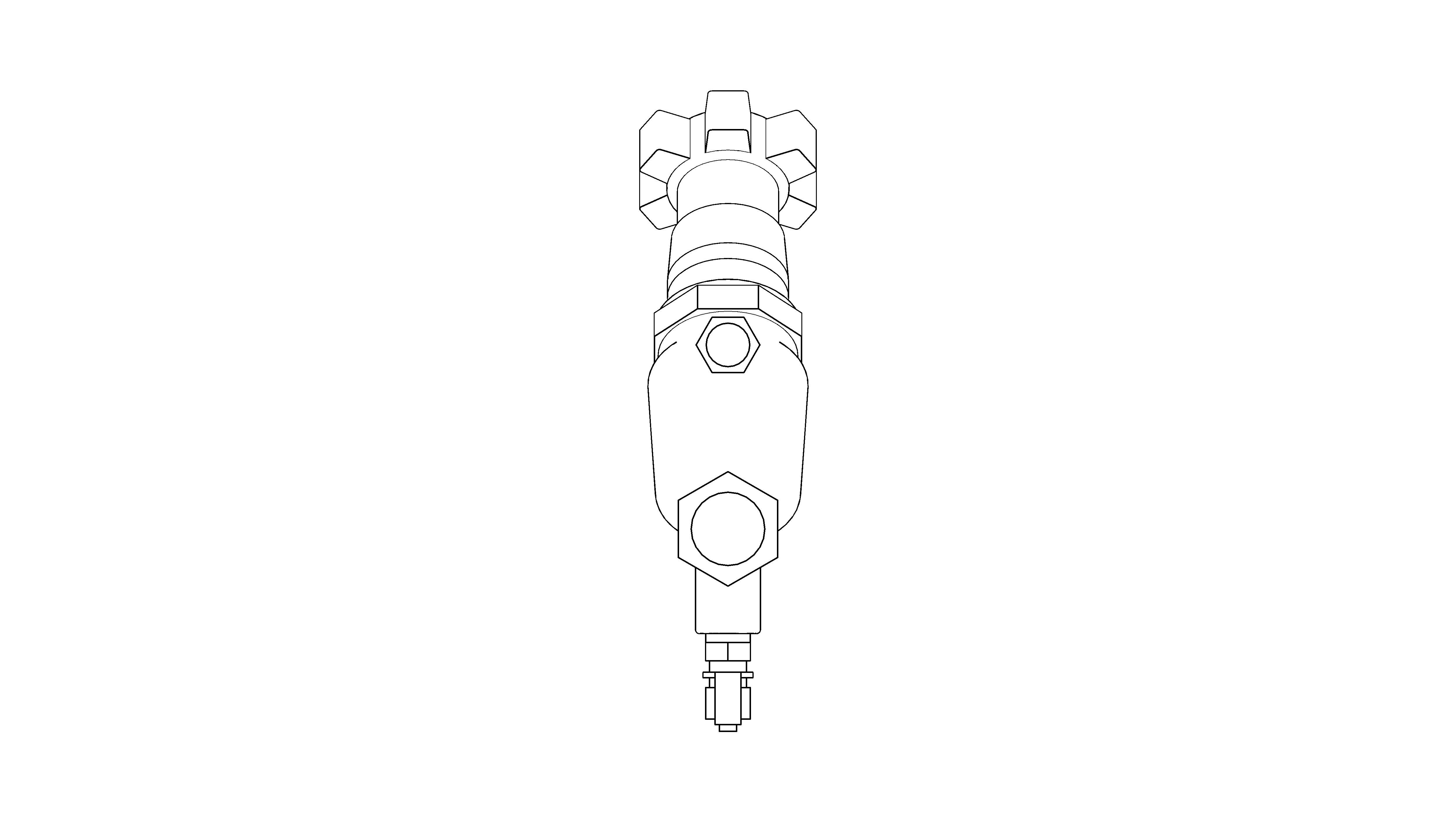

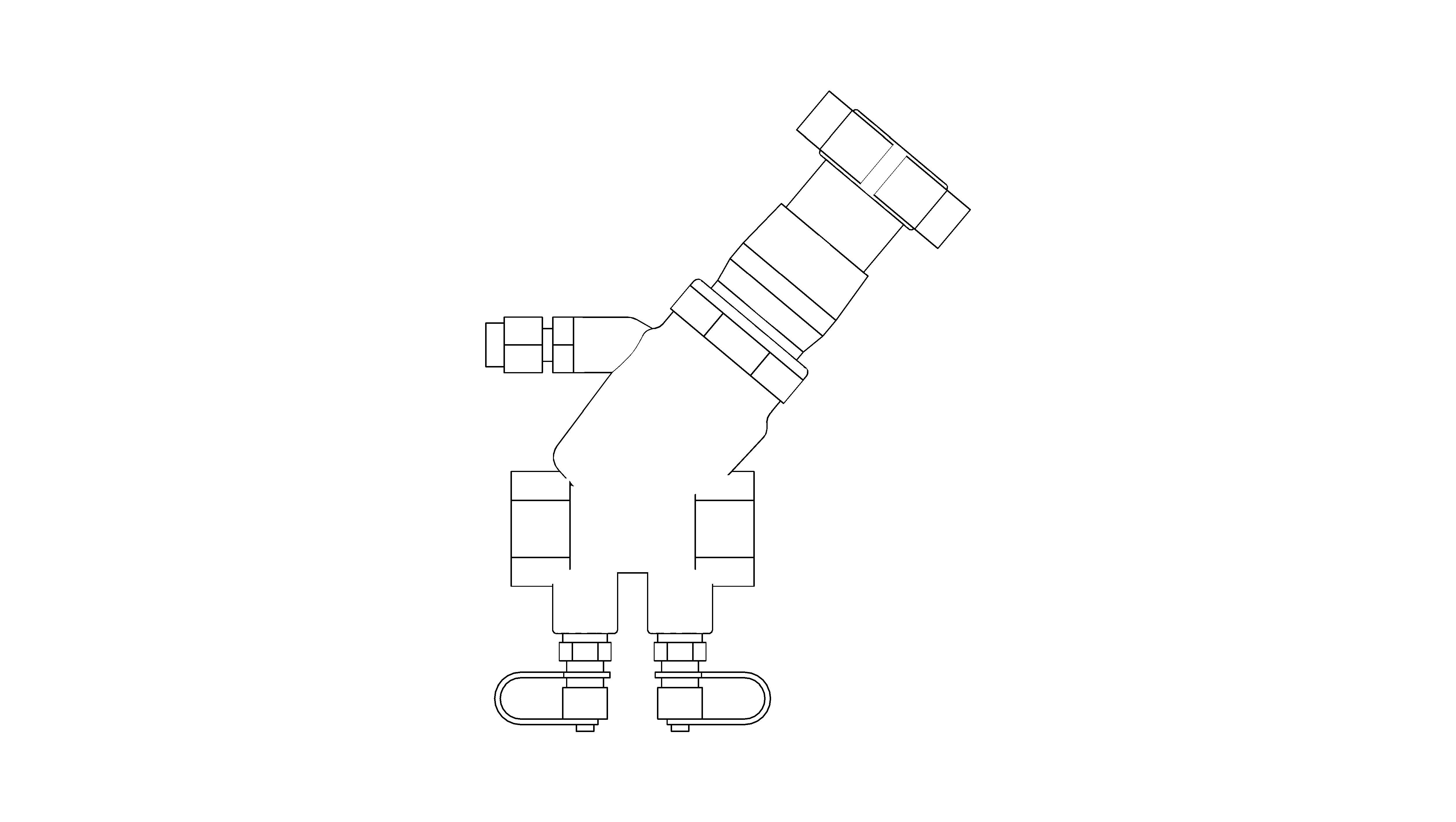

ART 24C - DPCV Partner Valve

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/art-24c-dpcv-partner-valve/document/product-certificates
• A50.0 mm
• a10.0 mm
• Accessibility Performancen/a
• Assembly CodeD20
• Asset TypeFixed
• b14.0 mm
• B119.0 mm
• B155.0 mm
• BIM Object NameAlbionValves_PipeAccessories_DPCVPartnerValve_ART24C
• Blue Binder PointDZR Brass CW602N-M
• BodyDZR Brass CW602N-M
• BonnetDZR Brass CW602N-M
• C59.0 mm
• C1122.0 mm
• CapPlastic
• CH25.0 mm
• Classification NameUniclass2015
• Classification ValuePr_65_54_95_25
• Code Performancen/a
• ColorBrass
• Connection Size15.0 mm
• Constituentsn/a
• Created Bysales@albionvalvesuk.com
• Created On2023-08-07 T09:00:00
• D12.0 mm
• Default Elevation0.0 mm
• DescriptionART 24C PN16 DPCV
• Differential Pressure CartridgeDZR Brass CW602N-M
• Documentation Certificateswww.bimstore.co/products/art-24c-dpcv-partner-valve/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/art-24c-dpcv-partner-valve/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/art-24c-dpcv-partner-valve/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/art-24c-dpcv-partner-valve/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/art-24c-dpcv-partner-valve/document/technical-data-sheet
• Duration UnitYear
• E50.0 mm
• Expected Life0
• Features• BSP Parallel (ART 24C ISO 228/1), (ART 28DP ISO 7/1) • Impulse tube connection point for ART 24C DPCV • Supplied as shown with fitting and measuring nipples • Handwheel shut-off function and clear 360° reading • Allen key locking mechanism enabling valve to be closed and re-opened to its exact pre-set position • Conforms to BS 7350 / BS 5154 • System ΔP is measured from PF- to P+ System flow may be adjusted on ART 28DP whilst measuring ΔP from PF+ to PFDN
• FinishDZR Brass
• Flow Range0.042-0.306 l/s
• Graden/a
• Hex Width25.0 mm
• HighΔPYes
• Ifc Export AsIfcValve
• Ifc Export TypeIfcValveTypeEnum.CHECK
• KeynoteS
• Kv4.1
• LowΔPNo
• ManufacturerAlbion Valves
• Manufacturer NameAlbion Valves
• MaterialDZR Brass
• Maximum Differential Pressure400kPa
• Maximum Pressure16 bar
• ModelART 24C
• Model NumberDN15 High ΔP
• Model ReferenceART 24C
• NBS DescriptionDifferential pressure control valves
• NBS Noten/a
• NBS Object NameAlbion Valves - Differential pressure control valves
• NBS Office Master Tagn/a
• NBS Reference90-10-90/425
• Nominal Depth0.0 mm
• Nominal Height0.0 mm
• Nominal Length0.0 mm
• O-RingEPDM
• Production Year2023
• Red Binder PointDZR Brass CW602N-M
• Referenced Standardn/a
• Replacement Costn/a
• Screwed EndDZR Brass CW602N-M
• Shapen/a
• SizeDN15 High ΔP
• Size DN15
• Spare Partsn/a
• StemDZR Brass CW602N-M
• Thread Inch1/2
• Type CommentsDN15 High ΔP
• Type NameART 24C
• URLwww.albionvalvesuk.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts5
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor Partssales@albionvalvesuk.com
• Weight0.87kg
• Working Temperature-10°C to +120°C
• ΔP Vers20-60 kPa
