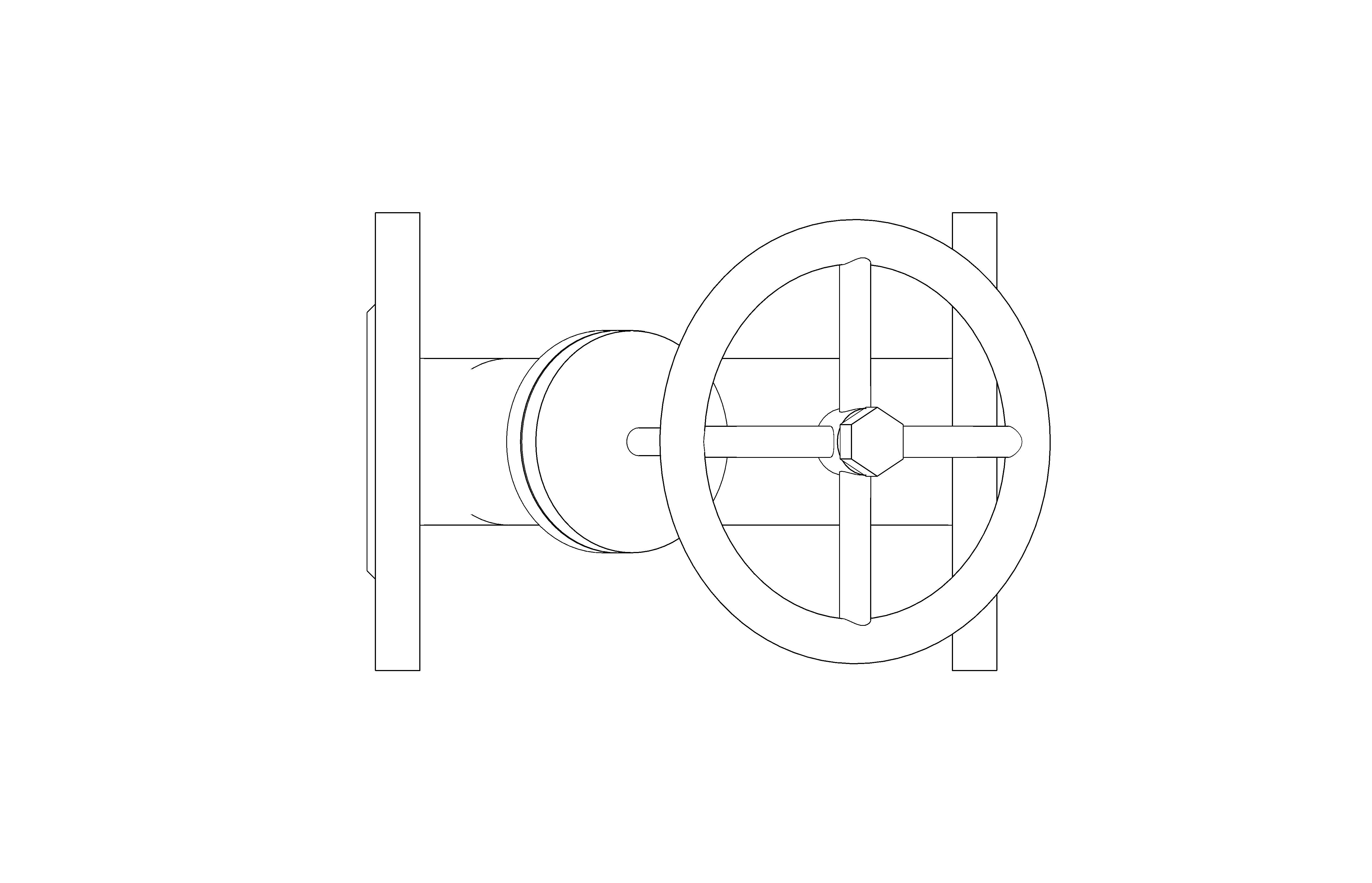

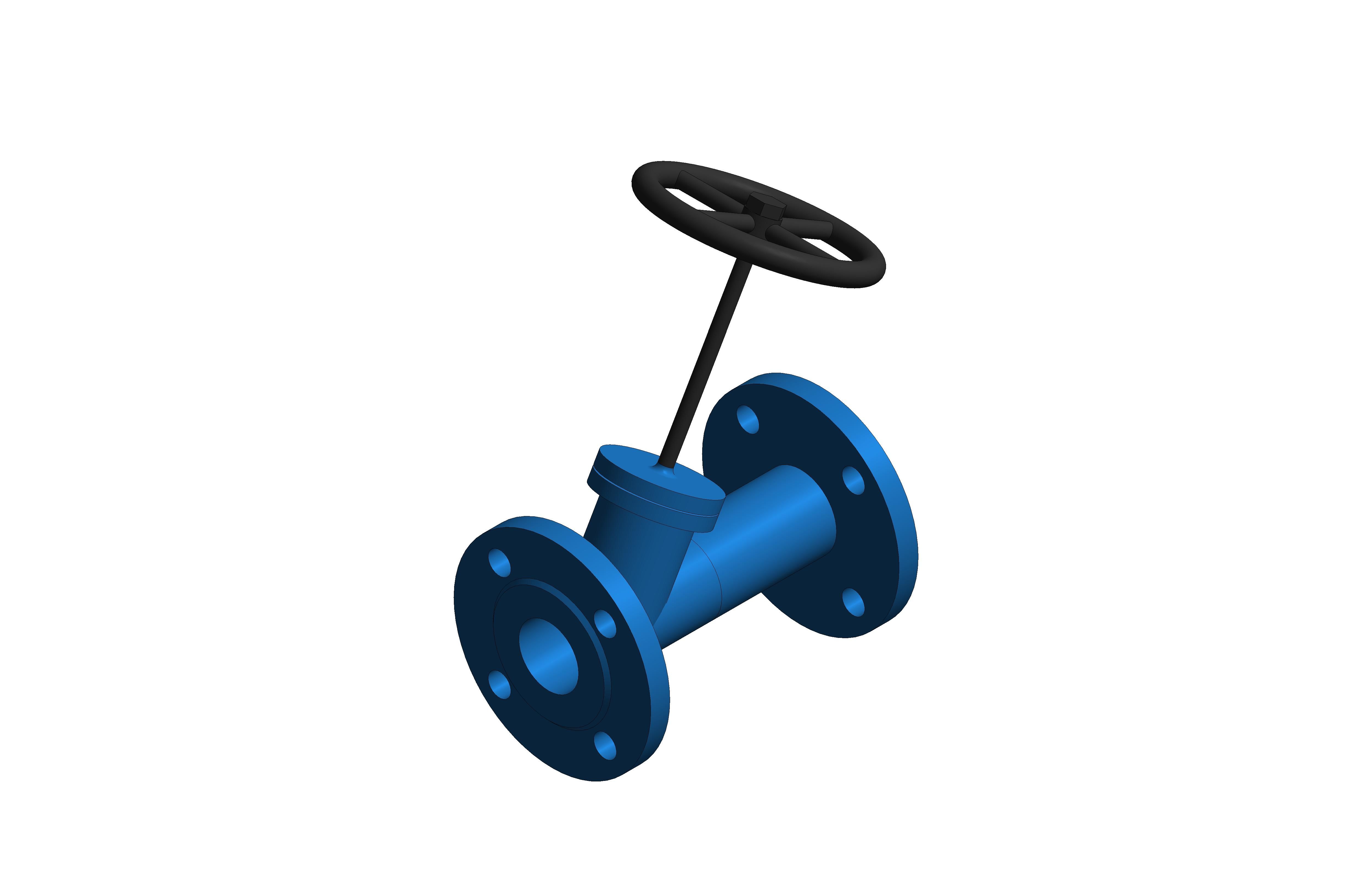

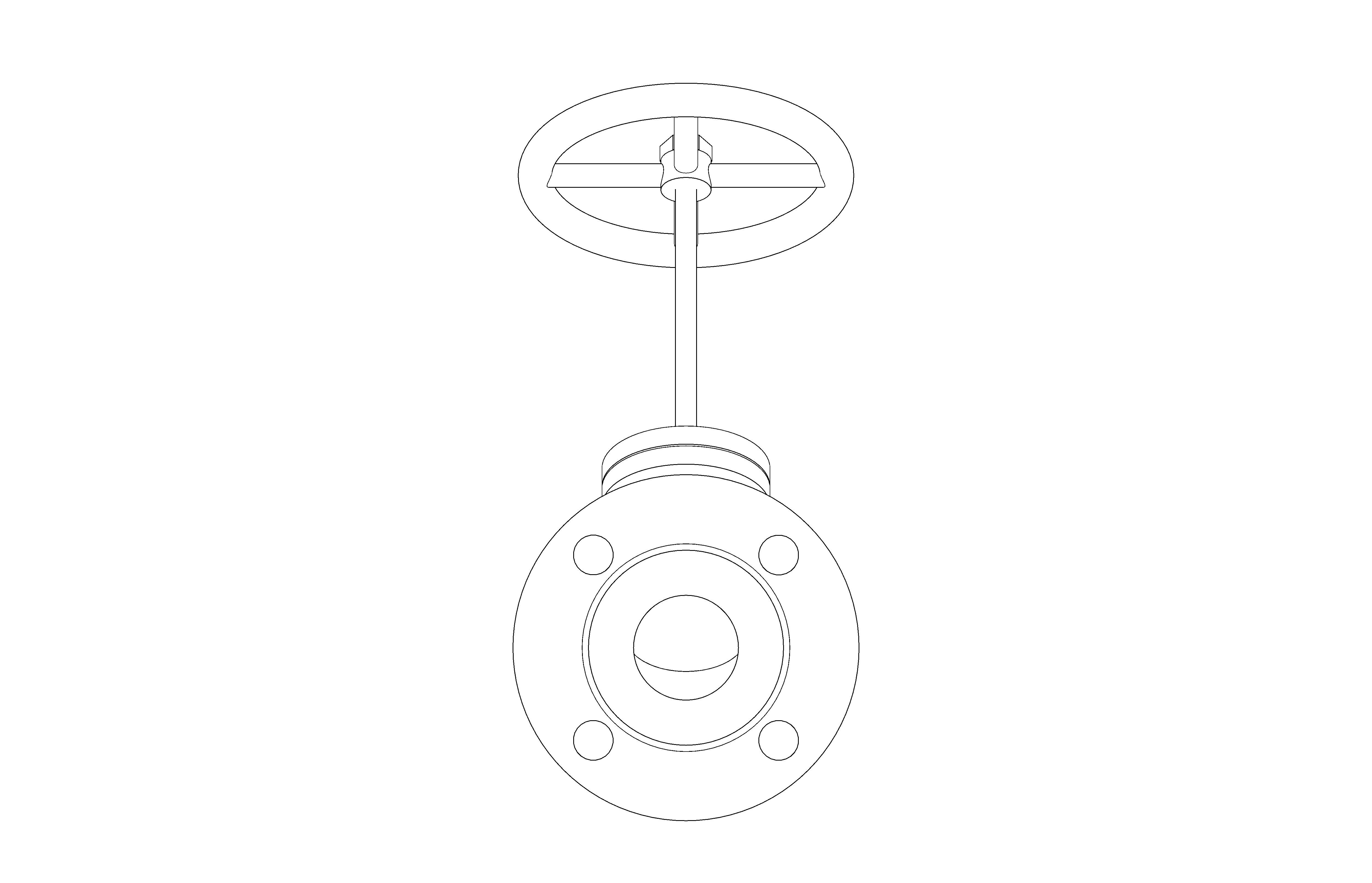

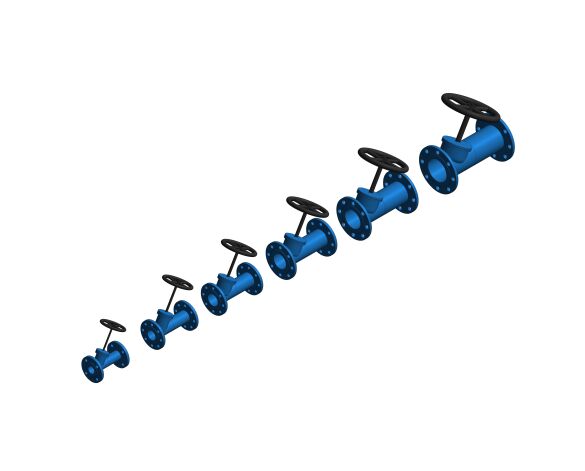

ART 250 HP - PN25 Ductile Iron Double Regulating Valve (DRV)

by Albion Valves

Download Add to collection

Description

PN25 Ductile Iron Double Regulating Valve (DRV)

Features

Flange Mounting PN25 Only
Flange conforms to BS EN1092 PN25
Position indicator
Double regulating device
Supplied with 2 test points and extensions
EPDM cone seating gives tight shut off
Body ductile iron
Conforms to BS 5152 / BS 7350

Object Data

1 Revision

Last Updated

20/10/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

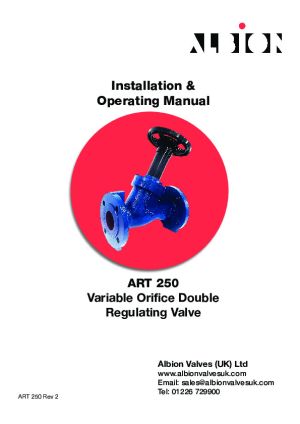

Installation Guide

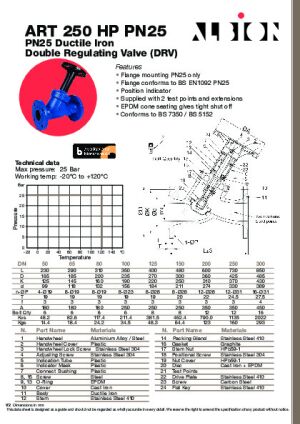

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-250-hp-pn25-ductile-iron-double-regulating-valve-drv/document/object-user-guide
a340 mm
A60.00 °
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b155 mm
B30.00 °
BIM Object NameAlbionValves_PipeAccessories_DoubleRegulatingValve_ART250
C90.00 °
c310 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_26
Code Performancen/a
ColorBlue
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2020-08-19T09:00:00
D235 mm
DescriptionPN25 Ductile Iron Double Regulating Valve (DRV)
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-250-hp-pn25-ductile-iron-double-regulating-valve-drv/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishAlkyd Paint Coat Finish
Flange D2156 mm
Graden/a
Half L175 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K190 mm
KeynoteS
L350 mm
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialDuctile Iron
Max Pressure25 Bar
ModelPN25 Ductile Iron Double Regulating Valve (DRV)
Model NumberDN100 - DN4"
Model ReferencePN25 Ductile Iron Double Regulating Valve (DRV)
NBS DescriptionDouble regulating valves
NBS Object NameAlbion Valves - Double regulating valves
NBS Office Master Tagn/a
NBS Reference90-10-90/356
Nominal Depth235 mm
Nominal Height458 mm
Nominal Length350 mm
Outside Diameter110 mm
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare PartsTest points
Stem Radius10 mm
Symbol Placement 150 mm
Symbol Placement 228 mm
T19 mm
Tee Centre70 mm
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NamePN25 Ductile Iron Double Regulating Valve (DRV)
URLwww.albionvalvesuk.com/
Valve FinishDuctile Iron, Blue
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight34.5 kg
Wheel Angle72 mm
Working Temperature-10°C to +120°C
