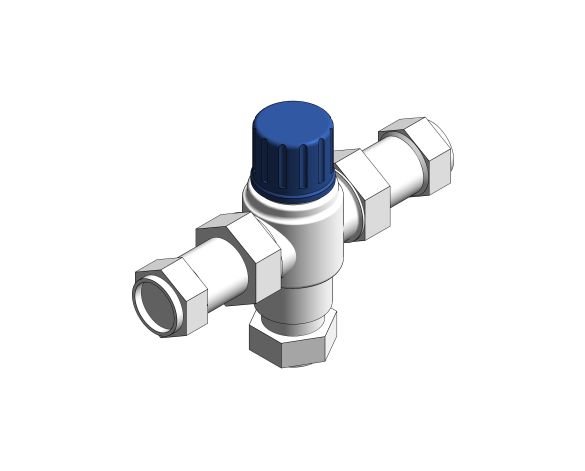

ART 33 - Thermostatic Mixing Valve

by Albion Valves

Download Add to collection

Description

Description
Compression Thermostatic Mixing Valve (TMV)

Connection
Compression Ends.

Approvals/ other
WRAS Approved.

Pressure
10 Bar (Static), 5 Bar (Dynamic)

Temperature
+30°C to +48°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

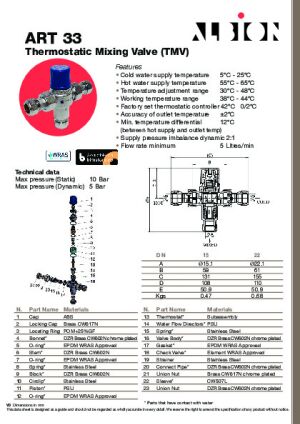

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-33/document/object-user-guide
A15.00 mm
a47.00 mm
Accessibility Performancen/a
Accuracy Of Outlet Temperature±2°C
Assembly CodeD20
Asset TypeFixed
B59.00 mm
b104.56 mm
BIM Object NameAlbionValves_PipeAccessories_ThermostaticMixingValve_ART33
C130.70 mm
c19.00 mm
Cap MaterialPlastic - Blue
Classification NameUniclass2015
Classification ValuePr_65_54_95_88
Code Performancen/a
Cold Water Supply Temperature5°C - 25°C
ColorSilver
Connection Radius7.50 mm
Connection Size15.00 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-08-29 T09:00:00
d13.25 mm
D107.80 mm
DescriptionART33 Thermostatic Mixing Valve
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-33/document/technical-data-sheet
Duration UnitYears
e10.45 mm
E50.90 mm
Expected Life0
f10.30 mm
Factory Set Thermostatic Controller42°C 0/2°C
Featuresn/a
FinishChrome
Flow Rate Minimum5 Litres/min
Graden/a
Hot Water Supply Temperature55°C - 65°C
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
MaterialCW602N chrome plated
Max Pressure10Bar (Static). 5 Bar (Dynamic).
Minimum Temperature Differential12°C
ModelART33 Thermostatic Mixing Valve
Model NumberDN15
Model ReferenceART33 Thermostatic Mixing Valve
NBS DescriptionThermostatic mixing valves
NBS Object NameAlbion Valves - Thermostatic mixing valves
NBS Office Master Tagn/a
NBS Reference90-10-90/370
Nominal Depth38.00 mm
Nominal Height107.80 mm
Nominal Length130.70 mm
Nut Thickness 110.00 mm
Nut Thickness 212.00 mm
Nut Width21.50 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Size DN15
Spare Partsn/a
Supply Pressure Imbalance Dynamic2:1
Temperature Adjustment Range30°C - 48°C
Thread Inch1/2
Thread Millimetre15.10 mm
Type CommentsDN15
Type NameART33 Thermostatic Mixing Valve
URLwww.albionvalvesuk.com/
Valve FinishDZR Brass - Chrome Plated
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight0.47 kgs
